ICS Triplex T8480: How to Troubleshoot I/O Module Issues

Views: 0 Author: Site Editor Publish Time: 2026-10-16 Origin: Site

Inquire

ICS Triplex T8480: How to Troubleshoot I/O Module Issues

What the T8480 Module Does

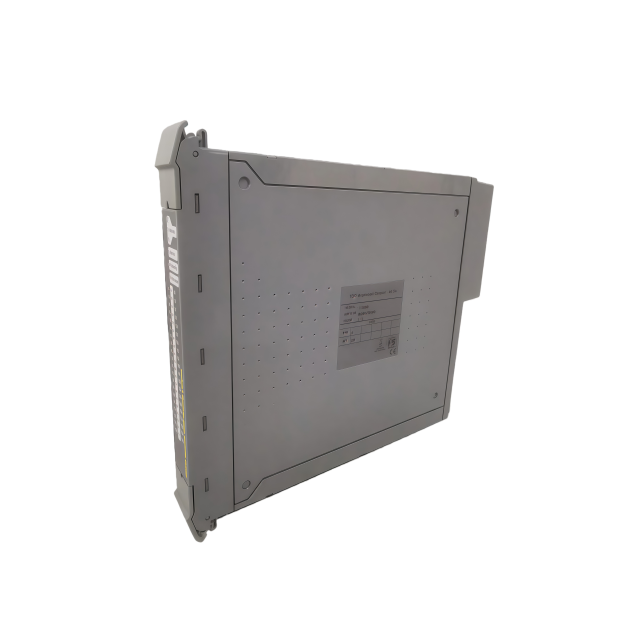

The ICS Triplex T8480 is a triplicated digital output module used in Trusted TMR safety systems. It communicates with the Trusted controller over the system backplane and drives field devices such as solenoid valves, relays, indicator lamps, and interposing relays. Because the Trusted platform uses two-out-of-three voting, a single channel fault may be tolerated, but the system will still report a diagnostic condition that must be investigated.

The T8480 is commonly supplied as a 24 VDC digital output module with 40 channels in many Trusted installations. However, the exact channel count, voltage rating, and load capacity depend on the module revision and system configuration. Always verify these values against the installed Trusted system documentation before changing wiring or replacing parts.

Before Troubleshooting

Confirm the Failure Mode

Start with the Trusted diagnostic software or HMI. Identify:

Whether the fault is module-level or channel-level
Whether the system is reporting a voting mismatch, self-test failure, or field wiring fault
Whether the output is being commanded but not appearing at the terminals

This step is important. A T8480 can look faulty when the actual problem is a missing output command, an interlock, or a field device failure.

Follow Safety Procedures

Use proper lockout/tagout if required
Do not bypass a safety output without a documented risk assessment and management approval
Use calibrated test equipment
Never apply external voltage to output terminals during testing

T8480 Troubleshooting Checklist

1. Read Module Status Indicators

Check the module LEDs against the system manual. A healthy T8480 normally shows a green health indication and no active fault. A red fault, amber diagnostic, or flashing condition can indicate:

Internal self-test failure
Communication or voting error
Field supply loss
Output channel fault

Record the LED combination before you reset anything.

2. Verify Field Supply Power

The output section of the T8480 uses a separate field supply in most installations.

Measure voltage at the field supply terminals with a multimeter
Compare to the required 24 VDC level or the value specified for your module revision
Check the external fuse or breaker feeding the field power rail
If the fuse is blown, find the cause before replacing it. A shorted load or damaged cable can blow a fuse repeatedly.

3. Check Backplane Seating and Connectors

A module that is not fully seated can produce intermittent faults or complete loss of communication.

Follow site procedure to remove and inspect the module
Look for bent pins, corrosion, dust, or debris on the backplane connector
Reinsert the module firmly and verify the locking latch engages

4. Isolate the Field Wiring

When a single channel reports a fault:

Disconnect the field load from that channel
Command the output on, then measure the output voltage at the terminal
If the output changes state correctly, the module channel is likely healthy and the problem is downstream
If the output does not change, the module channel or its output driver may be damaged

While the wiring is disconnected, check the cable for:

Short circuit to ground or between conductors
Open circuit
Insulation damage in cable trays or conduits
Loose terminal screws

5. Check the Load and Suppression

Common causes of repeated output failures:

Inductive loads such as solenoid coils or relays without a freewheeling diode or suppression device
Load current above the rated capacity of the channel
High inrush current from lamps or capacitive loads
A short inside the field device

For inductive loads, verify that a suitable suppression diode or RC snubber is installed close to the load.

6. Review Configuration and Voting State

In a Trusted TMR system, persistent disagreement between channels can be caused by configuration problems, firmware mismatch, or a field wiring issue that affects only one channel.

Use the diagnostic software to check:

Expected module redundancy mode: simplex, dual, or triplex
Command state from the controller
Whether the module is voting correctly
Whether the output is configured to fail safe on loss of communication

If the module reports a persistent internal fault after a reset, replacement is usually required.

7. Reset and Monitor

After correcting the suspected cause:

Clear the diagnostic latch according to plant procedure
Return the loop to normal operation
Monitor the module for 24–48 hours

If the same fault returns with no external wiring or load problem, move to module replacement.

Common Symptoms and Likely Causes

Symptom	Likely Cause	First Check
Red fault LED, system alarm	Internal self-test failure, bad seating, backplane issue	Reseat module, inspect connector, replace if persistent
One channel reports fault	Short, open, overload, damaged output driver	Disconnect load, measure output, test cable
All output channels dead	Field supply missing, fuse blown, module not enabled	Check field supply and output enable condition
Intermittent channel fault	Loose termination, borderline load, moisture ingress	Tighten terminals, inspect cable, review load rating
Output command present but field device inactive	Faulty field device, interposing relay, or wiring	Test from module terminal to field device

When to Replace the T8480 Module

Replace the module when:

The fault persists after reseating and clearing diagnostics
Field wiring and load checks are normal
Field supply power is correct
The module fails self-test or cannot maintain voting

When sourcing a replacement:

Match the full part number and revision, not just “T8480”
Confirm compatibility with the system firmware and chassis type
For triplicated sets, keep all three modules at the same revision and firmware level whenever possible
Perform a proof test after replacement before placing the loop back in service

Preventing Repeat Failures

Torque all terminals to specification
Install suppression devices on inductive field loads
Keep spare modules in protected storage
Route field cables away from high-voltage or high-frequency cables
Include T8480 channel testing in periodic proof test procedures
Keep documented spare parts and revision information at the panel

Frequently Asked Questions

What is the ICS Triplex T8480?

The T8480 is a digital output module from the ICS Triplex Trusted TMR platform. It handles triplicated digital signals and is used in safety-related control loops. The exact output and load characteristics depend on the module revision.

How do I know if the T8480 is faulty?

A steady red fault LED, a self-test failure, or a channel fault that persists after clearing field wiring and supply conditions usually indicates a module problem. A module that cannot pass a proof test should be replaced.

Can I repair a T8480 output channel?

No. Individual output channels are not intended for field repair. Persistent channel defects require module replacement, followed by configuration verification and proof testing.

What is the most common cause of T8480 output channel faults?

Field wiring short circuits and inductive loads without proper suppression are the most common external causes. These can damage the output driver or cause repeated false diagnostics.
