IQS450 204-450-000-001 Signal Conditioner: Conversion Explained

Views: 0 Author: Site Editor Publish Time: 2026-09-07 Origin: Site

Inquire

IQS450 204-450-000-001 Signal Conditioner: Conversion Explained

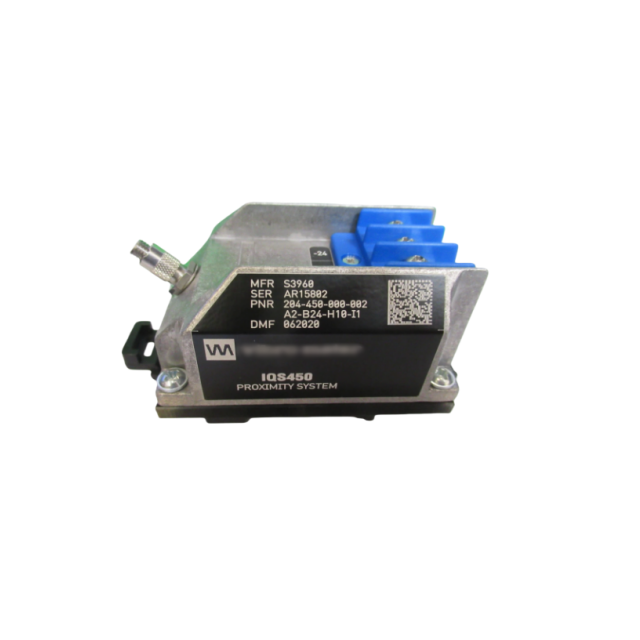

In VM600 machinery protection and condition monitoring racks, the IQS450 204-450-000-001 is the card that makes raw field sensor signals usable by the protection and monitoring chain. This article explains the conversion path from sensor input to conditioned output, what to check before wiring or replacing a card, and where errors usually occur.

What IQS450 204-450-000-001 Does in the Signal Chain

The IQS450 is a signal conditioner, not a direct protection logic card. In most VM600 configurations, the chain follows this pattern:

TQ402/TQ412 proximity probe or CA202 accelerometer → IQS450 input terminals → conditioned signal → IOC4T interface/conditioning → CPUM processor → protection or monitoring outputs.

The IQS450 sits between the sensor and the rack processing hardware. Its main value is converting field signals into clean, isolated, standardized form that downstream cards can process repeatably.

Without this stage, a sensor signal can drift with cable length, pick up induced noise, create ground loops, or vary too widely for a protection card to interpret.

Conversion Stages Inside the IQS450

Signal conversion in the IQS450 is not one operation. It happens in several stages:

Stage	Function
Input protection	Blocks or clamps voltage transients before conditioning
Coupling and range	Selects AC/DC coupling and input span to match sensor type
Gain/scaling	Maps raw millivolt/voltage signals to working range
Filtering	Removes high-frequency noise above measurement band
Isolation	Separates field loop from rack electronics to reduce ground loops
Output drive	Produces isolated conditioned voltage or current output

The exact gain, filter, and output type are not fixed. They are defined by the parameter set loaded for the rack and by the module suffix/version. This is why an IQS450 cannot be replaced by a different version without checking configuration.

Supported Input Signals and Common Conversion Paths

The same card can handle several sensor groups when matched with the correct configuration.

Sensor type	Example	Raw signal character	IQS450 conversion result
Proximity probe	TQ402 111-402-000-013, TQ412	DC gap-dependent signal, typically negative DC with gap change	Scaled displacement or gap voltage for monitoring
Accelerometer	CA202 144-202-000-203	AC vibration signal with sensitivity in mV/g	Scaled acceleration/velocity signal
Dynamic pressure sensor	CP515 143-515-000-111	AC pressure-proportional signal	Scaled dynamic pressure
Speed sensor	TQ902 111-902-000-011	Pulse or frequency signal	Conditioned speed/frequency channel

For proximity probes, the conversion must preserve the DC component because gap and radial position are DC measurements. For accelerometers and pressure sensors, the conversion chain should pass the dynamic AC component without clipping low-frequency fault events.

Output and 24 V Power Wiring

The IQS450 204-450-000-001 requires 24 VDC supply for card operation and often supplies excitation to the connected sensor. Wiring must keep power, signal, and shield paths separated where possible.

Recommended practice:

Use shielded twisted-pair cable for sensor leads.
Connect shield only at the IQS450/rack ground terminal, not at both ends, unless the site grounding standard says otherwise.
Maintain separate signal return and power return where the terminal design allows.
Verify output type before wiring to IOC4T or external equipment. A voltage input channel should not be connected to a current output card without correct load and signal matching.

Output options can be voltage or current depending on the ordered suffix. Check the exact part number and terminal assignments before applying loop power or adding external loads.

204-450-000-001 vs 002: Swap and Reconfiguration

The 001 and 002 variants are not automatic drop-in replacements. They may differ in filtering, output scaling, or input handling. Before swapping:

Confirm the replacement card has the same suffix and part number.
Export the current configuration from the VM600 rack.
Check the parameter file expected by the new card version.
Power down or follow rack hot-swap rules if supported.
After installation, run a loop test before returning the machine to normal operation.

A card that powers up does not mean the conversion is correct. The scaling and filter parameters must match the installed sensors and protection thresholds.

Common Conversion Faults and Checks

Symptom	Likely cause	Action
Output fixed at zero	Open sensor loop, wrong input range, or no sensor excitation	Check cable continuity, sensor supply, wiring
Output fixed at full scale	Short or grounded input, wrong coupling, sensor failure	Measure raw sensor signal, test with calibrator
Output noisy above normal levels	Broken shield, long unshielded cable, grounding difference	Check shield continuity, earth the correct end
Reading shifts after card replacement	Parameter set from previous version loaded	Load correct IQS450 configuration
Gap voltage unstable	Probe target surface issue or cable aging	Inspect probe gap, cable, connector

A good field check sequence is to test the sensor first, then the wiring, then the IQS450 conversion output.

How to Validate Conversion on Site

Use a known reference source or calibrator such as the 204-215-000-101 for the sensor being conditioned:

Disconnect the field sensor.
Inject a known reference signal at the IQS450 input.
Confirm the conditioned output changes within expected range.
Compare raw and conditioned values if both are available.
Reconnect the sensor and verify the live signal is stable and matches machine speed, load, or shutdown state.

Do not adjust conversion parameters while the machine is in protection mode unless the change is part of a controlled shutdown and validation plan.

FAQ

What is IQS450 204-450-000-001 used for?
It is used in VM600 racks as a signal conditioning card that converts field sensor signals into isolated, filtered, standardized outputs for machinery protection, condition monitoring, and processing hardware.

Can IQS450 204-450-000-001 replace 002 directly?
Only if the part number, suffix, and rack configuration are compatible. Both versions must be checked against the existing parameter file before replacement.

What sensors can IQS450 204-450-000-001 handle?
Typical supported groups include proximity probes, accelerometers, dynamic pressure sensors, and speed sensors, depending on configuration and input range.

How do I check the conversion is correct after wiring?
Inject a known reference signal, verify the conditioned output, compare to expected scaling, and confirm the downstream IOC4T or protection card reads the same value within tolerance.
