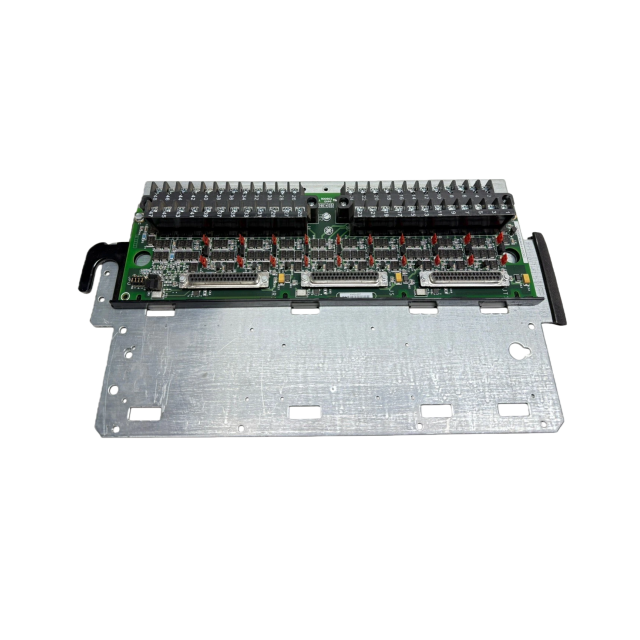

The IS200TBAIH1CDC is a field sensor terminal board used in GE Mark VI turbine control systems. It connects thermocouples, RTDs, 4-20 mA transmitters, and vibration probes to the control processor. In a power plant or compressor station, shielded cable and proper channel testing are not optional — they are what keeps false trips off the operator’s screen. This guide covers wiring, shielding, and field testing procedures industrial maintenance engineers depend on.
What the IS200TBAIH1CDC Does
The board provides screw‑terminal inputs for up to 24 analog channels. Each channel expects a shielded twisted‑pair cable. Mark VI systems read low‑level signals directly; any EMI/RFI entering the cable becomes a measurement error. High‑voltage switchgear, VFDs, and generator excitation equipment sit close to sensor routes, so signal integrity starts at the terminal strip.
Shielded Cable Rules That Work
1. Use twisted‑pair cable with an overall foil shield and drain wire. Belden 8760 or equal is common for mV and thermocouple circuits.
2. Terminate the shield at the IS200TBAIH1CDC shield terminal — and nowhere else. This avoids ground‑loop hum.
3. Leave the sensor‑end shield open. If you must bond it, use a 0.1 µF capacitor to ground to pass RF while blocking 50/60 Hz loops.
4. Route sensor cables at least 30 cm from power cables. Cross at right angles when necessary.
5. In junction boxes, continue the shield through without grounding. Splice the drain wire through a non‑insulated terminal.
Wiring the Board
1. Match the channel number to the system configuration. The terminal blocks are labeled CH1–CH24, with adjacent SH (shield) terminals.
2. Strip the jacket, fold back the shield, and land the drain wire on SH. Keep the unshielded pigtail shorter than 25 mm.
3. Connect the signal pair to the differential input: IN+ and IN‑. Respect thermocouple polarity.
4. For 3‑wire RTDs, the third wire goes to the COMP terminal. For 4‑wire loops, use the dedicated terminals.
5. Tighten all screws to 0.5 N·m. Tug‑test each wire.
6. Before closing the cover, visually confirm no stray strands cross between terminals.
How to Test a Channel
Static test — With the sensor disconnected, measure continuity from the terminal board to the field junction box. A megohmmeter at 250 V DC should read >100 MΩ between each signal conductor and shield/ground. Less than 1 MΩ suggests moisture or damaged insulation.
Loop test — Inject a known 4‑20 mA signal from a calibrator at the field device end. Verify the Mark VI HMI displays the correct engineering value. A deviation >0.25% indicates gain or offset drift that needs correction.
Dynamic test — For vibration channels, use a signal generator to simulate a proximity probe output. Observe the signal in the Mark VI trending screen. Look for flat‑lining, erratic jumps, or excessive noise. A healthy channel tracks frequency and amplitude smoothly.
When Results Look Wrong
– Noisy reading: Check if the shield is grounded at two points. Open the far end and retest. If noise persists, replace the cable or route it differently.
– Open circuit: Inspect terminations, flex points, and connector pins. Cold solder joints on the field sensor side are a common culprit.
– Reading slowly drifts: This often points to moisture in the terminal box or cable insulation breakdown. Dry the enclosure and repeat the insulation resistance test.
– Channel shows zero while others work: Swap the input pair on the terminal board to rule out a field wiring fault. If the problem moves with the wiring, the board is likely healthy and the issue is downstream.
When the Board Itself Fails
A damaged IS200TBAIH1CDC may show burnt resistors, cracked PCB traces, or failed surge suppressors. If a channel fails after all wiring and sensor checks pass, replace the board. Always verify the replacement unit matches the Mark VI firmware revision.
Sourcing IS200TBAIH1CDC Quickly
Joyoung International Trading Co., Limited keeps tested IS200TBAIH1CDC terminal boards in stock. Each unit undergoes multi‑channel signal verification before shipping. With over ten years in industrial automation, we supply GE Mark VI, Mark VIe, and legacy excitation spares. Our support team includes engineers who have wired and tested these boards on turbines, compressors, and generator sets.
When downtime is measured in production loss, immediate availability matters. Contact us at chen@htechplc.com or call +86‑181‑5013‑7565 for a same‑day quote and delivery timeline.
Related Reading
For more on GE Mark VI I/O diagnostics, see our article GE IS200AEPAH1A Mark VI Analog I/O Module Sourcing Guide. It covers spare part selection and compatibility verification.
Do not let a simple cabling issue become a turbine trip. Test your channels, respect the shield, and call us when you need a qualified replacement.
