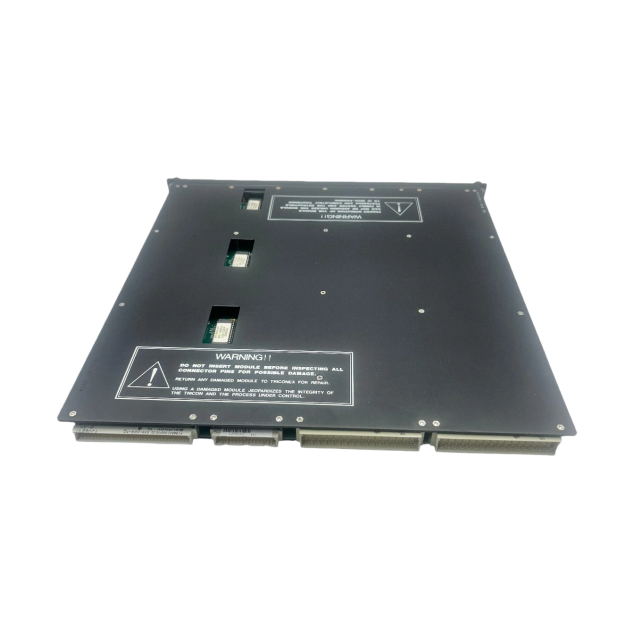

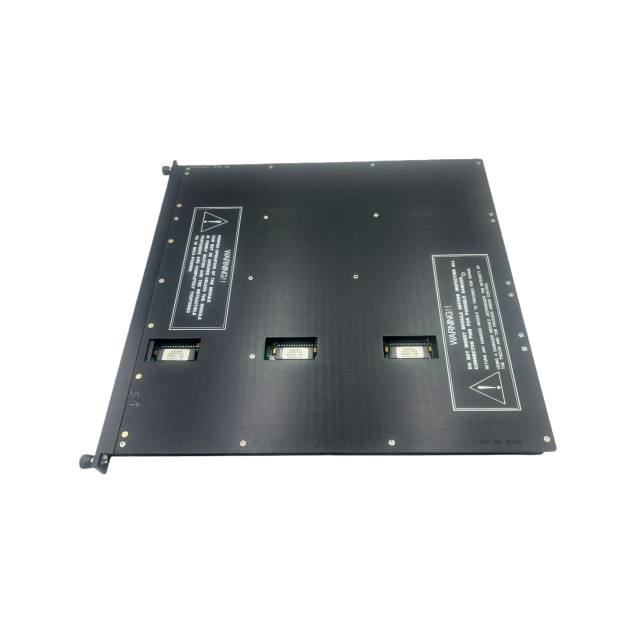

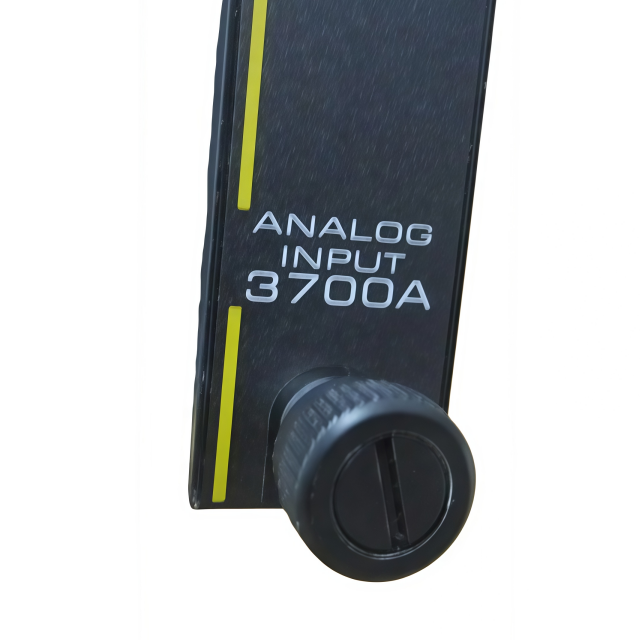

Technical Overview of TRICONEX 3700A Analog Input Module
1. Product Positioning and Core Value
The TRICONEX 3700A is a high-performance analog input (AI) module belonging to the Tricon v9–v10 safety control system family, developed by Invensys Process Systems (now part of Schneider Electric). It is specifically engineered for critical industrial applications that demand high-precision signal acquisition, strong anti-interference capability, and fault tolerance—such as nuclear power plants, oil refineries, petrochemical complexes, and natural gas processing facilities.
Its core value lies in providing reliable differential analog signal acquisition (0–5 VDC) with +6% input over-range measurement functionality, enabling accurate monitoring of process variables like pressure, temperature, and flow. As a key component of the Tricon system, it adheres to the Triple Modular Redundancy (TMR) architecture, meeting the IEC 61508 SIL 3 safety standard. This ensures uninterrupted operation even in harsh industrial environments, making it ideal for safety-related instrumentation and control (I&C) systems.
2. Core Architecture and Safety Design
2.1 Triple Modular Redundancy (TMR) Architecture
The 3700A module adopts a physically isolated TMR design, where each analog input signal is simultaneously processed by three independent circuit channels. The module uses a 2oo3 (two-out-of-three) voting logic to determine the final output: if one channel fails (e.g., due to component damage or signal interference), the remaining two normal channels will still ensure accurate signal acquisition. This hardware-level redundancy eliminates single-point failure risks and fully complies with the "fail-safe" design principle for safety-critical systems.
2.2 Multi-Layered Anti-Interference and Isolation
Electrical Isolation: Provides 2500 V AC galvanic isolation between channels and between the module and the system backplane (test duration: 1 minute). This effectively suppresses common-mode noise and electromagnetic interference (EMI) in industrial sites, ensuring signal stability.
Signal Filtering: Supports configurable filtering time (0.1–100 ms) to adapt to different on-site interference environments—for example, shorter filtering times for fast-changing signals (e.g., flow meters) and longer times for stable signals (e.g., tank level sensors).
Surge Protection: Built-in transient voltage suppression (TVS) components to resist voltage surges in field wiring, protecting the module from damage caused by lightning or power grid fluctuations.
3. Key Technical Specifications
Category | Detailed Specifications |
Input Parameters | - Type: Differential analog input (0–5 VDC)- Channel Quantity: 32 independent channels- Input Over-Range: +6% (supports temporary exceeding of the rated range without damage) |
Accuracy & Precision | - Full-Scale Range (FSR) Accuracy: ±0.15% (normal temperature: 25°C ±5°C)- Temperature Drift: ≤±0.005% FSR/°C (operating temperature range)- Resolution: 16-bit ADC |
Voltage & Current | - System Power Supply: 5 VDC (from Tricon chassis backplane)- Field Signal Input: 0–5 VDC (differential)- Input Impedance: ≥1 MΩ (voltage input mode) |
Environmental Ratings | - Operating Temperature: -40°C to 70°C- Storage Temperature: -40°C to 85°C- Humidity: 5%–95% (non-condensing)- Vibration Resistance: 5 g peak (10–2000 Hz, per IEC 60068-2-6) |
Mechanical Design | - Form Factor: 3U rack-mount (compatible with Tricon standard chassis)- Installation: Hot-swappable (supports online replacement without system shutdown)- Weight: Approximately 0.8 kg |
Safety Compliance | - IEC 61508 SIL 3- TÜV Rheinland functional safety certification- RoHS compliance (restriction of hazardous substances) |
4. Compatibility with Termination Panels & Cables
The 3700A module requires matching external termination panels (ETPs) or fanned-out cables for field wiring. The table below details approved termination solutions, their features, and application scenarios:
Termination Type | Model Number | Key Features & Application Scenarios |

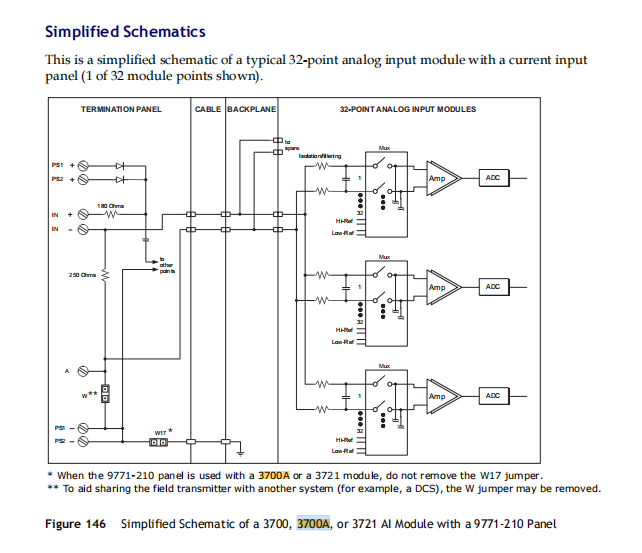

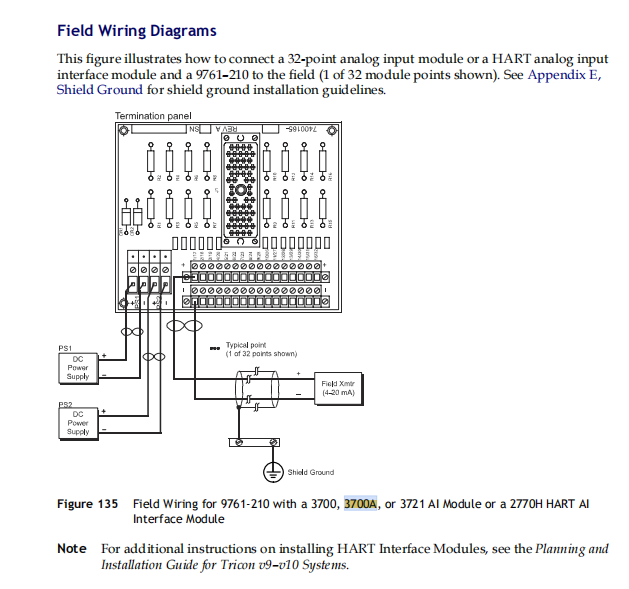

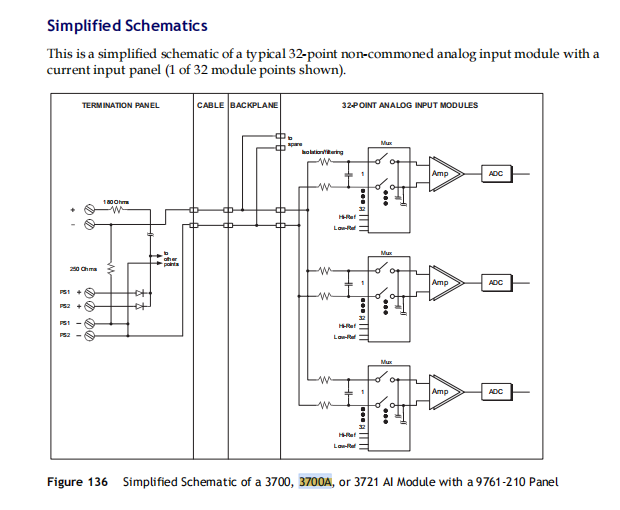

Current Input Panels | 9761-210 | - 16-point, 0–5 VDC current-to-voltage conversion (250 Ω precision resistors)- Supports redundant 24 VDC power (diode OR-ing)- Ideal for 4–20 mA transmitter signals (e.g., pressure transmitters) |

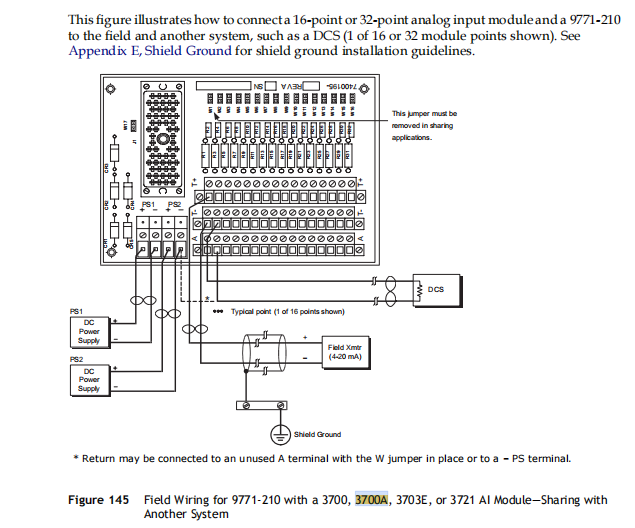

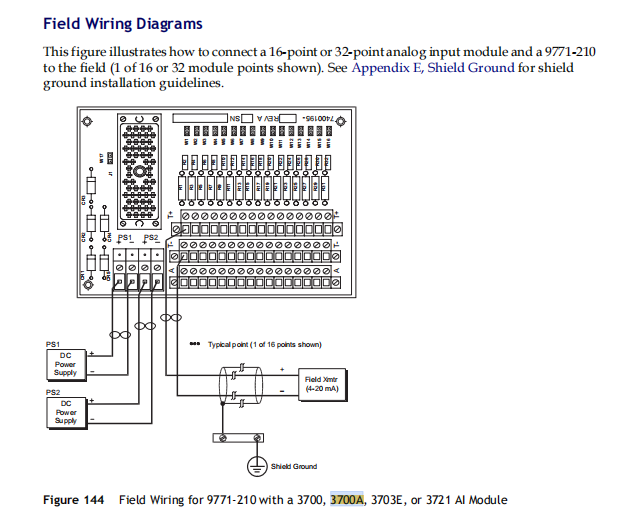

| 9771-210 | - 16-point, user-configurable (0–5 VDC/0–10 VDC)- Enables signal sharing with third-party systems (e.g., DCS)- Recommended for integrated control scenarios requiring flexible signal routing |

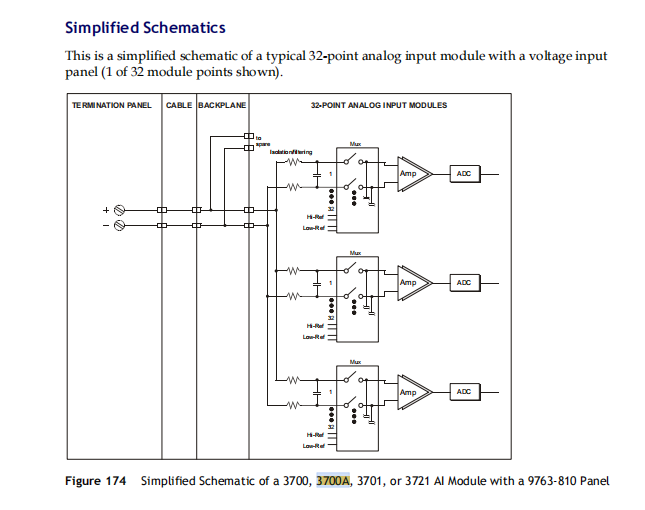

Voltage Input Panels | 9763-810 | - 16-point, 0–5 VDC/0–10 VDC differential input- Built-in noise suppression components- Suitable for direct voltage signals (e.g., temperature transmitter voltage outputs) |

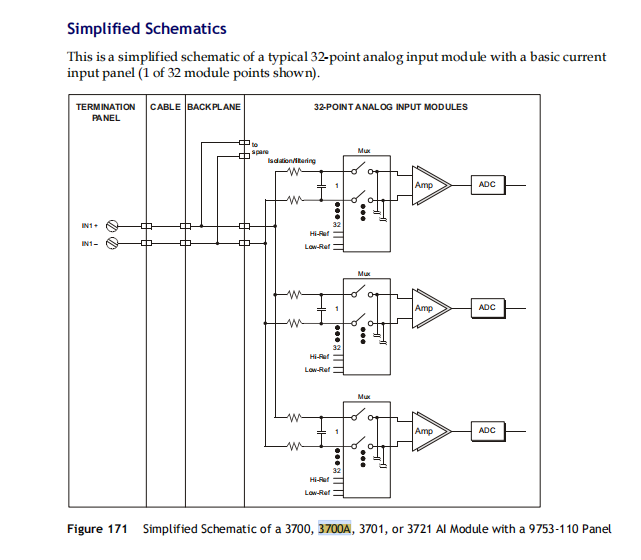

| 9753-110 | - 16-point basic voltage input (no additional signal conditioning)- Cost-effective for non-critical voltage monitoring (e.g., auxiliary equipment status) |

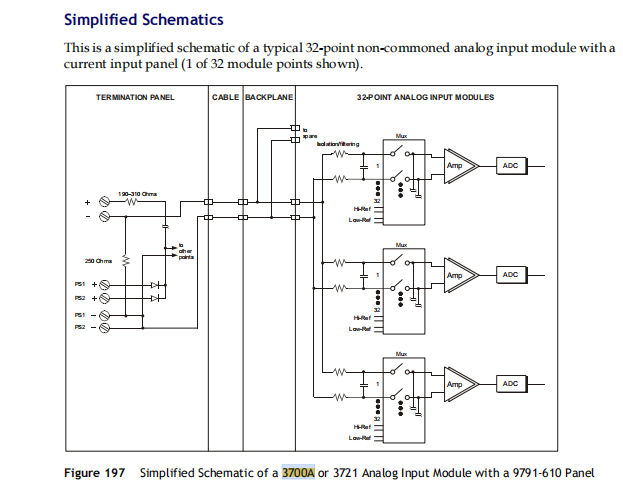

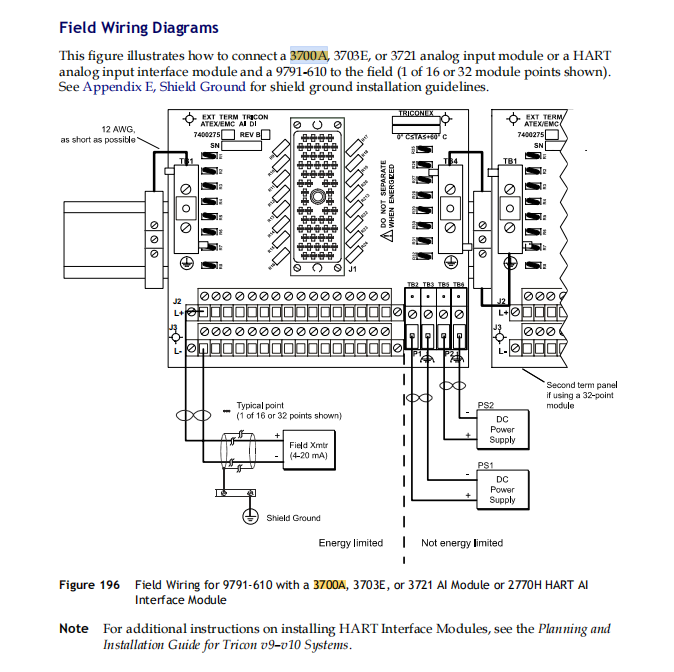

Hazardous Location Panels | 9791-610 | - 16-point, nonincendive (Zone 2, Class 1 Division 2)- Limits terminal energy to prevent ignition in flammable atmospheres- Used in oil refineries or gas processing plants |
RG 1.180 Panels | 9790-610 | - 16-point, compliant with NRC Regulatory Guide 1.180 (EMI/RFI protection)- Designed for nuclear power plant safety systems- Enhanced shielding for high-electromagnetic environments |
Fanned-Out Cables | 9101-010 | - 10-foot (3m) standard length (custom lengths up to 99 feet available)- 50 individually labeled 22-gauge leads- Low-cost alternative for simple wiring (e.g., laboratory test setups) |
Critical Compatibility Notes:
Since the 3700A has 32 channels, two termination panels/cables are required per module (e.g., two 9761-210 panels or one 9763-810 + one 9101-010 cable).
For RG 1.180-compliant projects (e.g., nuclear power), only approved panels (9790-610/9792-610) and shielded cables should be used, with grounding per Appendix E of the Tricon v9–v10 Field Terminations Guide.
5. Operational Features and Performance Advantages
5.1 High-Precision Signal Acquisition
16-Bit ADC Resolution: Ensures minimal quantization error, enabling accurate measurement of small signal variations (e.g., 0.01 V changes in 0–5 V range).
Over-Range Tolerance: The +6% over-range capability prevents module damage from transient signal spikes (common in industrial environments) and eliminates the need for external signal limiters.

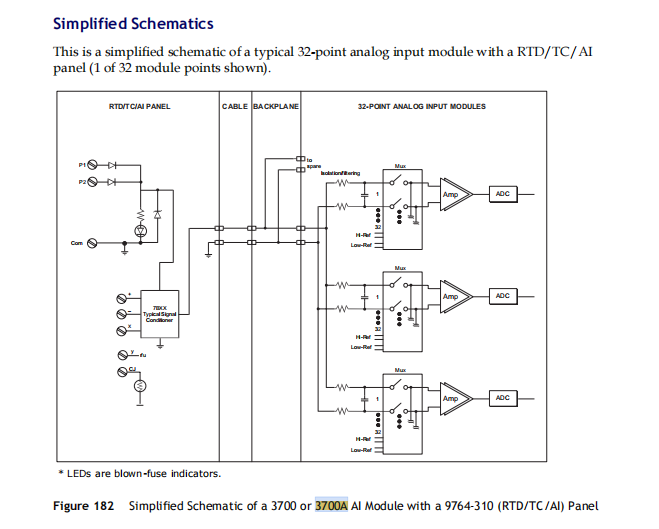

Cold-Junction Compensation Support: When paired with thermocouple input panels (e.g., 9765-610), it automatically compensates for ambient temperature errors, improving temperature measurement accuracy.
5.2 Flexible Configuration and Diagnostics
Software Configurability: Parameters (filtering time, input range, alarm thresholds) are set via TriStation 1131 software, eliminating the need for hardware jumpers.
Real-Time Diagnostics:
Self-test circuitry detects internal faults (e.g., ADC failure, power anomalies) and reports to the Tricon controller via the backplane bus.
Open/short circuit detection for field wiring (when used with supervised panels like 9771-210).
Status Visualization: Front-panel LEDs indicate module power (PWR OK), channel activity (ACTIVE), and fault conditions (FAULT), enabling quick on-site troubleshooting.
5.3 Seamless System Integration
Backplane Communication: Uses Tricon’s proprietary safety backplane to communicate with Tricon controllers, ensuring low-latency data transmission (<10 ms) for time-critical control.
Data Logging: Integrates with Tricon’s historical data logging 功能 to store input signal trends, supporting post-event analysis (e.g., process deviation investigations).
HART Compatibility: When paired with the 2770H HART interface module, it can communicate with HART-enabled devices (e.g., smart transmitters) for device configuration and health monitoring.
6. Typical Application Scenarios
6.1 Nuclear Power Plants
Application: Monitoring reactor cooling system parameters (e.g., coolant pressure, temperature).
Configuration: 3700A + 9790-610 (RG 1.180 panel) + 4–20 mA pressure transmitters.
Value: Complies with nuclear safety standards, resists EMI from reactor equipment, and ensures reliable signal acquisition for safety .
6.2 Petrochemical Refineries
Application: Tracking distillation column temperature and flow rates.
Configuration: 3700A + 9791-610 (hazardous location panel) + temperature transmitters.
Value: Nonincendive design prevents ignition in explosive atmospheres; TMR redundancy minimizes unplanned shutdowns.
6.3 Natural Gas Pipelines
Application: Remote monitoring of pipeline pressure and flow.
Configuration: 3700A + 9771-210 (user-configurable panel) + flow transmitters.
Value: Signal sharing with pipeline SCADA systems; over-range tolerance handles pressure surges during startup.
6.4 Manufacturing
Application: Monitoring robotic arm position sensors (voltage signals).
Configuration: 3700A + 9753-110 (basic panel) + position sensors.
Value: Cost-effective, high-precision, and hot-swappable for minimal production downtime.
