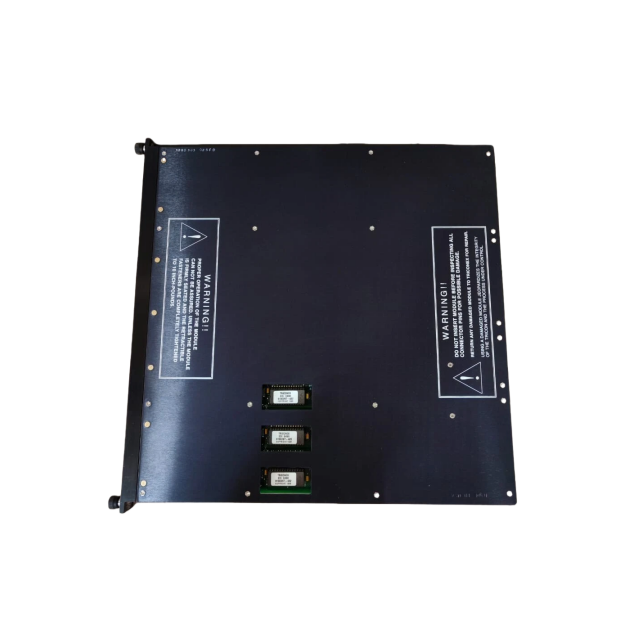

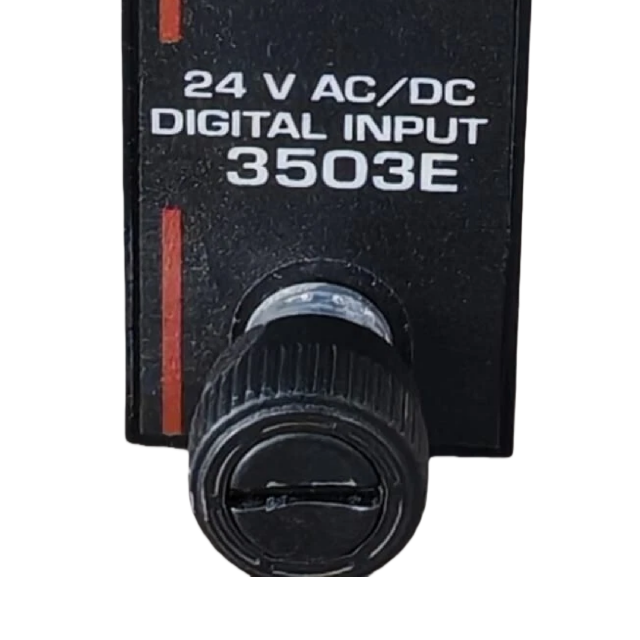

Technical Panorama of TRICONEX 3503E Digital Input Module
1. Product Positioning and Core Value
The TRICONEX 3503E is a flagship digital input (DI) module of the Tricon safety control system under
Schneider Electric. It is specifically designed for high-risk industrial scenarios such as petrochemical,
natural gas extraction, and nuclear power operation and maintenance. Its core positioning is to
provide highly reliable switching signal acquisition capability for Safety Instrumented Systems (SIS). It
has passed TÜV certification and meets the IEC 61508 SIL 3 safety level requirements. It can
seamlessly adapt to all series of Tricon v9/v10/v11 control systems and is a core component for
realizing fault early warning and safety interlocking in key process control.
2. Redundant Architecture and Safety Design

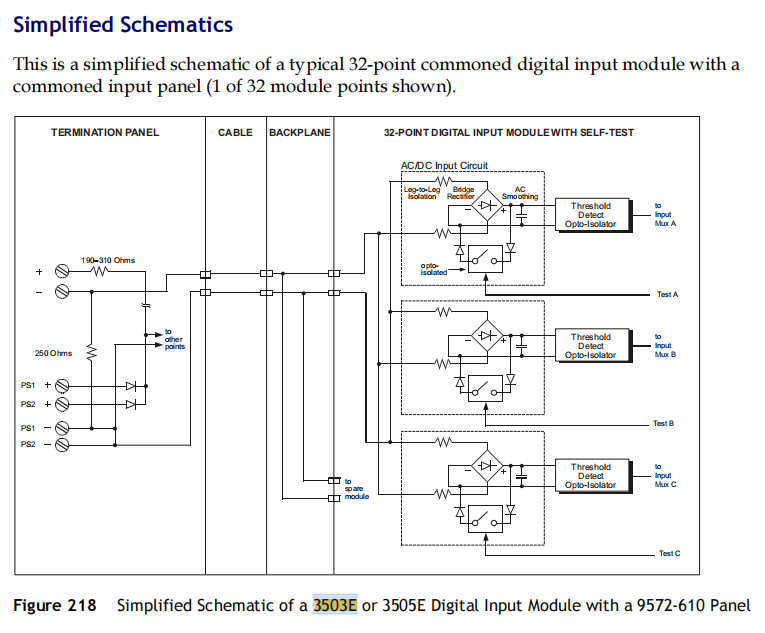

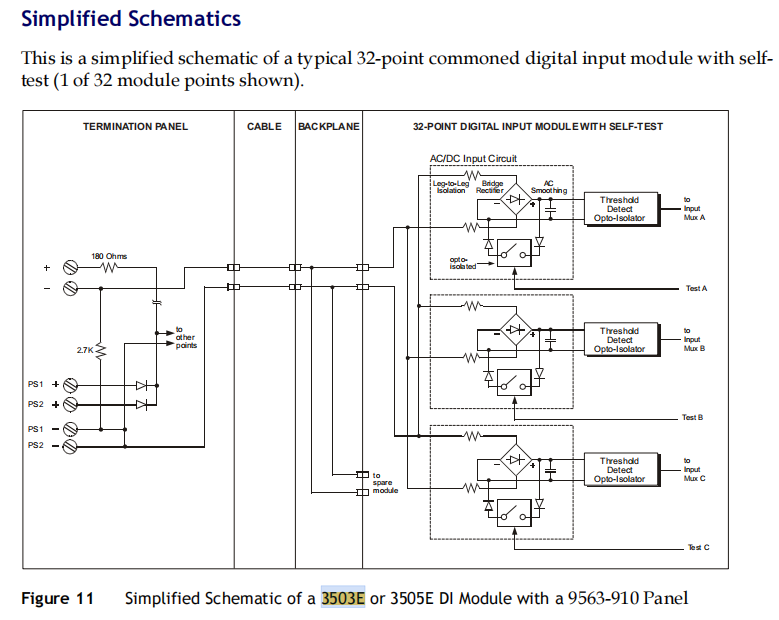

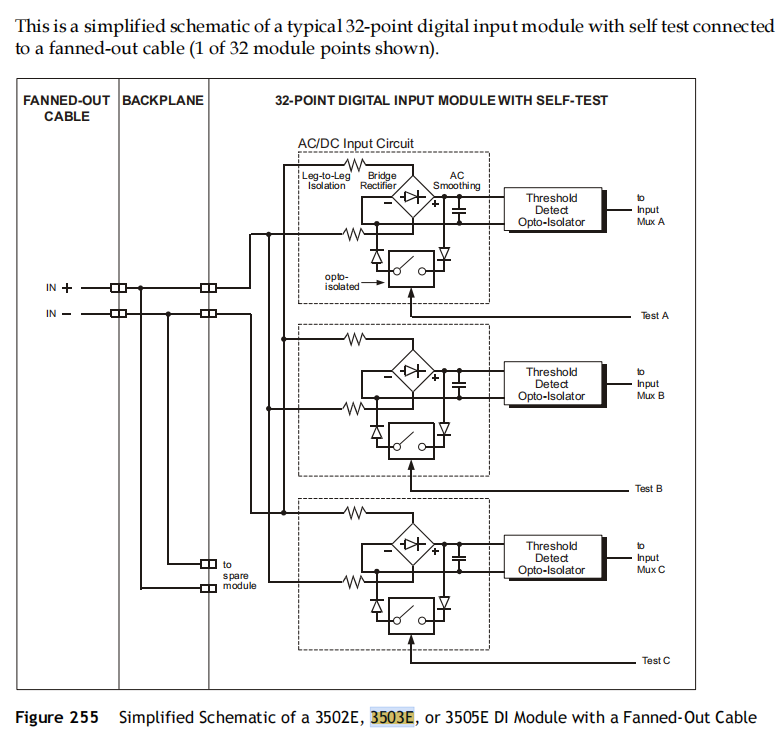

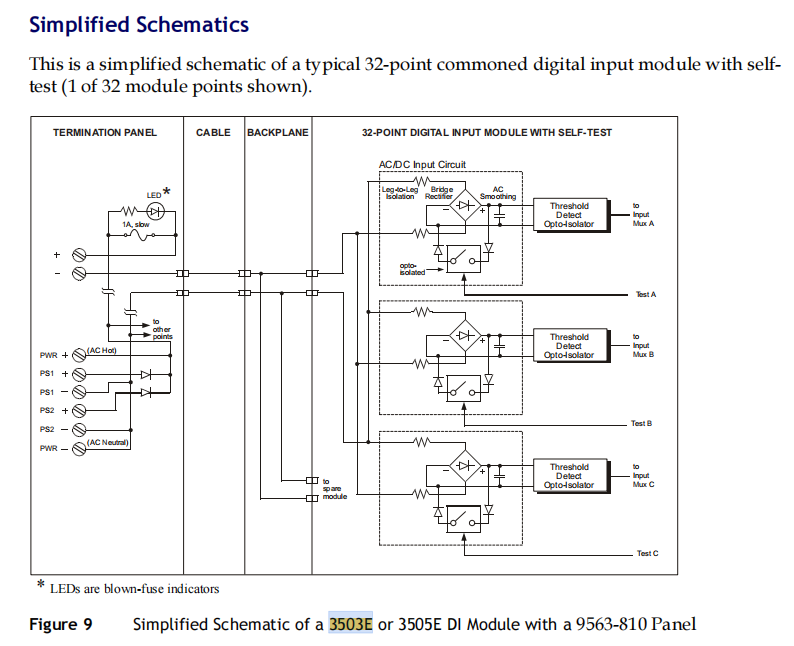

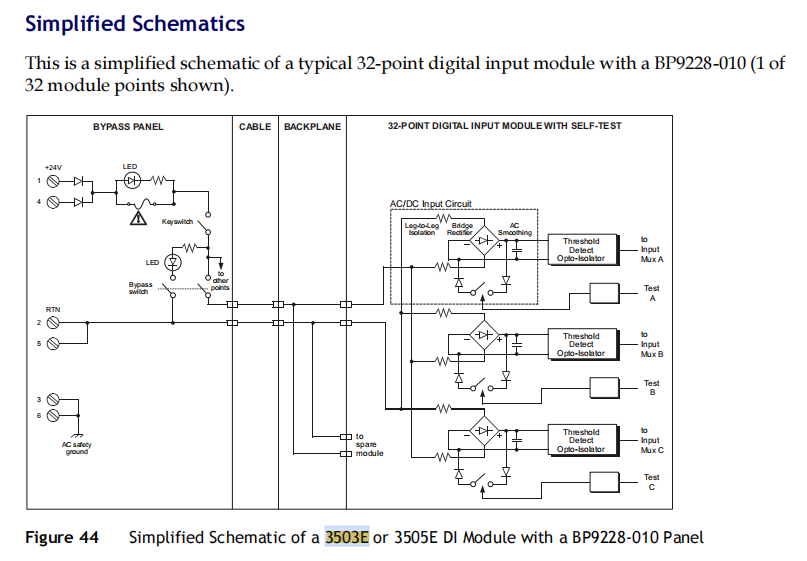

2.1 Triple Modular Redundancy (TMR) Core Architecture
The module adopts a physically isolated triple redundant channel design. Each digital input signal is
collected, transmitted, and processed through 3 independent circuits, and finally, the result is output
through 2oo3 (two-out-of-three) voting logic. This architecture eliminates the risk of single-point
failure from the hardware level. Even if a single channel has component damage or signal
interference, the remaining two normal channels can still ensure the accuracy of signal acquisition,
which fully complies with the Fail-Safe design principle.
2.2 Multi-level Safety Protection Mechanism
Electrical Isolation: Optoelectronic isolation technology is adopted between channels and between
the module and the system backplane, and the isolation voltage can reach 2500V AC, effectively
resisting electromagnetic interference (EMI) and common-mode noise in industrial sites.
Self-inspection and Diagnosis: Built-in real-time self-inspection circuits can automatically detect faults
such as channel disconnection, short circuit, and component jamming (stuck open/closed state), and
report diagnostic information in real time through the system bus.
Redundant Power Supply Compatibility: It supports dual power input design. With the redundant
power module of the Tricon system, it can realize uninterrupted switching of the power supply link.
3. Key Technical Specifications and Performance Parameters
Category | Specific Specifications |
Basic Input Parameters | Type: 24V AC/DC digital input (dry contact/wet contact optional); Number of channels: 32 (standard version) |
Voltage Compatibility Range | DC: 20-42.5V DC (recommended), maximum 42.5V DC; AC: maximum 42.5V AC (47-63Hz) |
Response and Filtering | Standard response time ≤10ms, filtering time 0.1-100ms configurable, suitable for different on-site interference environments |
Isolation Performance | Isolation between channels: 2500V AC (1 minute); Isolation on the system side: 2500V AC (1 minute) |
Environmental Adaptability | Operating temperature: -40℃~70℃; Storage temperature: -40℃~85℃; Humidity: 5%~95% (no condensation) |
Mechanics and Installation | Size: conforms to 3U standard rack; Installation method: Tricon system standard slot; Supports online hot swap |
4. Core Functional Features
4.1 Flexible Signal Acquisition Capability
The module is compatible with two input signal types: dry contact (passive) can be directly connected to passive switches such as emergency stop buttons and relay contacts; wet contact (active) is suitable for active devices that require external power supply such as proximity switches and photoelectric sensors. Single-ended input (common terminal COM grounded) and differential input (enhanced anti-interference) modes can be configured as needed.
4.2 Efficient Operation and Maintenance and System Integration
Hot Swap Design: Supports hot plug replacement, no need to shut down the system during maintenance, significantly reducing downtime losses.
Standardized Interface: Communicates through the Tricon proprietary safety backplane bus, seamlessly links with Triconex controllers and PLCs, and configuration parameters can be centrally managed through Tricon Engineering Studio software.
Status Visualization: The module panel is equipped with 32-channel status LED indicators. Green indicates normal signal, and red indicates fault, which is convenient for quick troubleshooting on site.
4.3 Harsh Environment Adaptability
Using military-grade electronic components and sealed housing design, it can withstand dust, vibration (5g peak), and voltage fluctuations in industrial sites, and can still maintain continuous and stable operation in harsh environments such as refineries and nuclear reactors. The Mean Time Between Failures (MTBF) exceeds 100,000 hours.
5. Typical Application Scenarios and Wiring Examples
5.1 Core Application Fields
Petrochemical Industry: Monitor signal of reactor pressure switches and valve limit switches to realize emergency shutdown interlocking.
Natural Gas Transmission: Collect switching signals of pipeline pressure transmitters and leakage detection sensors to ensure the safety of pipe networks.
Nuclear Power System: Adapt to liquid level switches and temperature over-limit contacts of reactor cooling systems to meet nuclear safety-level control requirements.
Metallurgical Industry: Monitor the valve status of blast furnace tuyeres and emergency stop signals of conveyor belts to improve the safety of the production process.

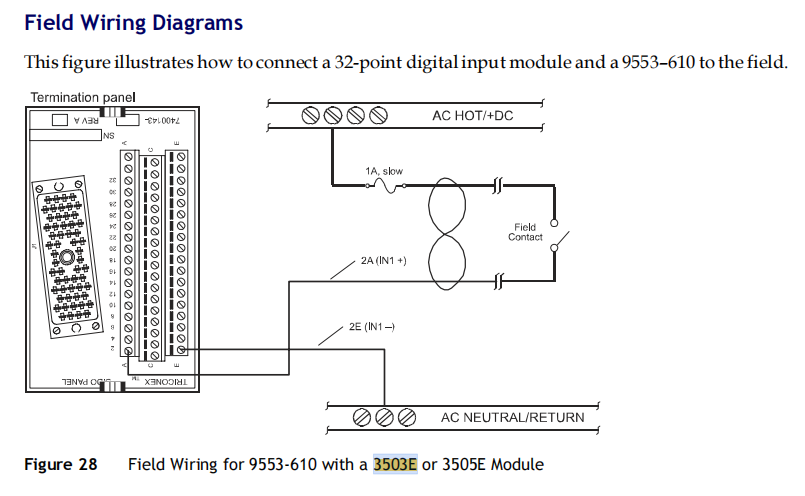

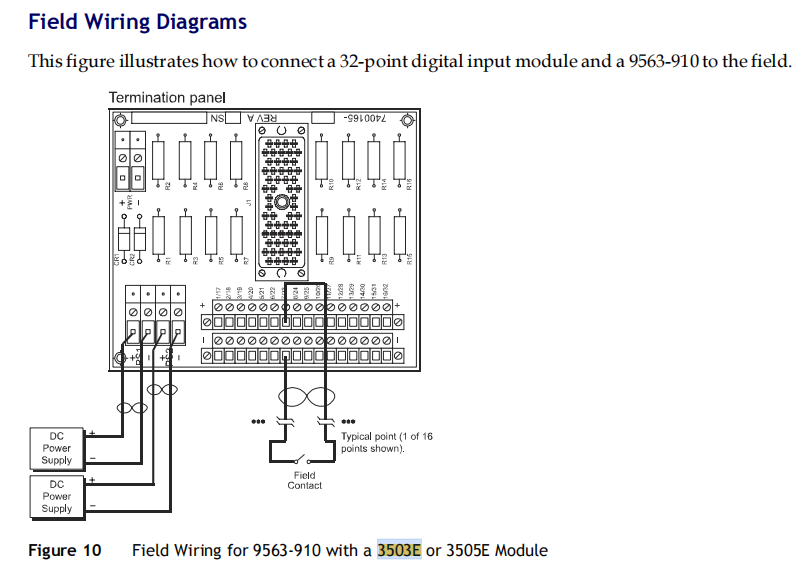

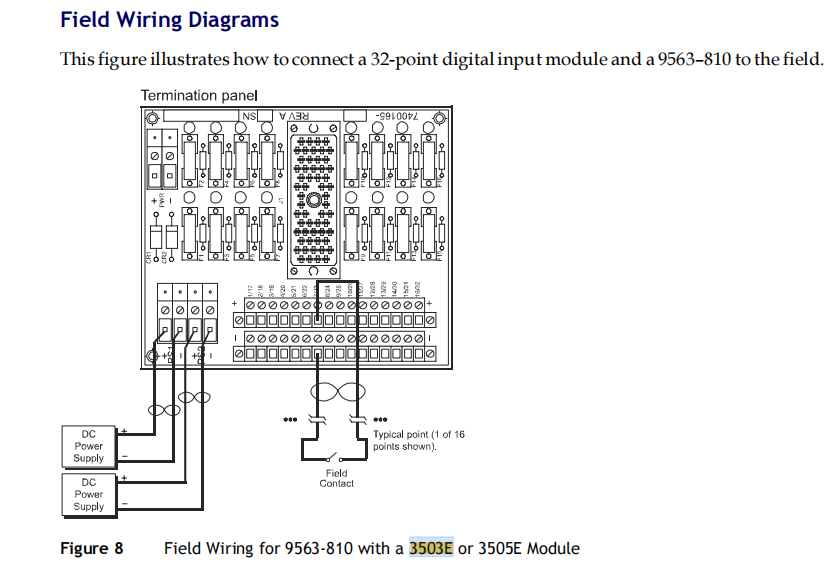

5.2 Standard Wiring Scheme

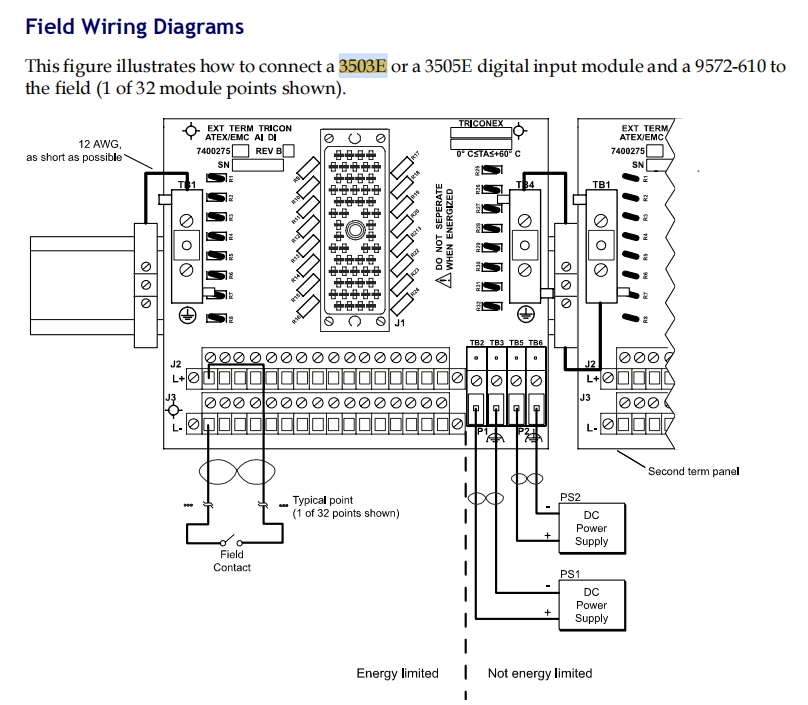

Dry Contact Wiring: The common terminal (COM) is connected to the negative pole of 24V DC, and the signal terminals (CH1-CH32) are respectively connected to passive devices such as buttons and contacts, and the other end of the device is connected to the positive pole of 24V DC.
Wet Contact Wiring: The positive pole of the sensor is connected to the positive pole of the external 24V DC, the negative pole is connected to the signal terminal of the module, and the COM terminal of the module is connected to the negative pole of the external power supply, and the signal acquisition is realized through photoelectric isolation.
6. Technical Documents and Compliance References
Safety Certification: IEC 61508 SIL 3, TÜV Rheinland functional safety certification.
Configuration Guide: Refer to Chapter 5 "Digital Input Module Configuration" in the "Tricon v11 System Hardware Manual".
Troubleshooting: See the "Channel Fault Code Table" in the "TRICONEX 3503E Module Diagnostic Manual" (error codes E01-E05 correspond to different short-circuit/disconnection types).
