〔Product details〕
Part Number : TSXH5724M
Manufacture : SCHNEIDER
Country of origin :France
Warranty : 1 year
Quality : 100% New Original
About shipping : DHL,UPS,FeDex
★ Professional Service★ large stock★Financial department★
★Warehouse department ★After-sales service department★
〔Overview of TSXH5724M〕

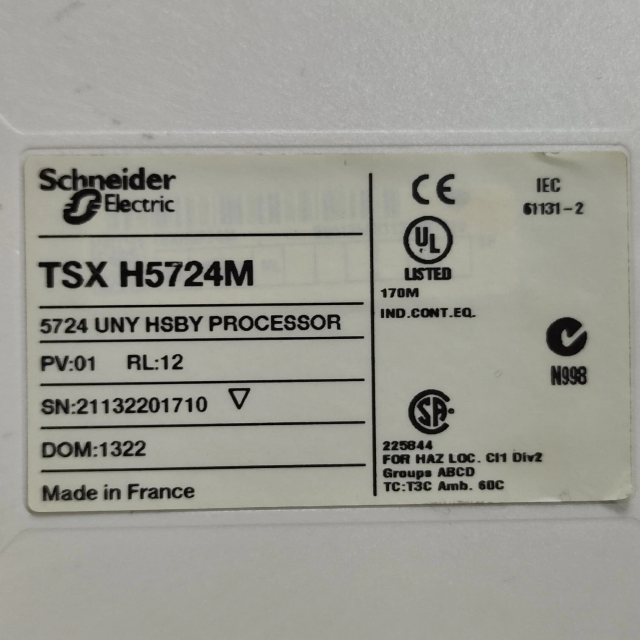

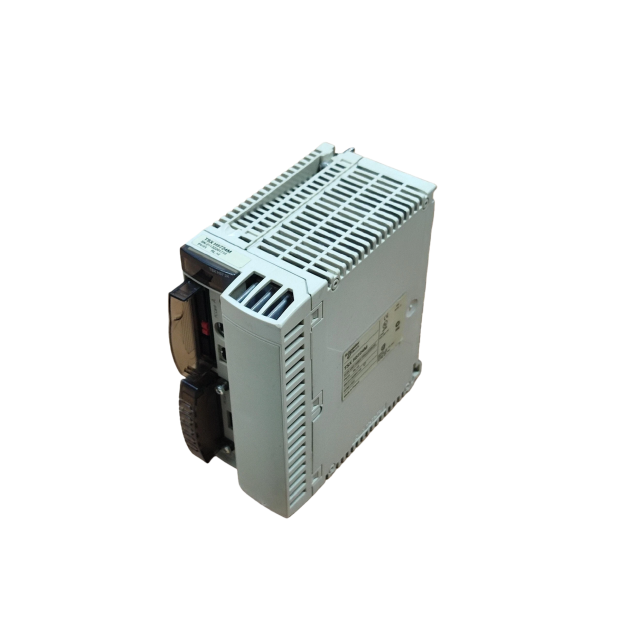

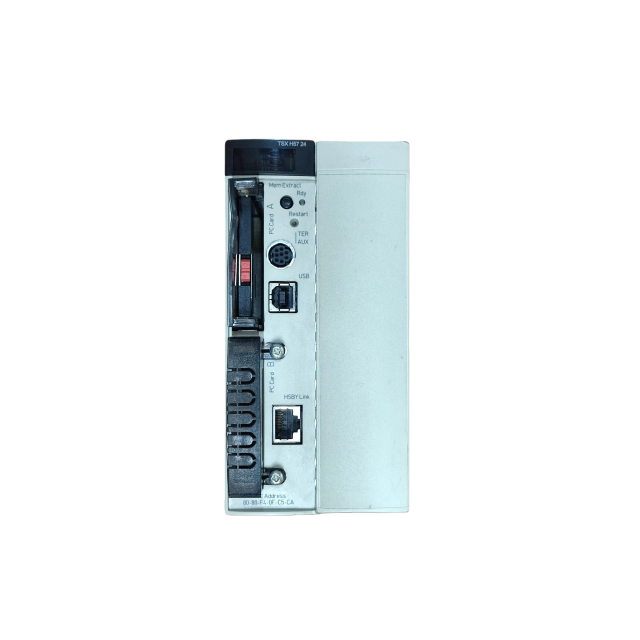

The TSXH5724M is a Unity Hot Standby Processor belonging to Schneider Electric’s Modicon
Premium Automation Platform, designed for reliable industrial control applications requiring
redundant processing capabilities. The TSXH5724M was discontinued on 31 December 2018 with end-
of-service scheduled for 31 December 2026. The TSXH5724M is replaced by the BMEH582040 (M580
Level 2 Remote Redundant HSBY Processor Module) due to the TSXH5724M end-of-life status.
Engineered for seamless integration with a single rack (supporting 6/8/12 slots), the TSXH5724M
delivers robust I/O handling with a capacity of 1024 discrete I/O points and 80 analog I/O points,
along with support for 10 to 30 simple process control loops. The TSXH5724M features a modular
communication design, accommodating up to 2 communication modules and offering versatile
connectivity via non-isolated RS485 serial link (19.2 kbit/s), Ethernet TCP/IP (10BASE-T/100BASE-TX),
and a USB Type A port (12 Mbit/s).
Performance-wise, the TSXH5724M excels with fast instruction execution times (0.039–0.073 µs across
Boolean, fixed-point, and floating-point operations) and high throughput (11.4–15.75 Kinst/ms). The
TSXH5724M is supported by flexible memory configurations, including internal RAM (192 kB–960 kB
combined program/data) and optional PCMCIA card expansion (16384 kB additional storage). The
TSXH5724M operates on a single master task with minimal system overhead (1 ms) and provides
clear status monitoring via dedicated LEDs for run, fault, communication, and I/O activity.
Built to industrial standards, the TSXH5724M boasts an IP20 protection rating. The TSXH5724M
operates in temperatures ranging from 0–60 °C (32–140 °F), and the TSXH5724M complies with
global certifications (UL 508, IEC 61131-2, CSA C22.2) and marine approvals (RINA, ABS, DNV). With a
net weight of 0.56 kg (1.23 lb) and double module format, the TSXH5724M fits seamlessly into
standard industrial control cabinets. Backed by an 18-month warranty, the TSXH5724M remains a
trusted solution for existing installations. The TSXH5724M leverages Schneider’s Unity Pro software
for programming and configuration to ensure compatibility with legacy Modicon Premium
ecosystems.
