6SE7090-0XX84-4HA0 Advantages

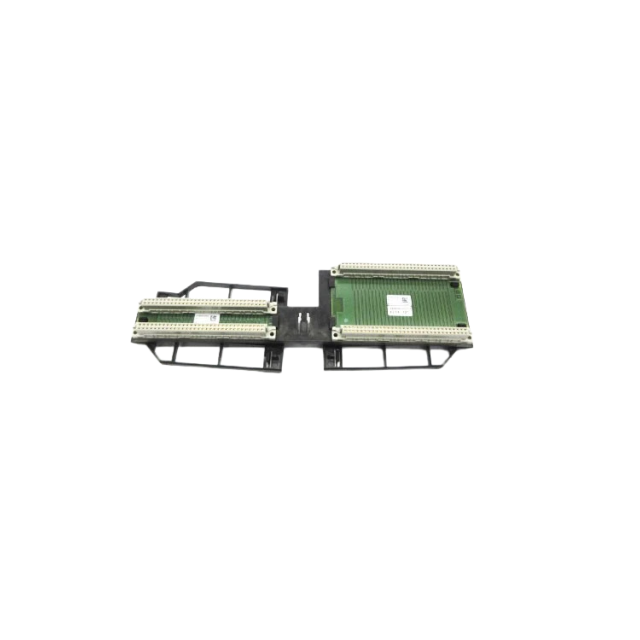

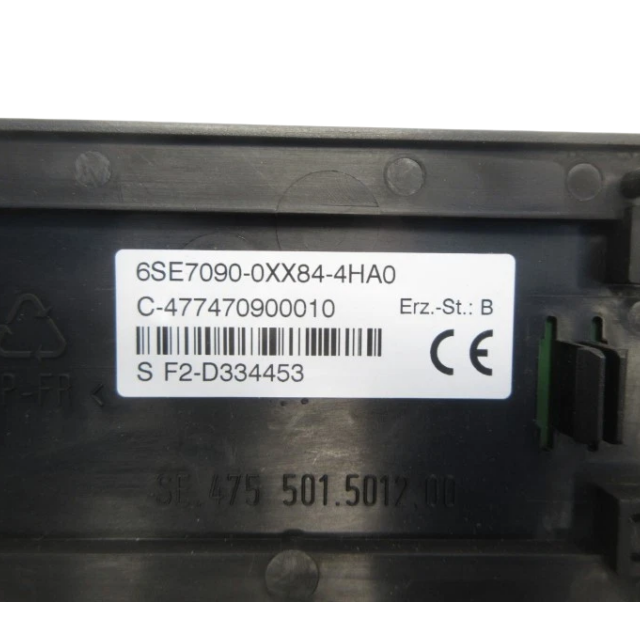

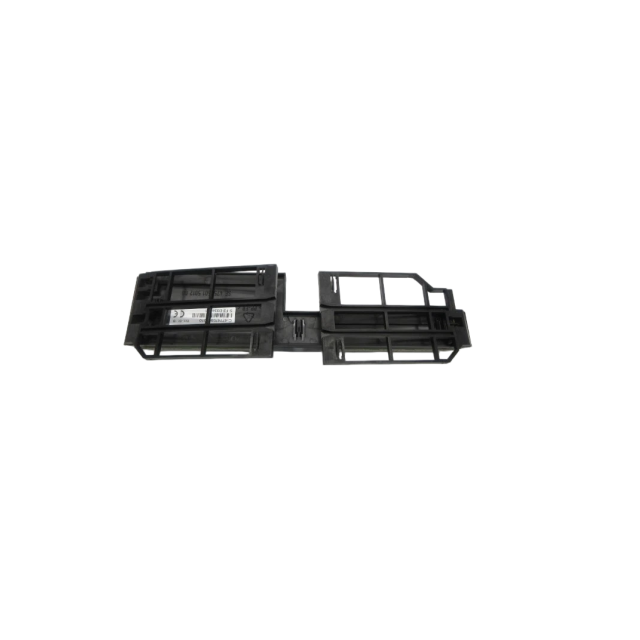

The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board provides internal slot resource expansion inside the 6SE70 drive electronics box. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board allows multiple supplementary optional boards to work together with the CUVC main control unit, reducing the need for external adapter cabinets and supporting flexible function upgrades.
The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board ensures stable local bus signal routing and signal conversion. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board correctly distributes communication telegrams between the main control unit and each optional board, maintaining reliable data interaction in multi‑board combination configurations.
The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board supports continuous slot level hardware monitoring. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board detects local bus communication errors and accessory slot insertion abnormalities, generating status feedback and fault indication through built‑in LED prompts and drive fault codes.
The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board has a wide operating temperature range of -20 °C to +60 °C. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board maintains stable operation in control room environments as well as inside high‑temperature drive cabinets.
As an original Siemens component belonging to Siemens 6ES series, the Siemens 6SE7090‑0XX84‑4HA0 Adapter Board is designed for direct plug‑in installation inside 6SE70 compact and chassis drive electronics boxes. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board only requires mechanical fitting and inter board connection verification after installation, without needing custom modified adapter hardware.
6SE7090-0XX84-4HA0 Applications
Metallurgical rolling production lines. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board is used as a local bus adapter spare board inside 6SE70 MASTERDRIVES drive systems, expanding internal optional board slots for rolling mill main and auxiliary drive electronics box assemblies.
Paper making production facilities. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board supports multi optional board combined installation for paper machine transmission 6SE70 drive units, helping integrate communication and signal processing functions inside the drive electronics box.
Power plant auxiliary drive systems. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board serves as a spare internal adapter component for auxiliary equipment 6SE70 variable frequency drive assemblies, supporting function expansion and maintenance replacement in power plant drive cabinets.
Oil, gas and petrochemical facilities. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board is suitable for large power 6SE70 drive assemblies in industrial workshops. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board provides stable internal bus routing and helps reduce unplanned downtime in harsh industrial environments.
Heavy duty industrial motion control systems. The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board contributes to 6SE70 variable frequency conversion loops that require multi optional board installation and reliable internal local bus data exchange.
6SE7090-0XX84-4HA0 Certifications & Compliance
The Siemens 6SE7090‑0XX84‑4HA0 Adapter Board holds the following international safety and compliance approvals:
CE certification for industrial drive internal adapter board spare components.
Industrial EMC compliance for Siemens 6ES series automation assemblies.
All units supplied are 100% new original Siemens parts. Every Siemens 6SE7090‑0XX84‑4HA0 Adapter Board unit is functionally tested before dispatch, packed in professional anti static packaging, and covered by a one year warranty from the date of delivery.
