When a Siemens S7-200 CPU or I/O module fails, the part number on the housing is only the starting point. Siemens SIMATIC S7 spare parts like the 6ES7216, 6ES7221, and 6ES7223 have been through multiple production runs, firmware revisions, and in some cases formal supersessions that make one-for-one replacement less straightforward than it appears. I have seen too many maintenance teams order by part number alone, only to discover on installation that firmware incompatibility or a discontinued hardware revision blocks the swap. This article covers what you need to verify before committing to an S7 spare parts order, and how to choose a sourcing path that keeps your system running without surprises.
What the 6ES7 Part Number Tells You
Siemens uses a structured part numbering system for its SIMATIC modules, and the 6ES7 prefix identifies the S7 automation family. Beyond the prefix, each segment of the number carries hardware and functional detail that matters for replacement decisions.
The third block in the number, the functional suffix, is where compatibility risk concentrates. A change in the last three characters often indicates a firmware update that may or may not be backward-compatible with your existing CPU. I have encountered S7-200 installations where a newer revision of the same module refused to communicate with an older CPU because the firmware handshake protocol had changed. Knowing the exact full part number, including the suffix, is the minimum before contacting any supplier.
Confirming Module Compatibility Before You Order
Siemens discontinued the S7-200 series in stages, and many modules now exist only in the secondary market or through remaining distributor stock. This means direct one-for-one replacement is not always possible, and you need to confirm what your system will actually accept.

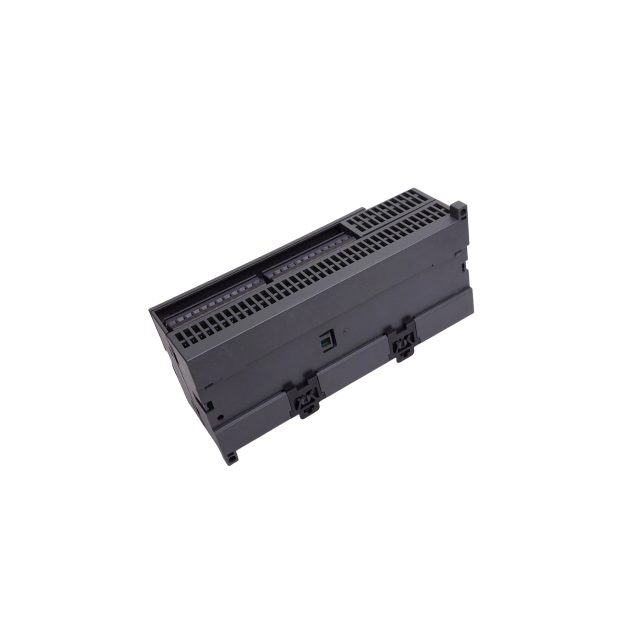

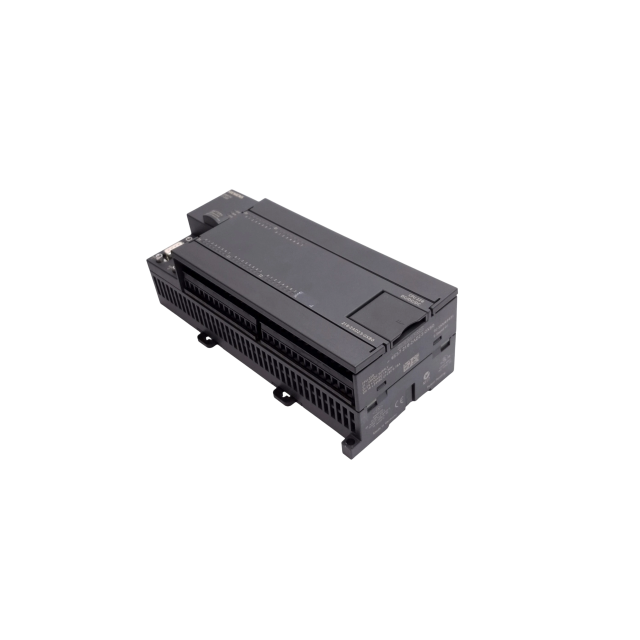

Start with the firmware version of your existing CPU. The S7-200 CPU 216 (6ES7216) went through multiple firmware iterations, and later I/O modules sometimes require a minimum CPU firmware level. If your CPU is running firmware below version 2.0, some later-production 6ES7221 and 6ES7223 modules may not initialize correctly. The fix is not always obvious: in some cases, upgrading the CPU firmware resolves the issue. In others, you need to source an earlier hardware revision of the I/O module.

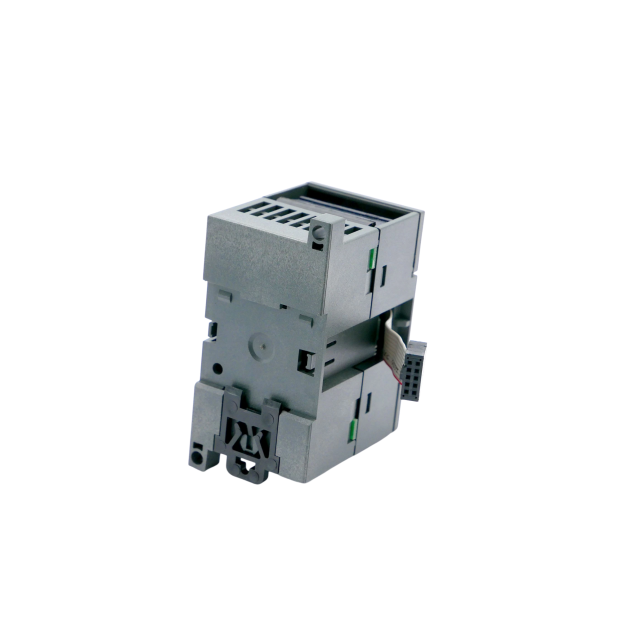

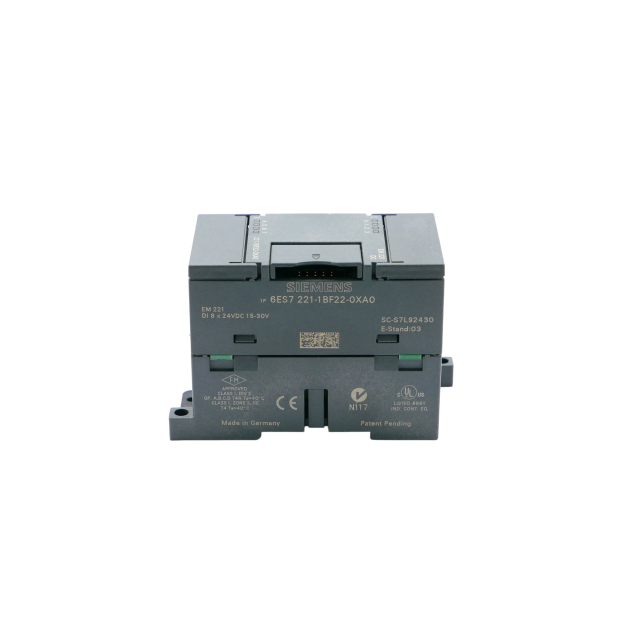

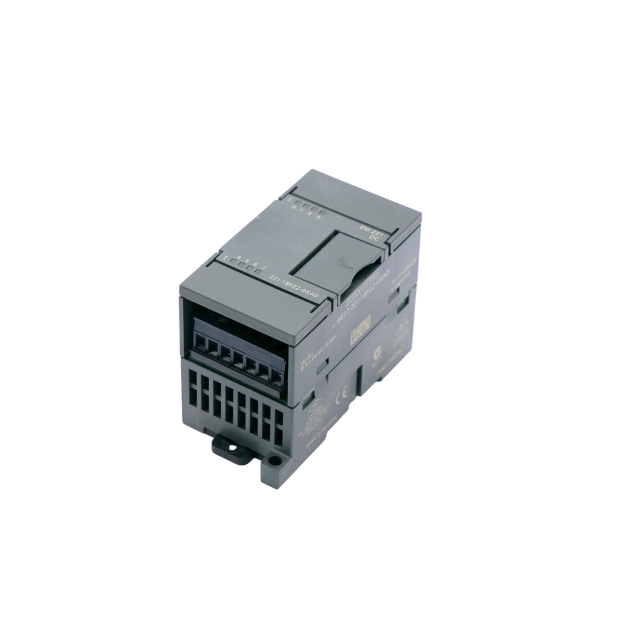

Supersession paths add another layer. When Siemens discontinues a specific module variant, it often designates a replacement part number. Certain 6ES7221 digital input modules have been superseded to functionally equivalent but electrically different versions that require wiring adjustments in the field. Before accepting a superseded part number from a supplier, ask for the Siemens discontinuation notice or the cross-reference document that confirms functional equivalence for your specific application.
If your program involves safety-related functions or tightly timed sequences, it is worth confirming I/O response timing with your supplier before finalizing your BOM. Reach out at chen@htechplc.com with your current module part numbers, and we can verify what replacement options match your system revision.
New, Refurbished, or Exchange: Which Sourcing Channel Fits Your System
Three sourcing channels dominate the Siemens S7 spare parts market, and each serves a different set of priorities.
Channel
Lead Time
Warranty
Best For
Factory-new from distributor stock
1-4 weeks (if available)
Full manufacturer warranty
Critical processes, regulated industries
Refurbished from specialized supplier
2-10 days
12-24 months supplier warranty
Budget-constrained replacements, legacy systems
Exchange / repair service
1-3 weeks
Limited to repaired function
Rare modules with no available replacements
Factory-new modules carry the lowest technical risk, but availability is inconsistent for the S7-200 series. Siemens has shifted production focus to the S7-1200 and S7-1500 lines, so new S7-200 stock is limited to what distributors still hold. If your production line cannot wait weeks, new-from-stock may not be a realistic option.
Refurbished modules from an experienced supplier offer faster turnaround and lower cost. The key distinction is the refurbishment standard. A proper refurbishment includes full function testing on a live S7-200 backplane, firmware verification, and replacement of any component showing degradation. We test every 6ES7 module we supply on an active S7 system before shipping, and our refurbished units carry a 12-month warranty. This is not simply a cleaned-up pull from a decommissioned panel — it is a verified replacement.
Exchange programs work when your failed module is repairable. You send the defective unit, and the supplier provides a tested replacement from stock. This is worth considering for rare or high-value modules where outright purchase costs are significant.
Lead Time Reality and Avoiding Production Gaps
Lead time expectations for S7 spare parts need to account for real supply chain conditions. Even suppliers with strong inventory cannot stock every variant of every 6ES7 module. The S7-200 family alone includes dozens of CPU, I/O, and communication module variants, and the specific suffix you need may not be on anyone’s shelf at the moment you call.
I have worked with clients who assumed a 3-day delivery window based on a supplier’s general promise, only to find that the exact firmware revision their system required was a 2-week special-order item. The difference between a standard-stock module and a specific-revision module can be days or weeks, and that gap matters when a production line is down.
A practical approach is to keep a pre-verified spare on your own shelf for modules that would cause extended downtime. For everything else, establish contact with a supplier who can confirm actual stock by part number and revision before you commit. When you reach out to us at chen@htechplc.com or +86-181-5013-7565 with your module details, we check physical inventory against your exact requirement, not just the generic family.
Inspection, Warranty, and What to Do When a Module Arrives
When your S7 module arrives, a few minutes of inspection can prevent a failed startup. Check that the part number and hardware revision on the module label match what you ordered, including the suffix. Open the module cover if it is removable, and look for signs of prior modification: re-soldered components, conformal coating discrepancies, or non-original capacitors. These are not necessarily dealbreakers for a refurbished unit, but they should have been disclosed by the supplier.
Power up the module on a test bench if you have one available. Even a basic power-on check with LED status indicators can catch DOA units before they reach the production rack. If you do not have a spare backplane for testing, at minimum inspect the connector pins for oxidation or bending. A bent backplane connector pin on a 6ES7223 module can cause intermittent I/O faults that are difficult to diagnose after installation.
Warranty terms vary significantly between suppliers. For factory-new modules, Siemens provides standard manufacturer warranty through authorized channels. For refurbished modules, insist on at least a 12-month coverage period that includes functional failure, not just physical damage. We provide a 12-month warranty on all S7 modules we supply, and we will cross-ship a replacement if a warrantied unit fails in service. Keep your original packing slip and any correspondence about the order: these serve as your warranty registration.
Common Questions About Siemens S7 Spare Parts Sourcing
How do I know if a 6ES7 replacement module will work with my existing S7-200 system?
Start with the full part number from your existing module label, including the suffix after the last dash. Then check your CPU firmware version through the programming software. Share both with your supplier before ordering. In programs we have supported, the most common compatibility failure is a firmware mismatch between a newer I/O module and an older CPU, and it is avoidable when both revision levels are checked upfront.
What is the typical lead time for Siemens S7 spare parts?
It depends on the specific module variant and the sourcing channel. Common S7-200 I/O modules like the 6ES7221 and 6ES7223 are generally available from refurbished stock within a few working days if the exact revision is in inventory. Rare CPU variants or specific firmware revisions can take 2-3 weeks when they require special-order or extensive testing. Always ask for a confirmed delivery date tied to your exact part number and revision, not a generic estimate.
Can I use a refurbished 6ES7 module as a permanent replacement?
Yes, when the refurbishment process includes full function testing on a live system and the supplier provides a meaningful warranty. A properly refurbished S7 module should perform identically to a new unit for its remaining service life. The risk is not in the concept of refurbishment. It is in suppliers who skip function testing or do not replace aging components. Ask your supplier what their refurbishment process includes and request documentation of the test results.
What documentation should I request when purchasing Siemens S7 modules?
At minimum, request a test report showing the module passed functional verification, the firmware version confirmed, and the hardware revision recorded. For new modules, a certificate of origin or authorized distributor documentation adds traceability. For refurbished units, a description of the refurbishment scope and a warranty statement in writing. If you need compliance documentation for your industry, share your requirements and we will confirm what is available for the modules you need.
A failed S7 module creates pressure to order fast, but ordering wrong creates a longer outage than ordering carefully. Before you commit to a purchase, confirm that the replacement module matches your system’s firmware level, hardware revision, and functional requirements. We provide technical consultation on S7 compatibility and maintain tested inventory of Siemens SIMATIC modules with 12-month warranty coverage.
Send your part number and system details to chen@htechplc.com or call +86-181-5013-7565. We will confirm compatibility, check physical stock against your revision, and give you a firm delivery timeline.
