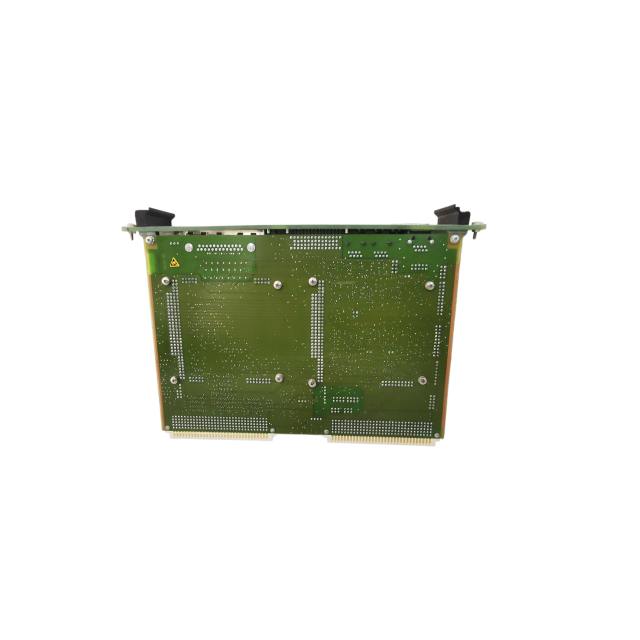

The CPUM 200-595-067-114 is the central communication and processing card for the VM600 rack-based machinery protection and condition monitoring platform. It does not directly acquire vibration signals, but it coordinates the modules in the rack, manages configuration and diagnostics, and exposes monitoring data to plant control systems. A faulty or incorrectly configured CPUM can interrupt the entire rack communication path even when the MPC4 protection cards and IOC4T signal interface cards are still working.
This article explains what the CPUM 200-595-067-114 does inside the VM600 architecture, how it processes data, and what to check when replacing or troubleshooting the card.
CPUM 200-595-067-114 Functional Architecture
The card is designed as a rack controller and protocol gateway. It sits between the field measurement modules and the plant automation network.
Functional block | Role in CPUM 200-595-067-114 |
|---|
Processor core | Executes rack bus management, module enumeration, protocol conversion, and diagnostic routines |
Backplane interface | Communicates with IOC4T, MPC4, CMC16, RLC16 and other installed cards through the rack backplane |
Configuration memory | Stores card parameters, register mapping, communication settings, and event log data |
Communication interface | Provides Modbus RTU or Modbus TCP connectivity to DCS, PLC, SCADA, or HMI systems |
Watchdog circuit | Resets the processor on lockup and drives a safe failure indication |
Front-panel LEDs | Show power state, bus activity, communication status, and fault conditions |
The CPUM 200-595-067-114 plugs into the standard 19-inch VM600 rack using the 204-040-100-011 system rack or 204-040-100-012 backplane layout. Slot position and backplane version matter because the CPUM must correctly enumerate the installed I/O and protection cards at power-up.
How the Processing Cycle Works
The CPUM does not run the actual protection trip logic in most VM600 configurations. The MPC4 cards handle local protection and trip decision logic independently. The CPUM concentrates data, status words, alarm flags, and diagnostic information from those cards.
A typical processing cycle includes:
Power-up self-test and watchdog initialization.
Backplane bus scan for installed modules.
Card type and address verification against the saved configuration.
Continuous polling of input/output and protection card data.
Alarm and status aggregation from MPC4, CMC16, and IOC4T cards.
Modbus register update for the plant control system.
Diagnostic monitoring and event buffer recording.
Processing load depends on the number of installed cards, polled channels, and mapped Modbus registers. A rack with many IOC4T and CMC16 modules will create a higher communication load than a small MPC4-only protection rack. This is one reason why replacing an older CPUM with a different hardware revision should be done with the full rack configuration in mind.
Rack Integration and Slot Considerations
In a VM600 system, the CPUM normally occupies a dedicated controller slot. The exact slot location depends on the backplane guide coding and the rack version.
Rack component | Function |
|---|
204-040-100-011 system rack | Mechanical housing, EMC shielding, module guide rails |
204-040-100-012 backplane | Bus topology, power distribution, backplane contacts for installed modules |
CPUM 200-595-067-114 | Central communication and processing card |
IOC4T module | Signal interface, field I/O, rack communication node |
MPC4 module | Local machinery protection and trip logic |
CMC16 module | Condition monitoring data acquisition |
RLC16 relay card | Auxiliary trip or alarm relay output |
Before replacing a CPUM, record the original slot position, address settings, and rack configuration. Installing the CPUM in the wrong slot can cause the backplane bus to fail during module enumeration.
CPUM 200-595-063-314 vs 200-595-067-114
The 200-595-063-314 is an earlier hardware version of the VM600 CPUM card. The 200-595-067-114 is a later revision with updated processing capacity and memory characteristics. However, this does not mean the newer card is automatically a drop-in replacement for every rack.
Comparison point | CPUM 200-595-063-314 | CPUM 200-595-067-114 |
|---|
Hardware generation | Earlier release | Later revision |
Processing and memory | Base specification | Higher processing headroom / revised memory architecture |
Backplane compatibility | Compatible with the same VM600 rack family | Compatible with the same VM600 rack family |
Replacement path | Often replaced by 067-114 when system firmware allows | Preferred replacement for legacy 063-314 in many systems |
Key check | Confirm firmware and configuration download | Confirm firmware level matches the installed IOC4T/MPC4 cards |
Do not assume a direct swap based only on part number. Always check the VM600 system firmware level, rack backplane revision, and whether the plant configuration can be reloaded onto the new CPUM hardware.
Common CPUM Field Issues
These are typical issues seen in VM600 racks when the CPUM is degraded or misconfigured:
Backplane communication loss with IOC4T, MPC4, or CMC16 cards.
CPUM does not complete module enumeration after power-up.
Modbus data freezes or shows invalid register values.
Configuration loss after the rack is powered off and restarted.
Watchdog reset loop indicated by flashing front-panel fault LED.
Intermittent rack bus errors caused by bent or oxidized backplane contacts.
In many cases, the first step is to power down the rack and inspect the 204-040-100-012 backplane connector area. Reseating the CPUM and checking for bent pins or corrosion can resolve intermittent bus faults without replacing the card.
Replacement Checklist for CPUM 200-595-067-114
Power down the VM600 rack and follow plant lockout/tagout.
Back up the existing configuration from the VM600 configuration software before removing the old CPUM.
Record the CPUM slot position, jumper or address settings, and installed card order.
Remove the old card using ESD-safe procedures.
Inspect the backplane slot for bent pins, dust, or corrosion.
Install the CPUM 200-595-067-114 and confirm it is fully seated.
Power up the rack and verify the CPUM status LEDs.
Reload the saved configuration and confirm that all modules are enumerated.
Verify Modbus communication from the DCS or PLC before returning the system to service.
Unless the specific VM600 documentation authorizes hot swap for the CPUM, power down the rack before replacement. Removing a live CPUM can disrupt the backplane bus and cause fault states in protection modules.
Sourcing and Compatibility Support
For a critical protection system, the replacement CPUM must match the rack revision, firmware level, and installed module set. Joyoung International Trading Co., Limited supports VM600 spare parts including CPUM cards, MPC4 protection cards, IOC4T signal interface cards, IQS450 signal conditioners, TQ402 sensors, rack hardware, and backplane components.
Before ordering, provide the full part number, suffix, firmware version, and rack configuration. This helps confirm whether the CPUM 200-595-067-114 will work in the existing system or whether a different revision is required.
FAQ
Can the CPUM 200-595-067-114 replace the 200-595-063-314?
In many racks, yes, but the replacement depends on the VM600 firmware level and the installed I/O and protection cards. Always back up the configuration and verify card compatibility before the upgrade.
Does the CPUM process vibration signals directly?
No. The CPUM acts as the rack communication and data concentration processor. The MPC4 cards perform the local protection processing, while the CPUM collects status and alarm data for plant communication.
What happens if the CPUM fails?
The protection modules may continue local functions, but the plant DCS or PLC can lose visibility of VM600 status and alarm data. Wiring and trip outputs should be checked, and the CPUM should be replaced as soon as possible.
How do I confirm the correct rack slot?
Use the original rack layout and the VM600 configuration drawings. Slot position is tied to backplane addressing, so moving the CPUM to a different slot without reconfiguration can prevent module enumeration.
For VM600 CPUM 200-595-067-114 availability, firmware matching, or rack-level spares support, contact Joyoung International Trading Co., Limited at chen@htechplc.com or +86-181-5013-7565.
