Every vibration monitoring system protecting a turbine or compressor will eventually need replacement modules, and the VM600 series is no exception. From the IOC4T communication interface that links the rack to the plant network, to the VMD110 dual-channel signal processor and the VIBRO 204 series of displacement sensors, component failure is a reality that maintenance teams plan for. Our experience across dozens of industrial sites has shown that the biggest source of extended downtime is not the fault itself—it is the wait for parts that have not been pre-sourced. This guide explains how to match the right part numbers, verify technical integrity, and secure delivery at a speed that matches your outage window.
Pinpointing the Right VM600 Component for Your System

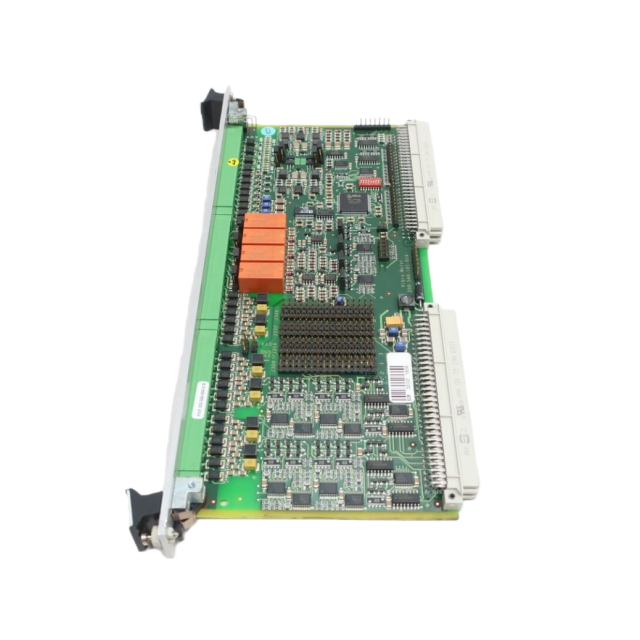

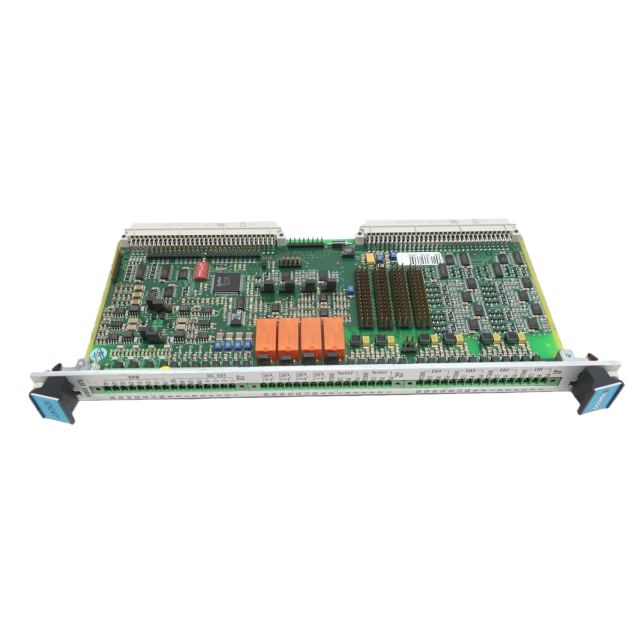

The VM600 rack accepts multiple card types, and a simple visual match can be deceptive. The IOC4T, for example, handles Profibus DP communication and can appear physically identical to older IOCN variants, but substituting one for the other without checking the firmware version will often result in network mapping failures. We consistently ask two questions before issuing a quote: what is the complete model number printed on the original card, and what is the revision level of the VM600 rack backplane? These two data points eliminate about three-quarters of the compatibility guesswork we see in emergency orders.
Similarly, the VMD110 signal processing unit exists in several hardware revisions that affect the configurable monitoring channels. A VMD110 ordered as an identical physical replacement for an earlier VMD100 may need slight parameter adjustments if the plant DCS expects a specific relay output map. We keep detailed revision notes from every customer installation we support, which helps us flag these mismatches before a unit ships.
For the VIBRO 204 series—typically CA 204 and MX 204 eddy-current probes and drivers—the critical identifiers are the probe body length, connector type, and cable armor rating. In petrochemical applications where hydrogen sulfide is present, a standard stainless steel cable armor degrades within months. The correct choice is often the perfluoroalkoxy‑coated cable option, which many generic catalogs omit.
Technical and Certification Checks that Prevent Field Surprises
A replacement module with all the correct markings can still introduce a fault if it arrives with a firmware version that conflicts with the installed analysis software. For IOC4T modules, we confirm the GSD file version and Profibus node address range against the plant’s current engineering station backup before dispatch. This step alone has prevented at least two urgent reshipments where a plant ordered the correct card but later found its DCS configuration was locked to an older protocol.
For VMD110 units, the verification sequence includes confirming whether the module will run in standalone mode or as part of a redundant pair. The jumper settings for relay configuration are rarely documented in online data sheets; we keep a set of configuration photos from previously shipped units that helps us guide customers through the initial power‑up. This is especially relevant when a purchased spare has been stored for two years or longer and the site team has lost the original setup notes.
VIBRO 204 probes and drivers require a different type of check: the calibration sheet that accompanies each probe must match the serial number on the transducer body. Without that pairing, the vibration readings will drift outside the API 670 tolerance band within the first quarter. We only supply drivers that ship with their factory‑matched probe, and we decline to break a matched set even if a customer only asks for a driver.
Lead Times, Stock Buffering, and the Cost of Waiting
Manufacturer lead times on VM600 parts have varied between 14 and 28 weeks over the past two years depending on the card type and the silicon batch availability. An OEM allocation delay on VMD110 processors in early 2025 meant that plants relying on single‑source factory orders waited four months while a third of the units they needed sat in independent supplier stocks. Our inventory approach is to hold a rotating buffer of IOC4T, VMD110, and VIBRO 204 probes specifically because these three part families account for the majority of urgent call‑outs we receive.
If you are currently operating a VM600 with a single communication card and no off‑site spare, the time to order the backup is now—not when the rack’s health LED turns amber. The cost of a pre‑ordered spare is a fraction of a day of unplanned turbine shutdown, and we will warehouse‑hold units for customers so that they sit in our facility until needed, with a pre‑agreed four‑hour dispatch window.
Selecting a Supplier Who Understands the System, Not Just the Part Number
Spot‑buying a part number from a generalist surplus trader can leave you with a module that has been pulled from a decommissioned rack, has outdated firmware, and comes with no support. We specialize in industrial automation spares across PLC, DCS, and vibration monitoring platforms, and we treat VM600 components as part of a broader machinery protection ecosystem. That means we can also supply the associated power supply modules, sensor cables, and even the rack backplane if a lightning strike or water ingress has caused secondary damage beyond the first failed card.
Our technical team includes engineers who have commissioned VM600 racks in the field. When a customer describes a symptom—for example, intermittent loss of relay output on channel 2—we can suggest which modules to check with a multimeter before buying replacements. This diagnostic support often avoids unnecessary orders and gets the plant back online with only the genuinely failed part replaced.
If your maintenance plan includes a migration path to a newer monitoring system but you need to keep the existing VM600 running for two more years, we can also supply refurbished modules with a full bench‑test report. These units go through the same signal verification as new stock and include a twelve‑month return‑to‑base warranty, which gives procurement teams a cost‑effective bridge option.
Fast Integration and Post‑Shipment Support
A replacement card that arrives on a Friday afternoon but cannot be configured because the plant engineer cannot find the correct device description file is a frustration we work to eliminate. Every IOC4T and VMD110 we ship is accompanied by a short integration checklist that notes the Profibus address setting, the firmware version loaded, and a contact number for our support engineers who are reachable during installation hours.
For VIBRO 204 probes, the installation guide includes the mechanical drawing of the probe holder and the recommended tightening torque for the locking nut—details that save hours when the probe is being fitted into a bearing housing with restricted access. We keep a set of installation tools available for loan to customers who do not have the specialized probe insertion rig.
The supplier relationship should not end when the courier drops the box. We track delivery milestones on critical orders and pre‑alert customers if a customs clearance delay threatens the promised arrival time. This level of alerting is the standard we have built into our expedited service because we know that a VM600 rack running with only one functional monitoring channel is already a risk the plant manager is calculating every hour.
Part Family
Common Failure Modes
Typical Lead Time (Stock)
Recommended Spare Quantity
IOC4T Communication
Profibus node loss, firmware mismatch
2–5 days
1 per rack
VMD110 Processor
Relay output drift, channel fault
3–7 days
1 per critical turbine
VIBRO 204 Probe
Cable fatigue, tip wear, calibration drift
3–10 days
1 per probe location
Getting the Parts You Need Without Delay
When a VM600 component fails, the maintenance window is already open, and every hour of sourcing eats directly into the runtime you are trying to protect. Our team at Joyoung carries inventory of IOC4T communication modules, VMD110 signal processors, and VIBRO 204 series displacement sensors precisely because these are the parts that our customers repeatedly tell us they cannot afford to wait for. The calmer your supply chain is, the clearer your decisions become during an outage, and a pre‑qualified supplier with buffer stock and technical support is the simplest way to build that calm into your maintenance planning.
If you have a parts list that includes IOC4T, VMD110, or VIBRO 204 items, send the model numbers and desired quantities to chen@htechplc.com. We will confirm pricing, stock status, and the delivery date that fits your schedule, not ours.
Common Questions About Vibro-Meter VM600 Spare Parts
How do I confirm whether my VM600 rack supports a newer revision of the IOC4T?

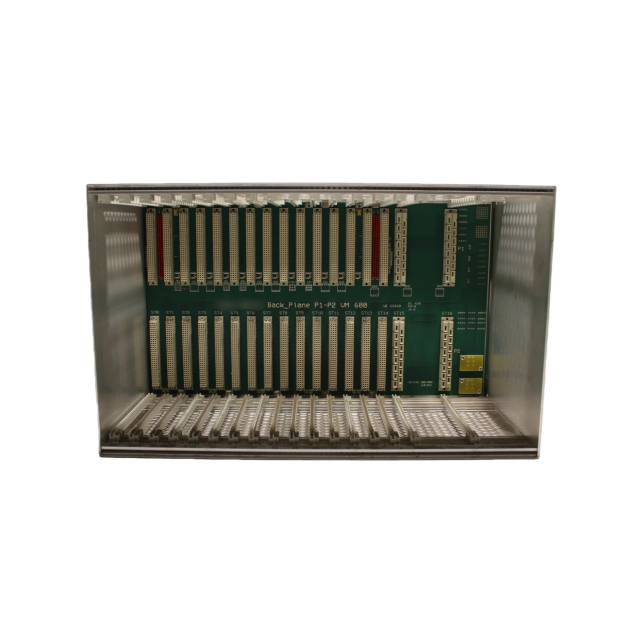

The rack backplane revision number, printed on the label inside the card cage, determines which communication card revisions are compatible. Forward‑compatibility is generally limited to one revision jump. We ask for a photo of that label and the installed IOC4T before shipping a replacement. With that information, we can cross‑reference against the manufacturer’s revision compatibility matrix and confirm whether a straight swap is possible.
What is the difference between a factory‑new VMD110 and a surplus unit?
A factory‑new unit ships with the latest firmware, a full calibration certificate, and full manufacturer warranty. A surplus unit may have been stored improperly, may carry a firmware version that a later DCS upgrade cannot recognize, and almost never includes a valid calibration report. We bench‑test every VMD110 we supply, regardless of source condition, and include that test report so you know exactly what is being installed.
Can I use a generic eddy current probe with the VIBRO 204 driver?
Driver‑probe pairing is electrically matched at the factory. Substituting a generic probe will produce an output signal that falls outside the linear range the driver expects, causing false‑low or false‑high vibration alarms. In programs we have supported, this mismatch has triggered unnecessary turbine trips and even missed a genuine shaft crack. We only supply drivers with their factory‑matched probe, and we recommend replacing both as a set if the original probe has failed.
How fast can you ship VM600 parts internationally?
Domestic orders within China can arrive same‑day or next morning. For international destinations, typical transit is three to seven business days depending on the courier service and customs clearance. We prioritize VM600 orders for critical machinery and will use the fastest available routing. If your site has an approved courier or import broker, we can also ship according to your preferred logistics chain.
Is it worth holding a spare VIBRO 204 probe if we already have a vibration monitoring redundancy?
Redundant monitoring channels protect against sensor failure only if the failure is detected and the replacement is available before a second fault occurs. A spare probe held on‑site reduces the mean time to repair from weeks to hours, especially for probes installed in locations that require scaffolding or confined‑space entry. Send your planned outage schedule and probe model numbers to chen@htechplc.com, and we will recommend a buffer that fits your risk profile and budget.
