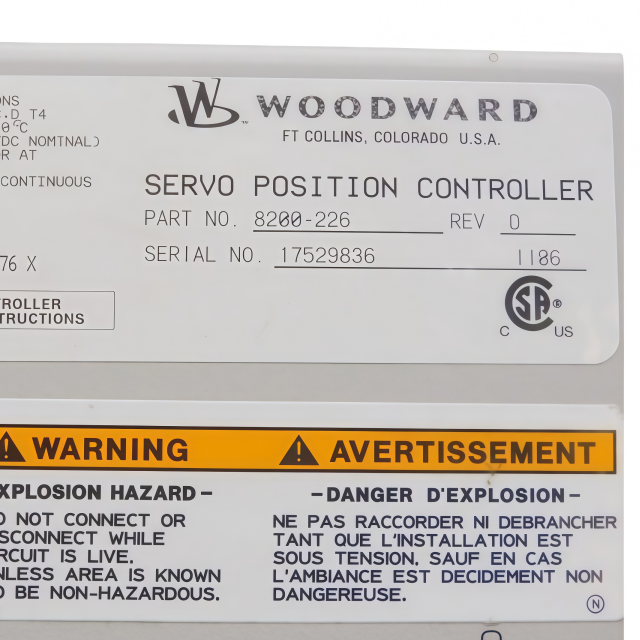

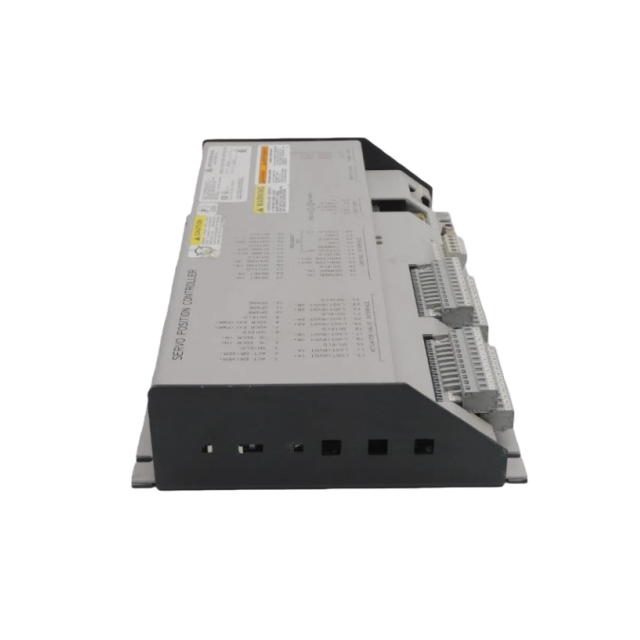

SPC Mounting Location Selection Criteria
When choosing a mounting location for the SPC (Speed/Power Controller), the following key requirements must be considered to ensure stable operation, easy maintenance, and long service life.
1. Environmental Protection Requirements
Moisture Protection: Avoid locations with direct exposure to water (e.g., sprinklers, leaks) to prevent internal component damage from moisture.
Electromagnetic & Electrical Interference: Keep the SPC away from high-voltage equipment, high-current devices, or any equipment that generates electromagnetic interference (EMI). This prevents signal disruption and control inaccuracies.
Vibration Avoidance: Select a location with minimal vibration. Excessive vibration can loosen internal connections, damage components, or affect control precision over time.
2. Thermal & Ventilation Requirements
Adequate Ventilation: Ensure the mounting area has sufficient airflow for cooling. Poor ventilation can cause the SPC to overheat, leading to performance degradation or component failure.
Operating Temperature Range: The location must maintain an ambient temperature between –40 to +70 °C (–40 to +158 °F). Avoid areas with extreme temperature fluctuations or direct exposure to heat sources (e.g., heaters, exhaust vents).
3. Maintenance & Accessibility Requirements
Service Space: Reserve enough space around the SPC for routine inspection, servicing, and repair work. Insufficient space will hinder maintenance efficiency and may lead to incomplete checks.

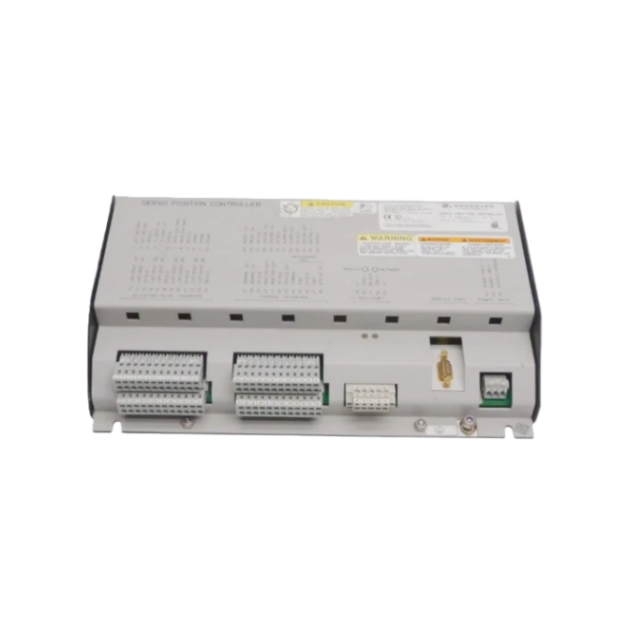

SPC Key Specifications Summary Table
Specification Category | Key Parameters | Details |
Power Input | Nominal Voltage/Range/Current/Power Dissipation | 24 Vdc / 18–32 Vdc / 1.1 A / 20 W typical |
Actuator Driver Output | Current Range/Resolution/Linearity | ±10/25/50/100/250 mA / 11 bits / 0.2% FS |
Analog Demand Input | Range/Fault Detection/Resolution/Linearity | 4–20 mA / <1 mA or >23 mA / 13 bits / 0.1% FS |
Monitor Output | Range/Isolation/Resolution/Linearity | 4–20 mA / 500 Vrms / 12 bits / 0.2% FS |
LVDT Input | AC Voltage/DC Range/Resolution/Linearity | 10 Vrms / 0–12 Vdc / 14 bits / 0.1% FS |
Transducer Exciter | Voltage/Frequency/Accuracy | 4–10 Vrms / 1–5 kHz / 0.2% FS @25 °C |
Discrete Inputs | Operating Current/Thresholds | 10 mA / Open >11 V, Closed <4 V |
Relay Driver Outputs | Voltage/Current/Isolation | 32 Vdc / 500 mA / 500 Vrms |
Environmental | Temperature/Shock/Vibration/Humidity | –40 to +70 °C / 30 G / 0.7 G (5–2000 Hz) / 95% condensing |
Diagnostics (Key) | Driver Error/Overcurrent/Actuator Thresholds | ±20% error / >25% overcurrent / Open/Shorted thresholds calculated per current |
