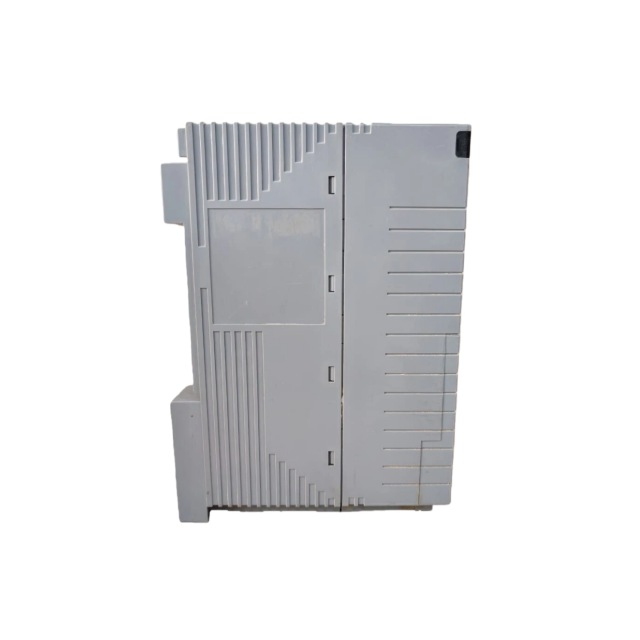

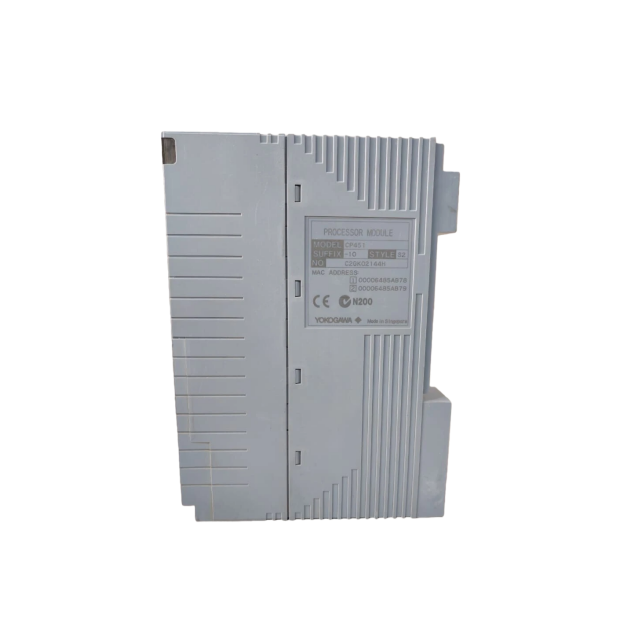

Core Information of CP451-10
CP451-10 is a key component in Yokogawa’s CENTUM VP Vnet/IP FIO (Fieldnetwork I/O) System,
functioning as a supporting module for Field Control Units (FCUs) and Node Units. It integrates with
the system’s redundant communication buses (ESB/Optical ESB/ER) and power supply
configurations, ensuring stable operation of I/O modules and field signal processing in industrial
control scenarios.

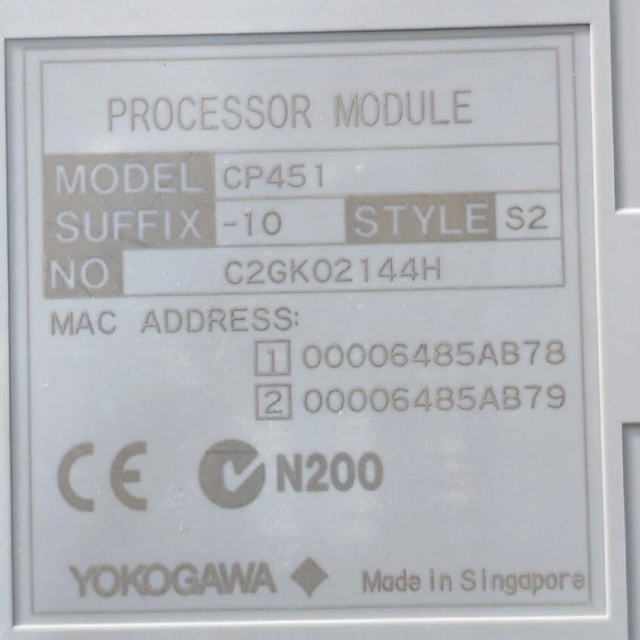

●Model Number: CP451-10
●Product Series: CENTUM VP Vnet/IP FIO System
●Core Function: Supports the operation of Field Control Units (AFV10/AFV30/AFV40) and Node
Units (ANB10/ANB11/ANR10), facilitating power distribution and bus communication
coordination for I/O modules.
●Key Feature: Compatible with dual-redundant configurations, adhering to the system’s high-
reliability design requirements for industrial control.
●Application Scope: Industrial automation environments (including non-hazardous and hazardous
locations with explosion protection modules), suitable for process control, turbomachinery
monitoring, and other industrial scenarios.
Environmental Specifications
●Operating Ambient Temperature: 0 to 50 °C (when installed in AFV10/AFV30/AFV40/ACB51);
compatible with node units with -20 to 70 °C temperature option (with installation restrictions).
●Storage/Transport Temperature: -40 to 85 °C (avoid direct sunlight).
●Relative Humidity: 5 to 95% RH (no condensation).
●Vibration Resistance: Continuous vibration (1–14 Hz: 0.25 mm displacement max; 14–100 Hz: 2.0
m/s² acceleration max).
●Shock Resistance: Transport shock (horizontal: 49.0 m/s²; vertical: 98.0 m/s², packed state).
●Altitude: 2000 m or less.
●Corrosive Gas Resistance: ANSI/ISA S71.04 G2 (standard); G3 option available.
