Core Product Overview
| Attribute | Details |
| Product Model | ABB PM865K01 |
| Product Type | Compact Controller (High-Integrity) |
| Manufacturer | ABB |
| Target System | ABB AC 800M Control System |
| Primary Function | Safety-critical and non-critical process control in industrial automation |

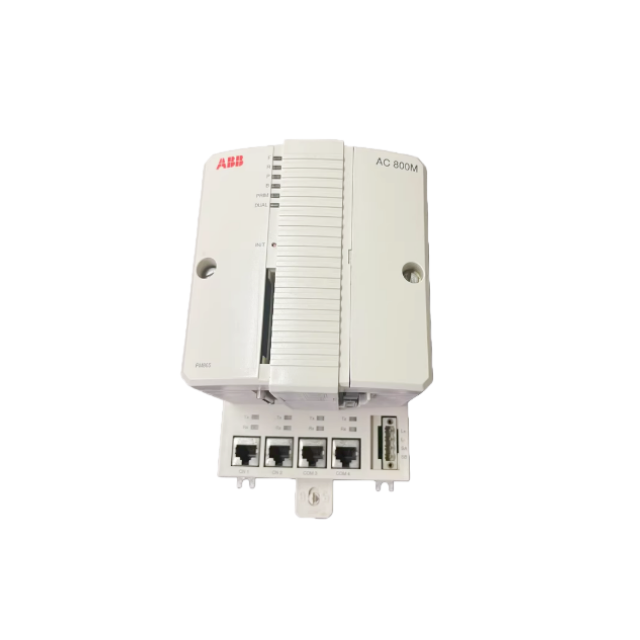

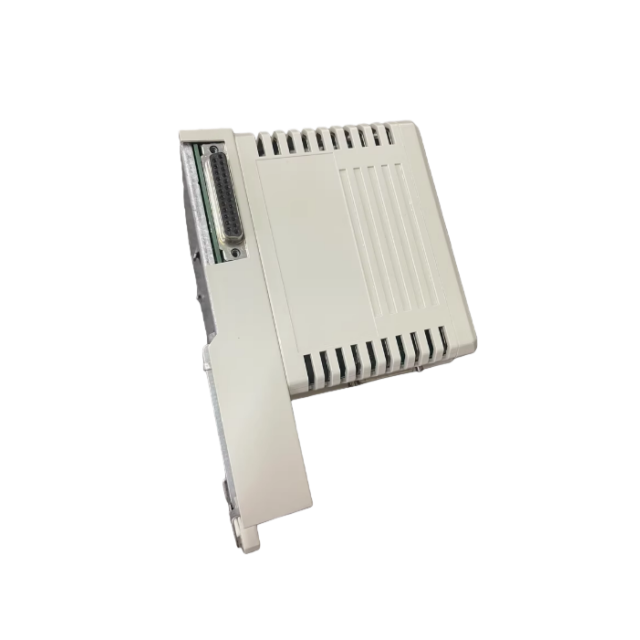

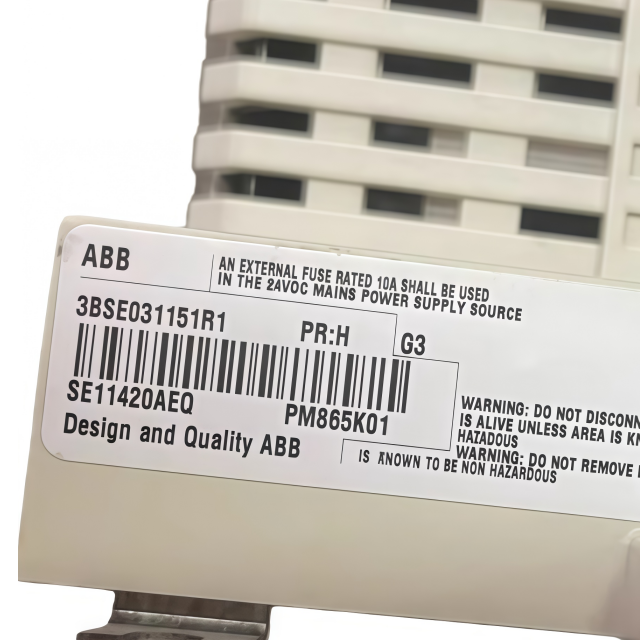

Description:The ABB PM865K01 (Product ID: 3BSE031151R1) is a high-integrity compact controller
designed for the AC 800M control system, delivering SIL 2/SIL 3 certified performance for safety-
critical and business-critical industrial applications. Equipped with redundant communication ports,
flexible I/O connectivity, and robust environmental resilience, it integrates seamlessly with 800xA
Control Builder for intuitive configuration. Below is a structured, visually refined breakdown of its core
specifications, functional features, and technical attributes.
Physical & Environmental Specifications
| Specification | Details |
| Dimensions | - Width: 119 mm (4.7 in.) - Height: 186 mm (7.3 in.) - Depth: 135 mm (5.3 in.) - Weight: 1200 g (2.6 lbs) |
| Environmental Conditions | - Operating Temperature: +5 to +55 °C (+41 to +131 °F) - Storage Temperature: -40 to +70 °C (-40 to +158 °F) - Temperature Change Rate: 3 °C/min (IEC/EN 61131-2) - Altitude: Up to 2000 m (IEC/EN 61131-2) - Relative Humidity: 5–95% (non-condensing) - Pollution Degree: 2 (IEC/EN 61131-2) - Corrosion Protection: G3 (ISA 71.04) |
| Mechanical Resilience | - Vibration: 10–50 Hz (0.0375 mm amplitude); 50–150 Hz (0.5 g acceleration); 5–500 Hz (0.2 g acceleration) - Emitted Noise: <55 dB (A) |
