| Availability: | |
|---|---|

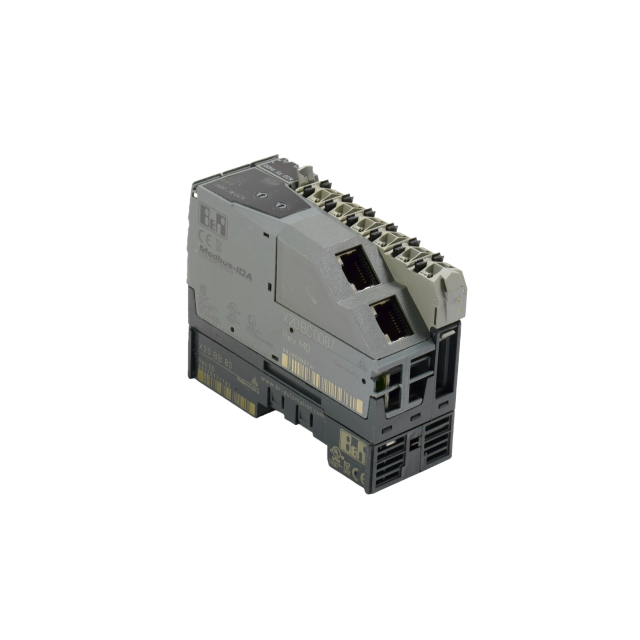

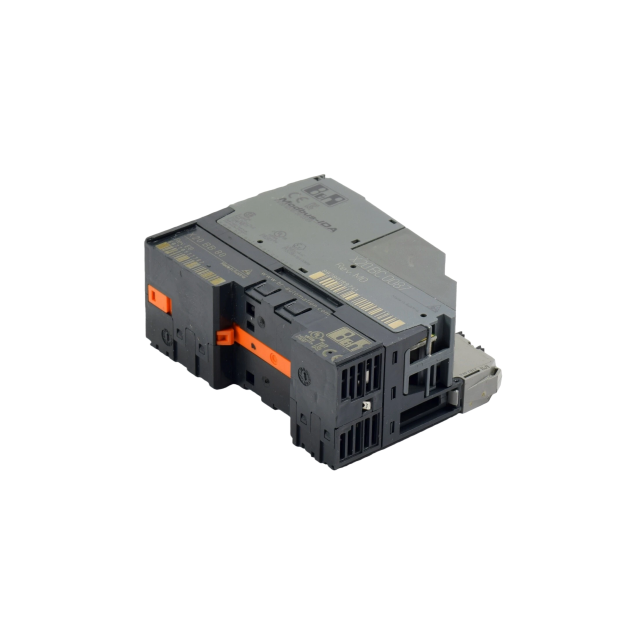

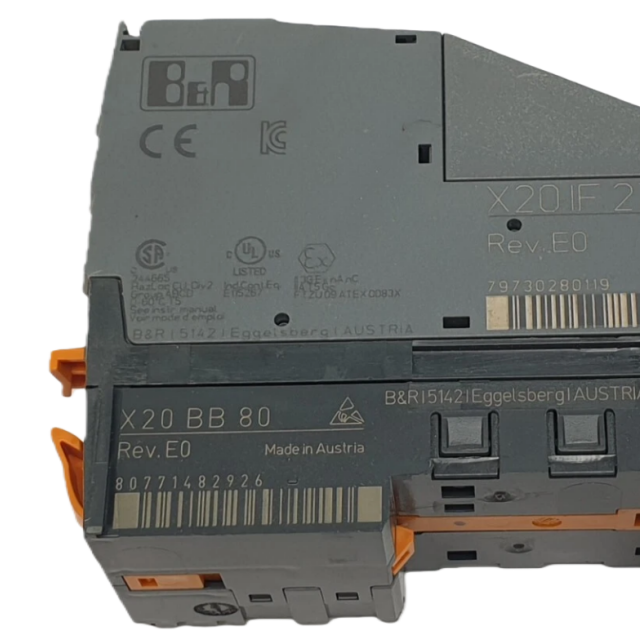

X20BB80
B&R
Dimensions & Packaging Specifications
| Category | Details |
| PCB Format | EURO card format (compliant with DIN 41494), 100 × 160 mm (3.937 × 6.300 in) |
| Dimensions | - Width: 37.5mm (3 X20 module units, approx. 1.476in) - Height: 100mm (approx. 3.94in) - Depth: 160mm (approx. 6.30in) |
| Weight | - Net Weight: approx. 450g (0.992lbs) - Gross Weight: approx. 600g (1.323lbs) (includes standard packing) |
| Packing Volume | approx. 3.0dm³ (0.106ft³) |
| Space Requirements | - Occupies 3 module units (37.5mm width) on standard 35mm DIN rail (EN 60715) - Suitable for cabinet-mounted DIN rail installations |

Overview

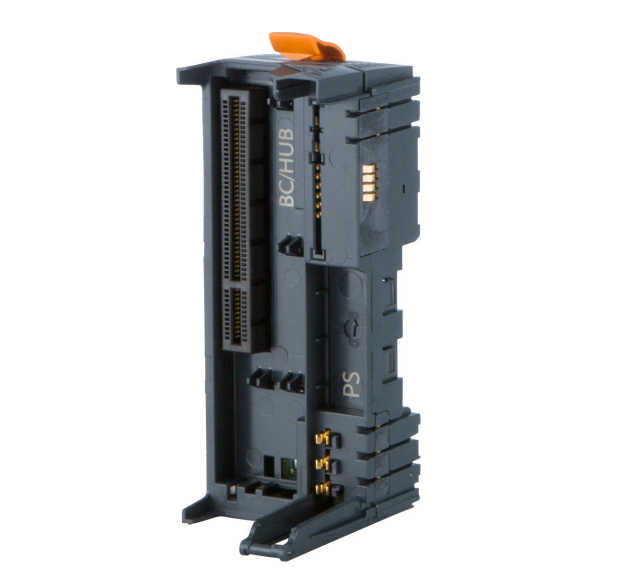

The X20BB80 is an integrated bus base and power supply module belonging to B&R’s X20 modular automation platform, serving as a foundational component for building scalable and reliable industrial control systems. It combines mechanical mounting, bus communication connectivity, and power distribution in a single compact unit, providing a stable electrical and physical interface for attaching X20 bus controllers, I/O modules, supply modules, and expansion modules. Designed for flexible system integration, the module supports both horizontal and vertical mounting orientations to adapt to diverse control cabinet layouts. It features built-in left and right end cover plates (X20AC0SL1 and X20AC0SR1) that fully enclose and protect the module stack, enhancing mechanical stability. As a core link in the X20 ecosystem, it enables seamless communication via the X2X Link protocol, facilitating data transmission between connected modules and ensuring consistent system operation. Electrical performance is optimized for industrial environments, with a nominal voltage rating of 24 VDC and a permissible contact load of 10 A, matching standard industrial power systems. It boasts low power dissipation (0.25–0.35 W) for energy efficiency, while maintaining robust environmental adaptability: operating temperatures range from -25°C to 60°C (horizontal mounting) or -25°C to 50°C (vertical mounting), with resistance to 4 g vibration and 5–95% non-condensing humidity. The module holds IP20 protection class (per EN 60529) and complies with multiple international certifications, including CE, UL (cULus E115267), ATEX Zone 2, and marine certifications (DNV, ABS, LR, etc.), making it suitable for hazardous locations and marine applications. With a compact 37.5 mm pitch and compatibility with standard 35 mm DIN rails, the X20BB80 optimizes cabinet space utilization, even in dense installations. It supports system scalability by accommodating various X20 expansion modules, while its corrosion-resistant design (compliant with EN 60068-2-60 for corrosive gas exposure) ensures long-term reliability in harsh industrial conditions. Ideal for manufacturing automation, process control, marine systems, and hazardous area applications, the X20BB80 delivers the flexibility, stability, and certification compliance required to build robust X20-based automation solutions. |
Key Features
Integrated Bus Base & Power Supply Design Combines mechanical mounting, bus communication connectivity, and power distribution in a single compact module. Eliminates the need for separate components, simplifying X20 system assembly and reducing cabinet space usage. |
Comprehensive Protection with Included End Plates Delivered with X20AC0SL1 (left) and X20AC0SR1 (right) end cover plates as standard. Fully encloses the module stack to enhance mechanical stability and protect internal components from dust and debris. |
Flexible Mounting Orientation Supports both horizontal and vertical installation to adapt to diverse control cabinet layouts. Maintains reliable performance across temperature ranges: -25°C to 60°C (horizontal) and -25°C to 50°C (vertical). |
Broad Certification Compliance Certified for hazardous locations (ATEX Zone 2, cULus Class I Div 2) and marine applications (DNV, LR, ABS, KR, BV). Meets CE, UKCA, EAC, and KC standards, ensuring compatibility with global industrial regulations. |
Seamless X20 System Integration Acts as a foundational backplane for X20 bus controllers, I/O modules, and expansion modules. Supports X2X Link protocol for reliable data transmission between connected components, enabling scalable system configurations. |
Corrosion-Resistant Coating Option Available as a coated variant (X20cBB80) with protective electronics coating. Resists condensation and corrosive gases (per EN 60068-2-60), extending service life in harsh or humid industrial settings. |
