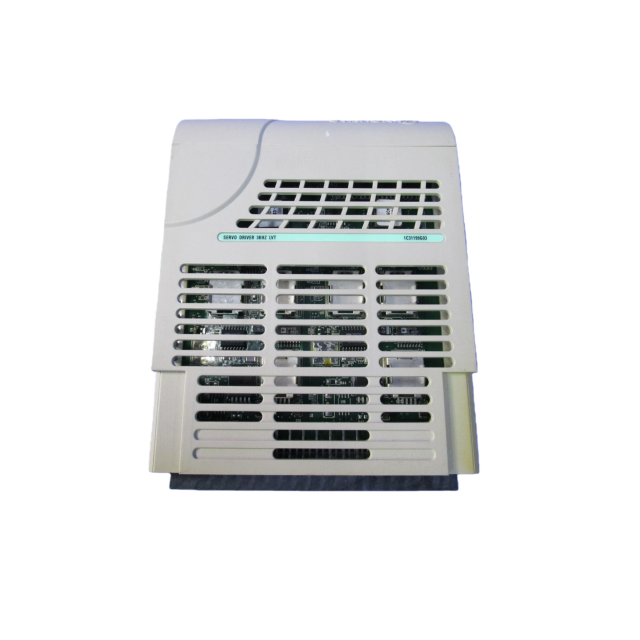

1C31199G03 Servo Driver Electronics Module: Technical Specification & Integration Guide
The 1C31199G03 is a high-performance servo driver electronics module designed for Emerson’s Ovation Distributed Control System (DCS), specialized in precise control of electro-hydraulic servo actuators—commonly used in steam turbine governor valves, interceptor valves, and other critical industrial motion control applications. It features a 3 kHz LVT (Linear Variable Transformer) output with 19 VPP (Volts Peak-to-Peak) signal, delivering fast response times and reliable position feedback for closed-loop control. Engineered for industrial ruggedness, this module integrates advanced calibration tools, multiple operating modes, and robust diagnostics to ensure consistent performance in harsh environments. Below is a detailed breakdown of its core features, specifications, configuration, and maintenance guidelines—optimized for clarity and search visibility.
1. Core Function & Key Capabilities
The 1C31199G03 serves as the electronics backbone for servo-driven motion control, translating control signals from the Ovation Controller into precise actuator movements while providing real-time position feedback. Its primary functions include closed-loop position control, support for multiple operating modes, LVT signal generation, redundant LVT support, and comprehensive diagnostics.
Closed-loop position control uses PI (Proportional-Integral) algorithms to maintain accurate actuator position based on LVT feedback, ensuring tight tolerance for critical processes like turbine valve positioning. The module supports Start, Normal, Local-Manual, and Calibrate modes to adapt to commissioning, operation, and maintenance workflows. It delivers a 3 kHz LVT output with 19 VPP to power linear position sensors, enabling high-resolution position detection. Additionally, it facilitates setup and calibration of redundant LVTs to enhance system reliability, and monitors internal components and external signals to detect faults, triggering alerts via LEDs and status registers.

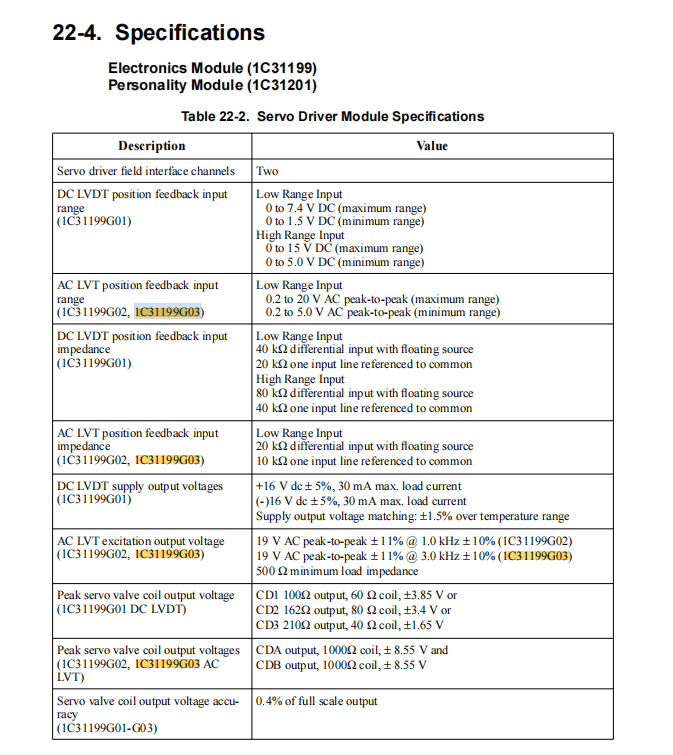

2. Technical Specifications
2.1 Electrical Specifications
The 1C31199G03 has a 3 kHz frequency, 19 VPP LVT output optimized for powering LVT position sensors. It communicates with the Ovation Controller via the Ovation Serial I/O Bus for real-time command and feedback exchange. Power consumption for the main (logic supply) depends on the Ovation system’s +5 VDC logic supply, typically ranging from 2.0–3.5 W (varies with operating mode). The auxiliary (field supply) is compatible with 24 VDC from the Ovation backplane for LVT and actuator control circuits. Dielectric isolation of 1000 V AC/DC between channels and logic circuits prevents electrical interference and ensures safety.
2.2 Environmental Specifications
Operating temperature range is 0–60°C (32–140°F), suitable for industrial cabinets and plant floors. Storage temperature range is -40–85°C (-40–185°F), withstanding extreme conditions during shipping or storage. Humidity tolerance is 0–95% non-condensing, resistant to moisture in harsh industrial environments. The module complies with industrial vibration and shock standards (e.g., IEC 60068) to withstand mechanical stress in plant operations.
2.3 Performance Specifications
Response time is less than 5 ms for position feedback processing, enabling fast adjustments for dynamic load changes. Position control accuracy depends on LVT resolution (typically ±0.1% of full scale) and PI tuning parameters. The module supports 2 redundant LVTs for position feedback, with automatic switching in case of sensor failure.
3. Compatibility & Required Components
3.1 Personality Module
The 1C31199G03 requires the 1C31201G02 personality module, which is mandatory for signal routing, surge protection, and interface customization for LVT sensors and actuator control circuits. Its passive components (e.g., resistors, capacitors) optimize signal integrity for the 3 kHz LVT output.
3.2 External Devices
Compatible with 2-wire or 4-wire LVTs (3 kHz, 19 VPP input) for position feedback, with redundant LVTs (2 total) recommended for critical applications like turbine control. It is designed to drive electro-hydraulic actuators with current requirements matching the module’s output capabilities (refer to actuator manufacturer specs for compatibility). Integration with an Ovation Controller (e.g., Ovation OCR) running compatible servo control algorithms (e.g., servo position control logic) is required.
4. Operating Modes
4.1 Start Mode
Start Mode initializes the module on power-up, performing self-tests (e.g., EPROM checksum, memory read/write) and establishing communication with the Ovation Controller. It verifies LVT signal presence and sets default PI control parameters. If self-tests fail, the Internal Fault (I) LED illuminates, and an error code is logged in the status register.
4.2 Normal Mode
Normal Mode is the primary operating mode for closed-loop position control. It receives position setpoints from the Ovation Controller, compares them to real-time LVT feedback, and adjusts the actuator via PI control. It maintains position accuracy even with load variations, such as changes in hydraulic pressure.
4.3 Local-Manual Mode
Local-Manual Mode allows manual adjustment of the actuator position via a local operator interface (e.g., SLIM—Small Loop Interface Module) for troubleshooting or commissioning. It overrides controller setpoints, enabling operators to test actuator movement without disrupting the DCS. Position changes are made via pushbuttons on the SLIM, with feedback displayed on the module’s LEDs.
4.4 Calibrate Mode
Calibrate Mode is used to calibrate LVT feedback and PI control parameters to ensure position accuracy. It guides users through LVT zero-point calibration, gain adjustment, and resolution verification, supporting both single and redundant LVT calibration.
5. Wiring & Installation Guidelines
5.1 Key Terminals & Connections
The module’s base unit terminal block (paired with the 1C31201G02 personality module) includes LVT output terminals (connect to LVT sensors for power and feedback), actuator control terminals (output control signals to the servo actuator’s drive circuit), auxiliary power terminals (connect to the Ovation backplane’s 24 VDC supply), and serial bus terminals (interface with the Ovation I/O bus for Controller communication).
5.2 Wiring Best Practices
For LVT wiring, use shielded twisted-pair cable (22 AWG minimum) to minimize electromagnetic interference (EMI), and ground the shield at the cabinet entry point (per CE requirements for EMC compliance). Separate actuator power cables from signal cables to avoid noise coupling, and install inline fuses (per actuator specs) to protect against overcurrent. Ensure a single-point ground for the module, LVTs, and actuator to prevent ground loops—critical for LVT feedback accuracy.
5.3 Installation Tips

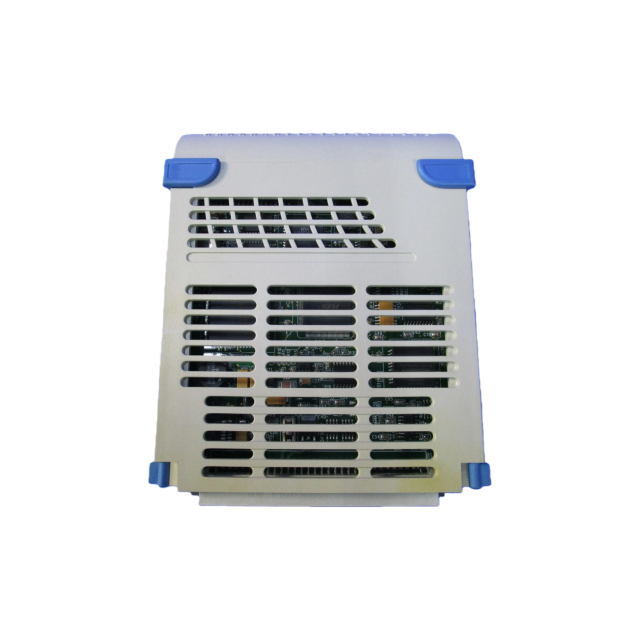

Install the base unit on a DIN rail in an Ovation I/O cabinet, ensuring at least 2 cm of clearance from adjacent modules for ventilation. First insert the 1C31201G02 personality module into the base unit, then the 1C31199G03 electronics module, securing both with the blue latches on the electronics module. Mark terminal blocks with clear identifiers (e.g., “LVT1 +”, “Actuator Control -”) to simplify maintenance.
6. Calibration Procedure
6.1 Pre-Calibration Requirements
Ensure the module is in “Calibrate Mode” (configured via the Ovation Controller or SLIM), verify LVT wiring is correct and no faults are present (check Diagnostic LEDs), and have a calibrated position reference (e.g., micrometer) to verify actuator position.
6.2 Step-by-Step Calibration
First, perform LVT zero-point calibration by moving the actuator to the mechanical zero position (using Local-Manual Mode if needed) and triggering “Zero Calibration” via the Ovation Controller—this stores the LVT’s zero-point feedback value in the module’s EEPROM. Next, conduct LVT gain calibration by moving the actuator to the full-scale position (per process specs) and triggering “Gain Calibration” to adjust the module’s feedback scaling. For redundant LVT calibration (if used), repeat the zero-point and gain calibration steps for the second LVT, then enable “Redundant LVT Sync” to align feedback values. Finally, return the module to “Normal Mode” and send test setpoints from the Controller, confirming actuator position matches the setpoint (within ±0.1% of full scale) using the calibrated reference.
6.3 Calibration Ideal
Zero-point error should be ≤ ±0.05% of full scale, gain error ≤ ±0.1% of full scale, and redundant LVT discrepancy ≤ ±0.05% (to ensure smooth switching).
7. Diagnostic Features & Troubleshooting
7.1 Status LEDs
The module features five diagnostic LEDs: P (Green) for power OK (lit when +5 VDC logic supply is functional), C (Green) for communications OK (lit when communicating with the Ovation Controller), I (Red) for internal fault (lit for errors like EPROM checksum failure), E (Red) for external fault (lit for LVT signal loss or auxiliary power failure), and LVT (Green) for LVT OK (lit when LVT feedback is valid).
7.2 Common Troubleshooting Scenarios
If the Internal Fault (I) LED is lit, power cycle the module; if the error persists, replace the 1C31199G03 electronics module and verify EEPROM programming via the Ovation Controller. For a lit LVT Fault (E) LED, check LVT connections for loose wires or damage, test LVT resistance with a multimeter, and replace the faulty LVT before re-calibrating. If the actuator does not respond to setpoints, access the module’s configuration register via the Ovation Controller and adjust PI gains (starting with factory defaults if unsure). If the Communications (C) LED is off, check the module’s bus wiring to the Controller and reset the Controller’s I/O bus while verifying communication settings (baud rate, address).
8. Maintenance Best Practices
8.1 Routine Inspections
Conduct monthly checks to verify LED status (no unexpected fault lights), secure wiring, and intact LVT connections, while checking auxiliary power voltage (24 VDC ±5%). Quarterly checks involve cleaning the module and base unit with a dry, lint-free cloth (avoiding solvents) and inspecting LVT cables for wear or insulation damage.
8.2 Component Replacement
If the Internal Fault (I) LED remains lit after troubleshooting, replace the 1C31199G03 with an identical model, re-pair it with the existing 1C31201G02 personality module, and re-calibrate. After replacing an LVT, perform full calibration to restore accuracy. Check auxiliary power fuses (on the base unit) quarterly and replace with exact rating matches (refer to the personality module label for specs).
8.3 Software & Firmware
Keep the module’s firmware up to date via Emerson’s Ovation software updates to ensure compatibility with new Controller features. Back up calibration data (stored in EEPROM) to the Ovation Controller periodically for quick recovery after module replacement.
9. Application Use Cases
The 1C31199G03 is ideal for steam turbine control (regulating governor valves, interceptor valves, and bypass valves), process valve control (controlling large-scale valves in oil & gas, petrochemical, and power plants), and heavy-duty motion control (driving servo actuators in mining or metal processing equipment where high force and accuracy are required).
