DS200SDCIG2AHB Advantages

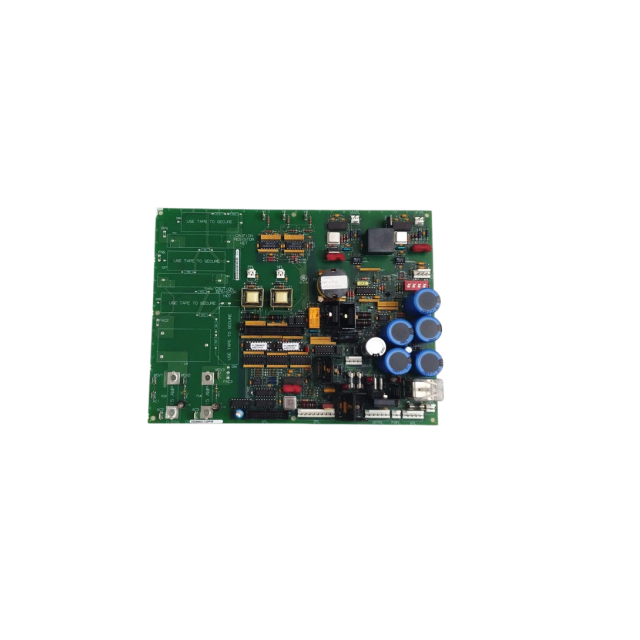

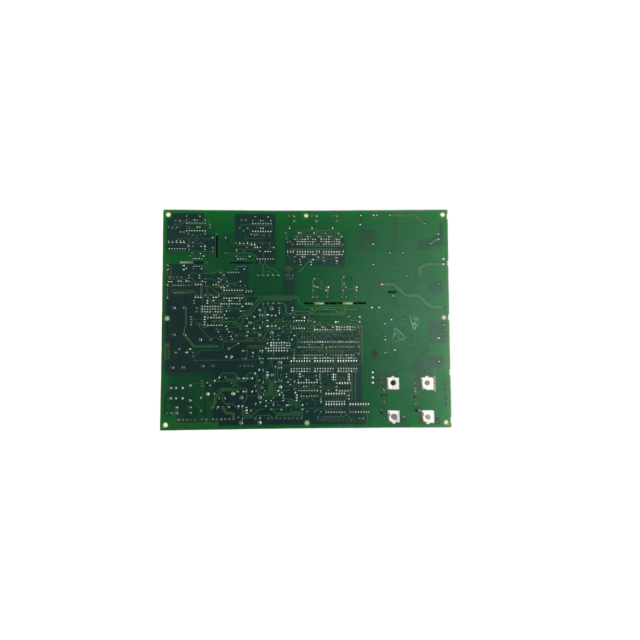

The GE DS200SDCIG2AHB Power Supply and Instrumentation Board stands out from comparable turbine‑system power‑supply and instrumentation printed circuit boards in several key areas.
Integrated dual‑function hardware design for external exciter. The GE DS200SDCIG2AHB Power Supply and Instrumentation Board combines regulated power generation and multi‑parameter signal instrumentation on a single PCB, specially optimized for external exciter layout, supplying multi‑voltage power for drive logic meanwhile capturing armature voltage, armature current, AC line voltage and phase sequence signals, simplifying cabinet layout and inter‑board wiring complexity.

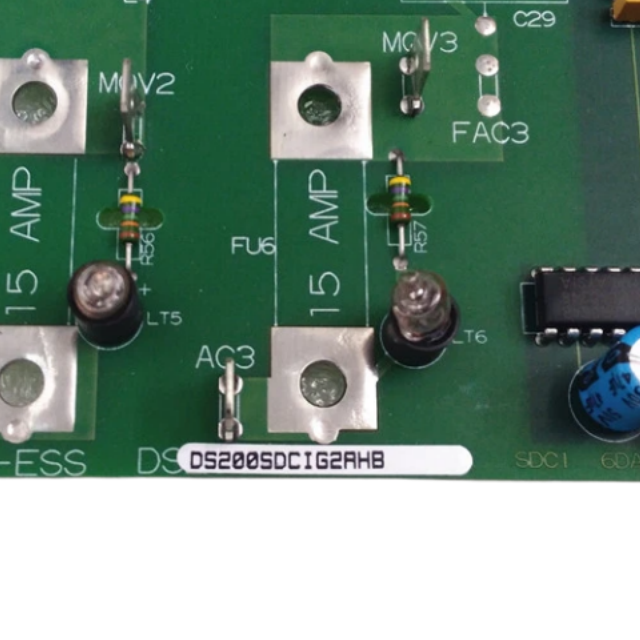

Built‑in multi‑level fuse protection with visual fault prompt. Multiple independent fuses protect each power output and signal channel; corresponding LED indicators will light up once fuse blows, allowing maintenance personnel to quickly locate fault channels without additional measuring instruments, shortening troubleshooting cycle.
High‑precision isolated signal conditioning for drive closed‑loop control. On‑board isolation instrumentation amplifiers process raw motor and line signals, converting them into standard analog feedback signals for SDCC drive controller, supporting high‑accuracy closed‑loop adjustment of excitation and static‑starter system.
Flexible hardware‑jumper configuration. On‑board jumpers support hardware parameter adjustment to adapt to different site operating conditions for external exciter setup, without modifying other system boards during commissioning and retrofit projects.
Support for simplex and TMR redundant system architectures. The GE DS200SDCIG2AHB Power Supply and Instrumentation Board can operate within single‑channel or triple‑modular‑redundant control frameworks, satisfies high‑availability requirements of large‑capacity gas‑turbine and excitation‑drive systems in power‑generation plants.
Native MARK V / EX2000‑system integration. As a factory‑original GE component, the GE DS200SDCIG2AHB Power Supply and Instrumentation Board matches perfectly with MARK V and EX2000 control‑system hardware with no extra adapter or custom modification.
Wide working environmental adaptability. The GE DS200SDCIG2AHB Power Supply and Instrumentation Board performs reliably under high‑EMI cabinet thermal conditions, delivering stable power output and accurate signal acquisition performance during long‑term gas‑turbine continuous running and excitation‑drive startup‑shutdown cycles.
