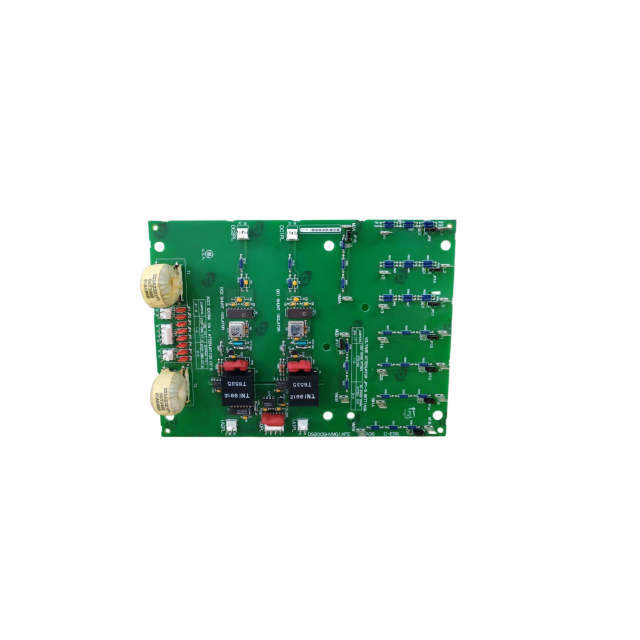

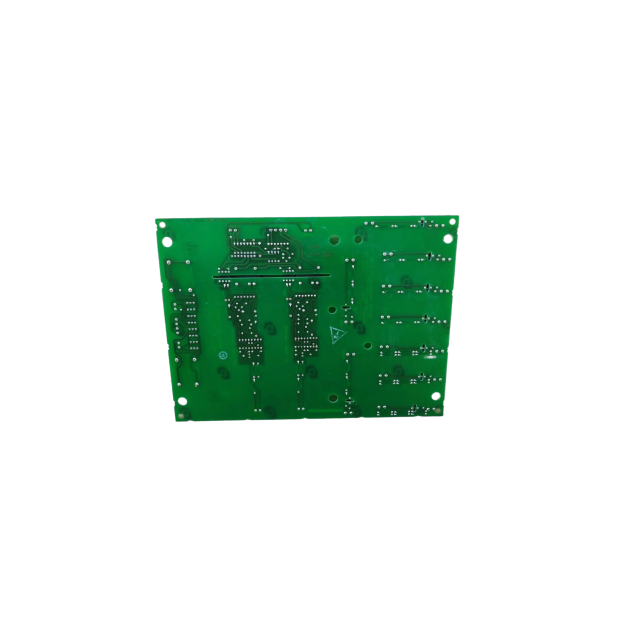

GE DS200SHVMG1AFE SCR High Voltage M-Frame Interface Board

DS200SHVMG1AFE Advantages

The GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board stands out from comparable turbine‑system high‑voltage interface printed circuit boards in several key areas.

Precision voltage‑to‑frequency signal conversion for M‑frame hardware. The GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board converts analog shunt and current‑transformer measurement signals from M‑frame SCR power bridges into stable differential frequency signals, providing high‑noise‑immunity feedback data to main drive controllers for closed‑loop excitation and static‑starter regulation.

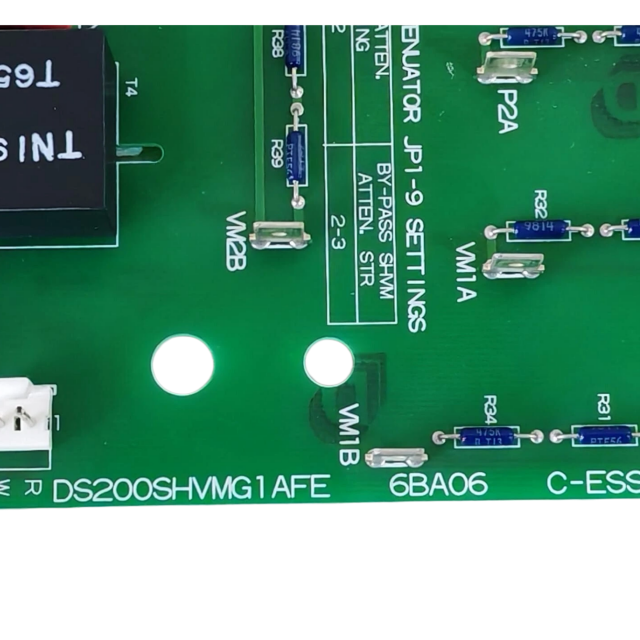

Flexible jumper‑selectable multi‑range signal attenuation. Seventeen onboard Berg‑type jumpers allow technicians to adjust CT and voltage‑signal attenuation parameters on‑site without modifying other system boards, adapting the GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board for different M‑frame SCR power‑bridge ratings and field operating requirements.

Built‑in fuse protection with visual fault indication. Independent onboard fuses safeguard individual signal channels; dedicated LED indicators illuminate upon fuse failure, enabling maintenance personnel to rapidly locate M‑frame high‑side circuit faults without extra external measuring instruments, shortening troubleshooting cycle.

High‑strength galvanic isolation design for M‑frame power circuits. Effective electrical isolation separates high‑voltage M‑frame SCR power circuits from sensitive low‑voltage drive control electronics, preventing surge and transient damage to core controller hardware under heavy‑load operating conditions.

Support for simplex and TMR redundant system architectures. The GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board can operate within single‑channel or triple‑modular‑redundant control frameworks, satisfies high‑availability requirements of large‑capacity gas‑turbine and excitation‑drive systems in power‑generation plants.

Native MARK V‑system integration. As a factory‑original GE component, the GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board matches perfectly with MARK V control‑system hardware with no extra adapter or custom modification.

Wide working environmental adaptability. The GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board performs reliably under high‑EMI cabinet thermal conditions, delivering stable signal conversion and isolation performance during long‑term gas‑turbine continuous running and excitation‑drive startup‑shutdown cycles.

Get the GE DS200SHVMG1AFE with fast worldwide delivery — in‑stock units ship within 2‑3 business days of payment confirmation.

• Email: chen@htechplc.com

• WhatsApp / Phone: +86-181-5013-7565

• Shipping carriers: DHL, FedEx, UPS, TNT

Why buy from us:

• 100% new and original GE parts including the GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board

• Full functional test before shipment

• Professional anti-static packaging

• One-year warranty on all units

• Free online quotes and 24/7 technical support

• Competitive pricing with fast global delivery

DS200SHVMG1AFE Applications

Gas Turbine Power Generation. Critical M‑frame SCR high‑voltage signal‑interface unit within GE MARK V Speedtronic and EX2000 excitation‑drive control systems, processing M‑frame power‑bridge shunt and CT measurement signals and transmitting converted feedback signals for gas‑turbine static‑starter and excitation control loops.

Combined Cycle & Thermal Power Plants. Executes M‑frame‑specific high‑voltage signal isolation and conversion for large‑turbine MARK V control hardware, supports reliable excitation‑drive operation during turbine startup and normal running sequence.

Oil, Gas & Petrochemical Facilities. Fits gas‑turbine‑driven compressor MARK V control cabinets, providing essential M‑frame high‑power‑side signal‑isolation and conversion function for MARK V‑based turbomachinery and excitation‑drive‑control systems.

Heavy‑Industry Power Utilities. Reliable rack‑mounted M‑frame SCR high‑voltage‑interface hardware for industrial gas turbomachinery, where accurate isolated measurement signals directly impact unit startup stability, protection‑response safety and system long‑term‑running reliability.

Power Plant Auxiliary Control Systems. Contributes to MARK V static‑starter M‑frame SCR power‑bridge signal conditioning and feedback transmission processing, meeting stringent power‑industry reliability standards.

DS200SHVMG1AFE Certifications & Compliance

The GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board meets the following industrial safety and EMC requirements:

• Industrial Control EMC Standards — Electromagnetic compatibility requirements for power‑generation gas‑turbine M‑frame SCR high‑voltage interface equipment.

• General industrial safety specifications for turbine‑control high‑voltage interface printed circuit boards.

All boards supplied are 100% new original GE parts. Every GE DS200SHVMG1AFE SCR High Voltage M‑Frame Interface Board unit is functionally tested before dispatch, packed in professional anti‑static packaging, and covered by a one‑year warranty from the date of delivery.
