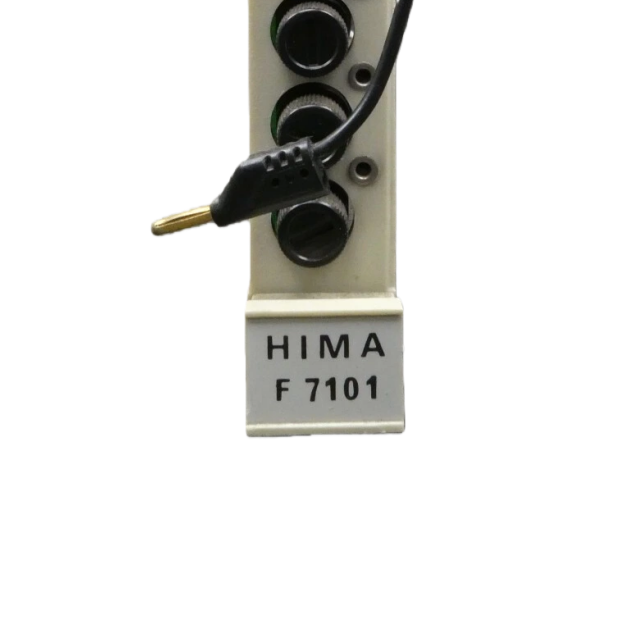

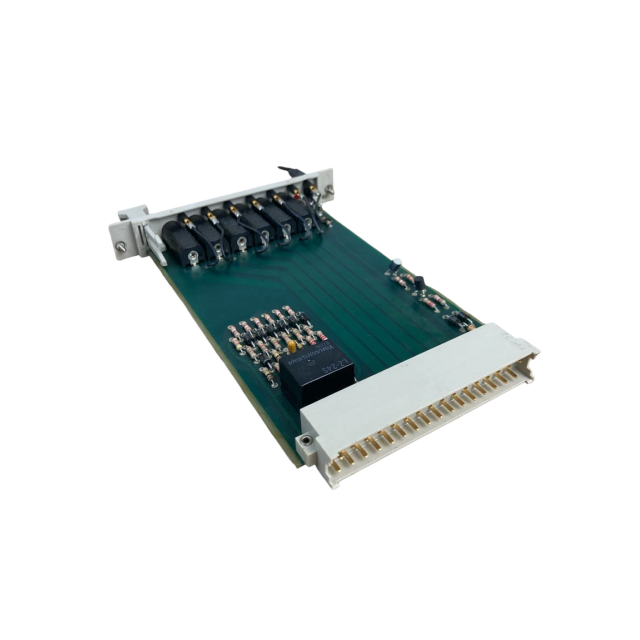

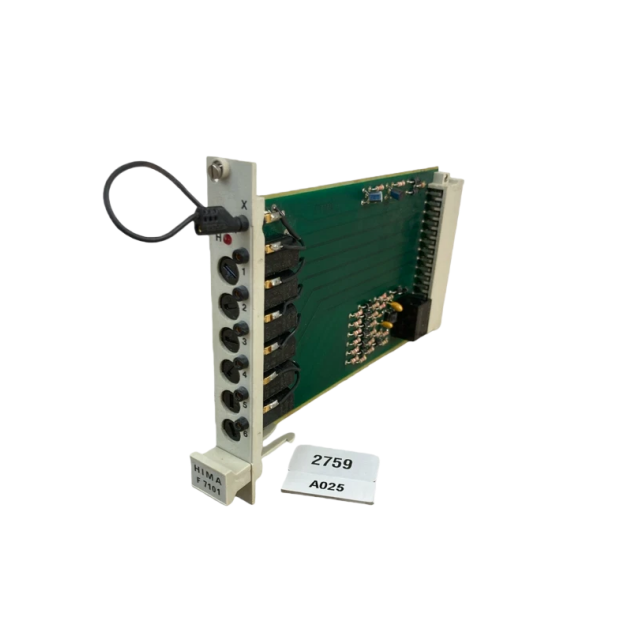

Product Overview
HIMA F7101 is a high‑performance safety controller module from HIMA, serving as a core
component of HIMA safety instrumented systems (SIS).
HIMA F7101 is designed for safety‑critical industrial applications, delivering ultra‑high reliability,
functional safety, and cybersecurity.
1. Core Architecture & Hardware
Adopts Triple Modular Redundancy (TMR) with three independent, clock‑synchronized CPU channels
(e.g., ARM Cortex‑A9 dual‑core, up to 1.2 GHz).
Equipped with dedicated control and communication microprocessors for isolation and stability.
Memory: Typically 1 MB Flash‑EPROM + 1 MB SRAM per processor; expandable to 1 GB RAM / 512 MB Flash for complex applications.
Supports hot‑swap and 24 VDC power input.
2. Safety & Cybersecurity Certifications
Functional safety: Compliant with IEC 61508 SIL 3 (SIL 4 in some configurations).
Cybersecurity: Certified to IEC 62443, TÜV Rheinland, ISASecure EDSA, and Achilles Level 1.
Runs on a proprietary, hardened OS resistant to common IT attacks.
3. Key Features
Fault tolerance: Continues safe operation with one or two CPU channels failed.
High‑speed processing: Meets real‑time control demands for large industrial data.
Isolation & diagnostics: Robust electrical isolation and comprehensive self‑diagnostics.
Rugged design: Industrial‑grade for harsh environments.
4. Typical Applications
Emergency Shutdown Systems (ESD)
Burner Management Systems (BMS)
Fire & Gas (F&G) detection systems
Turbine control, oil & gas, petrochemical, and power generation safety loops.
