Products information

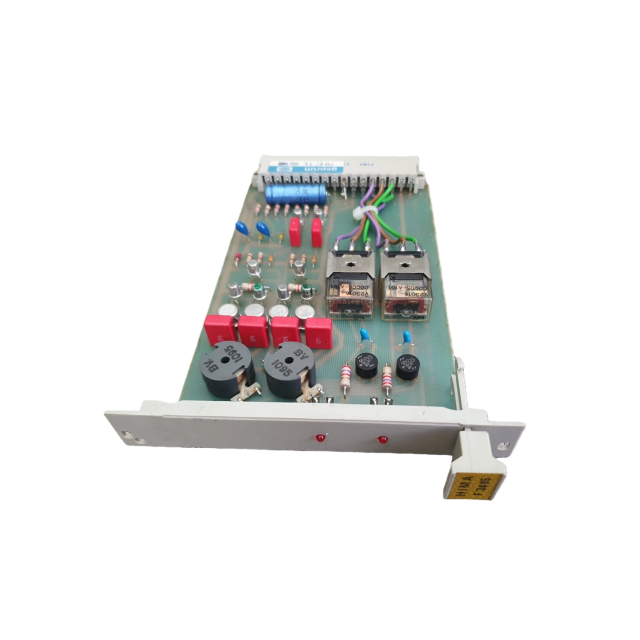

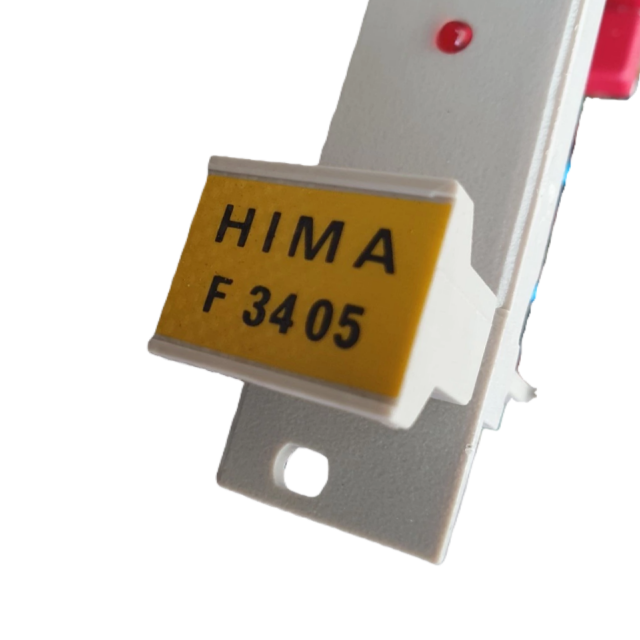

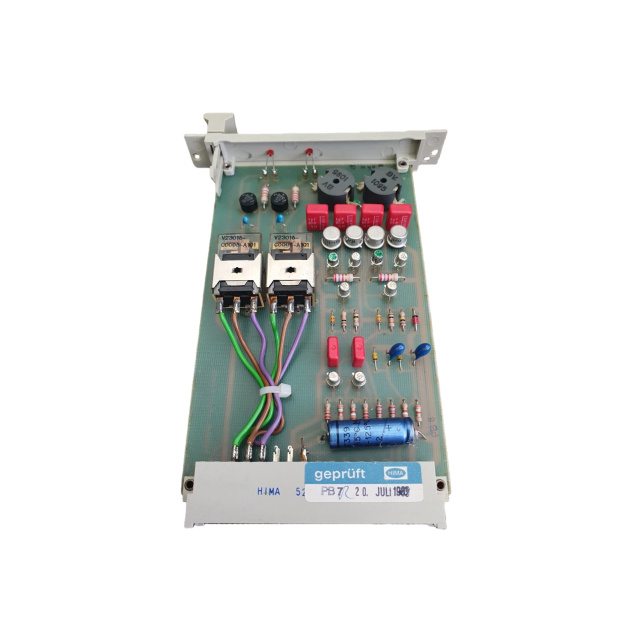

The HIMA F3405 is a safety-related specialized output module engineered for industrial safety-critical
systems—such as process control, emergency shutdown (ESD), valve positioning, and precision
actuator control—in sectors like oil & gas, chemical processing, and pharmaceutical manufacturing.
Compliant with CE certification and aligned with HIMA’s safety heritage (likely IEC 61508 SIL 2/3
compatibility), it is designed to bridge the gap between digital control signals and industrial loads,
potentially integrating mixed functional capabilities (e.g., digital switching + analog current output, or
high-power load driving with fine current regulation) that distinguish it from standard 3000-series
output modules (e.g., F3330’s basic switching).
A core design focus of the F3405 is safe isolation—between channels, power domains (logic vs. load),
and the system I/O bus—to prevent fault propagation (e.g., load short-circuits affecting control logic)
and mitigate electromagnetic interference (EMI) in harsh industrial environments. It likely supports a
range of load types, including inductive (solenoid valves, motors), resistive (heaters, indicators), and
potentially analog-controlled loads (e.g., proportional valves requiring 4–20 mA current signals), with
built-in surge suppression and overcurrent protection to eliminate external component needs.
For integration and usability, the F3405 follows HIMA’s compact rack-mount footprint (typically 4
TE/SU, consistent with its modular family) for seamless installation in standard industrial cabinets. It
uses HIMA’s standardized Z-series front cable plugs (e.g., Z71xx) and screened cables for reliable
wiring, while front-panel LEDs per channel provide real-time status (e.g., “output active,” “fault,”
“load open”). Diagnostic signals are integrated with HIMA central modules (e.g., F8650/F8651) via
the I/O bus, enabling centralized fault logging and automated safety responses (e.g., emergency
shutdown if a critical load fails).
Key Specifications
Parameter Category | Parameter | Estimated/Common Specifications (Consistent with HIMA Safety Module Logic) |
Basic Information | Product Type | Safety-related specialized output module (likely 4–8 channels) with mixed digital/analog capabilities or high-power load support |
| Certification | CE compliant; IEC 61508 (SIL 2/3 compatible); EN 60947-5-1 (industrial output circuits); EN 61010-1 (electrical safety) |
| Safety Isolation | - Channel-to-channel: ≥2.5 kV AC (1 min, fault isolation)- Channel-to-ground: ≥2 kV AC (1 min, personnel/equipment safety)- Output-to-I/O bus: ≥1.5 kV AC (1 min, logic protection) |
Electrical Specifications | Load Compatibility | - Digital output: Resistive/inductive loads up to 1 A (24 W @ 24 V DC) per channel (higher power than F3330 for heavy-duty loads)- Analog output (if applicable): 4–20 mA DC (for proportional loads, 12-bit resolution)- Lamp load: Up to 10 W (direct, no auxiliary resistor needed) |
| Load Protection | - Overcurrent: Electronic current limiting (trip point: 1.2–1.5 A) or slow-blow fuses (5 A per channel, HIMA-compatible part-no.)- Surge suppression: Built-in freewheeling diodes (1N4007) for inductive loads; varistors for voltage spikes |
| Power Supply Requirements | - Logic power: 5 V DC (50–80 mA, module control + diagnostics)- Load power: 24 V DC (200–300 mA total, supports higher current loads than F3330)- Analog power (if applicable): 24 V DC (additional 50 mA for current regulation) |
| Output Performance | - Digital switching time: ~50 ms (faster than F3330 for time-critical loads)- Analog accuracy (if applicable): ±0.1% full scale (FS) at 25°C; ±0.3% FS at 0–60°C- Residual voltage (off state): ≤1 V (prevents false load activation)- Residual current (off state): ≤200 µA (minimizes leakage) |
| Fault Detection | - Open-circuit: Detected via current <10 mA (for 24 V loads)- Short-circuit: Detected via current >1.5 A (triggers shutdown + fault alert)- Analog drift: Detected via deviation >1% FS (triggers diagnostic bit) |
Mechanical Specifications | Number of Channels | 4–8 independent output channels (specialized load control) |
| Space Requirement | 4 TE (Terminal Equipment units) or 4 SU (consistent with HIMA modular design) |
| Cabling & Connectors | - Cable type: LiYY 8×0.5 mm² / 16×0.5 mm² (screened, EMI mitigation); LiYCY 8×0.75 mm² (for high-power loads)- Front cable plug: HIMA Z-series (e.g., Z71xx/3405/C.., lead-marked for digital/analog wiring)- Flat pin plug: 2.8×0.8 mm² (power L+/L–); 6.3×0.8 mm² (high-power channels, if applicable) |
Functional Features | Status Indication | Front-panel LEDs per channel: Green (output active), Red (fault: short-circuit/overcurrent), Amber (load open/analog drift) |
| Diagnostic Integration | 4–8 test bits for HIMA central modules (F8650/F8651); analog drift alerts (if applicable) |
| Environmental Resistance | Operating temperature: -20°C to +60°C; Relative humidity: 10–90% (non-condensing); Vibration: 0.5 g (10–60 Hz, IEC 60068-2-6) |
