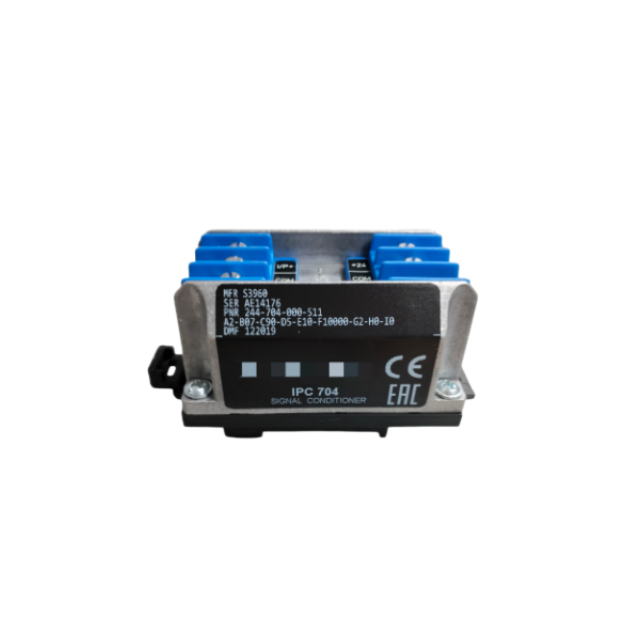

The IPC704 244-704-000-042 is a multi-channel signal conditioning card for VM600 rack-based machinery protection and condition monitoring systems. It accepts input from eddy current proximity transducers, piezoelectric accelerometers, and other vibration sensors. The card converts raw sensor signals into clean, scaled outputs for the system backplane.
In practice, one IPC704 card can handle multiple measurement channels. This reduces cabinet space, wiring, and per-channel hardware cost compared with single-channel conditioners. It is used where a single machine requires several vibration, position, or speed measurements at the same time.
What IPC704 Does
Conditions dynamic vibration and position signals.
Supports gap voltage measurement for proximity probes.
Provides buffered outputs to MPC4, CMC16, and CPUM modules.
Works with TQ402 111-402-000-012/013 eddy current probes and CA202 144-202-000-203 accelerometers.
Centralizes signal wiring and reduces failure points.
Function | Typical connected device |
|---|
Shaft vibration / axial position input | TQ402 111-402-000-012/013 |
Bearing / casing vibration input | CA202 144-202-000-203 |
Speed reference | TQ412 111-412-000-012 or TQ902 111-902-000-011 |
Why Multi-Channel Signal Conditioning Matters
In a VM600 cabinet, signal conditioning is not just wiring. It determines measurement accuracy, noise immunity, and long-term stability. A multi-channel card must keep channels electrically isolated and consistent. IPC704 uses common backplane communication and front-panel status indication to simplify commissioning and fault finding.
For rotating machinery, poor signal conditioning can cause false alarms or missed trips. A loose probe gap, a damaged shield, or incorrect cable routing can create signal drift. The IPC704 card reduces those failure points by centralizing conditioning and making connections easier to inspect.
Part Number and Suffix Selection
The full part number is IPC704 244-704-000-042. Some orders include suffix B03 or B10. Suffix codes usually identify channel configuration, input type, or output scaling. When you replace a card, always match the complete part number and suffix from the cabinet documentation.
Do not install a different suffix version without checking the rear connector pinout and sensor interface. A mismatch can cause incorrect gain, incorrect gap voltage reading, or no output on some channels.
Wiring and Installation Notes
Use shielded twisted-pair cable between the TQ402 probe and the IPC704 input terminals.
Keep sensor cables away from VFD motor cables, high-voltage lines, and switched inductive loads.
Ground the shield at one end only. Ground loops cause low-frequency noise.
Check backplane seating. A half-seated card can cause intermittent channel loss.
Confirm rack slot assignment before inserting. VM600 racks commonly use 204-040-100-011 with 204-040-100-012 backplane.
Common Fault Diagnosis
Symptom | Likely cause | Action |
|---|
Gap voltage out of range | Probe gap wrong, extension cable loose, probe damaged | Check TQ402 gap and connector |
Channel reading frozen | Backplane contact, card not seated, configuration mismatch | Reseat card, check slot configuration |
High noise on channels | Shield grounding, cable routing near power lines | Re-route cable, check one-point ground |
Output drift | Sensor aging, calibration interval exceeded | Recalibrate with 204-215-000-101 or equivalent |
Applications
Plastic extruder gearbox and bearing monitoring with IPC704 + CA202 accelerometer.
Steam turbine shaft position and vibration with TQ402 probes.
Oil and gas compressor monitoring with multiple TQ402 and CA202 inputs.
Paper machine dryer bearings where cable runs are long and shielding is critical.
CNC spindle monitoring where compact multi-channel conditioning is needed.
Sourcing IPC704 244-704-000-042
When sourcing, specify the full part number, suffix, and target rack type. Confirm whether you need new original, tested used, or a compatible replacement. Wrong firmware or backplane revision can prevent card recognition.
Joyoung International Trading Co., Limited supplies IPC704 244-704-000-042, TQ402 proximity probes, CA202 accelerometers, and related VM600 spare parts. We provide technical support for part matching, configuration confirmation, and fast delivery.
Contact Joyoung International Trading Co., Limited for current stock and selection support. Email chen@htechplc.com or call +86-181-5013-7565.
FAQ
What is IPC704 244-704-000-042 used for?
Multi-channel signal conditioning in VM600 machinery protection and condition monitoring systems.
Can IPC704 work with both proximity probes and accelerometers?
Yes. It accepts multiple input types, but the exact channel assignment depends on the suffix and backplane configuration. Always check the wiring diagram.
How do I choose between suffix B03 and B10?
Match the existing card suffix and rack documentation. Do not replace with a different suffix unless the supplier confirms compatibility.
What rack does IPC704 require?
It installs in a VM600 19-inch rack, typically using the 204-040-100-011 rack and 204-040-100-012 backplane.
Can you supply complete VM600 sets?
Yes. We supply CPUM, MPC4, IOC4T, CMC16, IQS450, TQ402, CA202, racks, and backplanes.
