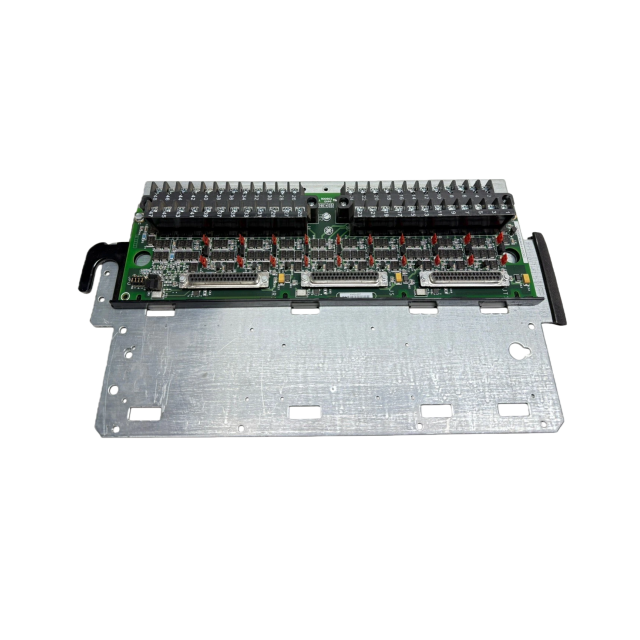

The IS200TBAIH1CDC is a multi-type I/O terminal board used in GE Mark VI turbine control systems. It provides the field termination interface between plant instruments and the Mark VI control rack. Because the board supports more than one signal type, correct wiring depends on the assigned function of each channel, not only on the terminal block position.
This guide covers field wiring, shielding, commissioning checks, and common wiring faults. It is written for control engineers, technicians, and maintenance teams who need to wire, test, or replace an IS200TBAIH1CDC without creating signal errors or nuisance trips.
What the IS200TBAIH1CDC Does
The IS200TBAIH1CDC is a terminal board, not an active processing module. Its job is to connect field devices to the Mark VI I/O system in a controlled and serviceable way.
Typical functions include:
Terminating analog input signals from transmitters and transducers
Terminating temperature inputs such as thermocouples and RTDs
Terminating discrete or contact inputs from switches and relays
Providing a connection point for shield grounding
Routing signals to the assigned Mark VI I/O cards through the control rack interface
The board must be matched to the correct Mark VI slot and I/O card type. The exact channel-to-terminal assignment comes from the project-specific GE wiring diagram for the turbine unit.
Supported Signal Types and Wiring Rules
The IS200TBAIH1CDC is a multi-type I/O board, so one wiring style does not fit every terminal. The table below summarizes the main field signal groups.
Signal Type | Typical Field Device | Key Wiring Rule |
|---|
4–20 mA analog input | Pressure transmitter, level transmitter, valve positioner | Use twisted shielded pair, correct polarity, shield grounded at one end only |
0–10 V or ±10 V analog input | Speed reference, position feedback, external transducer | Use shielded cable, keep signal pair away from AC power |
Thermocouple input | Type K, J, T, E turbine exhaust or bearing probes | Use matching thermocouple extension wire; never splice with copper |
RTD input | PT100 bearing or winding temperature sensors | Use 3-wire or 4-wire connection to cancel lead resistance |
Contact input | Limit switch, pressure switch, flow switch | Wire as dry contact; do not inject external voltage unless approved by the design |
Before wiring, confirm the signal type for each channel on the certified wiring diagram. A terminal group may be assigned for thermocouple on one drawing revision and current input on another.
Pre-Wiring Checks
Before connecting any field cable to the IS200TBAIH1CDC, complete the following checks:
Verify the terminal board part number and revision.
Confirm the assigned slot in the Mark VI rack.
Check the channel-to-terminal table from the project wiring diagram.
Confirm jumper or configuration settings if the board has multiple input modes.
Remove control power and apply lockout/tagout.
Use an ESD wrist strap and ground it to the cabinet ground bar.
Check that the board is clean, dry, and free from metal shavings or wire fragments.
These steps reduce the chance of wiring to the wrong terminal or damaging an input channel.
Field Cable Routing and Grounding
Signal quality on the IS200TBAIH1CDC depends on cable routing and shield management.
Follow these rules:
Keep analog signal cables separate from AC motor cables, VFD output cables, and high-current switching circuits.
Do not bundle thermocouple wiring with power wiring.
Use continuous twisted shielded cable from field device to terminal board.
Bring the shield into the cabinet without cutting it back at the cable gland.
Cover the exposed shield drain with heat shrink or insulation to prevent accidental contact with other terminals.
Ground the shield at one end only. The preferred point is the control cabinet ground bar or the designated shield terminal.
Avoid grounding the same shield at both the field device and the cabinet, because this creates a ground loop that causes unstable readings.
For most low-frequency analog and contact signals, single-end grounding gives the best noise performance. If the project specification requires field-end grounding, do not also ground at the board.
Channel Wiring Sequence
Use a consistent sequence when wiring each channel:
Route the field cable into the cabinet with enough slack for re-termination.
Label the cable at both ends with the channel number and signal name.
Strip the outer jacket without nicking inner insulation.
Install bootlace ferrules on stranded conductors.
Connect the field side first, then land the conductors on the terminal board.
Tighten each screw to the manufacturer-recommended torque.
Record the channel number, cable number, and terminal position in the loop folder.
Do not apply excessive torque. Over-tightened screws can crack the terminal block or break thin thermocouple conductors. Under-tightened screws cause intermittent contact and false open-loop alarms.
Commissioning and Functional Verification
After wiring is complete, verify each channel before returning the turbine control system to service.
Point-to-Point Continuity Check
With the terminal board disconnected from the I/O card if required, check continuity from the field device terminal to the board terminal. Confirm there are no shorts between adjacent terminals and no shorts to ground.
Insulation Resistance Check
Disconnect active field devices and check insulation resistance between signal cores and shield, and between signal terminals and cabinet ground. Low insulation resistance in a multi-conductor cable is a common cause of channel-to-channel leakage.
Loop Simulation
For 4–20 mA inputs, inject a known current with a loop calibrator at the field device end. Confirm the correct value appears in the Mark VI diagnostic display or engineering workstation.
For thermocouple and RTD inputs, use a suitable simulator or decade box. Compare the displayed temperature with the expected value. A 2–3°C deviation can be a sign of wrong extension wire or lead resistance problems.
Open and close each dry contact and verify the correct state change in the logic. Test with the control logic forced or bypassed only under a controlled work permit.
Cross-Talk Check
Inject a signal on one channel and observe neighboring channels. Neighboring channels should remain stable. Any small movement on adjacent channels may indicate damaged insulation, incorrect shield connection, or a wet terminal strip.
Common Wiring Faults and How to Identify Them
From field experience with Mark VI terminal boards, most IS200TBAIH1CDC failures are not board failures. They are wiring or termination faults.
Reversed 4–20 mA Polarity
A reversed loop shows a negative or saturated reading on the HMI. Check the transmitter wiring and the loop power polarity. Correct the positive and negative conductors at the terminal board.
Shield Grounded at Both Ends
A shield grounded at both ends creates a ground loop. The system may show 50/60 Hz noise, unstable analog values, or occasional channel faults. Disconnect one shield end and re-test.
Wrong Thermocouple Extension Wire
Using copper wire in the thermocouple path creates a cold-junction offset. The reading may be stable but wrong. Replace the section with the correct thermocouple extension wire.
Incorrect RTD Lead Compensation
A 3-wire RTD wired as a 2-wire sensor will show an offset that changes with cable length and ambient temperature. Confirm the compensation loop is connected to the correct terminal on the board and at the RTD.
Applying external voltage to a dry contact input can damage the input circuit or hold the channel in the wrong state. Use only a clean dry contact or an isolated relay output.
Loose or Damaged Terminal Screws
A loose terminal can pass a continuity check but fail under vibration. Re-torque suspected terminals and verify the conductor is fully inserted before the ferrule.
Adjacent Channel Leakage
Moisture, metallic dust, or damaged insulation can create leakage between adjacent channels. Clean the terminal board with approved non-conductive cleaner and inspect for carbon tracking.
Replacement and Sourcing Considerations
When replacing an IS200TBAIH1CDC, do not match only the visible board number. Check the full part number, revision, and suffix because terminal assignments and input range configurations can change between revisions.
Before ordering a replacement, confirm:
Mark VI system version and rack type
Assigned I/O card and slot position
Channel function and signal type
Terminal board suffix and revision
Keep the existing board until the replacement is installed and verified. This protects against downtime if the replacement has a wiring difference or arrives damaged.
If you need a tested IS200TBAIH1CDC terminal board or compatible GE Mark VI spare parts, Joyoung International Trading Co., Limited can support parts matching, revision confirmation, and fast delivery to reduce turbine control downtime.
Email: chen@htechplc.com
Phone: +86-181-5013-7565
FAQ
No. The IS200TBAIH1CDC is a field termination board. It terminates signals from field devices and connects them to the Mark VI I/O processing cards through the rack interface.
Can I use copper wire for thermocouple channels on the IS200TBAIH1CDC?
No. Thermocouple channels require the correct thermocouple extension wire from the sensor to the terminal board. Copper wire in the thermocouple path creates a cold-junction error and incorrect temperature readings.
Where should I connect the cable shield?
Connect the shield at the control cabinet ground bar or the board-designated shield terminal, one end only. The exact point depends on the project specification, but avoid grounding the same shield at both ends.
What is the first thing to check when an analog channel reads incorrectly after wiring?
Check field wiring polarity, shield grounding, and channel assignment against the approved wiring diagram. Then inject a known signal to separate a field wiring fault from a terminal board or I/O card problem.
