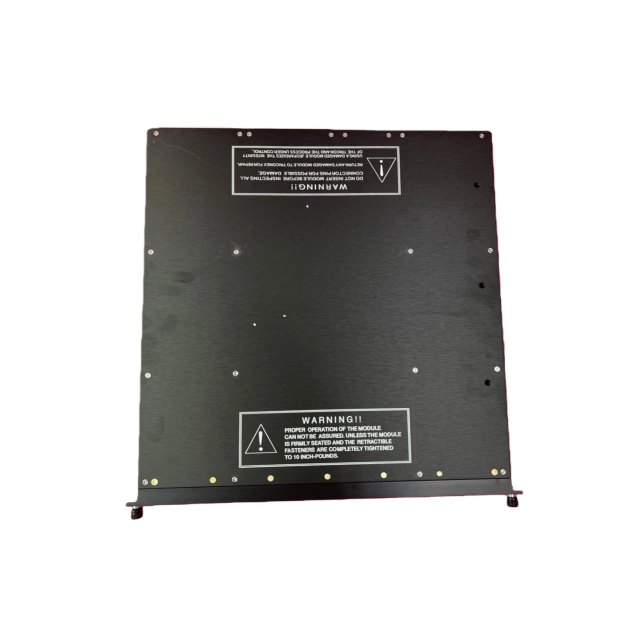

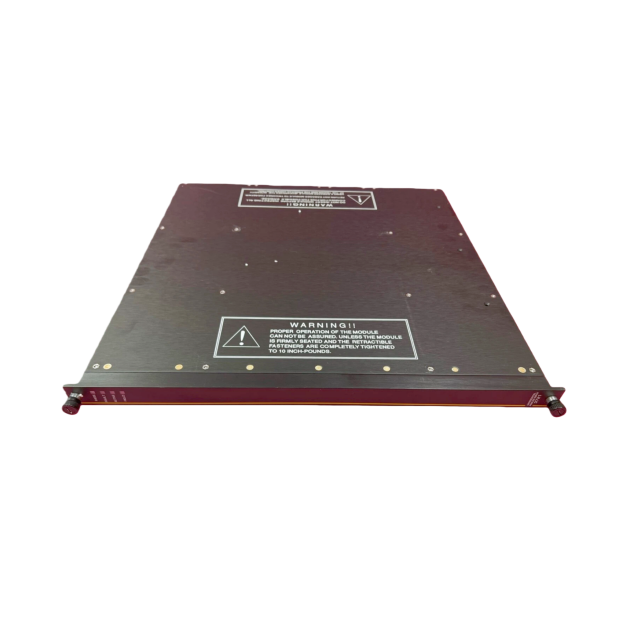

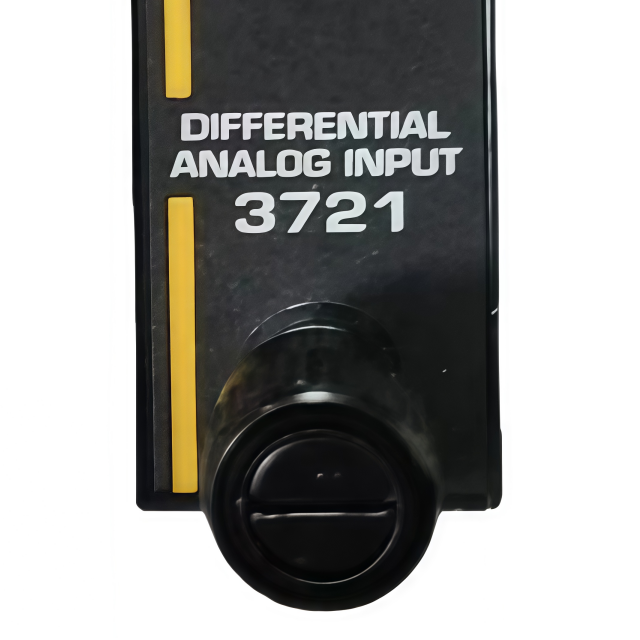

Technical Overview of TRICONEX 3721 Analog Input Module
1. Product Positioning and Core Function
The TRICONEX 3721 is a high-performance differential analog input (AI) module specifically designed for Tricon v9–v10 safety instrumented systems (SIS) and industrial control systems, developed by Invensys Process Systems (now part of Schneider Electric). It serves as a critical component for accurate acquisition of analog process signals in safety-critical and process-critical applications, supporting two configurable input ranges: 0 to 5 VDC and –5 to +5 VDC.
Engineered to meet the rigorous demands of harsh industrial environments, the 3721 module adopts the industry-proven Triple Modular Redundancy (TMR) architecture. This design ensures fault tolerance by processing each input signal through three independent circuit channels, with a 2oo3 (two-out-of-three) voting logic to determine the final output. Even if one channel fails due to component damage or electromagnetic interference (EMI), the remaining two channels maintain reliable signal acquisition. The module fully complies with global safety standards, making it ideal for high-risk industries such as nuclear power, petrochemicals, oil & gas, and refining—where signal accuracy and system uptime directly impact operational safety and productivity.
Its core value lies in providing precise, stable differential analog signal acquisition, enabling real-time monitoring of key process variables like pressure, temperature, flow rate, and level. By converting field signals into digital data for the Tricon controller, the 3721 ensures that safety interlocks and control actions are based on accurate, trustworthy data.
2. Operational Features and Performance Advantages
2.1 High-Precision Signal Acquisition
16-Bit ADC Resolution: The module’s 16-bit analog-to-digital converter ensures minimal quantization error (as low as 0.152 mV for 0–5 VDC range), enabling accurate measurement of small signal variations (e.g., 0.01 V changes in pressure transmitter outputs).
Configurable Input Ranges: Users can switch between 0–5 VDC and –5 to +5 VDC via TriStation 1131 software, eliminating the need for hardware reconfiguration. This flexibility supports diverse sensors (e.g., bi-polar strain gauges, unipolar level transmitters).

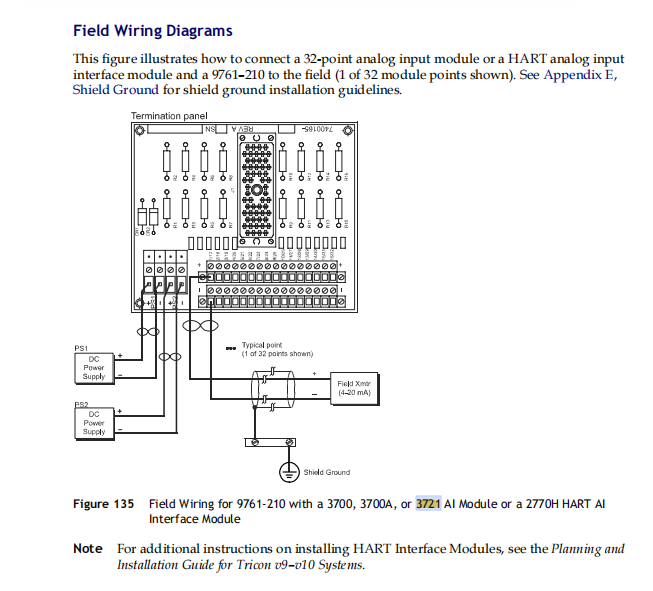

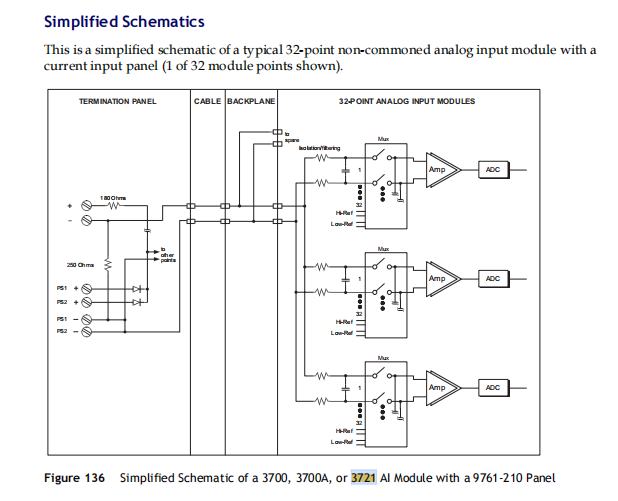

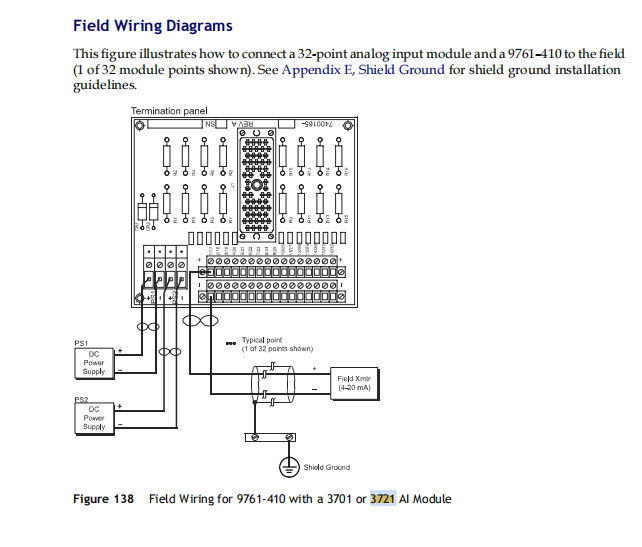

Over-Range Tolerance: When paired with panels like 9761-210, the 3721 supports +6% over-range measurement, preventing module damage from transient signal spikes (common in industrial startups) and avoiding false alarms.
2.2 Advanced Anti-Interference and Redundancy

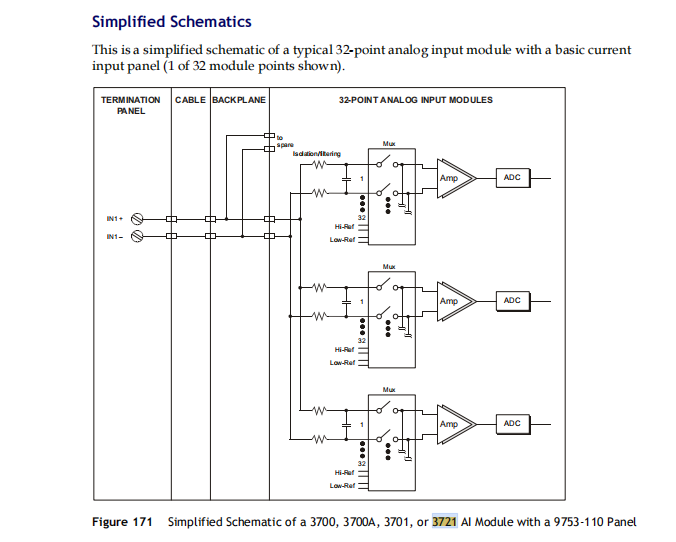

TMR Architecture: Three independent circuit channels process each input signal, with 2oo3 voting to eliminate single-point failures. For example, if one ADC channel malfunctions, the module uses data from the two healthy channels to ensure accurate output—critical for safety-critical applications like nuclear reactor control.
Multi-Layered Noise Suppression:
Galvanic Isolation: 2500 V AC isolation between channels and backplane suppresses common-mode noise from power lines or nearby motors.
Configurable Filtering: Supports software-adjustable filtering time (0.1–100 ms) via TriStation 1131. Shorter filters (0.1 ms) are used for fast-changing signals (e.g., flow meters), while longer filters (100 ms) stabilize slow signals (e.g., tank level).
Shielded Wiring Support: Compatible with twisted-pair shielded cables, with shield grounding guidelines in Appendix E to further reduce RFI/EMI.
2.3 Flexible Diagnostics and Integration
Real-Time Diagnostics:
Self-Test Circuitry: Continuously monitors internal components (ADC, power supplies, backplane communication) and reports faults (e.g., ADC drift, power anomalies) to the Tricon controller via the backplane bus.
Open/Short Circuit Detection: When used with supervised panels (e.g., 9771-210), the module detects open or shorted field wiring and triggers alarms, enabling proactive maintenance.
Status Visualization: Front-panel LEDs provide at-a-glance status:
PWR OK: Green (module power is normal).
CHx ACTIVE: Green (channel x is acquiring a valid signal).
FAULT: Red (module or channel fault, e.g., short circuit, ADC failure).
Seamless System Integration:
Backplane Communication: Uses Tricon’s proprietary safety backplane for low-latency data transmission (<10 ms), critical for time-sensitive control (e.g., emergency shutdown valves).
HART Compatibility: When paired with the 2770H HART interface module, the 3721 can communicate with HART-enabled devices (e.g., smart transmitters) for remote configuration, calibration, and health monitoring.
Data Logging: Integrates with Tricon’s historical data logging function to store input signal trends, supporting post-event analysis (e.g., investigating process deviations or shutdowns).
3. Typical Application Scenarios
3.1 Nuclear Power Plants: Reactor Coolant System Monitoring
Application: Acquisition of differential pressure, temperature, and flow signals from the reactor coolant system (RCS) to ensure safe reactor operation.
Configuration: 3721 + 9790-610 (RG 1.180 panel) + 4–20 mA pressure/temperature transmitters.
Value:
RG 1.180 compliance resists EMI from reactor equipment (e.g., pumps, generators), ensuring signal stability.
TMR redundancy eliminates single-point failures, critical for nuclear safety (compliant with IEC 61508 SIL 3).
Differential input design reduces common-mode noise from long cable runs (up to 1000 meters) between the RCS and control room.
3.2 Petrochemical Refineries: Distillation Column Control
Application: Monitoring of temperature, pressure, and level signals in distillation columns to optimize separation efficiency and prevent overpressure.

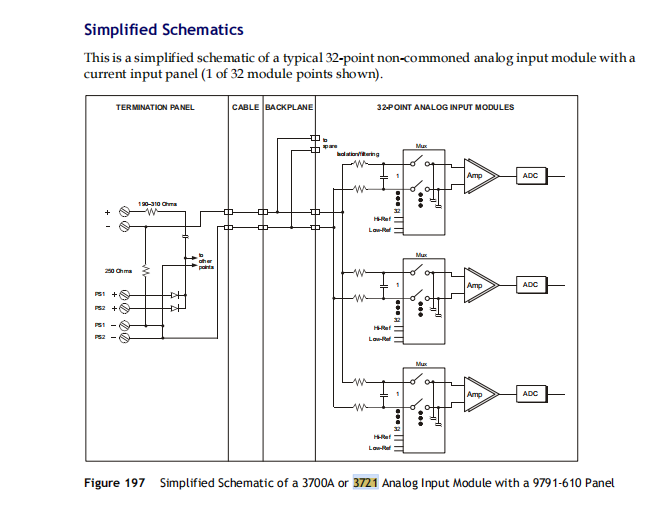

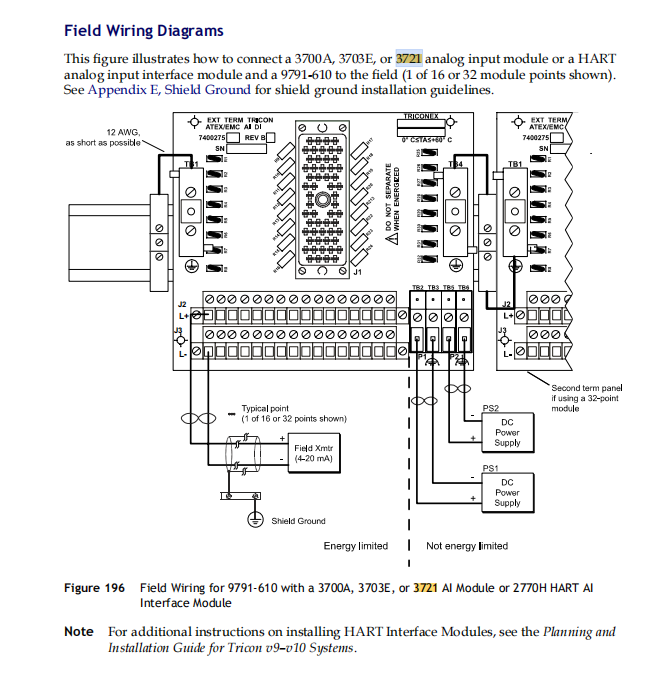

Configuration: 3721 + 9791-610 (hazardous location panel) + 4–20 mA temperature/level transmitters.
Value:
Nonincendive design (Zone 2/Class 1 Division 2) prevents ignition in explosive atmospheres (e.g., hydrocarbon vapors).
High accuracy (±0.15% FSR) ensures precise control of distillation parameters, reducing product waste.
Hot-swappable feature allows module replacement during scheduled maintenance without shutting down the column.
3.3 Oil & Gas Pipelines: Remote Pressure Monitoring
Application: Remote acquisition of pressure signals from long-distance oil/gas pipelines to detect leaks or over-pressurization.

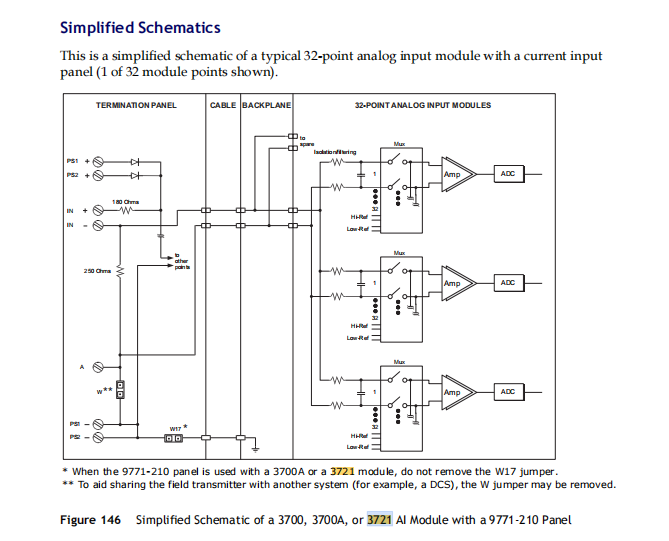

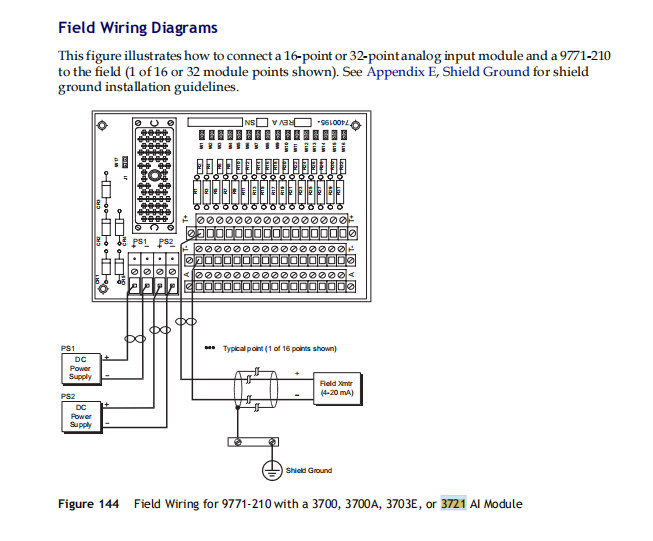

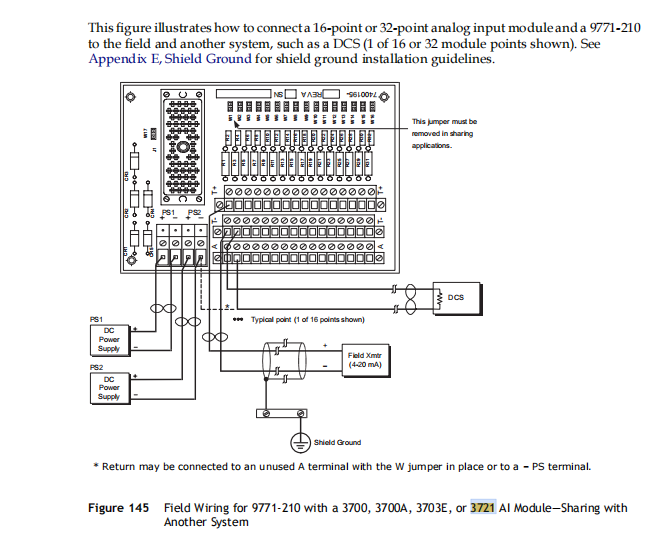

Configuration: 3721 + 9771-210 (user-configurable panel) + 4–20 mA pressure transmitters.
Value:
Signal sharing with pipeline SCADA systems via 9771-210’s configurable outputs, eliminating the need for duplicate sensors.
Over-range tolerance (up to +6%) handles pressure surges during pipeline startup or valve closures.
Wide operating temperature range (-40°C to 70°C) withstands extreme weather conditions (e.g., arctic pipelines, desert environments).
3.4 Manufacturing: Robotics and Automation
Application: Acquisition of voltage signals from strain gauges and position sensors on robotic arms to ensure precise movement and quality control.

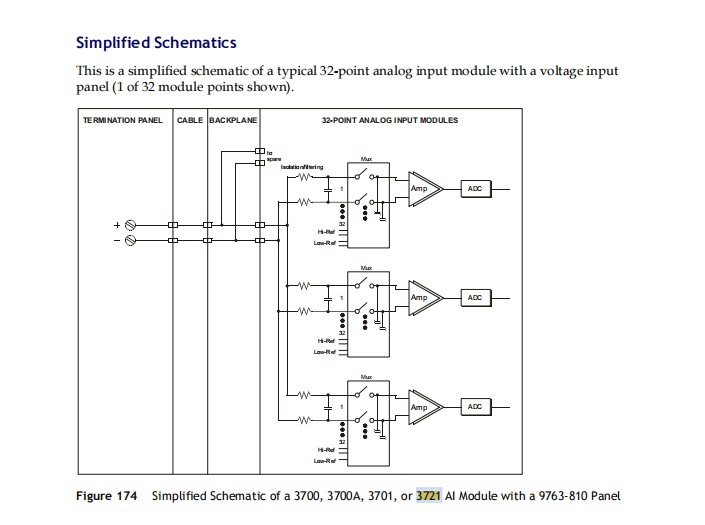

Configuration: 3721 + 9763-810 (voltage input panel) + strain gauge sensors (0–5 VDC output).
Value:
Differential input design reduces noise from factory motors and drives, ensuring accurate position feedback.
16-bit resolution supports fine adjustments (e.g., ±0.01 mm positioning accuracy for assembly line robots).
Cost-effective integration with existing automation systems (e.g., PLCs) via Tricon’s backplane communication.
4. Technical Documentation and Compliance References
Primary Manuals:
Tricon v9–v10 System Hardware Manual (Document No. 9720052-018): Details module installation, termination, and backplane compatibility.
TRICONEX 3721 Module Datasheet (Document No. 1600099-003): Provides electrical specifications, performance curves, and environmental ratings.
Tricon v9–v10 Calibration Guide: Step-by-step procedures for calibrating the 3721 and compatible termination panels.
Safety Certifications:
IEC 61508 SIL 3 (TÜV Rheinland Certificate No. 09 ATEX 0348 X).
NRC Regulatory Guide 1.180 Compliance (when used with 9790-610/9792-610 panels).
ANSI/ISA S12.12.01-2000 (for hazardous location applications with 9791-610/9789-610 panels).
Configuration Tools:
TriStation 1131 v4.3 or later: For module parameter setup (input range, filtering, alarms), diagnostics, and HART device management.
Replacement Parts:
Fuses: 1A fast-acting (Part No. 3000793-001) for termination panels (e.g., 9761-210, 9791-610).
Shield Ground Clamps: Part No. 158000-01 (for hazardous locations and nuclear applications).
Interface Cables: 9101-010 (fanned-out) or custom-length interface cables (up to 99 feet) for termination panels.
