Industrial rotating machines—turbines, compressors, pumps, generators—operate under high stress. Vibration, axial displacement, and dynamic pressure changes can indicate wear, misalignment, or impending failure. A reliable protection system prevents catastrophic damage and unplanned downtime. This article explains how the Vibro-Meter MPC4 200-510-017-017 machinery protection card works with the TQ402 proximity probe, CA202 accelerometer, and CP515 dynamic pressure sensor to build a complete rotating machine protection solution.
Component Roles in Rotating Machine Protection

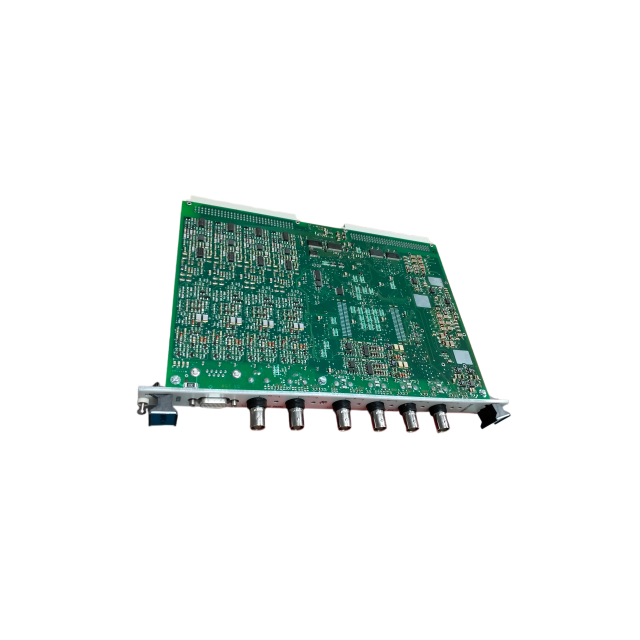

MPC4 200-510-017-017 Machinery Protection Card
The MPC4 is a central processing and trip logic card for the VM600 series rack. It receives conditioned signals from field sensors, compares them against configured alarm and danger thresholds, and generates relay outputs for machinery shutdown or alarm indication. Key features include:
Multi-channel input processing for vibration, axial position, and speed signals
Programmable alarm/trip setpoints
Relay outputs with fail-safe logic options
Rack compatibility with 204-040-100-011 and 204-040-100-012 backplanes
Support for redundant configurations when paired with a second MPC4
The 200-510-017-017 version is widely used in power generation, oil & gas, and petrochemical rotating equipment.
The TQ402 is a non-contact eddy current proximity probe used primarily for shaft relative vibration and axial thrust position measurement. It works by generating a high-frequency magnetic field that interacts with the metallic shaft surface. The probe outputs a DC gap voltage proportional to the distance between probe tip and shaft. Key specifications:
Target surface: ferromagnetic or non-ferromagnetic metal
Standard thread mounting: M10×1 or similar
Cable length options: H05, H10, C160, etc.
Operating temperature up to 120°C (typical)
TQ402 probes require an extension cable and a driver or signal conditioner (such as IQS450) to convert the gap voltage into a usable signal for the MPC4.
CA202 Accelerometer
The CA202 is a piezoelectric accelerometer used for bearing housing or casing vibration measurement. It converts mechanical acceleration into a charge or voltage signal. It covers a wide frequency range, making it suitable for detecting bearing faults, gear mesh issues, and imbalance. The CA202 is available in different sensitivity codes (e.g., 144-202-000-203, 144-202-000-205) to match the monitoring system’s input range. It can be mounted with adhesive, magnetic base, or stud.
CP515 Dynamic Pressure Sensor
The CP515 is a dynamic pressure sensor designed for low-frequency pressure pulsation monitoring. It is often used on combustion turbines, reciprocating compressors, or hydraulic systems where pressure fluctuations indicate combustion instability or valve problems. The sensor has a threaded port for direct process connection and outputs a voltage or current signal proportional to dynamic pressure changes.
System Integration: Signal Flow from Sensor to Trip
A typical rotating machine protection loop using these components follows this path:
Sensor stage: TQ402 measures shaft relative vibration or axial position. CA202 measures casing vibration. CP515 monitors dynamic pressure.
Signal conditioning: Each sensor connects to a signal conditioner. For TQ402, use an IQS450 or EA402. For CA202, a charge amplifier (such as IPC704) converts charge to voltage. CP515 may connect directly to a suitable input card.
MPC4 processing: Conditioned signals enter the MPC4 200-510-017-017 through the rack backplane. The card processes each channel, compares against setpoints, and determines if a trip condition exists.
Output action: When a measurement exceeds the configured danger level, the MPC4 energizes or de-energizes relay outputs. These relays connect to the plant ESD or DCS for automatic shutdown, or to annunciators for operator alert.
The MPC4 supports multiple channels, allowing one card to monitor several sensors simultaneously. This reduces rack space and simplifies wiring.
Typical Application Configurations
Machine Type | Sensors Used | Monitoring Objective |
|---|
Steam turbine | TQ402 for shaft vibration, CP515 for steam pressure pulsation | Detect bearing wear, blade vibration, steam flow instability |
Centrifugal compressor | TQ402 for axial thrust, CA202 for casing vibration | Prevent thrust bearing failure, detect impeller imbalance |
Gas turbine | CP515 for combustion dynamics, CA202 for bearing vibration | Avoid combustion instability, protect high-speed bearings |
Large pump | TQ402 for shaft displacement, CA202 for bearing housing vibration | Early warning of misalignment and cavitation |
The exact sensor combination depends on machine criticality and failure modes. Always consult the OEM documentation and vibration analysis standards (such as API 670) when designing the protection system.
Installation and Configuration Best Practices
Probe gap setting: TQ402 probes must be gapped correctly against the shaft. Typical gap voltage is between -8 V and -12 V DC at the driver output. Use a voltmeter and follow the calibration curve.
Cable routing: Keep sensor cables away from high-voltage power lines. Use shielded twisted pair cables and ground the shield only at the signal conditioner end. For long runs, use EA402 extension cables with proper connector types.
Threshold configuration: Set alarm and danger levels based on historical vibration data, manufacturer limits, and machine criticality. MPC4 software allows individual channel configuration.
Grounding: Ensure single-point grounding for the entire VM600 rack to avoid ground loops. The 204-040-100-011 rack provides EMC shielding; install it in a clean, dry cabinet with adequate ventilation.
Periodic verification: Use the 204-215-000-101 calibrator to check sensor chains and confirm MPC4 input scaling at regular maintenance intervals.
Sourcing MPC4 200-510-017-017 and Compatible Sensors
When replacing or expanding a rotating machine protection system, part availability and lead time are critical. Downtime costs in continuous process plants often exceed the spare part cost by orders of magnitude. Working with a supplier that maintains stock of both new and legacy VM600 components can reduce downtime.
Joyoung International Trading Co., Limited supplies industrial automation spare parts including the Vibro-Meter VM600 series. We stock the MPC4 200-510-017-017 card, TQ402 probes, CA202 accelerometers, CP515 sensors, and associated accessories like extension cables, connectors, and signal conditioners. All parts are tested and checked for compatibility with your existing rack configuration.
For fast quotation and delivery, contact our engineer team at chen@htechplc.com or +86-181-5013-7565.
FAQ
Q: Can I use TQ402 with an older MPC4 version?
A: The TQ402 output is a standard gap voltage signal. It works with any MPC4 input channel that accepts the correct signal range. Verify the MPC4 input card type and scaling before connecting.
Q: What is the difference between CA202 144-202-000-203 and 144-202-000-205?
A: The last three digits indicate sensitivity grade. Higher numbers typically mean higher output per unit acceleration. Match the sensitivity to the signal conditioner input range to avoid saturation or poor resolution.
Q: How do I know if my CP515 is working correctly?
A: Check zero offset and frequency response with a known pressure source. Use the 204-215-000-101 calibrator or equivalent to inject a reference signal and compare the MPC4 reading.
Q: Can the MPC4 200-510-017-017 work with a 204-040-100-012 backplane?
A: Yes, the MPC4 is compatible with both 204-040-100-011 and 204-040-100-012 system racks. Always verify slot position and backplane jumpers before powering up.
Q: What is the typical lead time for these parts?
A: Many VM600 components are kept in stock for urgent replacement. Contact us with the exact part numbers and quantity for current availability.
Need a Replacement or System Expansion?
Rotating machine protection requires reliable hardware and correct configuration. If you need the MPC4 200-510-017-017, TQ402 proximity probes, CA202 accelerometers, or CP515 dynamic pressure sensors, Joyoung International Trading Co., Limited can supply original parts with fast delivery. Send your part list to chen@htechplc.com for a same-day quotation.
