Rack-to-CPUM Architecture: Where Failures Appear First

In a VM600 machinery protection system, the 204-040-100-011 rack is not a passive cabinet frame. It positions each module against the backplane, controls insertion depth, and provides the ground path and mechanical alignment needed for reliable communication. The CPUM 200-595-067-114 is the central processing and communication module that coordinates configuration, rack data exchange, and interface with the plant DCS or PLC.

A rack-to-CPUM fault is often misdiagnosed as a CPUM card failure. In many cases, the real cause is worn rack guide rails, a bent backplane pin, or incorrect slot insertion. Before replacing the CPUM, check the mechanical path from the rack front rail to the backplane connector.

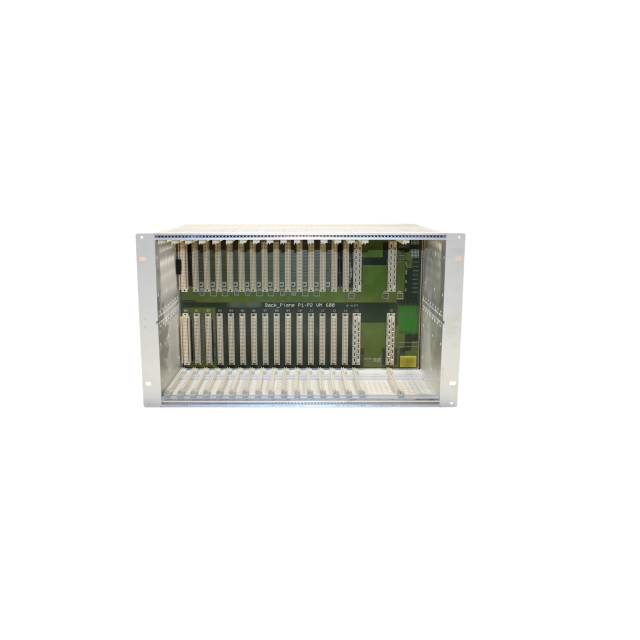

204-040-100-011 Rack Role and Pre-Installation Checks

The 204-040-100-011 rack holds the CPUM, IOC4T communication modules, MPC4 protection cards, IQS450 signal conditioners, and other VM600 modules. It works with the 204-040-100-012 backplane to create the bus topology.

Before inserting CPUM 200-595-067-114:

• Inspect the rack guide rails for wear, bending, or debris

• Verify the rear backplane connector is clean and free of bent pins

• Check the rack ground connection and the power supply wiring

• Confirm the rack is not twisted or deformed inside the cabinet

• Match the module part number and suffix to the system drawing

CPUM 200-595-067-114 Slot Position Guidance

The CPUM 200-595-067-114 normally occupies a dedicated slot in the VM600 main rack. Slot numbering varies between plant configurations, so physical slot number alone should not be used as the only installation guide.

Use this sequence for a safe replacement:

1. Record the existing CPUM slot position before removal.

2. Record the rack backplane model and any address settings.

3. Confirm whether the system supports hot-swap for the CPUM. If not, power down the rack before removal.

4. Remove the old module using the front ejector levers. Do not pull by the connectors.

5. Insert the replacement CPUM 200-595-067-114 into the same slot until the levers lock.

6. Check the front-panel LED sequence and re-establish communication with the control system.

Typical VM600 Rack Layout Example

The layout below is a reference only. Exact slot assignment must follow the project rack drawing.

In a complete vibration monitoring chain, sensors such as TQ402/CA202 feed IQS450 signal conditioners, the IOC4T modules handle communication, and the CPUM manages the rack-level data exchange. A rack-to-CPUM problem can therefore interrupt the entire measurement path, not just one channel.

CPUM 200-595-067-114 vs 200-595-063-314

If you are replacing an older CPUM 200-595-063-314 with CPUM 200-595-067-114, do not assume direct drop-in compatibility. Check the firmware revision, backplane bus version, and I/O module configuration. Physical fit is not the same as system compatibility. In some racks, the newer CPUM requires updated IOC4T firmware or a different address map.

Common Installation Mistakes

• Forcing the CPUM into a rack with poor rail alignment

• Reusing a damaged backplane after replacing a burnt CPUM

• Swapping CPUM versions without firmware verification

• Installing the CPUM in an unassigned slot and causing address conflict

• Leaving ground screws loose, creating intermittent communication loss

• Ignoring electrostatic protection during module handling

Spare Parts Checklist

Before purchasing a CPUM 200-595-067-114 or 204-040-100-011 rack, confirm:

• Full part number and suffix

• Hardware revision and firmware level

• Backplane model 204-040-100-012 or equivalent

• Rack slot position and existing module layout

• New, reconditioned, or unused surplus status

• Delivery packaging and anti-static protection

FAQ

Can CPUM 200-595-067-114 be installed in any rack slot?
No. Install it in the same slot as the original module or in the slot defined by the system architecture. An unassigned slot can create communication conflicts.

What is the difference between 204-040-100-011 rack and 204-040-100-012 backplane?
The rack is the mechanical frame and guide system. The backplane is the electrical bus board that connects the modules. Both must be compatible with each other and with the module set.

How do I know if a rack guide is worn?
If the CPUM does not insert smoothly, sits uneven, or shows intermittent communication after correct insertion, check the guide rails and rear connector. Worn guides are a common hidden cause.

Can I test CPUM 200-595-067-114 without the full rack?
No practical test is possible without a compatible backplane and power supply. Bench testing outside the rack can damage the module or give incorrect status results.

Where can I source verified VM600 spare parts?
Joyoung International Trading Co., Limited supplies CPUM 200-595-067-114, 204-040-100-011 rack, 204-040-100-012 backplane, MPC4, IOC4T, IQS450, TQ402, and related VM600 modules. Contact chen@htechplc.com or +86-181-5013-7565 with the full part number and existing rack layout.
