When an ABB EI803F module loses Ethernet communication, the controller may keep running, but HMI data stops updating, engineering access fails, and alarms can appear. In many cases the module itself is not the problem. The fault is often in the cable, switch port, IP configuration, or grounding. This guide follows a field diagnostic sequence that separates network faults from module failures before you order a replacement.
How the EI803F Fits into the Control System

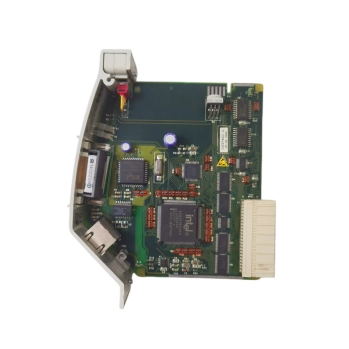

The ABB EI803F 3BDH000017R1 is the Ethernet communication interface used in ABB Advant OCS systems. It connects the Advant controller to the plant Ethernet network for HMI data exchange, engineering access, and higher-level system communication.
Common symptoms of EI803F communication faults include:
HMI tags stop updating or show stale values
Engineering station cannot go online
Intermittent communication timeouts
Error LED on the module stays ON
Link LED not lit even with a cable connected
Process control continues but data logging stops
The module does not execute control logic. It is the communication path. That means a communication fault usually shows up first as visibility loss, not as a process trip.
Step 1: Check Module Status and Link LEDs
Start at the EI803F module itself.
Check these indicators:
Power LED: should be steady ON
Run/OK LED: steady or flashing according to ABB documentation for the installed firmware
Error LED: should be OFF in normal operation
Link LED: ON when a valid physical Ethernet link exists
Activity LED: flashes with network traffic
If all LEDs are OFF, check the controller rack power supply and module seating first. A loose backplane connection can look like a network failure.
If the Link LED is OFF but power is ON, move to Step 2.
Step 2: Inspect the Physical Ethernet Connection
Many Ethernet faults are cable and connector problems.
Check the following:
Cable type: Cat5e or better, shielded industrial Ethernet recommended
RJ45 connector: no bent, corroded, or pushed-back pins
Latching clip: firmly seated in the module and switch port
Cable length: within 100 meters for copper Ethernet
Bend radius: no sharp bends or crushed cable sections
Routing: keep Ethernet cable away from VFD motor cables, high-voltage lines, and arc welding equipment
A damaged cable can still show a physical link but generate high packet errors. When in doubt, replace the cable with a known-good one and test again.
Step 3: Check the Switch Port and Network Settings
The EI803F communicates through a plant Ethernet switch. Switch port problems are often mistaken for module faults.
Perform these checks:
Swap the cable to a different known-good switch port
Verify the switch port speed and duplex setting matches the EI803F capability
Check switch port error counters for CRC, FCS, alignment errors, or collisions
High error counts usually indicate cabling, connector, or EMI problems
If VLANs are used, confirm the module port is in the correct VLAN and trunk/access mode
Check STP/RSTP settings if the module takes a long time to establish communication after power-up
Verify the IP address, subnet mask, and gateway configured in the module match the plant network plan
A switch port set to full-duplex while the module operates half-duplex, or vice versa, will produce intermittent communication and no valid data transfer.
Step 4: Verify Configuration and Firmware
If the physical link is good and the switch is clean, check configuration.
Use the ABB engineering tool for the Advant system to:
Read the EI803F module status
Verify the configured IP address and network parameters
Confirm the firmware version is compatible with the controller and software version
Check the module rack address or node position if set by rotary switches or configuration
Confirm there is no duplicate IP or duplicate node address on the same network
A module with an incorrect rack address may power up but will not participate in communication.
Step 5: Check Grounding, Shielding, and EMI
Industrial Ethernet faults often come from electrical noise, especially in plants with drives, motors, and high-power switching.
Check these points:
Ethernet cable shield should be grounded at one end only to avoid ground loops
The control cabinet and network switch cabinet should share the same ground reference
If the module and switch are in different buildings or far apart, use fiber optic media instead of long copper runs
Route Ethernet cables at least 30 cm away from power cables where possible
Check for potential difference between cabinet grounds; this can damage Ethernet ports over time
A stable physical link with intermittent data loss is often an EMI or grounding issue, not a failed EI803F.
Step 6: Run an Isolation Test
If all previous checks pass but communication still fails, isolate the module.
Method:
Connect a laptop or known-good test device to the same switch port.
Configure the laptop with the correct IP settings.
Ping or scan the network to confirm the switch and network path work.
If the laptop communicates but the EI803F does not, the module is suspect.
If possible, swap in a known-good spare EI803F with the same part number and configuration.
Never replace the module before completing this test unless the module shows a clear hardware fault, such as no power LED when rack power is verified.
Quick Fault Isolation Table
Symptom | Likely Cause | First Action |
|---|
No power LED | Rack power or module seating | Reseat module, check rack power |
Link LED OFF | Cable, connector, or switch port | Replace cable, swap switch port |
Link ON but no data | IP configuration, VLAN, or firmware | Check settings with engineering tool |
Intermittent communication | EMI, duplex mismatch, loose cable | Inspect routing and switch errors |
Process data stale but network OK | Controller or HMI software issue | Check controller status and diagnostics |
Error LED steady ON | Internal module fault | Isolate and prepare replacement |
When Module Replacement Is the Right Call
Replace the ABB EI803F 3BDH000017R1 only after the above checks are complete and the isolation test points to the module.
Before ordering a replacement:
Confirm the exact part number: 3BDH000017R1
Record the firmware version if visible or readable
Back up configuration from the engineering tool if possible
Check whether hot replacement is allowed in your controller version
Verify the module slot position and rack address
After installation:
Restore configuration
Verify link and activity LEDs
Confirm HMI data updates and engineering access returns
Monitor communication for at least one hour under normal load
Sourcing ABB EI803F 3BDH000017R1 and Technical Support
Joyoung International Trading Co., Limited supplies ABB Advant OCS spare parts including the ABB EI803F 3BDH000017R1 Ethernet interface module. We support global clients with tested replacement modules, system matching, and technical consultation before ordering.
If you need help confirming compatibility, firmware information, or delivery time, contact us:
FAQ
How can I tell if the EI803F module has failed?
Complete the physical link, switch, configuration, and isolation checks first. If the module shows no power LED with verified rack power, or if a known-good spare restores communication in the same slot, the original module is likely failed.
Can a faulty switch cause EI803F communication faults?
Yes. Switch port errors, speed/duplex mismatch, VLAN misconfiguration, or a failed switch port are common causes. Always swap to a known-good port before replacing the EI803F.
Do I need to replace the module if the Link LED is OFF?
No. The Link LED being OFF usually means the physical connection is broken. Check cable, connector, switch port, and switch power first.
Can you supply a programmed or configured EI803F module?
We supply ABB EI803F 3BDH000017R1 modules. Configuration must be restored using the ABB engineering tool according to your system backup or documentation. We can help verify module part number and system compatibility before purchase.
Is the ABB EI803F 3BDH000017R1 still available for industrial systems?
Yes. As a supplier of legacy and current industrial automation spares, Joyoung International Trading Co., Limited supports ABB EI803F 3BDH000017R1 availability for Advant OCS installations. Contact us with your required quantity and target delivery date.
