Industrial automation runs on trust. Trust that when a shift starts, the ControlLogix rack powers up without hesitation. Trust that the output module fires every solenoid on cue. Trust that the network bridge passes data between chassis faster than anyone can blink. When that trust breaks, production stops, and the cost meter starts spinning.
Allen Bradley 1756 ControlLogix systems sit at the heart of operations where failure isn’t an option. Manufacturing floors, power plants, petrochemical facilities—these environments demand PLCs that perform under pressure, day after day. The challenge isn’t just keeping these systems running; it’s having the right spare parts ready before something goes wrong.
Why ControlLogix System Reliability Depends on Spare Parts Strategy
Allen Bradley 1756 ControlLogix systems handle the kind of industrial processes where a single component failure cascades into hours of lost production. A faulty output module means actuators stop responding. A failed network bridge isolates an entire chassis from the control network. These aren’t theoretical scenarios—they happen in facilities worldwide, often at the worst possible times.
The math is straightforward but unforgiving. Unplanned downtime in continuous process industries can cost tens of thousands of dollars per hour. A $500 spare part sitting on a shelf looks expensive until the alternative is a three-day wait for emergency shipping while production sits idle.
Proactive maintenance paired with genuine Rockwell Automation components creates a buffer against these scenarios. The facilities that maintain high PLC system uptime aren’t lucky—they’ve built inventory strategies around their most critical Allen Bradley 1756 ControlLogix modules and tested their replacement procedures before emergencies strike.
1756-OB16E Digital Output Module Specifications and Replacement Considerations

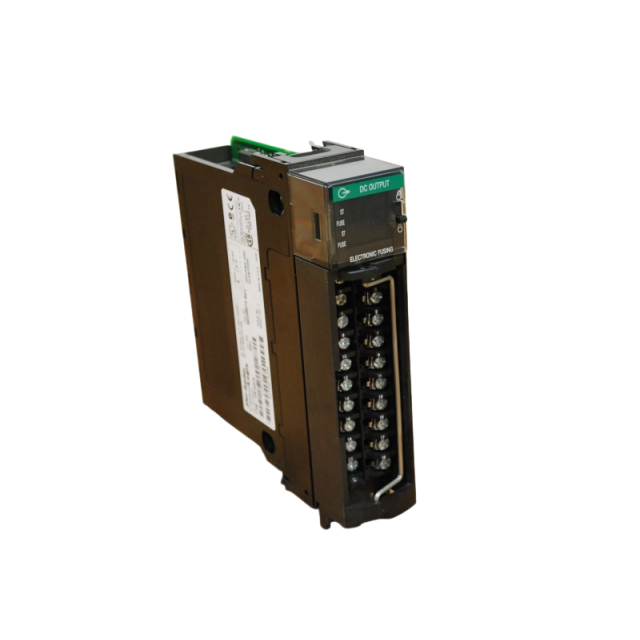

The 1756-OB16E serves as a workhorse Digital Ouput Module in ControlLogix installations. Sixteen individually isolated output channels give it the flexibility to control everything from motor starters to indicator lights to solenoid valves. The isolation matters more than specifications suggest—when one channel develops a fault, the others keep working.
Current-sourcing outputs at 10-30V DC handle most industrial control applications. Each channel delivers up to 0.5A, with the module supporting 8A total. That’s enough headroom for typical loads while protecting against overcurrent conditions that would damage connected equipment.
Specification
Value
Module Type
Digital Output Module
Channels
16 (Individually Isolated)
Output Type
Current Sourcing
Voltage Range
10-30V DC
Max Current per Channel
0.5 A
Total Module Current
8 A
Isolation
250V (Continuous), 1200V (Dielectric)
The isolation ratings—250V continuous, 1200V dielectric—reflect the module’s design for electrically noisy industrial environments. Field devices often share ground paths with variable frequency drives, welders, and other equipment that generates transients. The 1756-OB16E’s isolation prevents these disturbances from propagating back into the control system.
Replacement typically involves hot-swapping in systems configured for redundancy, though many installations require a controlled shutdown. Having a spare 1756-OB16E on hand reduces the window between failure detection and restoration to minutes rather than days.
1756-CNBR ControlNet Bridge Module Integration and Network Architecture
ControlNet bridges like the 1756-CNBR solve a specific problem: connecting multiple ControlLogix chassis across distances that exceed backplane limitations. The protocol’s deterministic timing makes it suitable for applications where data must arrive within guaranteed windows—motion control, coordinated drives, and safety systems.
The industrial network bridge functionality of the 1756-CNBR extends beyond simple data passing. It maintains network scheduling, handles redundant media configurations, and provides diagnostic information about network health. When properly configured, a ControlNet backbone can span thousands of feet while maintaining millisecond-level timing accuracy.
Integration follows a logical sequence:
Physical installation starts with seating the 1756-CNBR in an available chassis slot. The module accepts standard ControlNet coaxial cables through BNC connectors. After powering the chassis, Studio 5000 handles the software side—adding the module to I/O configuration, setting node addresses, and establishing communication rates.
Verification matters more than many technicians realize. The module’s diagnostic LEDs provide immediate feedback, but software-based diagnostics reveal subtler issues like packet errors or timing violations that might not cause immediate failures but indicate developing problems.
Facilities running ControlNet architectures should maintain at least one spare 1756-CNBR. A bridge failure doesn’t just affect one chassis—it can partition an entire network segment, isolating multiple controllers from their I/O.
Sourcing Authentic Allen Bradley 1756 ControlLogix Components
The counterfeit component problem in industrial automation isn’t hypothetical. Fake Allen Bradley modules circulate through gray market channels, often indistinguishable from genuine parts until they fail in ways the originals never would. Some counterfeits work initially but lack the thermal management or component quality to survive long-term industrial use. Others fail immediately, sometimes damaging connected equipment in the process.
Genuine Rockwell Automation components go through design validation, manufacturing quality control, and testing that counterfeiters skip entirely. The price difference between authentic and fake parts reflects this investment in reliability.
Reliable PLC Controller suppliers maintain verification processes that catch counterfeits before they reach customers. This includes checking serial numbers against manufacturer databases, inspecting packaging for signs of tampering, and sourcing only through documented channels.
Obsolete PLC parts sourcing presents additional challenges. Older Allen Bradley 1756 ControlLogix modules may no longer be in active production, limiting availability to existing inventory and refurbished units. Specialized industrial automation distributors maintain networks that can locate these parts globally, often finding stock in regions where particular models remained in production longer or saw less demand.
Building a Proactive Spares Inventory for ControlLogix Systems
Critical spare parts management isn’t about stockpiling everything—it’s about identifying which failures would hurt most and preparing accordingly. A systematic approach considers failure probability, replacement lead time, and operational impact.
Processors like the 1756-L7x series represent the highest-impact failure point. Without a working processor, nothing else in the chassis matters. One or two spares, depending on the number of systems in operation, provides reasonable coverage.
Component Type
Recommended Quantity
Justification
1756-L7x Processors
1-2
Core system component, high impact of failure
1756-EN2TR Ethernet Modules
1-2
Critical for network communication
1756-OB16E Output Modules
2-3
High usage, common failure point
1756-CNBR ControlNet Bridge
1-2
Network redundancy, communication integrity
Power Supplies
1-2
Essential for system operation
Output modules like the 1756-OB16E see more wear than most components. They interface directly with field devices, experiencing electrical stress from inductive loads, voltage transients, and environmental factors. Keeping two or three spares accounts for both higher failure rates and the possibility of multiple simultaneous failures during electrical events.
Network modules and power supplies round out a basic spares kit. These components don’t fail often, but when they do, the consequences ripple across entire systems.
Working with Joyoung for ControlLogix Spare Parts Supply
Joyoung International Trading Co., Limited maintains inventory and sourcing capabilities for genuine Allen Bradley 1756 ControlLogix spare parts. The 1756-OB16E, 1756-CNBR, and related PLC module components are available alongside DCS cards and broader industrial automation inventory.
Global sourcing networks help locate parts that might be unavailable through standard distribution channels. This proves particularly valuable for facilities running older Allen Bradley 1756 ControlLogix systems where original components have become scarce.
Contact chen@htechplc.com or +86-181-5013-7565 for availability, pricing, and technical consultation on ControlLogix spare parts requirements.
