Industrial networks either work or they don’t, and when they don’t, production stops. ControlNet has earned its place in automation precisely because it delivers what control engineers actually need: predictable timing and reliable data delivery. The 1786-RPT ControlNet Repeater and 1784-KT ControlNet Interface Card form the backbone of many Allen-Bradley installations, handling the practical challenges of extending network reach and connecting PLCs to the broader control architecture. Getting these components right matters more than most documentation suggests.
How ControlNet Architecture Supports Real-Time Industrial Control
ControlNet operates as a high-performance industrial network built around one central promise: deterministic data delivery. Every packet arrives within a known time window, which matters enormously when you’re coordinating motion control or managing safety-critical processes.
The network typically runs in bus or star topology configurations. Data moves at 5 Mbps, which remains sufficient for most control applications even as faster protocols emerge. The token-passing mechanism prevents the collision problems that plague less structured networks. Each node gets its turn, every time, without exception.
Media choices affect installation decisions significantly. Coaxial cable handles most in-cabinet and short-distance runs cost-effectively. Fiber optic ControlNet becomes necessary when distances increase or when electrical noise threatens signal integrity. Many facilities run both, matching media to specific segment requirements.
Redundancy options exist for applications where network failure carries unacceptable consequences. Critical process industries often implement redundant ControlNet paths, though this adds complexity and cost that not every application justifies.
The Producer-Consumer Model and Network Determinism
ControlNet implements the Common Industrial Protocol, which enables the producer-consumer communication model. Devices publish data to the network, and other devices subscribe to what they need. This approach reduces traffic compared to point-to-point polling because data only travels once regardless of how many devices consume it.
Network determinism distinguishes ControlNet from general-purpose industrial Ethernet. The scheduled portion of each network update guarantees bandwidth for time-critical data. Control loops stay stable because the network itself cannot introduce timing variability. This predictability proves essential for coordinated motion applications and high-speed process control.

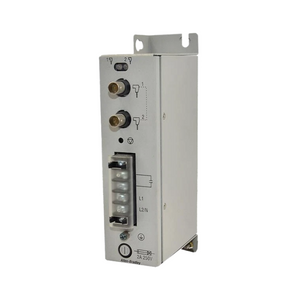

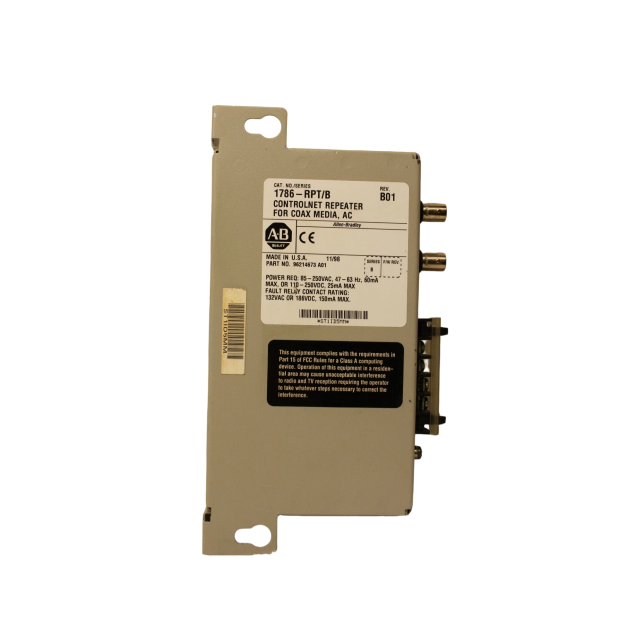

Extending Network Reach with the 1786-RPT ControlNet Repeater
Physical plant layouts rarely accommodate ideal network topologies. The 1786-RPT ControlNet Repeater addresses this reality by regenerating signals and enabling longer cable runs than a single segment permits.
Signal regeneration does more than amplify. The repeater reconstructs the signal waveform, eliminating accumulated noise and distortion. This allows cable runs that would otherwise suffer from unacceptable signal degradation.
The repeater also provides network isolation. Faults on one segment don’t necessarily propagate to others, which simplifies troubleshooting and contains problems before they cascade. The 1786-RPT functionality includes diagnostic LEDs that indicate signal quality and fault conditions, giving technicians immediate visibility into segment health.
Proper installation requires attention to grounding and termination. ControlNet segments need correct termination resistors at each end to prevent signal reflections. Improper termination causes intermittent communication problems that can be maddeningly difficult to diagnose.
Configuration Steps for Reliable 1786-RPT Operation
Each 1786-RPT requires a unique network address within the ControlNet system. Address conflicts create communication failures that affect multiple devices, not just the conflicting nodes.
Segment termination deserves careful verification. Signal reflections from unterminated or improperly terminated segments cause bit errors that may appear as random communication faults. The symptoms often look like cable problems when the actual issue is termination.
Cable impedance matters more than many installers realize. ControlNet specifies 75-ohm coaxial cable for a reason. Using incorrect cable types introduces impedance mismatches that degrade signal quality progressively along the segment length.
Network traffic monitoring helps identify segments approaching capacity limits. The 1786-RPT configuration should account for expected traffic growth, not just current requirements. Adding nodes later may require repositioning repeaters or adding additional units.
Connecting PLCs Through the 1784-KT ControlNet Interface Card
The 1784-KT ControlNet Interface Card provides the physical and logical connection between Allen-Bradley PLCs and the ControlNet network. This card enables ControlLogix and PLC-5 systems to participate in ControlNet communication.
Driver installation through RSLinx establishes the software connection. Compatibility between RSLinx versions and the 1784-KT firmware occasionally causes problems, particularly in facilities running older software versions. Verifying compatibility before installation prevents frustrating troubleshooting sessions.
The card translates between PLC memory structures and ControlNet message formats. This translation happens transparently once configuration is complete, but initial setup requires understanding both the PLC programming environment and ControlNet addressing conventions.
Physical installation seems straightforward but demands attention to detail. The card must seat fully in the rack slot, and power supply capacity must accommodate the additional load. Marginal power situations cause intermittent failures that correlate poorly with any obvious cause.
Diagnosing 1784-KT Communication Problems
Communication errors with the 1784-KT typically fall into predictable categories. Incorrect network addressing causes immediate and obvious failures. Cable faults produce intermittent problems that may correlate with temperature, vibration, or other environmental factors.
RSLinx diagnostics display network status and specific error codes. These codes point toward root causes more reliably than symptom-based troubleshooting. Learning to interpret RSLinx diagnostic information saves considerable time.
The module’s status LEDs provide immediate feedback without requiring software access. A solid fault LED indicates a persistent problem requiring intervention. Flashing patterns often indicate communication attempts that aren’t completing successfully.
Intermittent communication frequently traces to signal integrity issues rather than component failures. Before replacing the 1784-KT, verify cable continuity, connector integrity, and termination. Many “failed” modules work perfectly once installed in systems with proper physical infrastructure.
Maintaining ControlNet Systems for Long-Term Reliability
Effective ControlNet network management combines regular inspection with proactive maintenance. Networks don’t fail randomly; they degrade gradually until symptoms become apparent.
Physical layer inspection catches problems before they cause failures. Cables develop damage from mechanical stress, chemical exposure, or simple aging. Connectors loosen over time, particularly in environments with vibration. Grounding connections corrode, especially in humid conditions.
Maintenance Area
Recommended Actions
Failure Prevention
Physical Layer
Inspect cables and connectors quarterly; verify grounding integrity
Catches degradation before communication failures
Configuration
Audit node addresses annually; verify termination after any changes
Prevents conflicts and signal reflection issues
Firmware
Update modules during planned outages; test before production use
Addresses known bugs and security vulnerabilities
Documentation
Update diagrams after every change; record baseline performance
Enables faster troubleshooting and informed upgrades
Firmware updates for the 1786-RPT and 1784-KT address bugs and occasionally improve performance. However, firmware changes carry risk. Testing updates in non-production environments before deployment prevents unpleasant surprises.
Documentation often receives insufficient attention until something goes wrong. Accurate network diagrams, configuration records, and baseline performance data dramatically reduce troubleshooting time. The investment in maintaining documentation pays returns during every incident.
For robust industrial control, understanding Control System components is vital. Our expertise helps you maintain peak operational efficiency.
Planning for ControlNet Evolution and Integration
ControlNet installations don’t exist in isolation. Integration with Ethernet/IP networks has become increasingly common as facilities modernize. Planning for this integration avoids costly rework.
Migration strategies vary depending on existing infrastructure and operational requirements. Some facilities run ControlNet and Ethernet/IP in parallel, using gateways to bridge the networks. Others phase out ControlNet gradually as equipment reaches end of life.
Industrial IoT initiatives often drive network upgrades. The data collection requirements of modern analytics platforms favor Ethernet/IP’s higher bandwidth and broader connectivity options. ControlNet can feed into these systems through appropriate interfaces, but the architecture requires thoughtful design.
Legacy system upgrades present opportunities to address accumulated technical debt. Replacing aging 1786-RPT or 1784-KT modules with current production units improves reliability and ensures continued parts availability. Waiting until failure forces replacement limits options and extends downtime.
Partner with Joyoung International for Your Automation Needs
For reliable sourcing of Allen-Bradley 1786-RPT, 1784-KT, and other critical industrial automation spare parts, trust Joyoung International Trading Co., Limited. We maintain established relationships with global maintenance service providers. Our extensive product range ensures authenticity and performance for your operations. Contact us today for expert consultation and competitive solutions for your PLC Controller, DCS, and control system needs. Email: chen@htechplc.com | Phone: +86-181-5013-7565
Frequently Asked Questions About Allen-Bradley ControlNet Components
What is the primary function of the Allen-Bradley 1786-RPT ControlNet Repeater in an industrial network?
The 1786-RPT ControlNet Repeater extends network reach by regenerating signals that would otherwise degrade over long cable runs. It reconstructs the signal waveform rather than simply amplifying it, which eliminates accumulated noise. The repeater also provides segment isolation, containing faults within individual network sections and simplifying troubleshooting when problems occur.
How does the 1784-KT ControlNet Interface Card facilitate communication for Allen-Bradley PLCs?
The 1784-KT ControlNet Interface Card creates the physical and logical connection between PLC-5 or ControlLogix processors and the ControlNet network. It handles protocol translation between PLC memory structures and ControlNet message formats, enabling real-time data exchange with other network devices including I/O modules, drives, and HMI systems.
What are the common indicators of a failing 1786-RPT or 1784-KT module in a ControlNet system?
Failing modules typically show intermittent communication before complete failure. Watch for increasing error counts in RSLinx diagnostics, fault LEDs that illuminate without obvious cause, and communication timeouts that correlate with environmental conditions like temperature or vibration. Complete segment isolation indicates either a failed module or a physical layer problem that requires immediate investigation.
