Automation Integration: BC810 3BSE031154R1 + IS200TBCIH1BBC + 3604E

Most mixed automation projects fail at integration boundaries, not at module level. When an ABB AC800M process controller, a GE Mark VI turbine control system, and a Triconex safety system must operate in one plant, these three part numbers frequently appear in the same bill of materials. This guide explains how to integrate them without creating spare-part confusion or field wiring errors.

Module Role and System Boundary

The first step is to understand what each part does and where it belongs.

Module	Platform	Primary Function	Integration Position
ABB BC810 3BSE031154R1	ABB AC 800M	CEX-Bus Interconnection Unit; connects a main CEX bus to a secondary segment, renews bus signals, and provides electrical isolation	Between AC 800M controller and local S800 I/O clusters

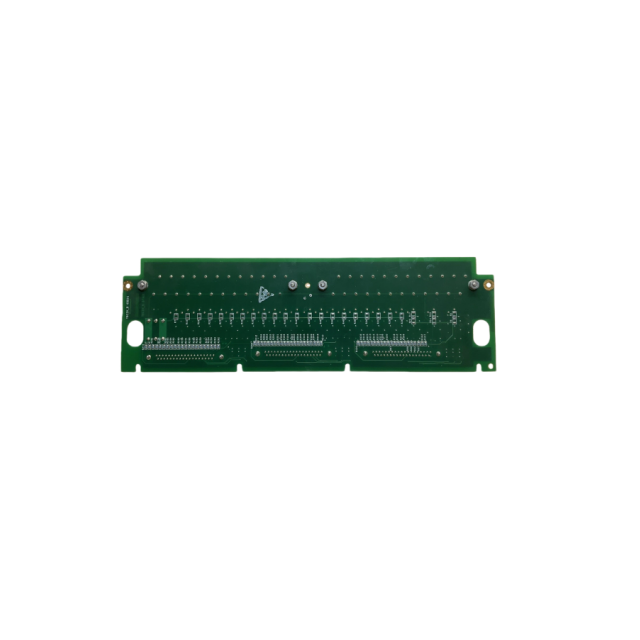

GE IS200TBCIH1BBC	GE Mark VI	Contact input terminal board; converts field contact status into Mark VI logic signals	Turbine boundary: pressure switches, limit switches, auxiliary contacts
Triconex 3604E	Tricon TMR	TMR digital output module; drives solenoids, trip relays, or status lamps with fault detection	Final element drive in SIS/ESD safety loop

BC810 3BSE031154R1 is not a gateway. It stays within the ABB CEX-bus. IS200TBCIH1BBC is a field termination board, not a processor. 3604E is an output module, not a communication module. Keeping these boundaries clear avoids many integration errors.

Where Integration Happens

These modules do not share one native fieldbus.

The ABB BC810 extends the ABB AC800M CEX-bus to distributed S800 I/O groups. The GE IS200TBCIH1BBC conditions discrete inputs inside the Mark VI turbine control rack. The Triconex 3604E executes final safety outputs from the Tricon TMR system.

In a typical turbine-driven process, integration happens at the system level:

ABB AC800M handles plant process loops: cooling water, fuel gas pressure, auxiliary pumps, and package controls.
GE Mark VI handles turbine control and protection: speed, load, lube oil pressure, exhaust temperature, trip contacts.
Triconex handles safety instrumented functions: emergency shutdown, overpressure protection, fire and gas interface.

Cross-system commands are usually hardwired through interposing relays or passed through a plant-level communication gateway. Do not assume that BC810, IS200TBCIH1BBC, or 3604E can directly route signals to each other.

Pre-Integration Checks for Each Module

Before mounting modules in the same cabinet, complete these checks:

ABB BC810 3BSE031154R1
– Confirm the CEX-bus segment length and module count against ABB AC800M planning rules.
– Install TB850 bus termination at each segment end.
– Verify TP857 connectors are fully seated and not damaged.
– If the project requires redundant CEX-bus, order two BC810 units and match firmware/revision.
GE IS200TBCIH1BBC
– Confirm Mark VI rack slot and cable alignment.
– Check field contact wetting voltage and contact current against the connected devices.
– Use shielded twisted-pair cable for pressure switches and limit switches.
– Terminate shield drain at the single-end ground point designated by GE installation practice.
Triconex 3604E
– Check output voltage and current rating against the solenoid or relay load.
– For inductive loads, install a flyback diode or MOV arc suppressor.
– Verify the Tricon chassis and safety system revision supports the 3604E module.
– Do not mix new and old output module versions without a documented replacement check.

Wiring and Signal Flow

The following table covers the main wiring boundaries.

Signal Point	Recommended Wiring	Integration Note
ABB CEX-bus from BC810	ABB CEX-bus cable with TB850 terminator at segment end and TP857 connector if used	Never use Ethernet or standard serial cable; CEX-bus is a dedicated control bus
GE Mark VI contact inputs to IS200TBCIH1BBC	Shielded twisted pair, correct wetting voltage, individual field contact pairs	Keep field contact wiring away from AC motor cables and VFD output cables
Triconex 3604E output to solenoid or relay	Separate output wiring from analog and communication wiring; interposing relay for inductive loads	Use arc suppression and verify load inrush current remains inside module limits

Grounding is critical. ABB, GE, and Triconex systems may have different ground references. Do not daisy-chain field grounds or build one shared 24 VDC common across all three cabinets without checking isolation requirements. Mixed-ground loops are a common source of intermittent trips during commissioning.

Common Integration Failure Points and Corrections

Symptom	Likely Cause	Correction
CEX-bus communication loss	Missing TB850 termination, damaged TP857 connector, overloaded CEX-bus segment	Install correct termination, replace connector, split segment with additional BC810
Mark VI input flicker	Field contact oxidation, loose terminal, incorrect wetting voltage	Clean contact, torque terminal screws, verify supply voltage
3604E output coil dropout	Inductive load without suppression, load inrush above rating, TMR channel fault	Add flyback/MOV suppressor, install interposing relay, replace faulty module
Unexplained trip pulses between systems	Shared DC common or multiple shield ground points	Isolate signal grounds, use relay isolators for cross-system commands, single-end shield grounding

Replacement and Sourcing Notes

For reliable mixed-brand integration, buy accessories together:

BC810 3BSE031154R1: include TB850 termination and TP857 connectors if cabinet layout requires them.
IS200TBCIH1BBC: confirm terminal block and cable kit match the Mark VI rack.
3604E: confirm firmware/compatibility with existing Tricon chassis and safety system revision.

Also ask the supplier for:

Full part number and revision.
Date code or manufacturing batch.
Test condition and packaging type.
Compatibility statement against existing system version.

Keep one spare per critical subsystem. For a running turbine with DCS and SIS, the cost of a spare module is much smaller than an unplanned trip.

Frequently Asked Questions

Can BC810 connect directly to GE Mark VI or Triconex?

No. BC810 3BSE031154R1 is an ABB CEX-bus interconnection unit, not a gateway. Cross-brand integration uses hardwired interposing signals or a communication gateway at controller level.

Is IS200TBCIH1BBC compatible with Mark VIe?

IS200TBCIH1BBC belongs to the GE Mark VI platform. Mark VIe uses a different I/O architecture. Always verify the turbine control system generation before ordering.

What should be tested after replacing 3604E?

Perform an output loop check, confirm TMR diagnostics are clear, verify load current and coil continuity, and force the channel only if plant safety procedure allows.

Which accessories are required with BC810 3BSE031154R1?

Order ABB CEX-bus termination modules such as TB850 and connectors such as TP857 according to cabinet design. Do not reuse damaged connector inserts.

Why source these parts from one supplier?

Mixed-platform projects create revision mismatches. A supplier holding ABB, GE, and Triconex inventory can cross-check part numbers against the system configuration and reduce commissioning delay.
