Overview

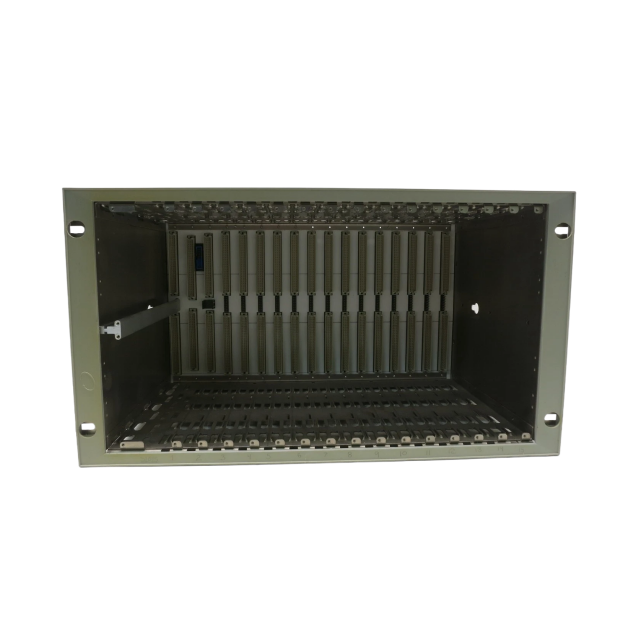

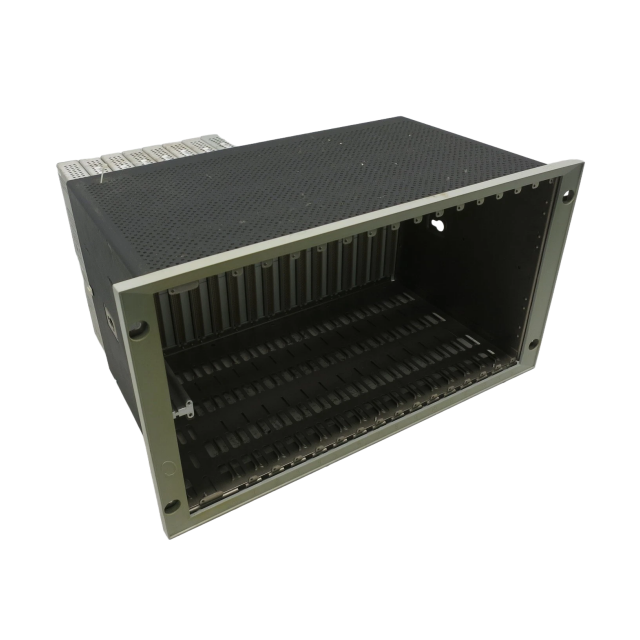

3500/05-01-01-00-00-01 is a full-size system rack from Bently Nevada™ (a Baker Hughes business),
designed as the mounting and communication backbone for the 3500 machinery condition
monitoring system.
3500/05-01-01-00-00-01 accommodates 3500 monitor modules, power supplies, and a rack interface
module.
3500/05-01-01-00-00-01 enables seamless inter-module communication and centralized power
distribution.
3500/05-01-01-00-00-01 is engineered for industrial durability and flexible deployment.
3500/05-01-01-00-00-01 meets global safety and compliance standards for use in general, marine,
offshore, and hazardous environments.

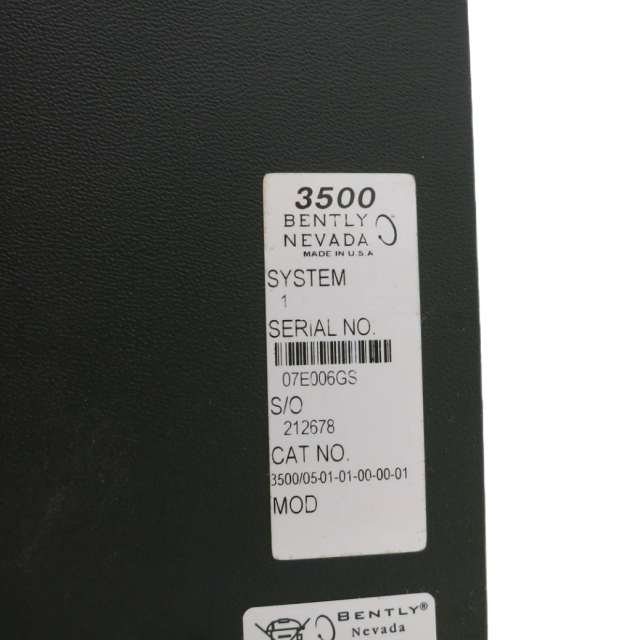

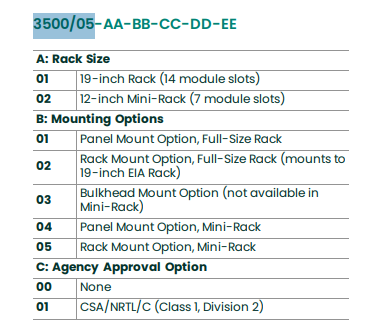

![3500 05-01-01-00-00-01（）]()
![3500 05-01-01-00-00-01（2）]()
Core Functionality
●Module Mounting & Integration: Provides 14 full-height slots for 3500 monitor modules, power
supplies, and optional components (e.g., internal barriers, earthing modules). Power supplies and the
rack interface module must occupy the far-left positions.
●Flexible Deployment: Panel mount design allows installation in control panels with wiring and I/O
modules accessible from the rear, suitable for space-constrained industrial settings.
●Inter-Module Communication: Facilitates seamless data exchange between installed 3500 modules,
supporting the system’s machinery protection and condition monitoring capabilities.
●Compatibility with Optional Components: Supports internal barriers (requires 3500/04-01 Internal
Barrier Earthing Module, occupying a dedicated slot) and blank covers for unused positions to
maintain environmental protection.
●Hazardous Environment Readiness: Meets Zone 2/Class I Division 2 standards (when installed per
drawings 149243/149244), enabling deployment in potentially explosive atmospheres with
appropriate approvals.
Installation & Ordering Considerations
●Internal Barriers: If installing internal barriers, a 3500/04-01 Internal Barrier Earthing Module is
required (occupies a dedicated slot) for IS Earth connection.
●Software Requirement: Not applicable to the rack itself; compatible with 3500 system software
versions supporting full-size racks (refer to module-specific software requirements).
●Accessories & Spares: Compatible with half-height/full-height blank covers (e.g., 130768-01 full-
height blank monitor cover kit), half-height module adapters (e.g., 125388-01 internal chassis), and
TMR/SIM jumpers (00561941).
