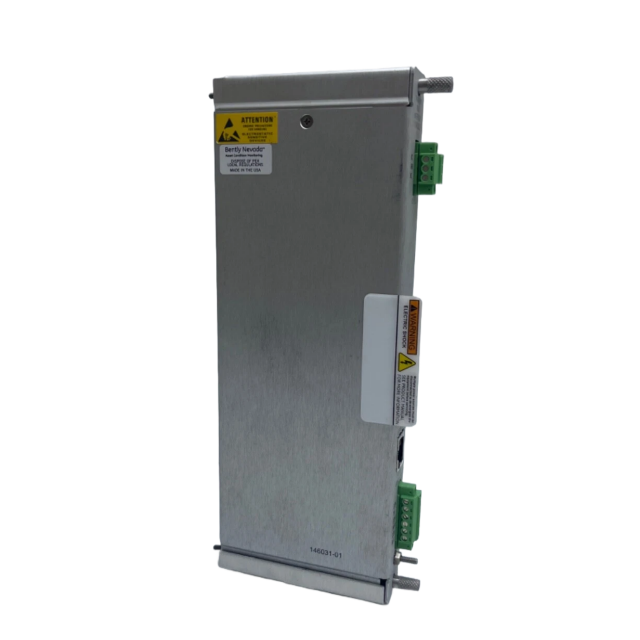

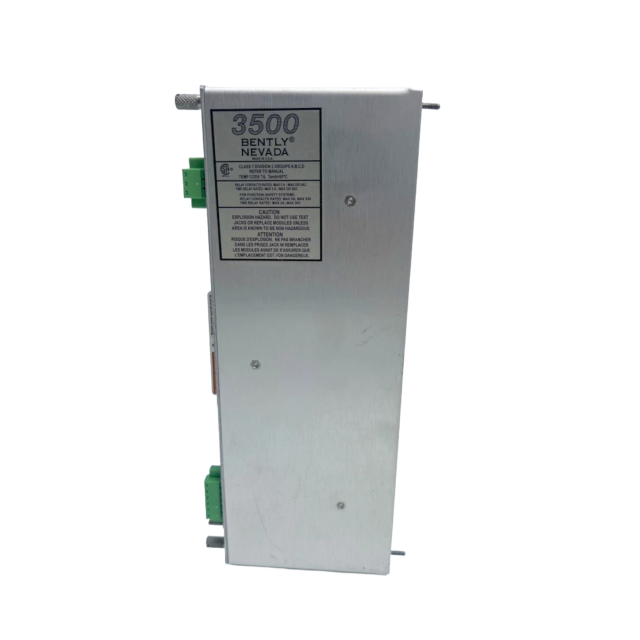

Bently Nevada 3500/22-01-01-00 146031-01 Transient Data Interface I/O Module

Share to:

Bently Nevada 3500/22-01-01-00 146031-01 Transient Data Interface I/O Module

The Bently Nevada 3500/22-01-01-00 (146031-01) is a TDI I/O module, linking 3500 monitoring systems to System 1 software. It enables steady/transient data capture, Ethernet transmission, and seamless M - series monitor integration for industrial machinery protection and diagnostics.

Availability:



Inquire Add to Basket

Model:
3500/22-01-01-00 146031-01
Brand:
Bently Nevada

3500/22-01-01-00 146031-01 Bently Nevada 3500/22-01-01-00 146031-01 3500/22-01-01-00 146031-01 Transient Data Interface I/O Module Bently Nevada TSI 3500/22-01-01-00 146031-01 TSI 3500/22-01-01-00 146031-01 PDF 3500/22-01-01-00 146031-01 datasheet

Product Description

Contact info

Datasheet

You may interested

Overview

3500/22-01-01-00 is a specific model of the Bently Nevada™ 3500/22M Transient Data Interface (TDI)

module, while 146031-01 refers to its compatible 10Base-T/100Base-TX Ethernet I/O module.

Together, they form a core interface component of the 3500 monitoring system, bridging the system

with host software (System 1 Condition Monitoring and Diagnostic Software, 3500 System

Configuration Software) to enable steady-state and transient data collection, transmission, and rack

management.

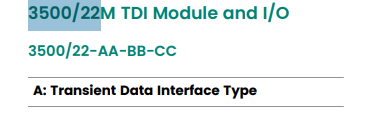

3500 22-01-01-00 146031-01(1)

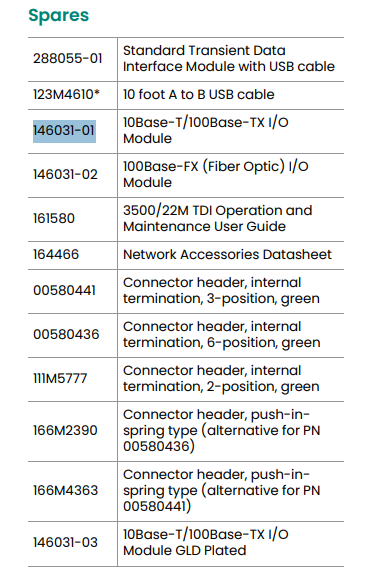

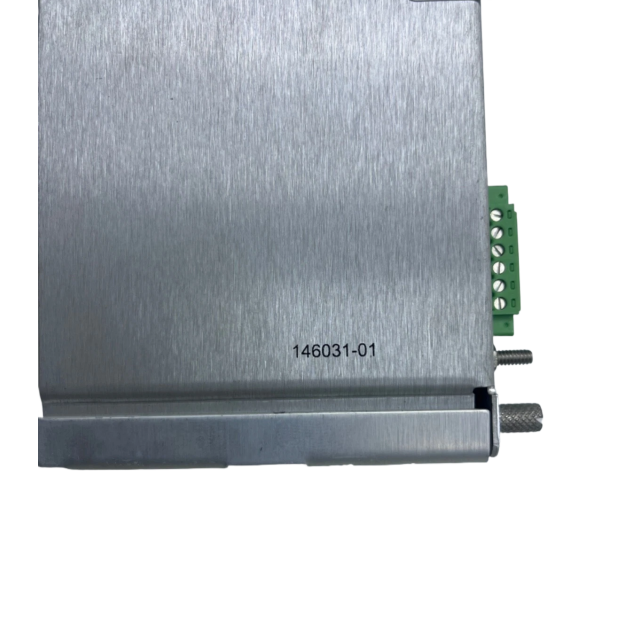

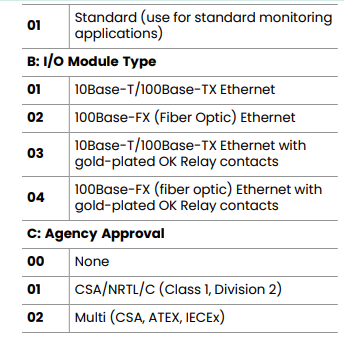

3500 22-01-01-00 146031-01(2) 146031-01(3)

Key Features

Integrates 3500/20 Rack Interface Module (RIM) functionality and communication processor capabilities (e.g., TDXnet) in one unit.

Supports 48 channels of waveform data collection (DC-coupled) with configurable synchronous sampling rates (16–1024 samples/rev) and asynchronous sampling for 800-line spectrums (10 Hz–30 kHz frequency spans).

Captures static data, pre/post-alarm data (static values and waveforms), and startup/coastdown data based on programmable speed windows.

Accommodates 4 system Keyphasor signals, with speed range support (1–100,000 rpm) depending on enabled dynamic channels.

Electrical Parameters

Power Consumption: 10.5 Watts.

OK Relay Ratings: Standard (non-gold-plated) contacts rated to 5A @ 24 Vdc/120 Vac; 120 Watts/600

VA maximum switched power.

Keyphasor Inputs: Supports up to 4 signals, with 20 kHz maximum frequency for multiple events per

revolution.

Environmental Limits

Operating Temperature: -30°C to +65°C (-22°F to +149°F).

Storage Temperature: -40°C to +85°C (-40°F to +185°F).

Humidity: 95% non-condensing.

Battery Life: 38 years (powered) / 12 years (unpowered) @ 50°C (122°F).

Compliance & Certifications

EMC: Complies with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions); meets EMC Directive

2014/30/EU.

Electrical Safety: Complies with EN 61010-1; meets Low Voltage Directive 2014/35/EU.

RoHS: Compliant with RoHS Directive 2011/65/EU.

Maritime/Offshore: Approved per DNV GL Rules and ABS Rules for Classification.

Company Profile

▲Focus on the field of automation control components, mainly engaged in the supply of

new/discontinued spare parts

▲Integrate thousands of industrial spare parts resources to achieve one-stop procurement

▲Equipped with a multilingual service team, support global sourcing and match the best price plan

Email: chen@htechplc.com

Contact: Cheryl Qi

Whatsapp: +8618150137565

Phone No: +8618150137565

3500 22-01-01-00 146031-01.pdf
