Overview

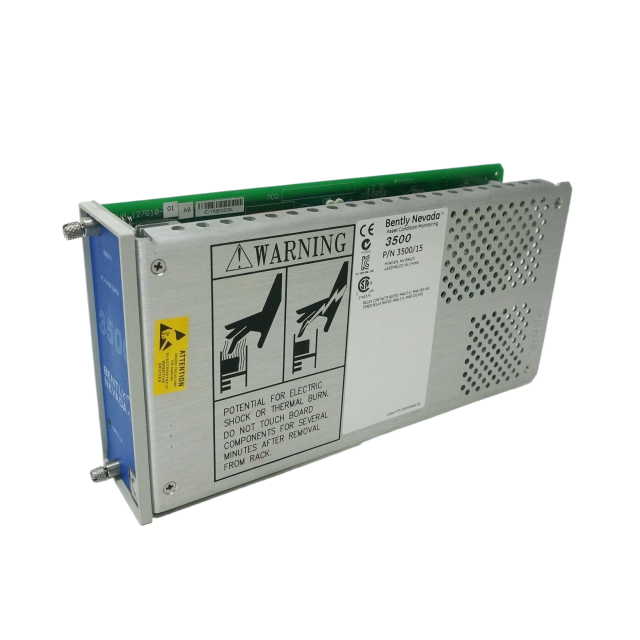

3500/15-01-01-00 is a half-height power supply module from Bently Nevada™ (a Baker Hughes
company), part of the 3500 machinery protection system. 127610-01 is identified as a related
component (consistent with the 3500/15 spare parts family, likely a power supply or Power Input
Module (PIM) spare). The module is designed to provide stable power distribution to 3500 rack
components, supporting single or redundant deployment with flexible AC/DC input options and
global compliance for industrial, marine, offshore, and hazardous environments.
![3500 15-01-01-00 127610-01]()
Core Functionality
●Dual Slot Redundancy: Installs in two designated half-height left-side slots of the 3500 rack. The
lower slot acts as primary, upper as backup—hot-swappable without disrupting rack operation.

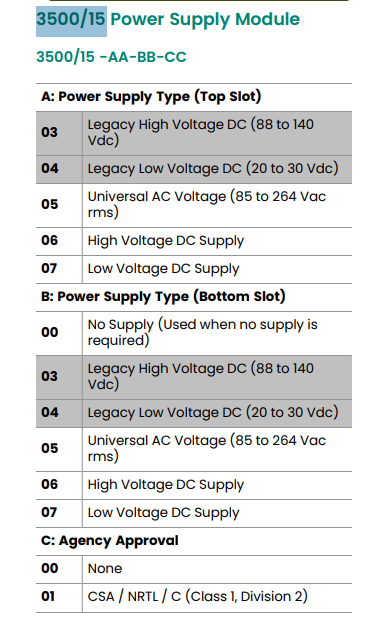

●Versatile Input Options: Supports Universal AC (85–264 Vac rms, 47–63 Hz) as the primary
configuration for this model; compatible with High Voltage DC (88–140 Vdc) and Low Voltage DC (20–
30 Vdc) via alternative variants.
●Stable Power Conversion: Converts wide-range input voltages to levels compatible with 3500
monitor modules and rack components, with no minimum rack load required.
●Protection Mechanisms: Features over-voltage protection (triggers PIM fuse) and under-voltage
tolerance (no component damage).

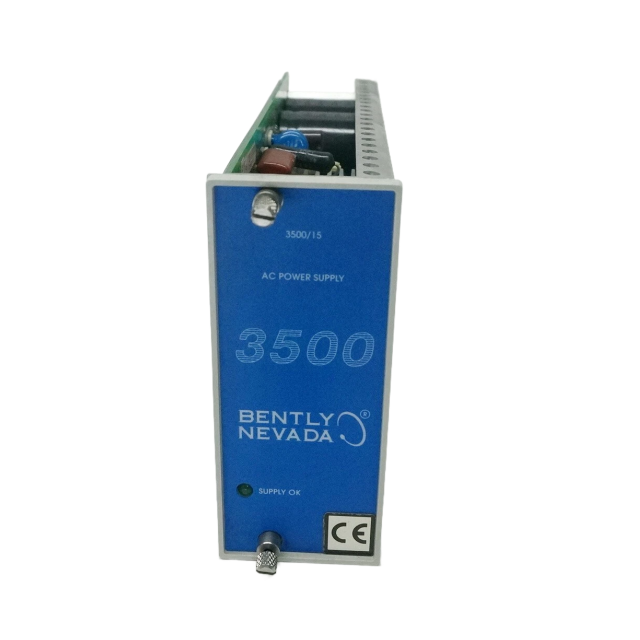

●Status Monitoring: Front-panel "Supply OK" LED indicates proper operational status for quick visual
verification.
Installation & Compatibility Notes
●Compatibility Restrictions: Universal AC Power Supply/PIM is incompatible with legacy 3500 AC/DC
power supplies and PIMs; High/Low Voltage DC variants are not compatible with legacy DC
counterparts.
●Redundant Deployment: Two modules (same or mixed AC/DC types) can be installed for
redundancy, with automatic failover between primary (lower slot) and backup (upper slot).

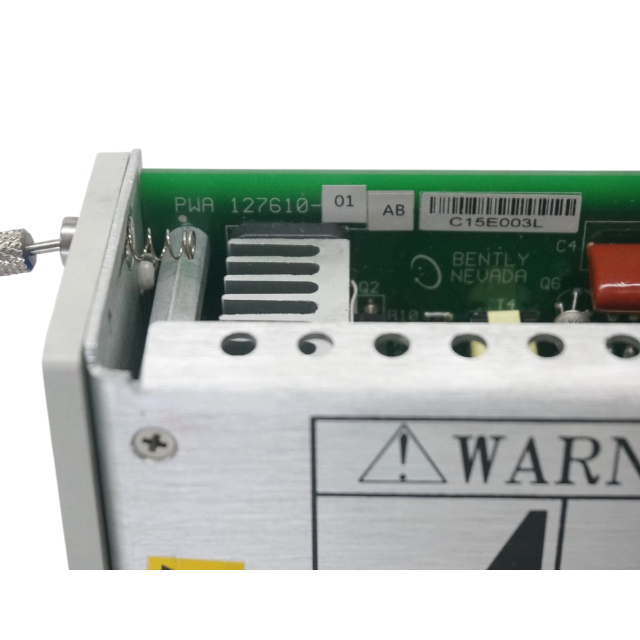

●Spare Parts Compatibility: 127610-01 is compatible with 3500/15 universal AC configurations,
replacing faulty power supply modules or PIMs.
