Bently Nevada 3500/45-01-00 135137-01 Position Monitor

Overview of Bently Nevada™ 3500/45 Position Monitor

The Bently Nevada™ 3500/45 Position Monitor is a versatile 4-channel instrument engineered to

accept inputs from a wide range of sensing devices, including proximity transducers, Rotary Position

Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable

Differential Transformers (AC LVDTs), and rotary potentiometers. It conditions incoming signals with

high precision and automatically compares the processed data against user-programmable alarm

thresholds, delivering reliable monitoring and critical status notifications for industrial machinery

position-related parameters.

Overview of 3500/45-01-00 135137-01

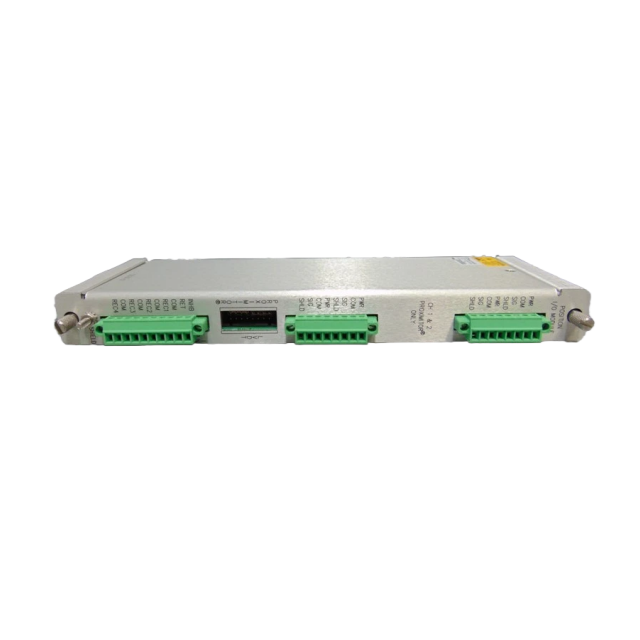

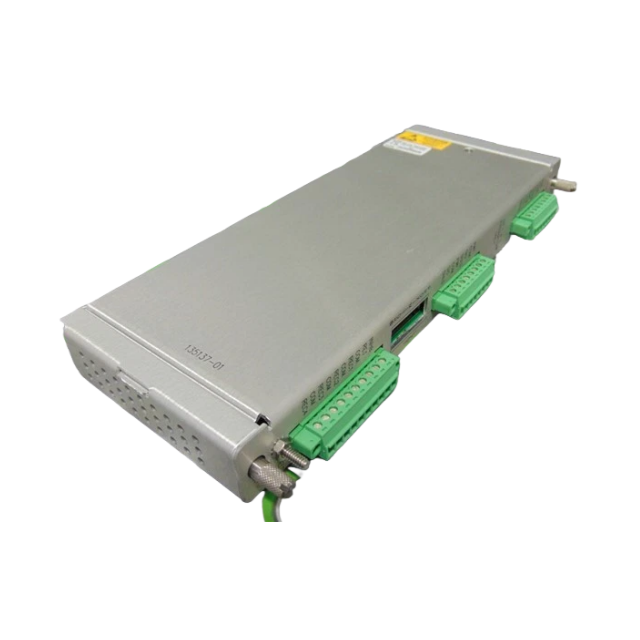

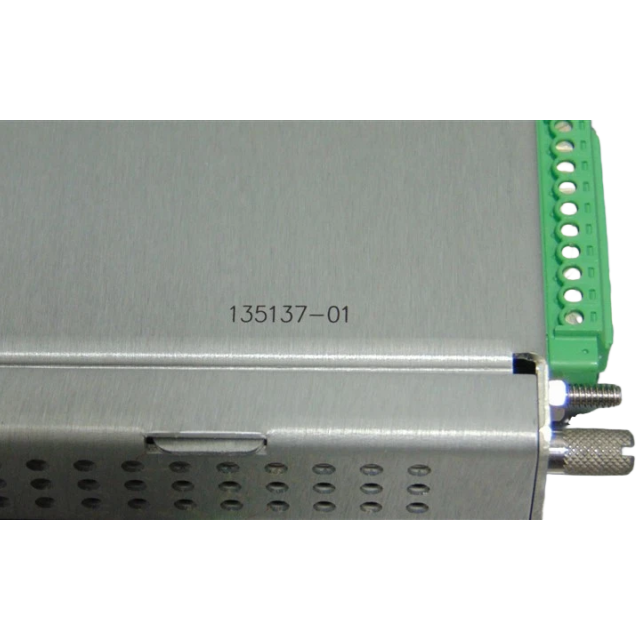

The Bently Nevada™ 3500/45-01-00 (part number 135137-01) is a high-performance 4-channel

position monitor equipped with an internal termination Position I/O Module, designed to accept

inputs from proximity transducers, Rotary Position Transducers (RPTs), and DC Linear Variable

Differential Transformers (DC LVDTs) for precision industrial machinery position monitoring. As a core

component of the 3500 protection and condition monitoring system, it supports versatile

measurement functions—including axial (thrust) position, differential expansion, case expansion, and

valve position—with channels programmable in pairs to perform up to two functions simultaneously.

The monitor conditions input signals with exceptional accuracy (typically ±0.33% of full-scale for

thrust and differential expansion) and compares processed data against user-programmable alert and

danger alarm setpoints, delivering critical machinery protection and operational insights. It features

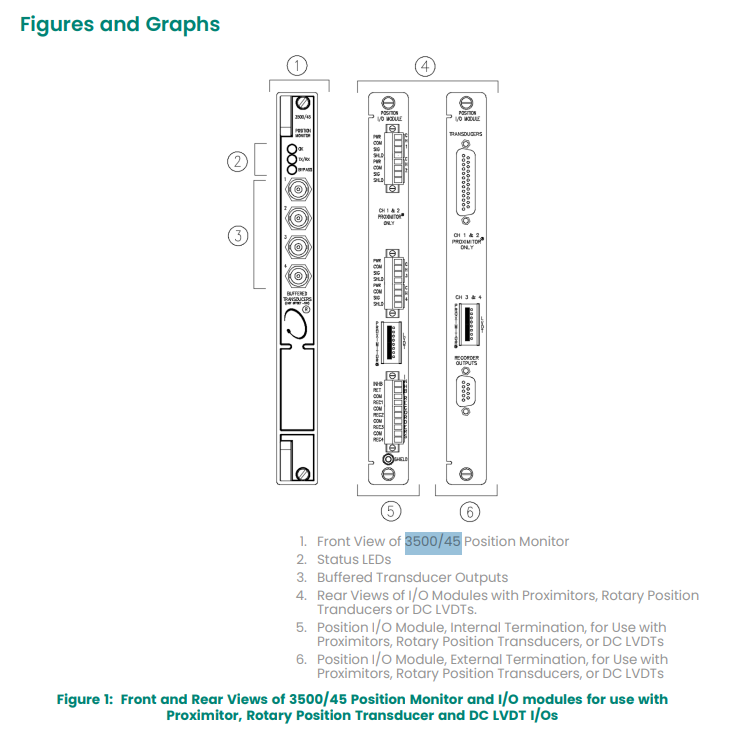

front-panel status LEDs (OK, TX/RX, Bypass) for real-time system visibility, provides proportional 4-20

mA and 0-12 Vdc recorder outputs, and offers robust environmental resilience (-30°C to +65°C

operating temperature, 95% non-condensing humidity). Compliant with global standards (EMC, LV,

RoHS) and hazardous area certifications (cNRTLus, ATEX/IECEx for Zone 2/Division 2), this module

integrates seamlessly into 3500 racks, requiring 1 full-height front slot and 1 rear slot for the I/O

module, making it ideal for oil and gas, power generation, and manufacturing applications

demanding reliable machine health monitoring.
