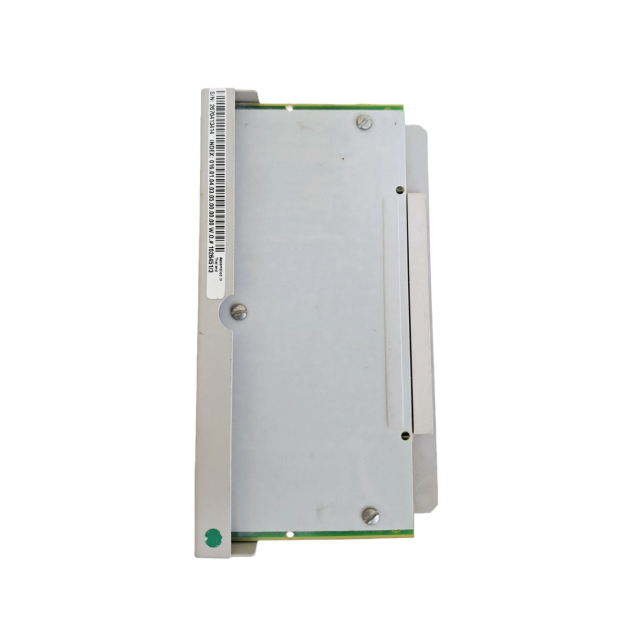

1C31219G01 Relay Output Electronics Module: Technical Specs & Integration Guide
The 1C31219G01 is a dedicated relay output electronics module designed for Emerson’s Ovation Distributed Control System (DCS), engineered to interface with high-power field devices such as industrial valves, motors, and pumps. As a core component of Ovation’s relay output subsystem, it provides reliable switching capabilities for critical industrial processes, supporting both G2R and KUEP relay base assemblies. This module features built-in diagnostic tools, robust surge protection, and compliance with industrial standards to ensure consistent performance in harsh environments like power plants, petrochemical facilities, and manufacturing plants. Below is a detailed breakdown of its key features, specifications, installation, and maintenance—optimized for clarity and search visibility.、
1. Core Function & Key Capabilities
The 1C31219G01 serves as the electronic control center for relay output operations, translating commands from the Ovation Controller into physical switching actions for field devices. Its primary capabilities include:
Relay Control Interface: Manages switching for 16 G2R relays (via 1C31223G01 base) or 12 KUEP relays (via 1C31222G01 base), enabling high-current, high-voltage device control.
Built-in Diagnostics: Monitors internal components (e.g., relay coils, power supplies) and external connections to detect faults like blown fuses or relay failures, with status indicators for quick troubleshooting.
Surge Protection: Integrates surge suppression components to withstand voltage spikes and transients, protecting both the module and connected field devices from damage.
Compatibility with Ovation Ecosystem: Seamlessly communicates with the Ovation Controller via the Ovation Serial I/O Bus, ensuring real-time command execution and status feedback.
Hot-Swappable Design: Supports on-line replacement without system shutdown, minimizing downtime during maintenance or component failure.

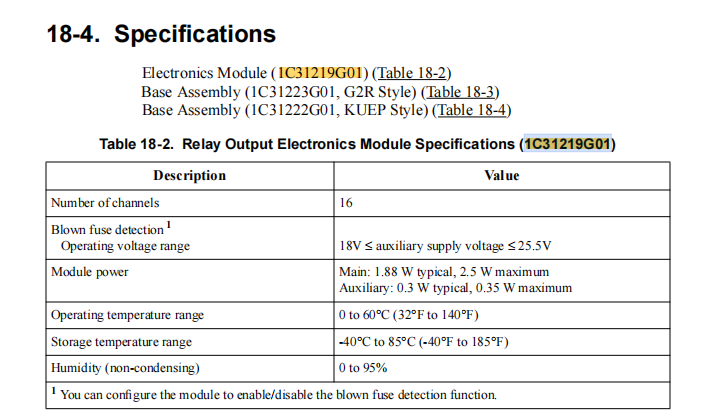

2. Technical Specifications
2.1 Electrical Specifications
Relay Compatibility: Works with two relay base types—16-channel G2R relays (1C31223G01) and 12-channel KUEP relays (1C31222G01).
Power Supply: Draws power from the Ovation backplane’s 24 VDC auxiliary supply. Typical power consumption is 3.2 W under normal operation, with a maximum of 4.5 W during peak switching.
Fuse Ratings: Uses user-serviceable 5 x 20 mm cartridge fuses. For G2R bases, a 1.0 A/250 V fast-acting fuse (part number EX06104) is required; for KUEP bases, a 2.0 A/250 V fast-acting fuse (part number EX06105) is used to protect against overcurrent.
Dielectric Isolation: Provides 1000 V AC/DC isolation between relay channels and logic circuits to prevent electrical interference and ensure operator safety.
Switching Capacity: Supports relay switching up to 10 A @ 250 VAC or 10 A @ 30 VDC (G2R relays) and 10 A @ 250 VAC or 3 A @ 150 VDC (KUEP relays), depending on the base assembly.
2.2 Environmental Specifications
Operating Temperature Range: 0–60°C (32–140°F) for G2R relay configurations; 0–45°C (32–113°F) for KUEP relay configurations (due to higher heat dissipation from KUEP relays).
Storage Temperature Range: -40–85°C (-40–185°F), withstanding extreme conditions during shipping or offline storage.
Humidity Tolerance: 0–95% non-condensing, resistant to moisture in industrial environments like refineries or wastewater treatment plants.
Vibration & Shock Resistance: Complies with IEC 60068 standards, surviving mechanical stress from plant equipment operation or transportation.
2.3 Performance Specifications
Switching Response Time: Typically 10–15 ms from command receipt to relay activation, ensuring fast response for time-critical processes.
Fuse Detection: Includes a blown fuse detection circuit that triggers an alert (via LED and status register) when a relay or auxiliary power fuse fails, enabling proactive maintenance.
Life Expectancy: 100,000+ switching cycles for G2R relays; 50,000+ cycles for KUEP relays, depending on load conditions and operating environment.
3. Compatibility & Required Components
The 1C31219G01 requires specific complementary components to function within the Ovation DCS, ensuring proper integration and performance:
3.1 Relay Base Assemblies
1C31223G01 (G2R Base): A DIN rail-mounted base unit housing 16 G2R relays. It includes terminal blocks for field wiring, a 1.0 A fuse for overcurrent protection, and mechanical latches to secure the 1C31219G01 electronics module. Ideal for low-to-medium power applications like valve actuation.
1C31222G01 (KUEP Base): A heavy-duty base unit with 12 KUEP relays, designed for high-power loads such as motor starters. It features a 2.0 A fuse, reinforced terminal blocks, and additional heat dissipation to handle higher current draw.
3.2 External Devices
Field Devices: Compatible with any device requiring relay switching, including contactors, solenoid valves, indicator lights, and motor starters. Ensure the device’s voltage/current ratings match the relay’s switching capacity (refer to Section 2.1 for details).
Ovation Controller: Must be paired with an Ovation Controller (e.g., Ovation OCR) running compatible control logic to send switching commands and monitor module status.
Wiring Accessories: Requires 18–22 AWG copper wire for field connections, with shielded cables recommended for noise-sensitive environments (e.g., near AC motors or high-voltage lines).
4. Installation Guidelines
4.1 Pre-Installation Checks
Verify that the Ovation I/O cabinet is powered off and locked out/tagged out (LOTO) to prevent electrical hazards.
Inspect the 1C31219G01 module, relay base, and fuses for physical damage (e.g., bent pins, cracked housing) before installation.
Confirm that the relay base (1C31223G01 or 1C31222G01) is compatible with the field device load requirements (voltage, current, and duty cycle).
4.2 Step-by-Step Installation

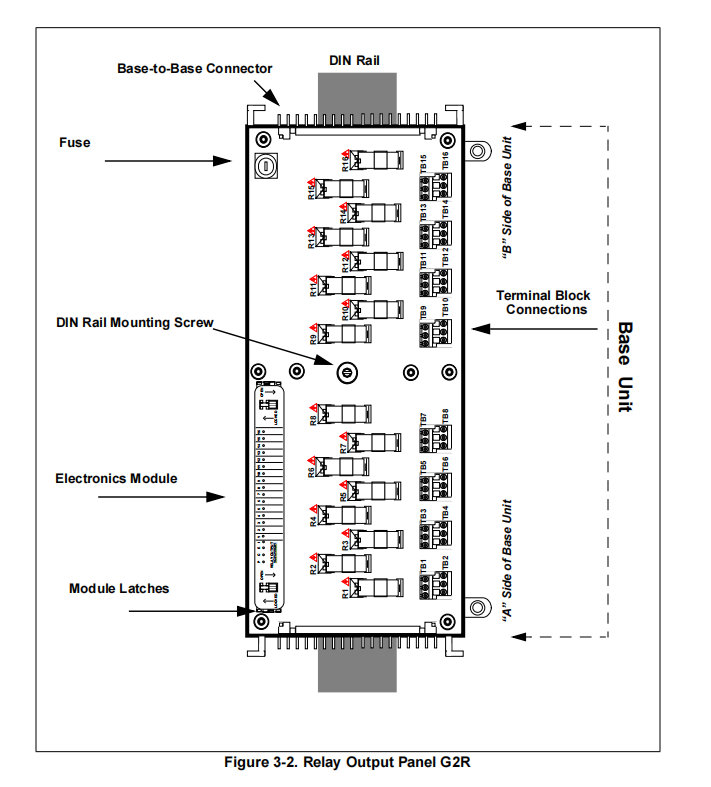

Mount the Relay Base: Secure the relay base (G2R or KUEP) to the DIN rail in the Ovation I/O cabinet, ensuring at least 2 cm of clearance from adjacent modules for ventilation (critical for KUEP bases to prevent overheating).
Install Fuses: Insert the appropriate fuse into the base unit—1.0 A for G2R (EX06104) or 2.0 A for KUEP (EX06105). Ensure the fuse is fully seated to avoid loose connections.

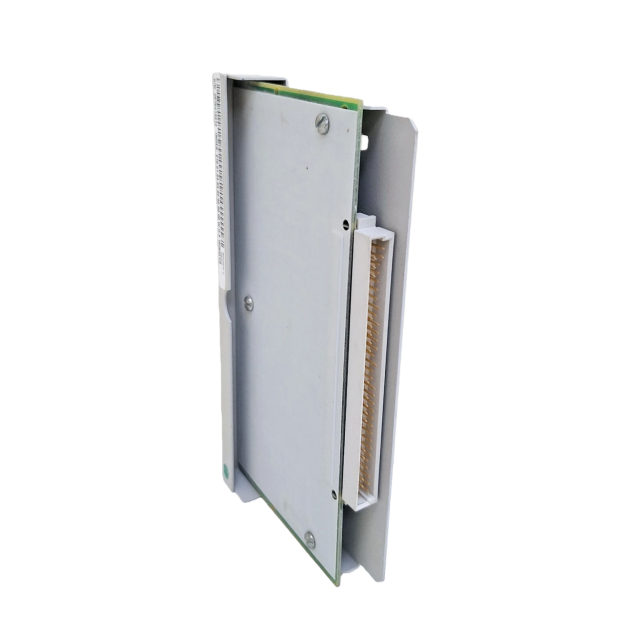

Attach the Electronics Module: Align the 1C31219G01 module with the base unit’s connectors, then push firmly until the blue latches on the module snap into place. Pull gently to confirm a secure fit.
Field Wiring: Connect field device wires to the base unit’s terminal blocks, following the wiring diagram labeled on the base (e.g., “R1” for Relay 1, “COM” for common). Use wire ferrules for stranded wire to prevent loose strands and short circuits.
Power On & Verify: Restore power to the Ovation cabinet, then check the module’s diagnostic LEDs (see Section 6.1) to confirm power and communication with the Controller.
4.3 Wiring Best Practices
Separate Power & Signal Cables: Route relay power cables (high-current) separately from control signal cables to minimize electromagnetic interference (EMI).
Grounding: Connect the base unit’s earth ground terminal to the cabinet’s common ground bus. Avoid daisy-chaining grounds to prevent ground loops.
Labeling: Mark terminal blocks with clear identifiers (e.g., “Motor #3 Contactor,” “Valve Solenoid #1”) to simplify maintenance and troubleshooting.
5. Configuration Steps
The 1C31219G01 requires minimal configuration, as most settings are managed via the Ovation Controller. Follow these steps to configure the module:
Access I/O Builder: Launch the Ovation I/O Builder tool on the Engineering Station, and select the I/O branch where the 1C31219G01 is installed.
Assign Module Address: Assign a unique address to the module (1–128 for local I/O, 1–1024 for remote I/O) to ensure communication with the Controller.
Configure Fuse Detection: Enable blown fuse detection via the Controller’s configuration register (Address 13, Bit 6) to trigger alerts when a fuse fails.
Set Timeout Parameters: Define the communication timeout period (16 seconds default, adjustable to 62 ms) to determine how long the module waits for Controller commands before entering a fault state.
Save & Download: Save the configuration and download it to the Ovation Controller. The module will automatically apply the settings and resume normal operation.
6. Diagnostic Features & Troubleshooting
6.1 Status LEDs

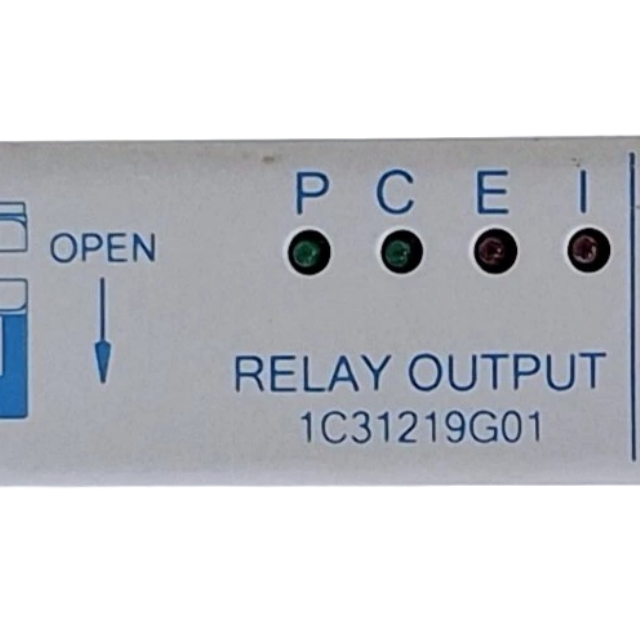

The 1C31219G01 includes five diagnostic LEDs for at-a-glance status monitoring:
P (Green): Power OK—lit when the +5 VDC logic supply is functional. If unlit, check the backplane power connection or replace the module.
C (Green): Communications OK—lit when the module communicates with the Ovation Controller. If unlit, verify the I/O bus wiring and Controller address configuration.
E (Red): External Fault—lit for blown fuses, relay coil failures, or auxiliary power loss. Check the base unit’s fuse and field wiring for damage.
I (Red): Internal Fault—lit for internal errors like microcontroller failures or memory issues. Power cycle the module; if the error persists, replace the 1C31219G01.
Relay Status LEDs (Green): One LED per relay (1–16 for G2R, 1–12 for KUEP)—lit when the corresponding relay is active. Unlit LEDs indicate a relay failure or command issue.
6.2 Common Troubleshooting Scenarios
External Fault (E LED) Lit:
Check the base unit’s fuse with a multimeter; replace if blown (use exact rating matches).
Inspect relay coils for continuity—if a relay has no continuity, replace the relay or base unit.
Verify the auxiliary power supply (24 VDC) voltage; ensure it falls within ±5% of the nominal value.
Communications (C LED) Off:
Inspect the I/O bus wiring between the module and Controller for loose or damaged wires.
Reset the Controller’s I/O bus and recheck the module address (ensure no duplicate addresses exist).
Replace the module if communication issues persist after wiring checks.
Relay Not Switching (Status LED Unlit):
Confirm the Controller is sending a valid switching command (check the Controller’s output register).
Test the relay coil voltage with a multimeter—if no voltage is present, check the module’s output driver circuit.
Replace the relay if it fails to switch despite receiving voltage.
7. Maintenance Best Practices
7.1 Routine Inspections
Monthly Checks: Verify LED status (no unexpected fault lights), secure wiring, and intact terminal blocks. Check fuse integrity by visual inspection or multimeter testing.
Quarterly Checks: Clean the module and base unit with a dry, lint-free cloth to remove dust—avoid solvents, which can damage plastic components. Inspect relay contacts for signs of arcing (discoloration) and replace relays if worn.
Annual Checks: Test the module’s switching response time with a oscilloscope to ensure it meets performance specs. Verify dielectric isolation with a megohmmeter to prevent leakage current.
7.2 Component Replacement
Electronics Module: If the Internal Fault (I) LED remains lit after troubleshooting, replace the 1C31219G01 with an identical model. Re-pair it with the existing relay base and reconfigure the Controller settings.
Relays: For G2R/KUEP relays, replace individual relays by lifting the retainer clip on the base, removing the old relay, and inserting a new one (ensure compatibility with base type).
Fuses: Replace blown fuses with exact rating matches (refer to Section 2.1 for part numbers). Never use a higher-rated fuse, as this can damage the module or field devices.
7.3 Long-Term Reliability
Firmware Updates: Keep the module’s firmware up to date via Emerson’s Ovation software updates to ensure compatibility with new Controller features and bug fixes.
Environmental Control: Maintain the I/O cabinet temperature within the module’s operating range (0–60°C for G2R, 0–45°C for KUEP) using fans or air conditioning to prevent overheating.
Documentation: Keep a log of maintenance activities (e.g., fuse replacements, relay changes) to track component lifespan and predict future failures.
8. Application Use Cases
The 1C31219G01 is ideal for industrial applications requiring high-reliability relay switching:
Power Generation: Controls turbine bypass valves, pump starters, and generator cooling systems in coal, gas, or nuclear power plants.
Petrochemical: Manages process valves, heater elements, and safety shutdown systems in refineries or chemical plants.
Manufacturing: Switches conveyor motors, robotic arms, and packaging equipment in automotive or food processing facilities.
Water & Wastewater: Operates pump stations, valve gates, and treatment process equipment in municipal water systems.
