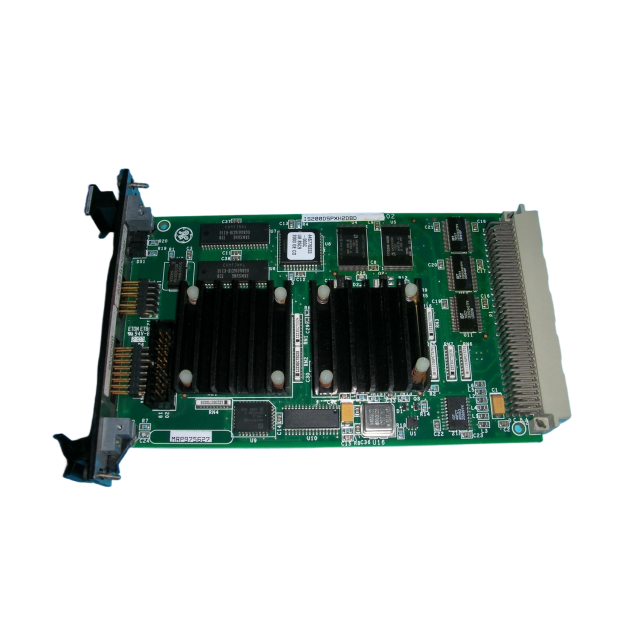

GE IS200DSPXH2DBD Digital Signal Processor Control Board

Technical Deep Dive: What Makes the IS200DSPXH2DBD Stand Out?

1. Processor & Computing Power: Engineered for Speed

At its core, the IS200DSPXH2DBD features a next-generation 32-bit floating-point Digital Signal Processor (DSP) with a 1.2 GHz clock speed and 3000 MIPS (Millions of Instructions Per Second) computing capability. This isn't just raw power—it's optimized for industrial control:

• Lightning-Fast Control Loops: Executes complex PID (Proportional-Integral-Derivative) loops in <0.6ms, critical for fast-response systems like turbine load adjustment and precision motor control.

• Multi-Tasking Prowess: Handles up to 48 concurrent control tasks (e.g., vibration monitoring, temperature regulation, flow control) without performance degradation, ensuring all aspects of your process are managed simultaneously.

• Ample Memory: Supports 128MB DDR3 SDRAM and 32MB Flash memory, providing ample space for storing real-time data logs, complex control algorithms, and configuration parameters.

2. Connectivity & Integration: Designed for Mark VIe Synergy

The board doesn't just "work with" Mark VIe—it's built to unlock the DCS's full potential:

• Triple Redundant Backplane: Ensures uninterrupted communication with Mark VIe controllers (e.g., IS200CPUH1A) and I/O modules (e.g., IS200AEADH1A), eliminating single points of failure and maximizing system availability.

• Broad Protocol Support: Natively integrates with Modbus TCP, Ethernet/IP, and GE's proprietary VMEbus, enabling seamless data exchange with third-party sensors (e.g., Siemens vibration transducers) and plant-wide SCADA systems.

• Plug-and-Play Configuration: Auto-detected by GE Mark VIe Configuration Studio, with pre-loaded function blocks for common tasks (e.g., turbine startup sequencing, pressure cascade control)—reducing engineering time by 50% vs. custom programming.

3. Durability & Environmental Resilience: Built for Harsh Industry

Industrial control boards don't just need to perform—they need to survive:

• Wide Temperature Range: Operates reliably from -40°C to 70°C (-40°F to 158°F), suitable for unconditioned turbine enclosures or outdoor oil rig control cabinets.

• Robust Protection Features: Conformal-coated PCB (per IPC-CC-830B) resists moisture, oil, and dust; 3kV AC electrical isolation blocks EMI/RFI interference from nearby high-voltage equipment.

• Mechanical Strength: Ruggedized frame withstands 5g vibration (5–500Hz, per IEC 61131-2) and 30g shock (11ms duration), preventing damage during equipment transport or plant maintenance.

4. Diagnostics & Maintenance: Minimizing Downtime

The IS200DSPXH2DBD doesn't just operate—it self-monitors:

• Real-time Health Checks: Continuously tests processor performance, memory integrity, and communication links; sends fault alerts to Mark VIe HMI via color-coded LED indicators (green = normal, amber = warning, red = fault).

• Predictive Maintenance Data: Logs key metrics (e.g., processor temperature, data transmission error rates) and sends them to GE Proficy Historian, enabling technicians to address issues before they cause downtime.

• Hot-swappable Design: Can be replaced without shutting down the Mark VIe system, cutting maintenance time from hours to <15 minutes—critical for 24/7 operations like pipeline compression stations.
