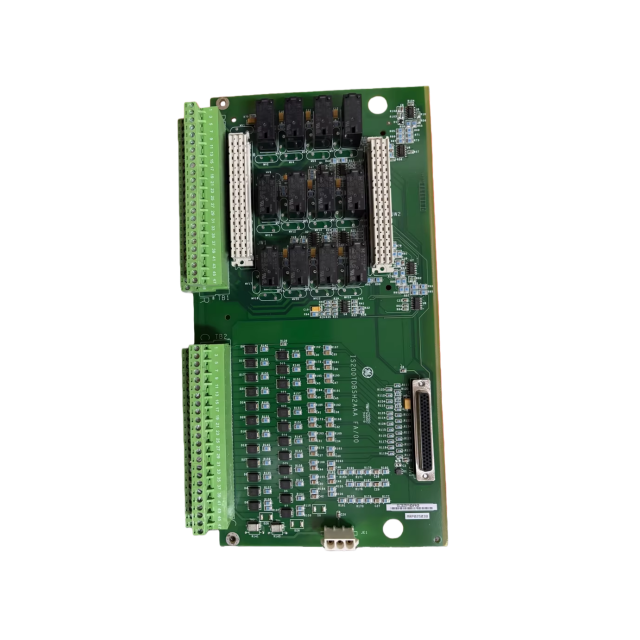

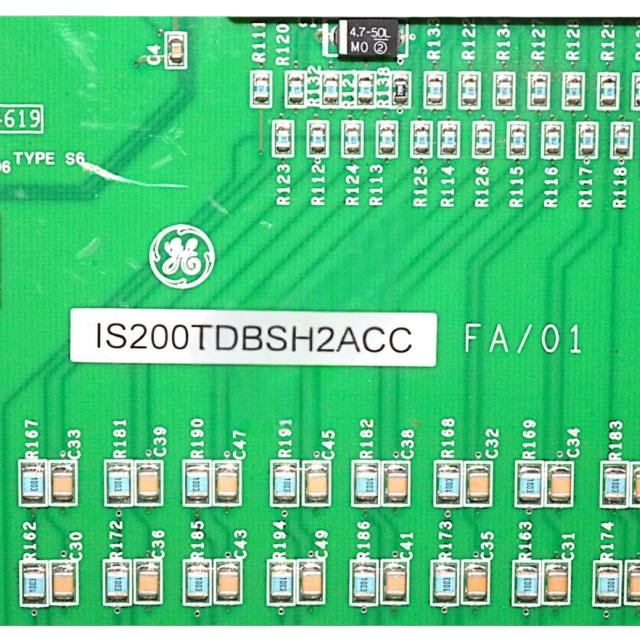

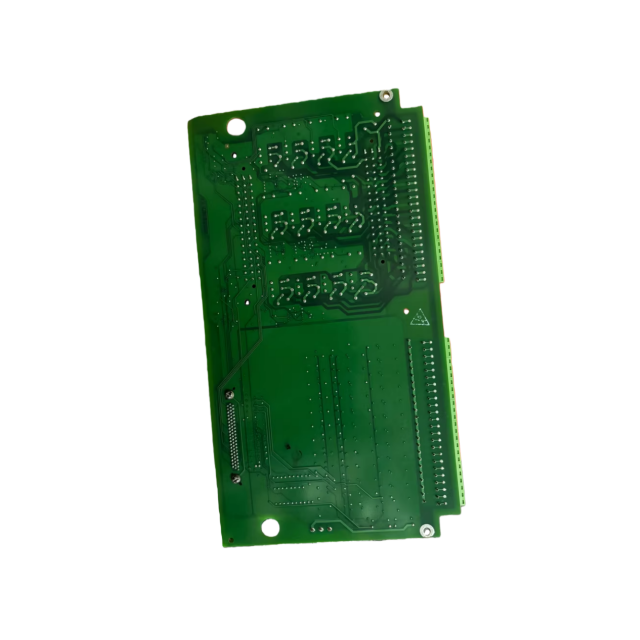

GE IS200TDBSH2A Terminal Board

GE IS200TDBSH2A: Description

The GE IS200TDBSH2A is a RoHS-compliant accessory terminal board designed for integration with the Mark VIe and Mark VIeS Control Systems, specifically paired with PDIO (Discrete Input/Output) modules (e.g., IS220PDIOH1A, IS220PDIOH1B). It serves as a critical interface for discrete input and relay contact output functions in hazardous (classified) and non-hazardous industrial environments, enabling reliable signal transmission between field devices and the main control system.

Engineered to support intrinsic safety (IS) "ic" standards, this terminal board facilitates connections for resistive simple apparatus (such as relay contacts or switches) in hazardous locations, adhering to global classification standards including Class I, Division 2/Zone 2. It features dual functionality: handling discrete inputs with selectable contact wetting power and providing relay contact outputs for control applications. The board is compatible with Euro Style Box-type terminal blocks, ensuring secure wiring with specified screw torques for copper conductors, and supports system redundancy and modular expansion without modifying existing rack infrastructure.

Ideal for industries such as oil & gas, power generation, and manufacturing, the IS200TDBSH2A ensures signal integrity and safety compliance in harsh operating conditions. It works seamlessly with GE’s 3500 Series-like modular philosophy, integrating with the Mark VIe system’s power distribution boards (e.g., JPDS, JPDG) and configuration software for parameterization, alarm setup, and diagnostic monitoring.

Key Parameters

Model & Compliance: IS200TDBSH2A; RoHS-compliant

Product Type: Accessory terminal board for Mark VIe/VIeS PDIO Discrete Input/Output modules

Core Functions: Discrete input handling, relay contact output interface; intrinsic safety "ic" support for hazardous locations

Compatibility: Exclusively compatible with Mark VIe/VIeS PDIO modules (IS220PDIOH1A, IS220PDIOH1B); works with Euro Style Box-type terminal blocks

Input Specifications:

Discrete input voltage range: 0–32 V dc

Contact wetting output voltage: 16–32 V dc (for TDBSH2A/TDBTH2A), 31 V dc (for TDBSH8A/TDBTH8A)

Contact wetting output current: 110 mA dc (max) for 1–21 channels; 41 mA dc (max) for 22–24 channels

Minimum triggering amplitude: Dependent on system configuration (compatible with 500 mV peak-to-peak signals)

Output Specifications:

Relay contact output voltage: 32.0 V dc (max)

Relay contact output current: 3.15 A dc (max)

Output impedance: Dependent on system integration (consistent with Mark VIe PDIO module standards)

Intrinsic Safety (IS) Parameters:

Discrete inputs (1–21): Voc=32 V, Isc=3.3 mA, Po=0.11 W, Ca=0.18 µF, La=100 mH

Discrete inputs (22–24): Voc=32 V, Isc=13.4 mA, Po=0.43 W, Ca=0.18 µF, La=100 mH

Relay contacts: Vmax=32 V, Imax=132 mA, Pi=4.22 W, Ci=0 µF, Li=0 mH

Physical & Wiring Specifications:

Terminal block type: Euro Style Box-type

Wire size range: 24–12 AWG (copper conductors only)

Screw torque: 4 in-lb (0.45 Nm)

Dimensions: Conforms to Mark VIe accessory form factor (consistent with 241.3 mm × 24.4 mm × 99.1 mm for non-barrier I/O modules)

Environmental Limits:

Operating temperature: -30°C to +65°C (-22°F to +149°F)

Humidity: Up to 95% non-condensing

Pollution Degree: 2 (per EN 60664-1)

Certifications & Compliance:

Hazardous location approvals: Class I, Division 2 (Groups A-D), Class I, Zone 2 (Group IIC), ATEX Zone 2 (Ex ic nA IIC T4 Gc)

Standards compliance: UL 508, CSA-C22.2 No. 142, ANSI/ISA-12.12.01, EN 60079 series (0, 7, 11, 15)

System Integration:

Power supply: Derived from Mark VIe power distribution boards (e.g., JPDS, JPDG)

Configuration: Supported via GE Rack Configuration Software for alarm setpoints and signal conditioning

Wiring: Requires copper conductors rated 90°C (194°F) minimum (105°C above 60°C ambient)
