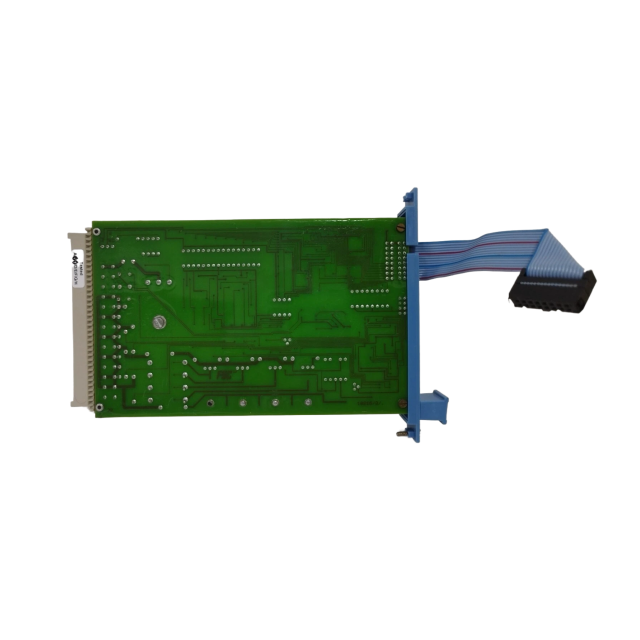

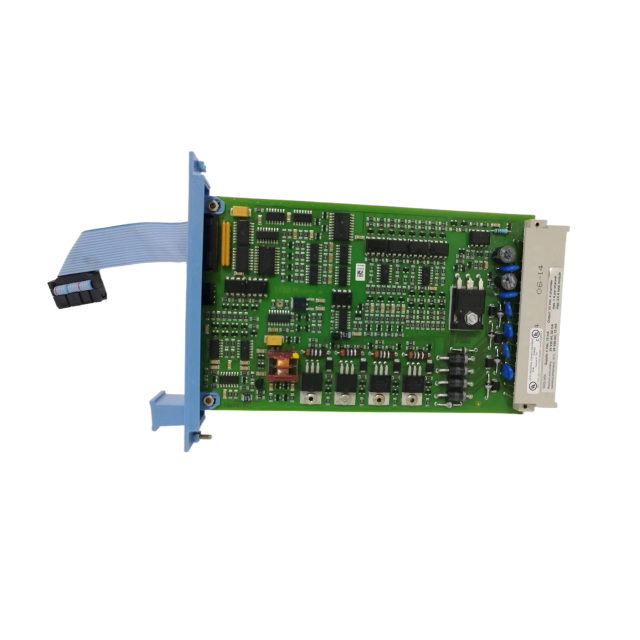

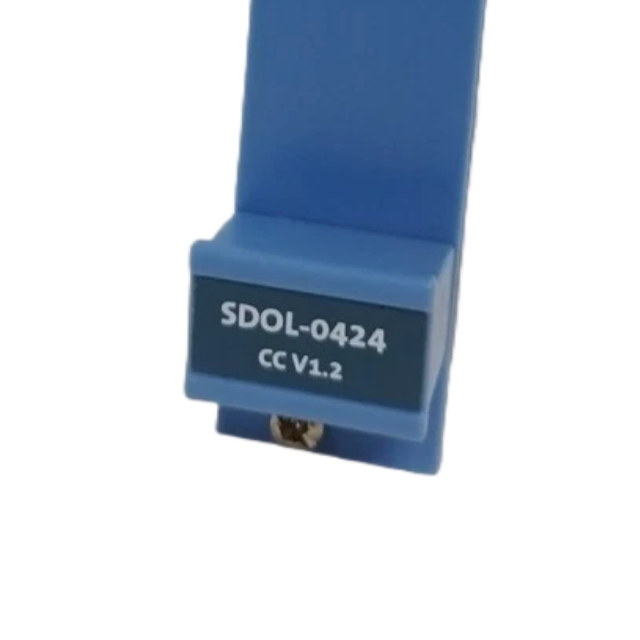

Honeywell FC-SDOL-0424 is a Safe Digital Output Module for Experion PKS Safety Instrumented Systems (SIS). It has 4 24V DC channels, meets SIL 2/3 compliance, features galvanic isolation and fault diagnostics, operates at -40°C to +70°C, with UL/CE—ensuring reliable safety-critical control (e.g., emergency valves).
★Description:The safe loop-monitored digital output module SDOL-0424 features four
24 Vdc, 1 A loop-monitored output channels, capable of driving loads up to 24 W (with a
maximum total module load of 3.6 A). These channels support both resistive and
inductive loads; for inductive loads, each output is integrated with a suppression diode
to mitigate voltage transients. All outputs—including their suppression diodes, as well as
lead breakage detection and short-circuit detection functionalities—have undergone
comprehensive testing, enabling the module to be reliably used in safety-critical
applications.
The outputs are tested for:
• Ability to de-energize
• Ability to de-energize via secondary means
• Cross talk between outputs
• Function of the suppression diodes
• Lead breakage in the (external) output wiring
• Short circuit of the outputs
Condition: Brand new and original packing
Warranty: All new or repaired parts have a 12-month warranty
Payment: 100% T/T for stock items before shipping
Certificate: Request quote
Delivery: In stock,order now for immediate delivery(DHL, UPS, Fedex,TNT)

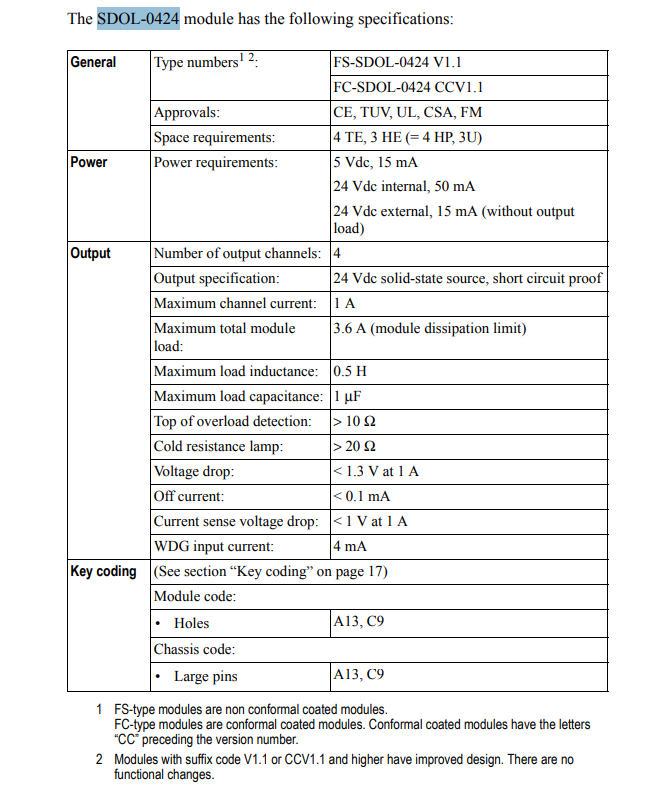

Technical data
Key Features
ψSafety-Certified Performance
Meets SIL3 safety integrity level in compliance with IEC 61508 (functional safety for electrical/electronic/programmable systems) and IEC 61511 (process industry functional safety), making it suitable for safety-critical applications like emergency shutdown loops, safety interlocks, or critical load control in oil & gas, chemical, and power sectors.tors).
ψLoop-Monitored Digital Output Configuration
Features 4 independent 24 Vdc loop-monitored output channels, each rated for 1 A current and capable of driving loads up to 24 W (resistive or inductive); the module has a maximum total load capacity of 3.6 A to prevent overloading.
ψInductive Load Protection
Integrates a dedicated suppression diode on each output channel to mitigate voltage transients generated by inductive loads (e.g., solenoids, small motors), eliminating the need for external transient suppression components and enhancing operational reliability.
ψComprehensive Loop Monitoring & Fault Detection
Equips built-in lead breakage detection and short-circuit detection for all output channels, with full testing of these monitoring functions (including suppression diodes) to ensure fail-safe operation—critical for identifying wiring faults or load anomalies in safety loops.
ψBroad Load Compatibility
Supports both resistive loads (e.g., indicator lights, heaters) and inductive loads (e.g., relays, valves) without additional external components, offering flexibility for diverse industrial load control requirements.
ψSystem Integration
Seamlessly compatible with Honeywell’s safety and control ecosystems, including the FSC Fail-Safe Controller and Experion PKS Distributed Control System (DCS), enabling synchronized communication with safety logic controllers for real-time loop status tracking and fault alerting.
ψEnvironmental Resilience
Engineered to withstand harsh industrial conditions, operating within a wide temperature range of -40°C to 85°C and complying with IEC 61000-6-2 (electromagnetic immunity) and IEC 61000-6-4 (electromagnetic emission) standards to resist noise and voltage fluctuations.
ψMaintenance-Friendly Design
Includes per-channel LED status indicators (e.g., “Output Active,” “Fault,” “Loop Normal”) for quick visual troubleshooting of channel health and loop status. Supports standard 35mm DIN rail mounting and compatibility with Honeywell’s TS-Series field termination assemblies for tool-less wiring and easy module replacement.
