Specifications

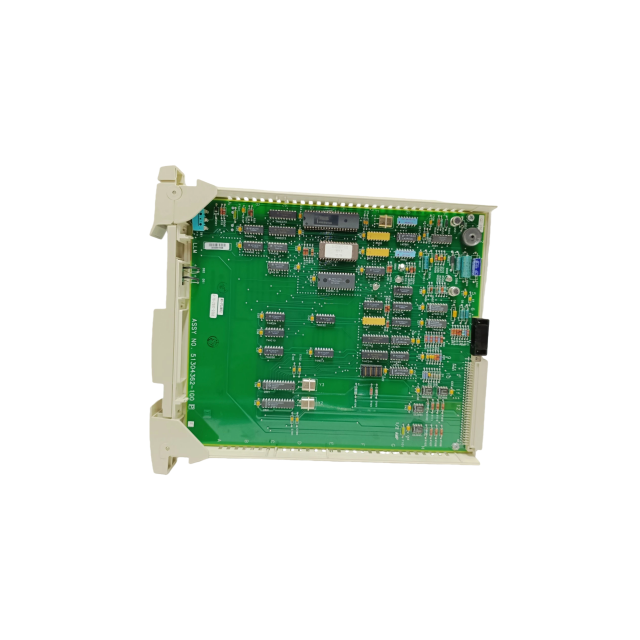

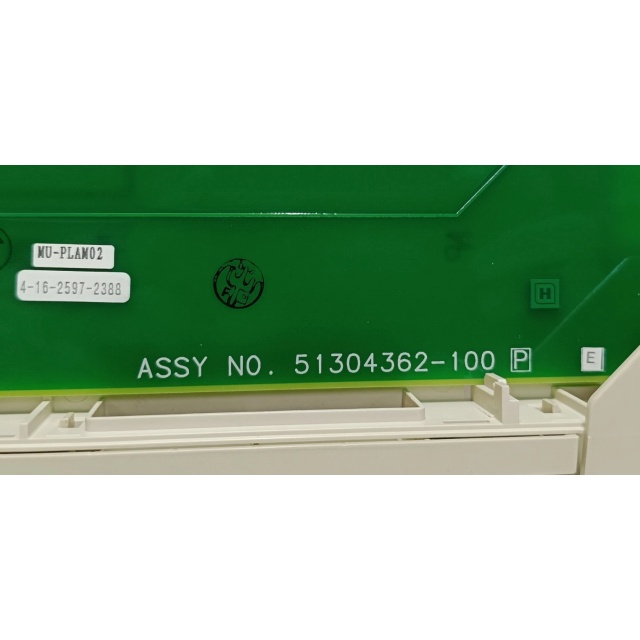

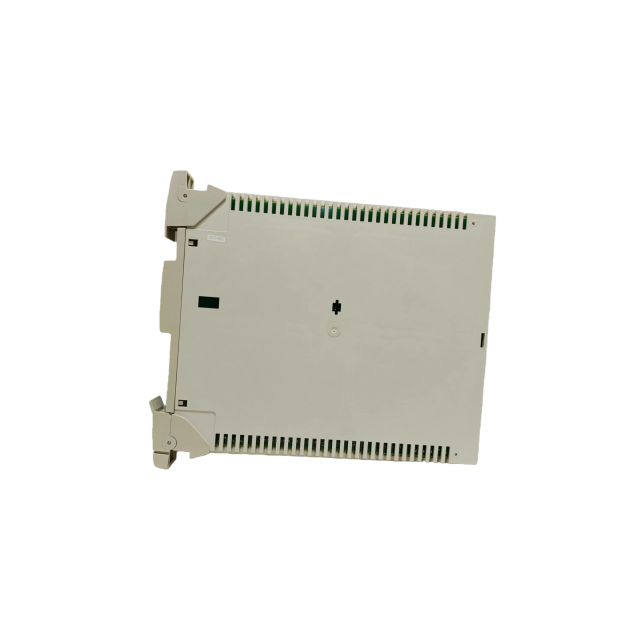

Part Number:51304362-100
Manufacturer: Honeywell
Series:Experion PKS (Process Knowledge System)
Product Type: Analog Input/Output Module (Universal Termination)
Availability: In Stock
Dimensions:23.8 cm x 10.9 cm x 3.1 cm
Weight:0.52 KG
Country of Manufacture: United States (USA)
Functional Description
Universal Analog Signal Handling
Supports both analog input (AI) and analog output (AO) operations, compatible with standard industrial signals (e.g., 4–20 mA, 0–10 VDC, thermocouple, RTD). Converts raw analog signals from field sensors (temperature, pressure, flow) into digital data for the Experion PKS controller, and transmits analog control commands to actuators (valves, pumps), ensuring accurate signal conversion and real-time responsiveness.
Universal Termination Design
Features a flexible termination structure that adapts to diverse industrial wiring requirements (1-wire, 2-wire, 4-wire), eliminating the need for specialized adapter modules. This design simplifies wiring layouts, reduces installation time, and enhances signal integrity by minimizing electromagnetic interference (EMI) and signal loss in complex plant environments.
System Synchronization & Integration
Seamlessly interfaces with the Experion PKS backplane, enabling high-speed data exchange with the central controller and other system modules. Supports system-wide time synchronization (via Experion PKS clock sync protocols), ensuring aligned data collection and coordinated control actions across plant-wide processes.
Built-in Diagnostics & Protection
Incorporates comprehensive self-diagnostic functions to monitor module health, power status, signal integrity, and wiring faults (e.g., open circuits, short circuits). Equipped with per-channel overcurrent/overvoltage protection to safeguard the module and connected field devices from electrical damage. Provides real-time status feedback via software (Experion PKS Console) and front-panel LEDs for quick fault identification.
Configurable Signal Adaptation
Allows users to customize signal parameters (e.g., input/output range, filtering, scaling, linearization) via Honeywell Control Builder software. Adapts to diverse process requirements across industries such as petrochemical, power generation, chemical, and pharmaceutical—supporting high-precision measurements and precise control outputs.
Characteristics
Operating Temperature Range: -40°C to +70°C (-40°F to +158°F), suitable for extreme industrial environments (refineries, power plants, chemical facilities).
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
