Specifications

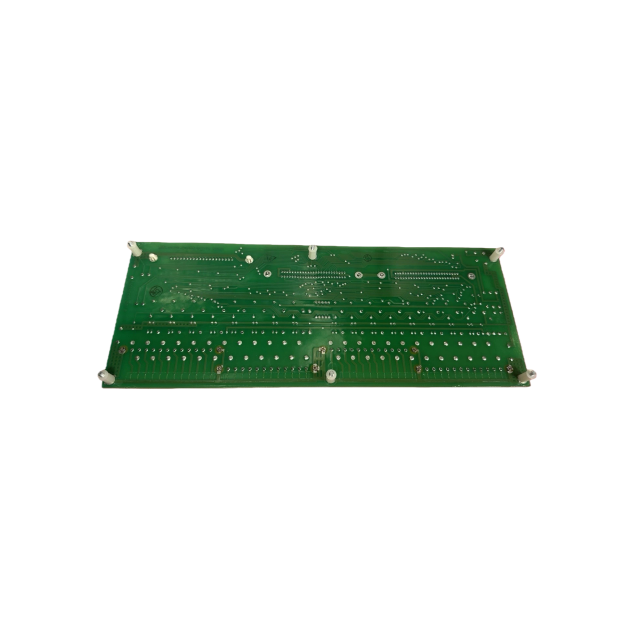

Part Number:51304337-150
Manufacturer: Honeywell
Series:TDC 3000 / TotalPlant Alcont (compatible with industrial control system portfolios)
Product Type: Digital I/O Module (Universal Termination Design)
Availability: In Stock
Dimensions:22.6 cm x 10.4 cm x 2.8 cm
Weight:0.45 KG
Country of Manufacture: United States (USA)
Functional Description
Universal Digital Signal Handling
Supports both digital input and output operations, accommodating field devices such as sensors, switches, solenoid valves, and relays. Converts raw field signals into standardized digital data for the control system and transmits control commands from the system to field actuators, ensuring accurate and timely signal conversion.
Universal Termination Design
Features a flexible termination structure that eliminates the need for specialized junction boxes, simplifying wiring layouts and reducing installation complexity. The design enhances signal integrity by minimizing electromagnetic interference (EMI) and signal loss, adapting to diverse industrial wiring requirements.
System Synchronization & Integration
Seamlessly interfaces with Honeywell TDC 3000/TotalPlant Alcont system backplanes, enabling real-time data exchange with the central controller. Supports system-wide synchronization of I/O data, ensuring consistent process monitoring and coordinated control actions across the industrial plant.
Built-in Protection & Diagnostics
Incorporates overcurrent, short-circuit, and reverse polarity protection to safeguard the module and connected field devices from electrical faults. Equipped with self-diagnostic functions that monitor module health, power status, and signal integrity, providing visual or software-based status feedback for quick fault identification.
Configurable Signal Adaptation
Allows users to customize signal parameters (e.g., input/output logic, response time) via system configuration software, adapting to diverse process requirements (e.g., high-speed switching, low-power sensing) across industries such as petrochemical, power generation, and manufacturing.
Characteristics
Operating Temperature Range: -40°C to +70°C (-40°F to +158°F), suitable for extreme industrial environments (refineries, power plants, chemical facilities).
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F).
