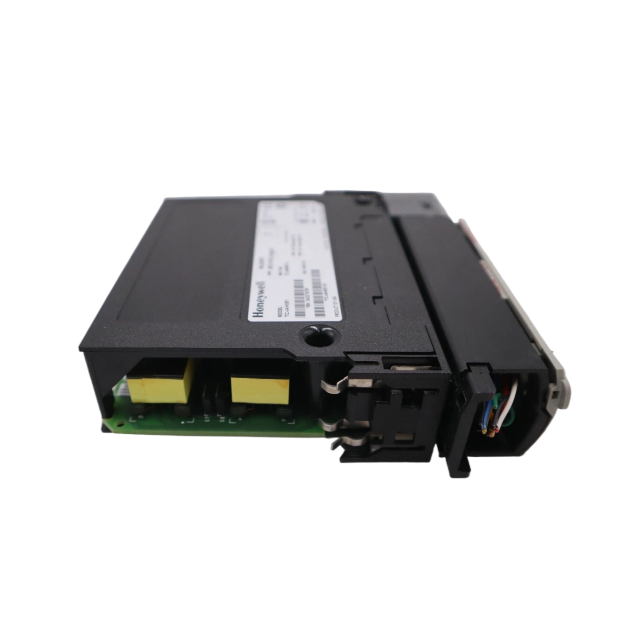

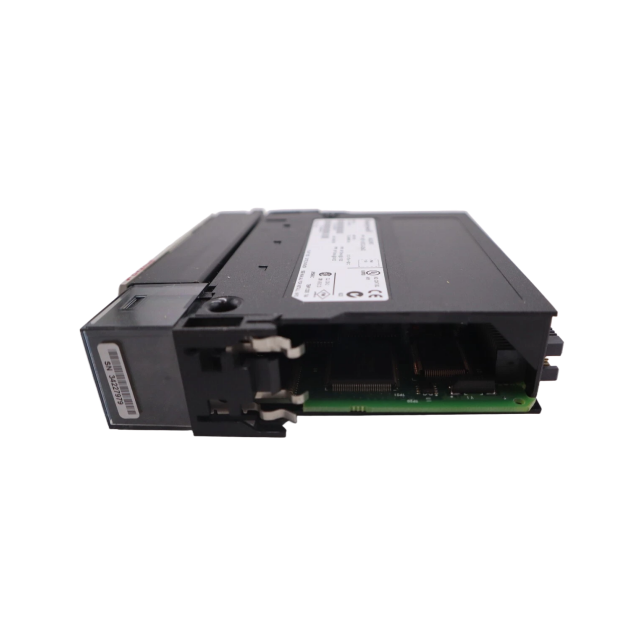

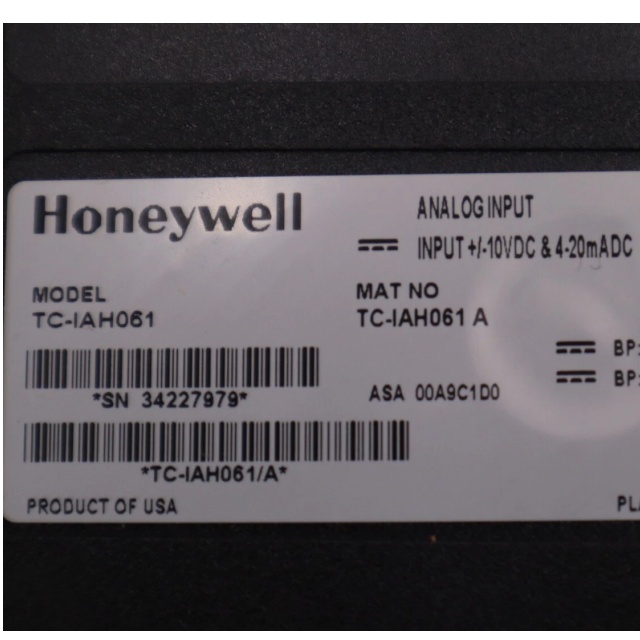

Honeywell TC-IAH061 EXPERION ANALOG INPUT

Core Advantages: Why Choose the TC-IAH061?

1. High-Precision Analog Signal Acquisition

• Features 8 independent, high-accuracy analog input channels, each capable of measuring standard 4-20mA process signals.

• Delivers 16-bit resolution and exceptional accuracy of ±0.05% of full scale (FS), ensuring precise measurement of critical process variables such as pressure, temperature, flow, and level. This level of precision supports tight process control and improves product quality.

2. Native HART 7 Communication Support

• Fully compatible with the HART 7 protocol, enabling simultaneous transmission of analog process data and digital information over the same pair of wires.

• Facilitates remote configuration, monitoring, and diagnostics of connected HART-enabled field devices (e.g., Emerson Rosemount, Yokogawa) directly from the Experion PKS operator station, eliminating the need for handheld communicators in many cases.

3. Robust Channel-to-Channel Isolation

• Incorporates 2500 VDC galvanic isolation between each input channel and between channels and the system backplane. This isolation effectively eliminates ground loops, suppresses electromagnetic interference (EMI), and protects the module and controller from voltage transients, ensuring stable operation in harsh industrial environments.

4. Comprehensive Diagnostics & Alarm Capabilities

• Equipped with advanced channel-level diagnostics, including detection of open circuits, short circuits, and over-range/under-range conditions.

• Monitors HART device health status and can report device-specific diagnostics (e.g., sensor drift, calibration due, internal faults) to the control system. These capabilities enable predictive maintenance, reduce unplanned downtime, and improve asset management.

5. Flexible Configuration & Hot-Swap Capability

• Channels can be individually configured for different input ranges (if supported) and scaling via Honeywell’s Control Builder software.

• Designed for hot-swap replacement when used with compatible Honeywell C Series I/O backplanes, allowing for module maintenance or replacement without interrupting the entire process, maximizing plant availability.

Application Scenarios (Industry-Specific Use Cases)

1. Oil & Gas and Petrochemical Processing

• Connects to HART-enabled pressure, temperature, and flow transmitters in critical processes such as distillation, cracking, and refining. The TC-IAH061’s high accuracy ensures precise control, while HART diagnostics enable early detection of issues like plugging in impulse lines or sensor degradation.

2. Chemical Manufacturing

• Integrates with level transmitters and analytical sensors (pH, ORP, conductivity) in reactor vessels and storage tanks. The module’s channel isolation is particularly valuable in plants with complex grounding schemes, preventing interference between different process loops.

3. Water & Wastewater Treatment

• Interfaces with flow meters, pressure sensors, and level transmitters in treatment processes. The ability to access HART diagnostics remotely simplifies maintenance of devices located in hard-to-reach or hazardous areas.

4. Power Generation

• Connects to temperature sensors (via transmitters) and pressure transmitters in boiler, turbine, and cooling water systems. Provides the precise measurements needed for efficient power generation and ensures the safety of critical equipment.




Installation & Maintenance Tips

• Wiring Best Practices: Use shielded twisted-pair cables for all field connections. Connect the cable shield to ground at one end only (typically at the field device) to prevent ground loops. Ensure proper termination at both the module and the field device.

• Configuration: Use Honeywell’s Control Builder software to configure the module, set input ranges, and map channels to the controller. Take advantage of HART device description (DD) files for easy integration with specific transmitter models.

• Diagnostics Utilization: Regularly review the diagnostics data in the Experion PKS system. Set up alarms for critical diagnostic events (e.g., sensor failure, calibration due) to enable proactive maintenance.

• Hot-Swap Maintenance: When replacing a module, follow proper procedures to ensure safe hot-swap. This typically involves placing the module in an "Out of Service" state in the control software before physical removal.

• Periodic Calibration: While the module itself is factory-calibrated, it is good practice to perform periodic system checks to verify the accuracy of the entire measurement chain (sensor, wiring, module).

FAQ (Addressing Customer Pain Points)

1. Q: Can the TC-IAH061 module read signals from non-Honeywell field devices?

   A: Absolutely. The TC-IAH061 is designed to work with any standard 4-20mA transmitter. For HART functionality, it is compatible with any HART 5 or HART 7 compliant device from any manufacturer.

2. Q: Does the TC-IAH061 support thermocouple or RTD inputs directly?

   A: No. The TC-IAH061 is specifically designed for 4-20mA inputs. To measure temperature using thermocouples or RTDs, you would need a dedicated temperature input module or a transmitter that converts the thermocouple/RTD signal to 4-20mA.

3. Q: What is the purpose of the channel-to-channel isolation?

   A: Channel-to-channel isolation prevents current from flowing between different input loops. This is crucial in industrial environments where field devices may be referenced to different ground potentials, eliminating measurement errors and noise caused by ground loops.

4. Q: How often should the TC-IAH061 module be calibrated?

   A: Honeywell designs its modules for long-term stability. The TC-IAH061 typically does not require frequent recalibration. However, Honeywell recommends a functional check as part of your regular maintenance schedule, the frequency of which depends on your industry’s regulatory requirements and internal procedures.

5. Q: What is the difference between the TC-IAH061 and the TC-IAH06 module?

   A: The TC-IAH061 is an enhanced version, typically offering higher performance (like improved accuracy of ±0.05% FS compared to ±0.1% FS in older models) and full HART 7 support. It represents the latest technology in Honeywell’s analog input portfolio.
