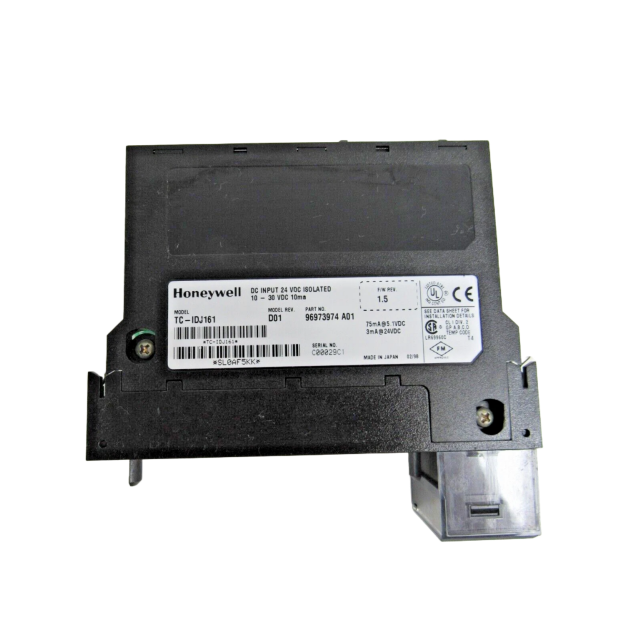

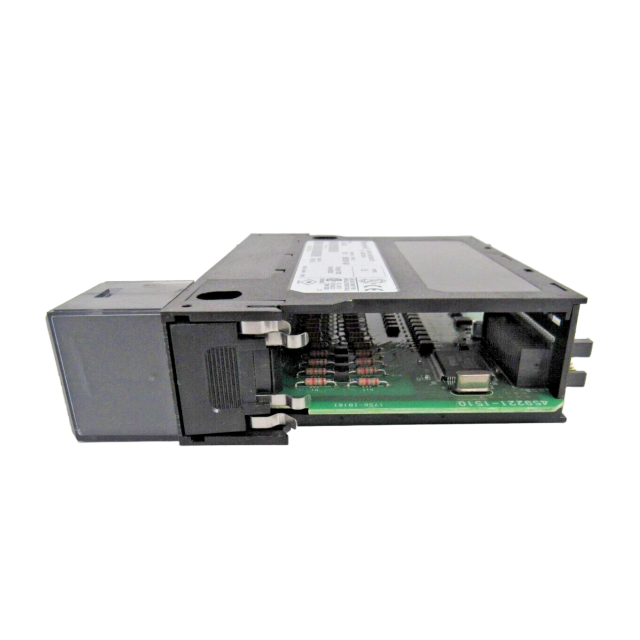

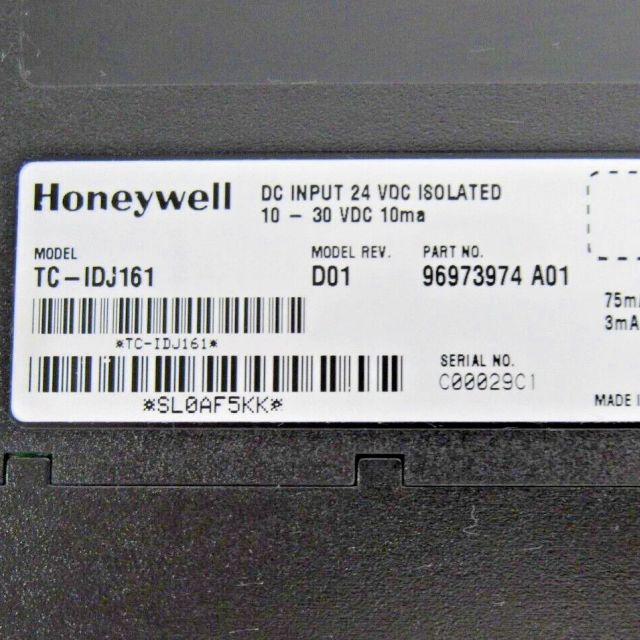

Honeywell TC-IDJ161 Digital DC Input 24 VDC Isolated Module

Core Advantages: Why Choose the TC-IDJ161?

1. Balanced 16-Channel Density for Mid-Scale Applications

Features 16 independent digital input channels in a compact form factor, optimizing control cabinet space for mid-scale systems (e.g., 5–20 field switches per loop). Each channel supports both wet contacts (24VDC-powered) and dry contacts (passive), eliminating the need for separate modules for different contact types and simplifying inventory management.

2. Functional Safety Certification (SIL Compliance)

• Achieves SIL 2 certification (single module) and SIL 3 compatibility (when paired with redundant controllers) in accordance with IEC 61508 (functional safety for electrical/electronic systems) and IEC 61511 (process industry safety standards). This makes it suitable for safety-critical applications like machine interlocks, fire detection loops, and localized emergency shutdowns—ensuring compliance with global industrial safety regulations.

3. Ultra-Fast Signal Response for Timely Action

• Delivers a typical response time of <8ms per channel (configurable down to 1ms for critical safety events), enabling near-instantaneous detection of field device state changes (e.g., valve position shifts, emergency stop activation). This speed is critical for preventing process disruptions or equipment damage in time-sensitive loops.

4. Robust Isolation & EMI/RFI Immunity

• Incorporates 2500 VDC galvanic isolation between channels and from channels to the system backplane, effectively suppressing electromagnetic interference (EMI) from nearby motors, drives, or high-voltage equipment, and eliminating ground loops. This ensures stable signal acquisition even in noisy industrial environments (e.g., manufacturing workshops, small chemical plants).

5. Precise Channel-Level Diagnostics

• Equipped with advanced diagnostics for each channel, including open-circuit detection (for dry contacts), short-circuit detection, and overvoltage protection (18–30 VDC). It also monitors internal module health (e.g., power supply integrity) and transmits fault alerts to the Experion PKS/FSC system. These capabilities reduce troubleshooting time by up to 40% and enable proactive maintenance.

6. Flexible Configuration & Hot-Swap Compatibility

• Channels can be individually configured via Honeywell’s Control Builder software (e.g., setting input delay filters to avoid false triggers from electrical noise). When paired with compatible Honeywell C Series I/O backplanes, it supports hot-swap replacement—allowing module maintenance without shutting down the entire control loop, minimizing production downtime.

Application Scenarios (Industry-Specific Use Cases)

1. Food & Beverage Processing

• Monitors switch-state devices in packaging lines: conveyor emergency stops, door interlocks (for access to mixing tanks), and level switch contacts (for ingredient bins). The TC-IDJ161’s compact size fits in space-constrained cabinets, while its SIL 2 certification meets food safety compliance requirements (e.g., FDA, EU 10/2011).

2. Automotive Component Manufacturing

• Tracks the status of robotic workcell sensors: limit switches (for arm positioning), part presence detectors, and safety light curtain triggers. Its 16-channel density matches the needs of localized workcells, and fast response time ensures immediate shutdown if safety boundaries are breached.

3. Small-Scale Chemical & Pharmaceutical Production

• Integrates with FSC controllers to monitor safety loops: pressure trip switches (for small reactors), valve position limit switches, and fire alarm contacts. SIL compliance ensures adherence to GMP (Good Manufacturing Practices), while anti-interference design resists noise from mixing motors.

4. Building Automation & Critical Infrastructure

• Monitors switch-state devices in data center or hospital HVAC systems: fan status contacts, damper position switches, and emergency power cutoff buttons. The module’s wide temperature range (-40°C to 85°C) and low power consumption suit 24/7 critical infrastructure operations.

Installation & Maintenance Tips

• Wiring Best Practices: Use 22–24AWG shielded twisted-pair cables for field connections. For wet contacts, verify 24VDC polarity (reverse wiring may damage channels). Ground cable shields at the module end to reduce EMI; avoid "double grounding" (shield grounded at both ends) to prevent ground loops.

• Configuration: Use Honeywell Control Builder to set input filters (e.g., 5ms delay for high-noise environments) and map channels to specific field devices (e.g., "Conveyor E-Stop – Line 2"). Save configuration templates for future module replacements.

• Hot-Swap Procedure: Before removing the module, mark cable connections or take photos to avoid re-wiring errors. Ensure the replacement module has the same firmware version as the original to maintain compatibility with the control system.

• Preventive Maintenance: Every 8–12 months, inspect terminal blocks for tightness (loose connections cause false faults) and test channels with a 24VDC signal generator. Update firmware via Experion PKS to access enhanced diagnostic features.

FAQ (Addressing Customer Pain Points)

1. Q: How does the TC-IDJ161 differ from Honeywell’s TC-IDD321?

   A: The TC-IDJ161 is a 16-channel mid-density module (vs. 32-channel for the TC-IDD321), optimized for smaller loops or space-constrained cabinets. It has lower power consumption (~3.5W vs. ~5W) and a more compact form factor, while retaining core features like SIL compliance and wet/dry contact support.

2. Q: Can the TC-IDJ161 be used in redundant safety loops?

   A: Yes. When paired with a redundant Honeywell FSC controller, the TC-IDJ161 supports SIL 3 applications (e.g., critical emergency shutdowns). For full redundancy, use two TC-IDJ161 modules (one per controller) to ensure no single point of failure.

3. Q: What is the maximum distance between the TC-IDJ161 and field devices?

   A: For 24AWG shielded cables, the maximum recommended distance is 80 meters (to avoid voltage drop below 18VDC). For longer distances (up to 150 meters), use 20AWG cables or add a 24VDC signal booster.

4. Q: Does the module support "floating" dry contacts (no common ground)?

   A: Yes. Dry contacts do not require a common ground—simply wire the contact leads to the module’s channel input and ground terminals. The module’s isolation design ensures stable detection even without shared grounding.

5. Q: Are replacement parts (e.g., terminal blocks) available for the TC-IDJ161?

   A: Yes. Honeywell offers genuine replacement parts (terminal blocks, LED indicators) for the TC-IDJ161. Contact Honeywell technical support with the module’s serial number to order compatible components.
