When a TDC3000 system running a continuous petrochemical process flags a communication fault on the 51201475-150 board or a rack power issue traced to the 51202304-100 supply, the maintenance clock starts ticking immediately. These are not generic catalog items. They are proprietary Honeywell assemblies tied to the UCN and NIM architecture of a platform that, while legacy in name, still controls thousands of critical loops worldwide. For many plants, the real challenge is not knowing the part number but locating a supplier who understands that a 10-day lead time on a 51202304-100 power supply is functionally identical to a shutdown notice for a process that cannot coast for 10 days. This guide explains how to specify both modules correctly, avoid the common pitfalls in matching revisions, and secure replacement hardware on a timeline that keeps your operation running.
What Each Module Does in the TDC3000 Architecture
The TDC3000 system links process controller nodes through the Universal Control Network, and both the 51201475-150 and 51202304-100 sit at the infrastructure layer that keeps that network alive. A fault in either component does not announce itself as a process upset. It shows up as a network redundancy alarm, a rack voltage warning, or a controller failover event that paperwork might log as routine. Recognizing what each board actually handles changes how you interpret those warnings.

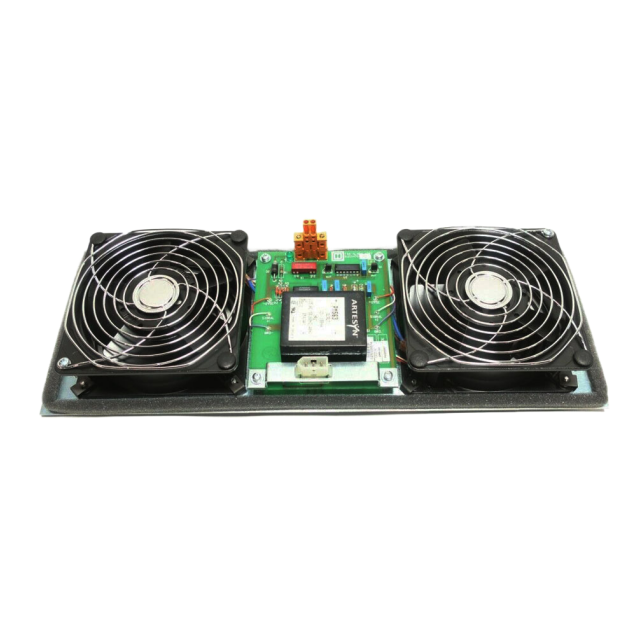

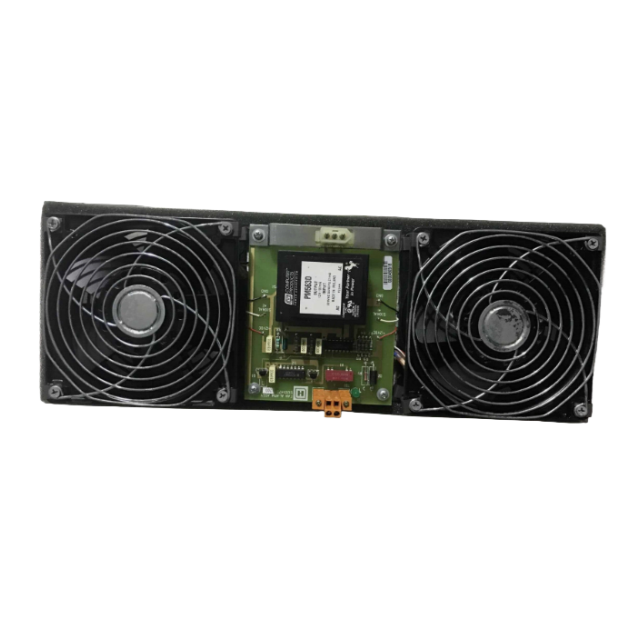

The 51201475-150 is a UCN interface assembly. In a running node, it handles token-passing communication between the Network Interface Module and the coaxial UCN cable plant. When it degrades, you lose one communication path. The redundant path holds the node online, but the network is now one failure away from a disruption. I have seen a plant run in this state for weeks because the redundancy fault was categorized as non-critical. That decision holds until a cable fault takes out the remaining path, at which point the controller drops off the UCN entirely and operators lose visibility. If your alarm log shows intermittent UCN communication retries on a single node, the 51201475-150 is the first piece of hardware to inspect.
The 51202304-100 is a rack-mounted power supply assembly. It converts incoming AC to the DC voltages the card cage backplane distributes to every module in that rack. The failure mode is rarely dramatic. More often, the DC output drifts outside tolerance or the supply begins intermittent cycling under thermal load. The first symptom is a DC voltage warning on the power diagnostics screen, followed by unexplained controller reboots or I/O module brownouts that affect specific racks but leave the network intact. One common mistake is replacing the supply without checking the backplane connector for carbon scoring. A degraded connector will stress the new supply and shorten its life, sometimes to weeks.
How to Verify Part Number and Revision Compatibility
Both modules carry Honeywell part numbers that appear straightforward at first look, but the revision and assembly-level details underneath those base numbers determine whether the replacement works or triggers a cascade of compatibility issues. I have learned through repeated sourcing cycles that the part number is the starting point, not the final specification.

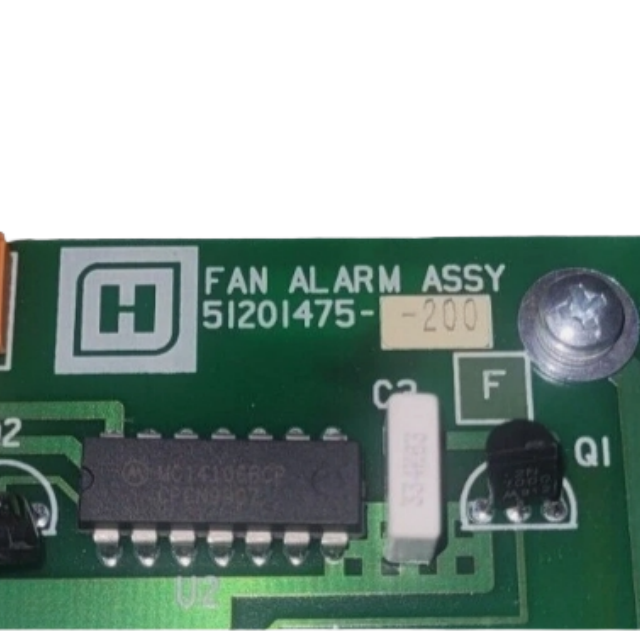

For the 51201475-150, confirm the following before placing an order. First, the assembly-level suffix beyond the base 51201475-150 number. Honeywell produced several assembly variants with different firmware compatibility ranges. The suffix characters define which UCN node types the interface supports and which NIM firmware revision it works with. Look at the physical label on the board edge, not the purchase order description. Second, confirm the connector configuration on the rear edge. The coaxial UCN connections use specific tap and terminator types that changed across production runs. Matching only the part number without verifying the connector style can leave you with an incompatible physical interface. Third, request a photo of the actual board before shipping if ordering from a non-franchised source. Imprinted date codes and PCB revision markers visible on the silkscreen are often more reliable indicators than the label alone, which can be replaced or relabeled in the remarketing channel.
The 51202304-100 power supply verification process is simpler but carries a safety dimension. Check the input voltage rating printed on the supply housing. Production runs covered both 120VAC and 240VAC nominal input configurations, and the wrong input voltage will destroy the supply immediately on power-up. Verify the DC output rail voltages and current ratings match your rack configuration. A supply rated for a lightly populated rack will not drive a fully loaded card cage with all I/O slots occupied. Also, inspect the connector pins on the backplane interface. Bent or spread pins on the rack side create high-resistance contacts that generate heat under load, and that heat accelerates power supply failure in a cycle that continues until the backplane connector is replaced alongside the supply module.
Sourcing Strategies That Reduce Downtime Exposure
The difference between a 3-day turnaround and a 14-day one on these modules comes down to two factors: whether the supplier holds physical stock rather than relying on back-to-back ordering, and whether they understand the TDC3000 well enough to verify revision compatibility before shipping. Neither is a given in the industrial spare parts market.
Sourcing Factor
Stock-Holding Supplier
Broker or Aggregator
Physical inventory
Module on shelf, tested before shipping
Relies on third-party inventory, may ship untested
Revision verification
Checks firmware and assembly revision against your system spec
Ships part number match only, revision not verified
Lead time consistency
1-5 days depending on location
5-30 days, subject to upstream availability
Post-shipment support
Replacement if DOA or revision mismatch confirmed
Limited recourse, return windows vary
When I source 51201475-150 boards, the first filter is whether the supplier can provide the assembly-level suffix and a board photo before the quote. Suppliers who cannot do this are almost certainly drop-shipping from a network they do not control. That does not mean the part is counterfeit. It means the revision you receive is unpredictable, and the lead time quoted is an estimate from a supplier three tiers removed from the physical inventory. For a board that determines whether a process controller stays on the UCN, that risk has a direct dollar value.
The 51202304-100 supply carries a different sourcing risk profile. These are heavier, more expensive to ship internationally, and subject to input voltage mismatches that can destroy the unit on arrival. I always confirm the input voltage configuration with the supplier in writing before issuing a PO, and I ask whether the supply was load-tested or only visually inspected. A supply that sat on a shelf for two years will often power up and run for days before capacitors degrade enough to cause a failure under sustained load. A load bank test catches this. Visual inspection does not.
Cost Factors Beyond the Unit Price
The unit price of a 51201475-150 or 51202304-100 is only part of the procurement cost, and in continuous process environments it is rarely the largest part. Freight, revision incompatibility, and warranty terms each carry financial exposure that multiplies with the criticality of the application.
Express international freight with customs clearance for industrial electronics typically adds 15-25% to the unit cost for shipments under 10 kg. For a power supply, the weight pushes the freight cost higher than for a circuit board of equivalent value. If your plant is in South America or Southeast Asia, factor in customs brokerage delays on top of transit time. A 51202304-100 quoted at 5-day delivery from a supplier in Asia may actually arrive in 8-10 days depending on your local customs workload, and that difference matters when the rack powered by that supply is already running on a borrowed or degraded unit.
Revision incompatibility is the hidden cost with the largest variance. If a 51201475-150 arrives with a firmware revision your NIM cannot recognize, you are not just out the unit cost. You are out the freight both ways, plus the additional production time lost while the correct revision is sourced. I have seen this add 7-10 days to a replacement cycle that was budgeted for 3. The cost of that extra downtime, measured in lost throughput or flared product, dwarfs the unit price of the board itself. This is why revision verification before shipping is not a value-add from the supplier. It is a risk-transfer mechanism. The supplier who does it absorbs the risk of a mismatch. The supplier who does not transfers it to you.
Warranty terms for legacy parts vary widely. Some suppliers offer a standard 12-month warranty on refurbished or NOS (new old stock) parts. Others offer 90 days or none at all. For a power supply that may have been in storage for years, a warranty period under 6 months is not enough to cover the infant mortality window after installation. Ask explicitly about warranty on both modules before committing, and confirm in the PO whether the warranty covers DOA only or operational failures within the warranty window.
Preventing Repeat Failures After Replacement
Replacing the 51201475-150 or 51202304-100 without addressing what caused the original failure is common. It is also expensive, because the replacement fails faster than the original and the cycle repeats. The root cause is often not the module itself but what it connects to.
For the 51201475-150 UCN interface, check the coaxial cable plant before installing the replacement board. A UCN segment with degraded cable shielding, a corroded connector barrel, or a tap block with moisture ingress will cause the interface to drive signal at higher power as it compensates for line losses. Over months, this overheats the output drivers on the board. If you replace the 51201475-150 without inspecting and cleaning the UCN connections at that node, the new board inherits the same electrical stress. The fix does not require replacing the entire cable plant. It often comes down to replacing a single tap, a terminator, or a short jumper cable at the node connection point. A time-domain reflectometer test on the UCN segment isolates the fault location in minutes.
For the 51202304-100 power supply, the most common external stress is a degraded backplane connector on the card cage. High-resistance contacts generate heat, and that heat transfers through the connector pins into the power supply output stage. A new supply installed on a damaged backplane will run hotter from day one. The failure may take months, but it will come sooner than the original supply’s service life. I always check the backplane connector pins for discoloration, pitting, or spread contacts when replacing a failed supply. If any damage is visible, the backplane needs replacement or the new supply’s life will be shortened proportionally. A second common cause is inadequate rack ventilation. If dust has accumulated across the card cage vents or a nearby cabinet fan has failed, the supply operates at elevated ambient temperature and its electrolytic capacitors degrade faster. Cleaning the ventilation path and verifying cabinet fan operation adds no cost and can double the service life of the replacement supply.
Questions Maintenance Teams Ask About These Modules
Is the 51201475-150 interchangeable across all TDC3000 NIM types?
No. The 51201475-150 was produced in assembly variants that correspond to specific Network Interface Module firmware generations. A board built for early NIM firmware will not function in a node running later firmware, and vice versa. The base part number 51201475-150 is consistent, but the assembly suffix determines compatibility. If the suffix is missing from the board label, the firmware compatibility cannot be confirmed from the part number alone. In that case, cross-reference the PCB revision code printed on the board silkscreen against the Honeywell compatibility matrix for your NIM model and firmware version. If your program’s NIM firmware was last updated decades ago and the documentation is sparse, it is worth sending the board photo and NIM firmware version to a supplier for compatibility confirmation before ordering. Send your NIM firmware revision and board photo to chen@htechplc.com for a matched recommendation.
Can two different revision levels of the 51202304-100 run in the same card cage?
They can, but it introduces a thermal imbalance that shortens the newer supply’s service life. When two power supplies with different efficiency curves share a load, the more efficient supply carries a disproportionately higher share. Over months, this uneven load distribution accelerates capacitor aging in the harder-working unit. For redundancy applications where both supplies run in parallel, matching revisions is recommended. For a single-supply configuration, the revision matters less as long as the DC output voltage rails match the backplane specification and the input voltage rating matches your AC supply.
What is the realistic lead time for a 51201475-150 from a supplier with stock versus one without?
A supplier holding tested inventory can ship within 1-3 business days, with international transit adding 2-5 days depending on destination and customs clearance. Total realistic lead time from a stock-holding supplier is 3-8 days for most international destinations. A broker or aggregator quoting 5-7 days is typically operating on estimated upstream availability, and actual lead times frequently extend to 14-21 days when the upstream source does not have the part in hand. The difference is often the gap between a supplier who can send a photo of the physical board with today’s date and one who cannot. If your operation can tolerate a 2-week variance on a lead time quote, the broker option is workable. If it cannot, confirm physical stock with a photo before placing the order.
Does Joyoung International Trading stock the 51201475-150 and 51202304-100?
Yes. Both modules are held in inventory, and board photos with revision details are provided before shipment to confirm compatibility with your system configuration. For the 51201475-150, the assembly suffix and firmware compatibility are verified against your NIM specification. For the 51202304-100, the input voltage rating and DC output configuration are confirmed before dispatch. International shipping is arranged with customs documentation preparation, and express freight options are available for critical outages. Warranty terms are 12 months, covering both DOA and operational failures within the warranty window. Send your part number list and quantity requirements to chen@htechplc.com or call +86-181-5013-7565 for a same-day quote with confirmed stock availability.
