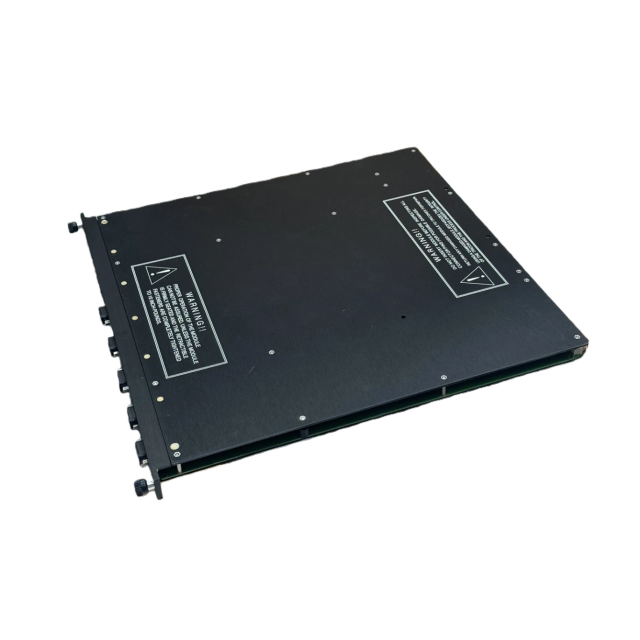

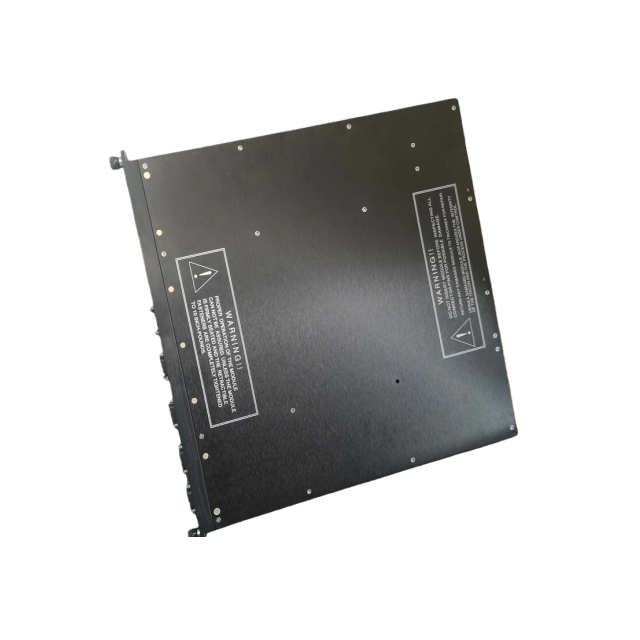

Technical Overview of TRICONEX 4351B Tricon Communication Module (TCM)
1. Product Positioning and Core Function
The TRICONEX 4351B is a high-performance Tricon Communication Module (TCM) exclusively designed for Tricon v10.0 and later safety instrumented systems (SIS) and industrial control systems, developed by Invensys Process Systems (now part of Schneider Electric). As a pivotal communication interface, it enables seamless data exchange between the Tricon controller and external devices/systems via Ethernet and serial networks, catering to safety-critical and process-critical applications across industries like nuclear power, petrochemicals, oil & gas, and manufacturing.
This module addresses the demand for multi-protocol, high-reliability communication by integrating dual copper Ethernet ports and four serial ports. It supports simultaneous connectivity to engineering tools (such as TriStation 1131), Modbus master/slave devices, and external hosts (like SCADA and DCS). Its core value lies in delivering secure, low-latency data transmission while maintaining compatibility with Tricon’s Triple Modular Redundancy (TMR) architecture, ensuring communication continuity even in harsh industrial environments plagued by electromagnetic interference (EMI) or transient faults.
Key use cases encompass programming and configuring Tricon controllers via TriStation 1131, enabling real-time data exchange with Modbus TCP/IP devices (e.g., smart transmitters, valves), synchronizing time with networked devices using SNTP, and facilitating remote monitoring and diagnostics of Tricon system status.
2. Key Technical Specifications
2.1 Physical & Mechanical Attributes
The 4351B adheres to a 3U rack-mount form factor, ensuring compatibility with Tricon v10+ standard chassis. It supports hot-swappable installation, allowing online replacement without shutting down the system—critical for minimizing downtime in 24/7 operations. Weighing approximately 5.0 lbs. (2.3 kg), it features a range of connectors: two RJ-45 ports for 10/100BaseT copper Ethernet, four DB-9 ports for RS-232/RS-485 serial communication, and one DB-9 debug port reserved for Triconex service use only.
2.2 Communication Port Capabilities
Ethernet Ports: Two copper Ethernet ports operate at 10/100 Mbps (with auto-negotiation) and comply with IEEE 802.3 standards. They support concurrent data transmission, enabling segmentation of safety and non-safety traffic.
Serial Ports: Four DB-9 serial ports can be configured for RS-232 (point-to-point) or RS-485 (multi-drop) communication. The aggregate serial data rate across all four ports reaches 460.8 kbps, with individual ports supporting speeds up to 115.2 kbps.
Debug Port: A dedicated DB-9 port is exclusively for Triconex technical support to diagnose firmware issues, monitor communication logs, or perform firmware updates, and is not intended for end-user configuration.
2.3 Supported Protocols
Ethernet Protocols: It supports TCP/IP, Modbus TCP/IP (both Master and Slave modes), TriStation protocol for controller programming, SNTP for time synchronization, TSAA (Triconex Safety Application Protocol) for secure inter-controller communication, Peer-to-Peer (UDP/IP) for data exchange between Tricon systems, and Jet Direct for network printing.
Serial Protocols: Serial ports support Modbus RTU/ASCII (Master/Slave) and TriStation protocol. Notably, Serial Port #1 is compatible with Trimble GPS for time synchronization, enhancing system-wide clock consistency.
Modbus Functions: It covers essential Modbus functions, including reading coil status (01), input status (02), holding registers (03), input registers (04), modifying coil status (05), register content (06), reading exception status (07), loopback diagnostic tests (08), forcing multiple coils (15), and presetting multiple registers (16).
2.4 Electrical Performance
Port isolation of 500 VDC prevents ground loops and EMI from disrupting communication, a vital feature in high-noise industrial environments (e.g., near motor control centers). The module complies with rigorous EMI immunity standards, including IEC 61000-4-2 (ESD: 8 kV air/4 kV contact), IEC 61000-4-3 (Radiated Susceptibility: 10 V/m), and IEC 61000-4-4 (Fast Transient: 2 kV power/1 kV signal). It consumes less than 10 watts of power, drawn from the Tricon chassis’s 6.5 VDC power supply.
2.5 Environmental Ratings
The 4351B operates within a temperature range of 32°F to 140°F (0°C to 60°C) and can be stored between -40°F to 167°F (-40°C to 75°C). It tolerates relative humidity of 5%–95% (non-condensing) and resists vibration of 2 G at 10–150 Hz (per IEC 60068-2-6) and shock of 15 G for 6–11 ms (per IEC 60068-2-27), making it suitable for harsh industrial settings.
2.6 Safety & Compliance
It is compatible with Tricon systems certified to IEC 61508 SIL 3, ensuring compliance with global safety standards for critical applications. EMC compliance includes EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions). When used with certified Tricon chassis and power supplies, it is suitable for ATEX Zone 2/Class 1 Division 2 hazardous locations.
3. Port Configuration and Functional Details
3.1 Ethernet Ports (NET 1 and NET 2)
Both Ethernet ports support 10/100 Mbps speeds and share core protocols but are designed for distinct use cases to enhance security and avoid congestion.
NET 1: Focuses on safety-critical communication, such as Peer-to-Peer data exchange between Tricon controllers, time synchronization via SNTP, and Modbus TCP/IP Master/Slave for real-time process data. This segmentation ensures safety-related traffic is prioritized and isolated from non-critical data.
NET 2: Facilitates non-safety functions, including engineering access via TriStation 1131 for programming and configuration, non-safety data exchange with SCADA or DCS systems for monitoring, and network printing using Jet Direct.
Dual port redundancy is a key advantage—if one Ethernet port fails (e.g., due to a cable fault), the other port maintains communication, provided network failover is configured. Network segmentation further reduces the risk of congestion or cyber threats impacting safety-critical operations.
3.2 Serial Ports (4x DB-9)
All four serial ports are software-configurable via TriStation 1131, with each port assigned a unique address to prevent conflicts:
Serial 1: Specialized for GPS time synchronization (compatible with Trimble GPS) or Modbus Master/Slave communication, ensuring accurate time-stamping of system events.
Serial 2: Typically configured as a Modbus Slave, allowing external devices (e.g., RTUs) to read data from the Tricon controller for monitoring purposes.
Serial 3: Functions as a Modbus Master, enabling the Tricon system to poll field devices (such as transmitters or valves) for process data.
Serial 4: Supports TriStation 1131 for local programming, backup, or restore operations, or can be used as a Modbus Master/Slave for additional communication flexibility.
The RS-485 multi-drop capability supports up to 32 slave devices per port, with a maximum cable length of 4,000 feet (1,200 meters) using twisted-pair shielded cables—ideal for large-scale industrial installations like oil refineries or pipelines.
4. Operational Features and Performance Advantages
4.1 Multi-Protocol Support for Seamless Integration
The 4351B eliminates the need for external communication gateways by natively supporting a wide range of industrial protocols. TriStation protocol enables secure programming and configuration of Tricon controllers, including downloading control logic, monitoring variables, and running diagnostics. Modbus TCP/IP and RTU/ASCII ensure interoperability with third-party devices, allowing the Tricon system to act as either a master (polling devices) or a slave (providing data to hosts). SNTP synchronizes the controller’s clock with network time servers, ensuring accurate time-stamping for Sequence of Events (SOE) logs—critical for post-event analysis (e.g., investigating unexpected shutdowns). TSAA supports IP multicast for communication between distributed Tricon controllers, enabling coordinated control in large plants with multiple chassis.
4.2 High Reliability and Fault Tolerance
Hot-swappable design allows for the replacement of a faulty 4351B module while the Tricon system remains online, minimizing downtime—a critical feature for industries requiring 24/7 operation, such as nuclear power plants. Port isolation of 500 VDC protects against ground loops and EMI, ensuring stable communication even in electrically noisy environments. Continuous diagnostic monitoring checks for port faults (e.g., Ethernet link loss, serial cable disconnection) and reports issues to the Tricon controller via the backplane. Faults trigger the module’s FAULT LED and chassis alarms, enabling proactive maintenance to prevent unplanned outages.
4.3 Security and Data Integrity
Write protection is enforced in RUN mode, where the 4351B rejects unauthorized writes to Tricon variables (e.g., from Modbus masters), preventing accidental or malicious changes to safety-critical logic. TriStation and TSAA protocols use 32-bit CRC checksums to ensure data integrity during transmission, reducing the risk of corrupted control logic or process data. Network segmentation between NET 1 (safety) and NET 2 (non-safety) limits exposure of critical safety data to non-essential network devices, enhancing overall system security.
4.4 Status Visualization and Diagnostics

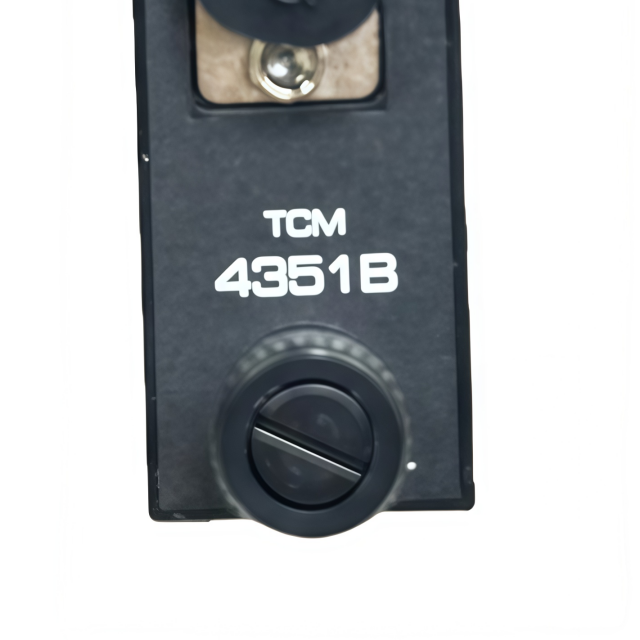

A front-panel LED array provides at-a-glance status monitoring, simplifying on-site troubleshooting:
PASS (Green): Indicates the module has passed self-diagnostics, including checks for power, backplane communication, and port functionality.
FAULT (Red): Signals a module fault, such as a port failure, firmware error, or backplane disconnection, alerting operators to address the issue promptly.
ACTIVE (Green): Shows the module is actively transmitting or receiving data, confirming normal communication operations.
FIRM (Green): Confirms the module’s firmware is loaded and operational, ensuring all features are available.
NET 1/2 LINK (Green): Indicates a valid Ethernet link (10/100 Mbps) for the respective port, verifying network connectivity.
NET 1/2 TX/RX (Green): Signals data transmission or reception on the corresponding Ethernet port, providing real-time visibility into communication activity.
SERIAL x TX/RX (Green): Indicates data transmission or reception on each serial port (1–4), helping diagnose serial communication issues.
For advanced diagnostics, the module logs communication errors (e.g., Modbus timeouts, Ethernet collisions) to the Tricon controller’s event buffer, which can be accessed and analyzed via TriStation 1131 for in-depth troubleshooting.
5. Typical Application Scenarios
5.1 Nuclear Power Plants: Reactor Control System Communication
In nuclear power plants, the 4351B connects the Tricon SIS to the plant’s DCS (e.g., Honeywell TDC-3000) for real-time monitoring of reactor parameters like temperature and pressure, as well as SOE logging. Configured with a Tricon v10.4+ chassis, Modbus TCP/IP DCS, and SNTP time server, NET 1 handles safety-critical data (e.g., reactor trip signals) via TSAA, ensuring low latency (<10 ms) to maintain safety. NET 2 supports non-safety monitoring of auxiliary system status, preventing congestion on the safety-critical network. SNTP synchronization ensures accurate time-stamping of safety events, meeting regulatory requirements from bodies like the NRC and IAEA.
5.2 Petrochemical Refineries: Distributed I/O Communication
In petrochemical refineries, the 4351B enables the Tricon controller to poll 4–20 mA transmitters (measuring flow, level, or pressure) via Modbus RTU and send data to a SCADA system via Modbus TCP/IP. Serial Port 2 is configured as a Modbus Master to communicate with up to 32 Modbus RTU transmitters in a multi-drop RS-485 network, while NET 2 acts as a Modbus Slave to provide data to the SCADA system. The RS-485 serial port supports 4,000-foot cable runs, covering large refinery facilities, and dual Ethernet ports separate SCADA traffic from TriStation programming, preventing accidental changes to control logic during operation.
5.3 Oil & Gas Pipelines: Remote Monitoring
For oil & gas pipelines, the 4351B provides remote access to Tricon controllers at pipeline pump stations, enabling configuration and diagnostics via TriStation 1131 over a corporate Ethernet network. NET 2 is used for TriStation communication, with a VPN ensuring secure remote access. Serial Port 1 is connected to a GPS time server to synchronize clocks across multiple pump stations, ensuring consistent SOE logs for leak detection and incident investigation. The hot-swappable design allows module replacement without shutting down pipeline operations, minimizing disruption to critical fuel transportation services.
5.4 Manufacturing: Machine Automation Integration
In manufacturing, the 4351B integrates the Tricon SIS with a PLC-based machine control system to enforce safety interlocks (e.g., emergency stops) and share production data. NET 1 is configured as a Modbus Slave, allowing the PLC (acting as a Modbus Master) to access safety interlock signals in real time, preventing unsafe machine operation. NET 2 supports HMI monitoring, providing operators with visibility into safety system status. Port isolation protects the Tricon system from EMI generated by manufacturing equipment (e.g., motors, welders), ensuring reliable communication and consistent safety performance.
6. Installation, Configuration, and Troubleshooting
6.1 Installation Guidelines
Chassis Compatibility: The 4351B must be installed in Tricon v10.0+ chassis, specifically in logical slots designated for communication modules. The chassis should be powered off during initial installation to avoid electrical damage.
Wiring Requirements:
Ethernet: Use Cat5e or Cat6 twisted-pair cables (maximum length: 328 feet/100 meters) for NET 1 and NET 2. Ground the cable shields at both ends to reduce EMI interference.
Serial: For RS-232 communication, use DB-9 cross-over cables for point-to-point connections. For RS-485 multi-drop networks, use twisted-pair shielded cables (22–12 AWG) with a 120Ω termination resistor at the far end of the network to prevent signal reflections.
Power: No external power is required—the module draws 6.5 VDC from the Tricon chassis power supply, simplifying installation.
Hot-Swap Procedure: Before replacing a faulty module, disable it via TriStation 1131 to avoid communication interruptions. Unlock the front-panel latches to remove the faulty module, insert the new module, and verify the PASS LED illuminates green (with no FAULT LED) to confirm successful installation.
6.2 Configuration via TriStation 1131
Protocol Setup: Launch TriStation 1131 v4.3 or later and connect to the Tricon controller via NET 1 or NET 2. Navigate to the Communication > Module Configuration > 4351B menu to assign protocols to each port—for example, setting Serial Port 1 to GPS, NET 1 to Modbus TCP Master, and NET 2 to TriStation.
Modbus Alias Assignment: To enable Modbus communication, assign 5-digit aliases to Tricon variables (e.g., 40001 for a pressure variable). These aliases map Tricon variable names to Modbus register addresses, ensuring third-party devices can correctly read or write data.
Time Synchronization: Configure SNTP settings in TriStation, including the time server IP address and update interval, to synchronize the Tricon controller’s clock with the network. This ensures consistent time-stamping across all connected devices, critical for accurate SOE logging.
6.3 Common Faults and Resolution
Red FAULT LED (Module): Possible causes include Ethernet port link loss, serial cable shorts, or firmware corruption. First, check the Ethernet cable continuity and switch port status to rule out physical connectivity issues. Inspect serial cables for shorts or opens using a multimeter. If firmware is corrupted, contact Triconex support to reinstall firmware via the debug port.
No Data Transmission (NET 1): This may result from an incorrect IP address or a firewall blocking TSAA/Modbus traffic. Verify the 4351B’s IP address (configured in TriStation) matches the network subnet. Ensure firewalls allow TSAA (UDP port 1500) and Modbus TCP (port 502) to pass through.
Serial Port No Response: Common issues include incorrect RS-232/RS-485 configuration or baud rate mismatch. Confirm the port is set to the correct interface (RS-232 or RS-485) in TriStation. Match the baud rate, parity, and stop bits between the 4351B and field devices (e.g., 9600 baud, 8N1) to restore communication.
NET 2 LINK LED Off: A faulty Ethernet cable or failed switch port is likely the cause. Replace the Ethernet cable with a known-good one and test the switch port with another device (e.g., a laptop) to confirm functionality. If the switch port is faulty, replace the switch or use an alternative port.
7. Technical Documentation and Compliance References
Primary Manuals:
Tricon Communication Guide (Document No. 9720052-020): Provides detailed instructions for configuring the 4351B, setting up protocols, and troubleshooting communication issues.
Tricon v10+ Planning and Installation Guide (Document No. 9720052-018): Covers chassis compatibility, module installation, and wiring best practices.
TRICONEX 4351B Datasheet (Document No. 1600099-004): Includes comprehensive electrical specifications, performance curves, and environmental ratings.
Safety Certifications:
IEC 61508 SIL 3 (TÜV Rheinland): Validates compatibility with Tricon systems for safety-critical applications.
ATEX Zone 2/Class 1 Division 2 (TÜV Rheinland): Ensures safe operation in hazardous locations with flammable atmospheres.
EMC Compliance: EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions) confirm the module can operate reliably in noisy industrial environments.
Configuration Tools: TriStation 1131 v4.3 or later is required for port configuration, Modbus alias assignment, firmware updates, and diagnostic monitoring.
Replacement Parts: Recommended replacement parts include Cat5e Ethernet cables (Part No. 7600-3, included in the Network Accessory Kit), DB-9 RS-232 cross-over cables (Part No. 9141-010), and shield ground clamps (Part No. 158000-01) for hazardous location installations.
