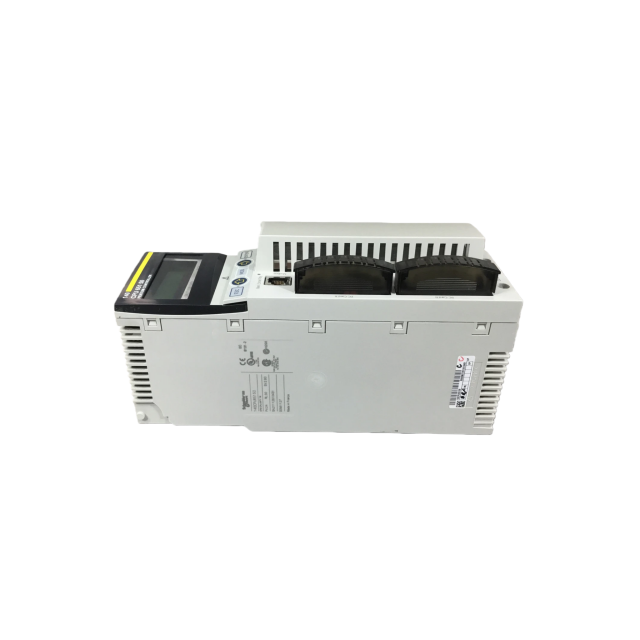

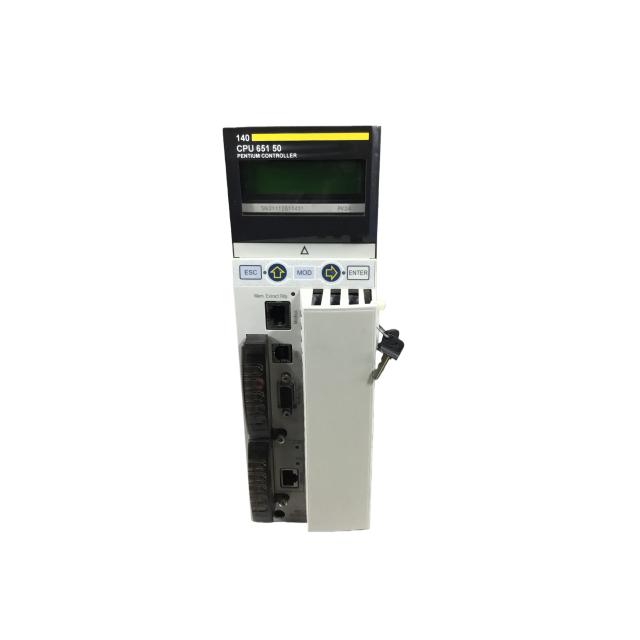

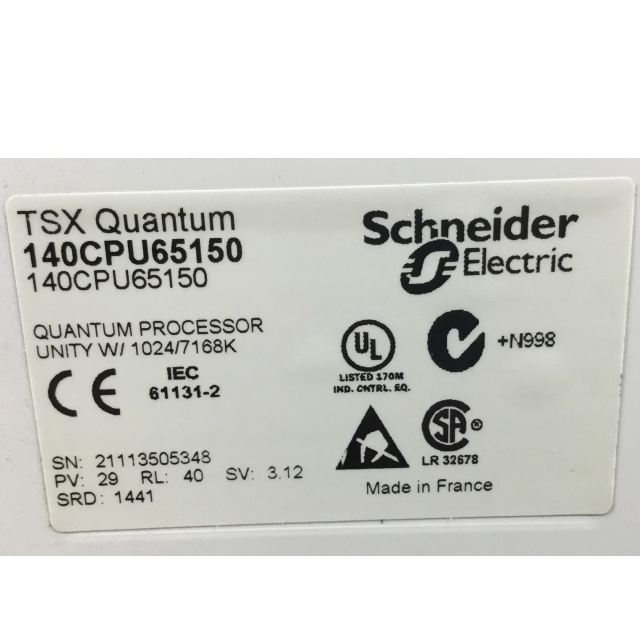

Schneider 140CPU65150 Unity processor

Name: Schneider 140CPU65150 Unity processor
Brand: Schneider
Rating: 5.0 (51 reviews)

Schneider 140CPU65150 is a Modicon Quantum Unity processor, 166MHz RISC, 768kB RAM, 6 optional comm modules, web server, Unity Pro-compatible, 63 distributed I/O, ideal for complex industrial automation with flexible connectivity.

Availability:



Inquire Add to Basket

Model:
140CPU65150
Brand:
Schneider

140CPU65150 Schneider 140CPU65150 140CPU65150 Unity processor Schneider PLC 140CPU65150 PLC 140CPU65150 PDF 140CPU65150 Datasheet

Product Description

Contact us directly!

Datasheet

Hot-selling

Specifications

Parameter	Details
Bus Current Requirement	2160 mA
Number of Slots	10
Clock Frequency	166 MHz
Number of Local Racks	2
Internal RAM	768 kB

Key Functional Advantages

High-Speed Processing & Fast Instruction Execution

Boasts a 166 MHz clock speed and delivers exceptional processing performance: 10.28 Kinst/ms for

100% Boolean operations and 10.07 Kinst/ms for mixed (65% Boolean + 35% numerical) tasks.

Minimal system overhead (0.2 ms for fast tasks, 1 ms for master tasks) ensures real-time response

for time-sensitive control logic and critical process regulation.

Extensive I/O Scalability & Flexibility

Supports massive I/O capacity across local, distributed, and remote networks: unlimited local

discrete/analog I/O (up to 26 slots), 31,744 remote discrete inputs/outputs, 500 distributed analog

inputs/outputs per Modbus Plus network, and 1,984 analog inputs/outputs for S908 remote I/O.

Accommodates 63 distributed I/O stations and 31 remote I/O stations (Ethernet Quantum/X80,

S908), scaling seamlessly for large-scale automation systems.

Rich Task Management Capabilities

Offers a versatile application structure with 1 cyclic/periodic master task, 1 periodic fast task, 128

I/O interrupt tasks, 128 general interrupt tasks, 32 timer interrupt tasks, and 4 auxiliary tasks.

Enables precise prioritization of control workflows, from high-speed interrupt-driven operations to

background auxiliary tasks, adapting to complex automation requirements.

Expandable Memory & Storage

Features 768 kB internal RAM, with expandable program memory (up to 7168 kB) and file storage

(up to 8 MB) via PCMCIA cards. Supports large-scale application development, data logging, and

firmware upgrades, ensuring flexibility for evolving automation logic and compliance reporting

needs.

Core Purpose & Application

The 140CPU65150 is a high-performance Unity processor designed exclusively for Schneider

Electric’s Modicon Quantum automation platform. As the central processing unit (CPU) and

control core of the system, its primary purpose is to execute complex automation logic, manage

extensive I/O networks, and facilitate seamless communication across local, distributed, and remote

control components. Equipped with a 166 MHz clock speed, 768 kB internal RAM, and expandable

memory via PCMCIA cards, it delivers fast instruction execution (up to 10.28 Kinst/ms for Boolean

operations) and supports diverse task structures (cyclic, fast, interrupt, timer) to handle mission-

critical industrial control workflows. By integrating multi-protocol communication (Ethernet TCP/IP,

Modbus, Modbus Plus) and scalable I/O connectivity, the processor serves as the “brain” of

Modicon Quantum systems, ensuring real-time data processing, precise control execution, and

reliable integration with plant-wide automation ecosystems.
