Core Information of 416NHM30030

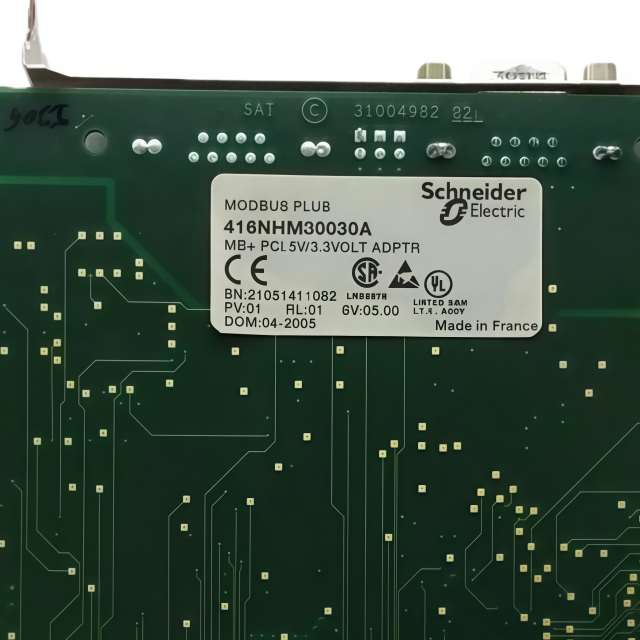

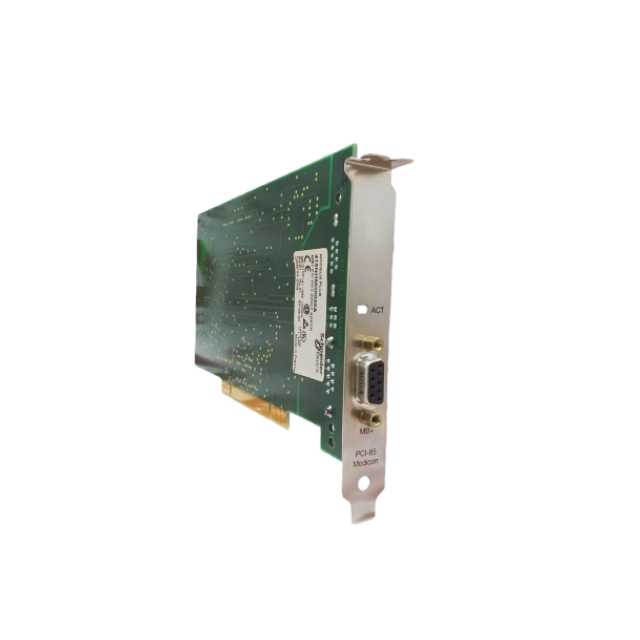

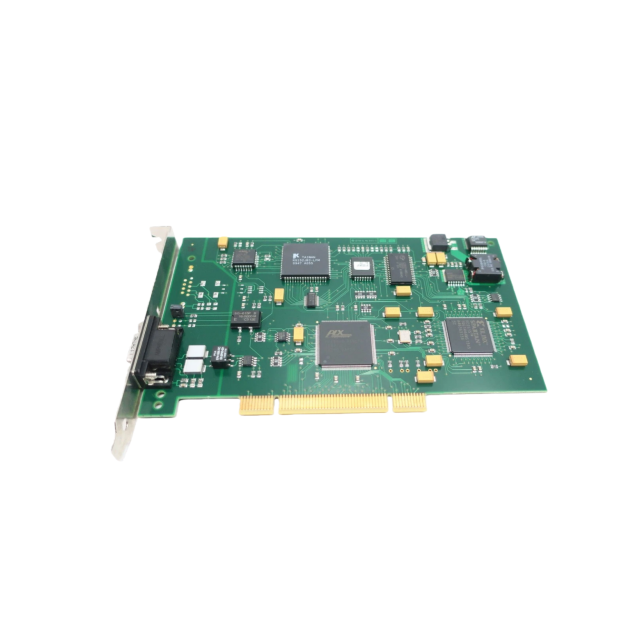

416NHM30030 is a single-port Modbus Plus PCI PC adapter from Schneider Electric, designed for
integrating personal computers into the Modicon Quantum and Momentum automation platforms’
Modbus Plus network. It enables reliable data communication between PCs and Modbus Plus devices,
supporting industrial automation tasks such as configuration, monitoring, and data exchange.
●Model Number: 416NHM30030
●Product Series: Schneider Electric Modbus Plus Communication Adapters
●Core Function: Acts as a PCI interface card for PCs, facilitating bidirectional data transmission
between the PC and Modbus Plus network devices (e.g., Quantum CPUs, I/O modules, Momentum
adaptors).
●Key Features: Single Modbus Plus port, PCI form factor, compatible with Modbus Plus network
protocols, and integrates seamlessly with Schneider’s automation platforms.
●Application Scope: Industrial automation environments using Modicon Quantum or Momentum
systems, suitable for PC-based configuration, process monitoring, data logging, and control system
integration.
Software & Operational Traits
●Driver Support: Compatible with Modbus Plus driver suite (SWMXDS001) for PC software integration.
●Functionality: Enables PC-based access to Modbus Plus network devices for configuration (via
Schneider’s programming software), real-time data monitoring, and historical data logging.
●Communication Protocol: Adheres to Modbus Plus network protocols, ensuring interoperability with
other Modbus Plus-compliant devices.
