Overview

The AM-SA85-002 is a specialized network interface board tailored for Modbus Plus industrial networks, providing reliable connectivity and real-time network status monitoring. As a key component in Modbus Plus networks, it facilitates stable data transmission between nodes and supports dual cable path redundancy, enhancing network reliability—a critical feature for industrial environments where communication interruptions can lead to operational disruptions.

Its configurable jumper settings (Polled Mode/IRQ level) offer flexibility to adapt to different system configurations, allowing users to adjust according to ECU or ISACFG requirements for seamless integration with existing control systems. The three integrated LEDs deliver intuitive network status feedback: the green indicator’s distinct flash patterns enable quick identification of normal operation, offline status, token reception issues, node detection failures, or duplicate address conflicts, while the red indicators pinpoint faults on specific cable paths. This simplifies on-site troubleshooting, helping maintenance personnel rapidly locate and resolve network problems such as open circuits, defective terminations, or cable/node faults.

The dual cable path design ensures fault tolerance—if one path experiences communication loss, the other path continues to operate, minimizing downtime in mission-critical applications like manufacturing automation, process control, and industrial data acquisition. By adhering to Modbus Plus token-passing protocols, the board ensures orderly and efficient network communication, preventing data collisions and maintaining consistent transmission performance.

Ideal for industrial settings requiring high-reliability network connectivity, the AM-SA85-002 combines practical configuration options, comprehensive status monitoring, and redundancy capabilities. It plays a vital role in optimizing Modbus Plus network stability and maintainability, making it a valuable component for industrial automation systems that demand robust and transparent network operation.

Specifications

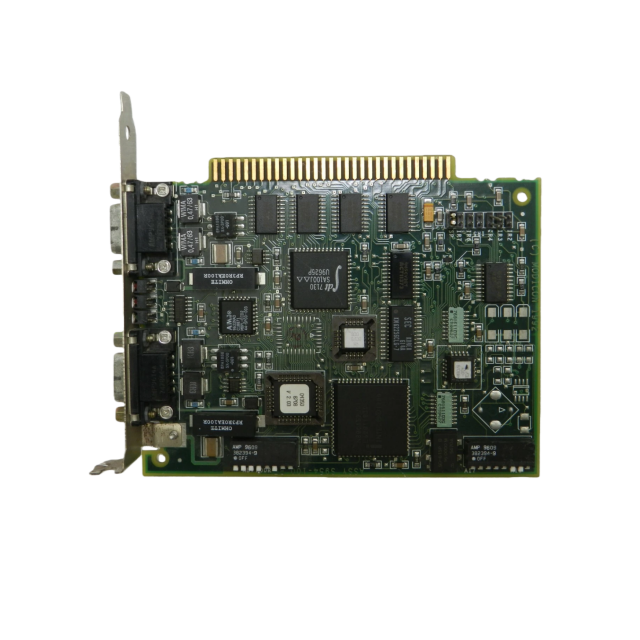

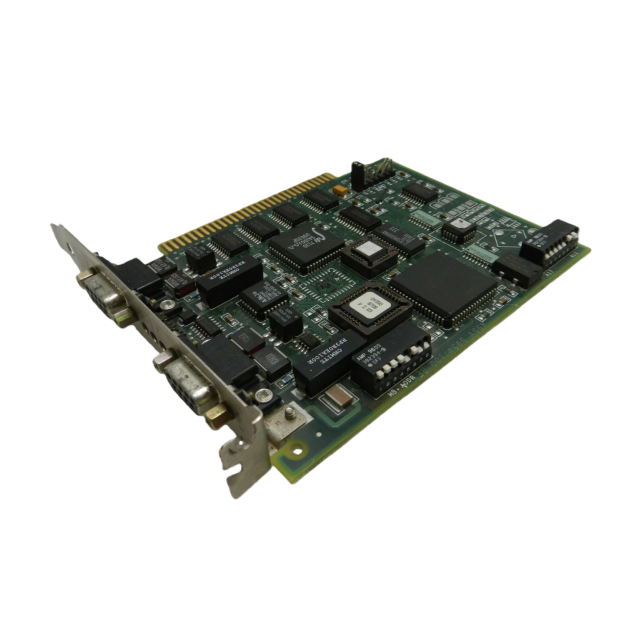

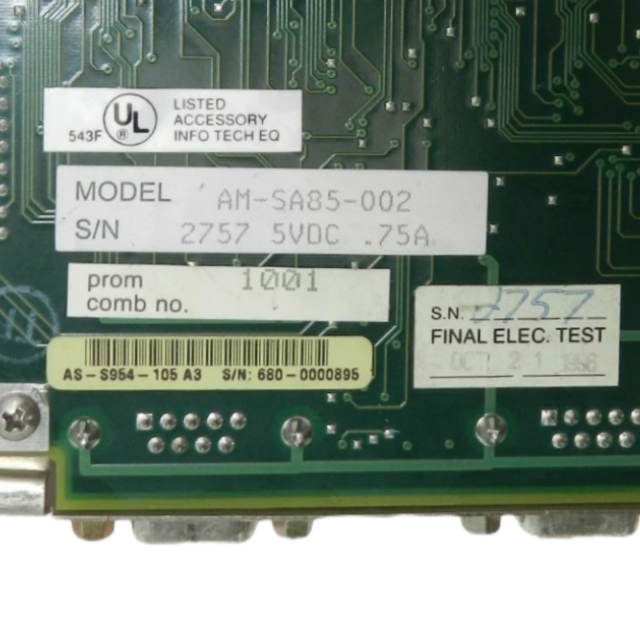

The AM-SA85-002 is a network interface board designed for Modbus Plus networks, featuring configurable jumper settings and multi-status indicators for network monitoring.

In terms of jumper configuration, it is equipped with eight rows of jumper pins (two pins per row) for IRQ level and Polled Mode settings. The factory default is Polled Mode (jumper removed), and the jumper can be moved to the specified IRQ position as required by the ECU or ISACFG.

For network indicators, the board has three LEDs: one green indicator for overall communication status and two red indicators (Cable A Path Fault and Cable B Path Fault) for identifying faults on dual cable paths. The green indicator flashes in specific repetitive patterns to reflect Modbus Plus status: six flashes per second (normal operating state, successfully receiving and passing the token), one flash per second (offline after power-up or exiting four-flash mode, monitoring the network for five seconds before attempting normal operation), two flashes followed by two seconds off (hearing token passing but not receiving the token), three flashes followed by 1.7 seconds off (not detecting any other nodes, periodically claiming the token), and four flashes followed by 1.4 seconds off (detecting a duplicate node address). The red indicators blink momentarily to indicate message errors on the corresponding cable path and remain steady ON for hard faults (cable or connected node device issues); if one cable path loses communication, the other path operates normally.

It supports dual cable path redundancy, ensuring continuous network communication even if one path fails, and is compatible with Modbus Plus network protocols for token-passing communication.
