Schneider 140XBP01000 Rack backplane

Schneider 140XBP01000 Rack backplane

Overview

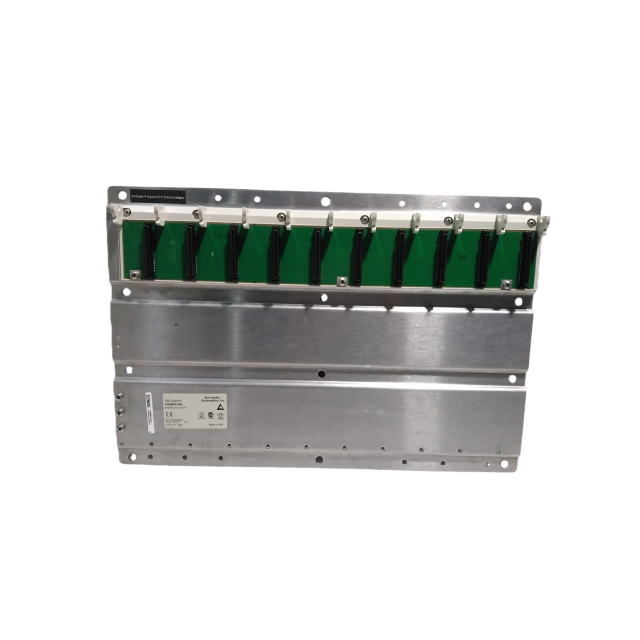

The 140XBP01000 is a 10-slot rack backplane designed exclusively for the Modicon Quantum automation platform, developed by Schneider Electric (document release date: Jul 27, 2023). As a core hardware foundation of the Quantum system, it serves as a centralized connection hub for I/O modules (distributed, local, and remote), providing mechanical support and electrical interconnection to ensure stable signal transmission and power distribution between modules and the controller.

Its 10 free slots offer ample expansion space for system configuration, allowing users to mix and match different types of I/O modules (such as discrete input/output, analog input/output, and special-purpose modules) based on application needs. This flexibility makes it suitable for medium to large-scale industrial control systems, including manufacturing workshops, process control plants, and distributed automation networks. The screw fixing mode ensures secure mounting on the mounting plate, enhancing structural stability in harsh industrial environments with vibration or mechanical stress.

Compliance with international sustainability standards (REACh, RoHS) and Green Premium certification reflects its alignment with modern environmental protection requirements, reducing environmental impact during production and disposal. The clear packaging specifications facilitate logistics and storage management, whether for single-unit deployment or bulk procurement.

Though marked as post-commercialisation, the 140XBP01000 remains a critical component for maintaining and upgrading existing Modicon Quantum systems. Its compatibility with all Quantum I/O module types ensures seamless integration with legacy setups, while the 18-month warranty provides reliability assurance for long-term operation. For new system deployments, users can opt for the recommended substitute (BMEXBP0800) to align with the latest product lines, but the 140XBP01000 continues to deliver stable performance for existing installations.

In summary, the 140XBP01000 combines robust construction, flexible expansion, and environmental compliance, serving as a reliable hardware backbone for Modicon Quantum-based automation systems. It effectively supports the interconnection and operation of various I/O modules, laying a solid foundation for efficient and stable industrial control.

Specifications

The 140XBP01000 is a rack backplane belonging to the Modicon Quantum automation platform, designed specifically for distributed, local, and remote I/O modules. It features 10 free slots to accommodate various Quantum modules, supporting flexible system configuration.

In terms of installation, it uses a mounting plate as the support and screw fixing mode for secure attachment. The product itself weighs 1 kg, with two package options: Package 1 (type PCE) contains 1 unit, with dimensions 53.500 cm (length) × 29.500 cm (width) × 4.700 cm (height) and a package weight of 2.030 kg; Package 2 (type S04) contains 5 units, with dimensions 60.000 cm (length) × 40.000 cm (width) × 30.000 cm (height) and a package weight of 10.914 kg.

For sustainability and compliance, it is classified as a Green Premium product, free of SVHC (per REACh) and mercury. It complies with EU RoHS (pro-active compliance, though out of EU RoHS legal scope) and China RoHS regulations, with available EU RoHS Declaration and China RoHS Declaration. It provides RoHS exemption information and End of Life Information (Circularity Profile). In the European Union, it must be disposed of via specific waste collection per WEEE directives and carries a California Proposition 65 warning about potential exposure to lead and lead compounds. The product comes with an 18-month contractual warranty and is in the post-commercialisation phase, with a recommended substitute product (BMEXBP0800: Modicon X80 8-slot Ethernet backplane).
