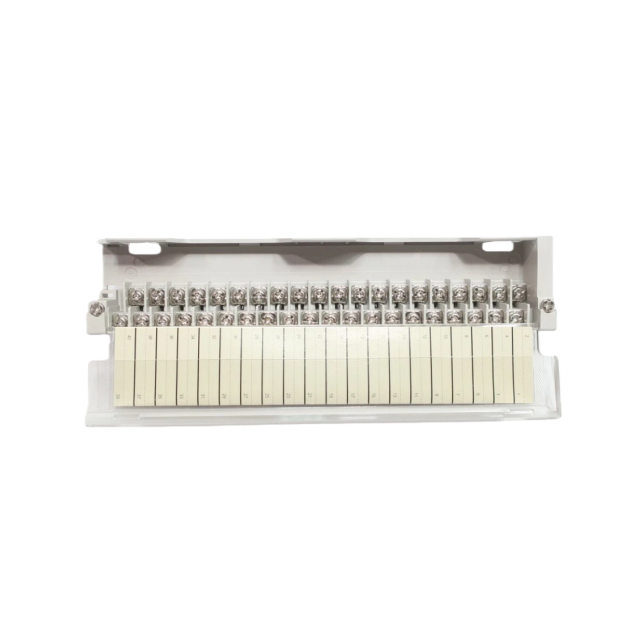

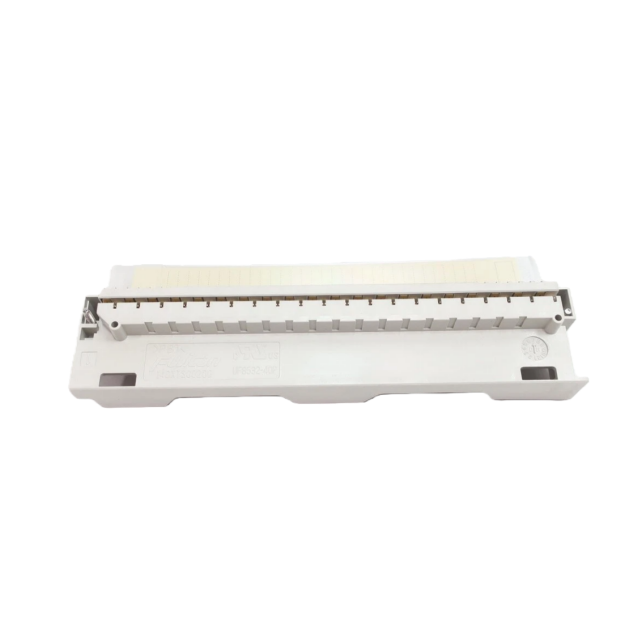

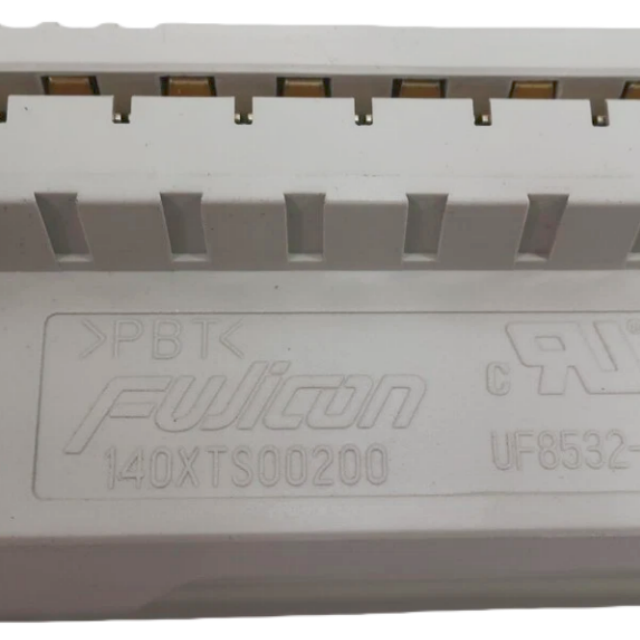

Schneider 140XTS00200 Terminal Block
Overview
The 140XTS00200 is a dedicated screw terminal block accessory for the Modicon Quantum automation platform, developed by Schneider Electric. As a core connection component, it serves as an interface between Quantum modules (such as analog, discrete, counter, and security modules) and field wiring, facilitating stable electrical connections for signal transmission and power supply.
Its 40-pin design meets the wiring needs of various Quantum module types, supporting a broad range of I/O modules commonly used in industrial automation. This wide compatibility makes it a versatile accessory for Modicon Quantum systems, eliminating the need for multiple specialized terminal blocks and simplifying system integration. The screw-type connection ensures firm contact between wires and the terminal block, reducing signal interference and connection failures caused by vibration or loose wiring—critical for maintaining reliable operation in harsh industrial environments.
With a lightweight design (0.15 kg), the 140XTS00200 is easy to install and maintain, fitting seamlessly into Quantum racks without adding excessive weight. Its RoHS compliance and REACh compliance (no SVHC above threshold) align with global environmental protection standards, making it suitable for environmentally conscious industrial deployments. The absence of special recycling requirements simplifies end-of-life disposal, reducing operational costs for users.
Though not classified as a Green Premium product, it delivers consistent performance and reliability, backed by an 18-month warranty. This accessory is essential for Modicon Quantum system installations and maintenance, ensuring secure and efficient wiring connections for various I/O modules. It plays a key role in optimizing the stability and maintainability of industrial control systems, whether for new deployments or upgrades of existing Quantum setups.
In summary, the 140XTS00200 is a versatile, reliable connection accessory that enhances the wiring flexibility and stability of Modicon Quantum automation systems. Its broad compatibility, secure screw connections, and environmental compliance make it an indispensable component for industrial control applications relying on Quantum modules.
Specifications
The 140XTS00200 is a screw terminal block belonging to the Modicon Quantum automation platform, categorized as a connection accessory designed for various Quantum modules. It features 40 pins to enable secure and reliable electrical connections for target modules.
In terms of compatibility, it works with a wide range of Modicon Quantum modules, including accurate time stamping multifunction input modules, analog I/O modules, analog input modules, analog output modules, security analogue modules, counter modules, discrete combination I/O modules, and security input/output modules. Specific compatible module series cover 140ACI, 140ACO, 140AMM, 140ARI, 140ATI, 140AVI, 140AVO, 140DAI, 140DAM, 140DDI, 140DDM, 140DDO, 140DRA, 140DRC, 140DRO, 140DSI, 140DVO, 140EHC, 140ERT, 140SAI, 140SDI, and 140SDO.
The product weighs 0.15 kg and has an IP protection degree of less than IP20. For sustainability and compliance, it is not a Green Premium product but is RoHS compliant (since date code 1036) with a Schneider Electric declaration of conformity. It does not contain SVHC above the threshold (per REACh) and requires no specific recycling operations at the end of its life. The contractual warranty period is 18 months (document release date: Jun 13, 2017).
