Industrial automation demands I/O solutions that can handle the unpredictable realities of factory floors—heat, vibration, constant cycling, and the occasional electrical surge that nobody saw coming. Allen Bradley FLEX I/O modules have earned their place in countless facilities precisely because they deliver on that promise. The 1794-ADN network adapter and 1794-IB16 digital input module represent two workhorses in this family, handling distributed control tasks that keep production lines moving. When these components need replacement or expansion, finding reliable sources becomes the difference between a quick fix and extended downtime.
Allen Bradley Flex I/O systems take a fundamentally different approach to industrial automation. Rather than running every signal wire back to a central control cabinet, this architecture places I/O modules closer to the actual field devices. The practical result is dramatic: shorter cable runs, simpler installation, and significantly lower wiring costs.
The modular design means you can start small and grow. Need to add eight more digital inputs next quarter? Drop in another module. Reconfiguring a production cell? Move the I/O rack without rewiring the entire plant. This scalability matters when production requirements shift—and they always do.
Troubleshooting becomes more straightforward too. When a sensor stops reporting, you’re checking connections at a local rack rather than tracing wires through hundreds of feet of conduit. The distributed nature of Allen Bradley Flex I/O systems reduces diagnostic time and gets equipment back online faster. These PLC components support various control system architectures while maintaining the flexibility that modern manufacturing requires.
The 1794-ADN Network Adapter Explained

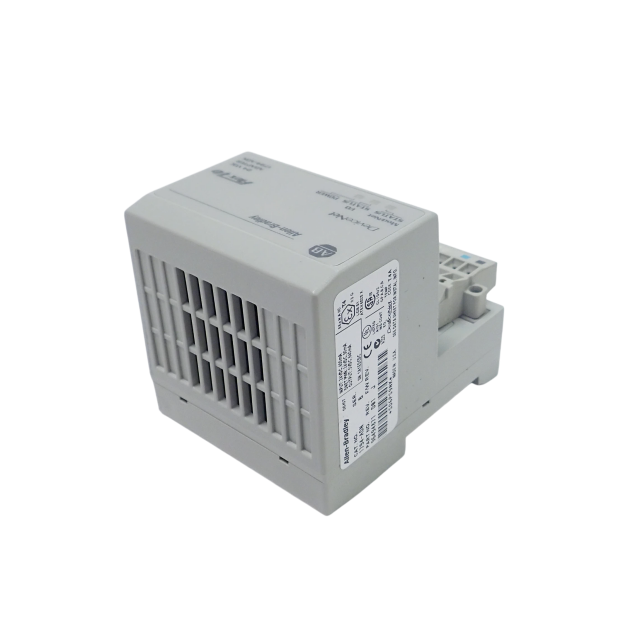

The 1794-ADN module serves as the communication backbone connecting Flex I/O modules to your main controller. Without this network adapter, the individual I/O modules would be isolated islands of data with no way to reach the PLC.
This adapter speaks DeviceNet, an industrial protocol that has proven itself across decades of factory floor deployments. The protocol’s deterministic communication ensures that time-critical data arrives when expected—essential for processes where milliseconds matter.
How the 1794-ADN Functions Within Flex I/O Systems
The 1794-ADN module acts as a translator and traffic controller. It gathers input data from connected Flex I/O modules and packages it for transmission across the DeviceNet network. Simultaneously, it receives output commands from the controller and routes them to the appropriate modules. This bidirectional data exchange happens continuously, maintaining the real-time responsiveness that industrial processes demand.
The module’s network interface handles the protocol overhead, freeing the individual I/O modules to focus on their primary job: reading sensors and controlling actuators. This division of labor contributes to overall system reliability.
Feature
Specification
Benefit
Network Protocol
DeviceNet
Wide compatibility, established standard
Data Rate
Up to 500 kbps
Fast communication for real-time control
Power Supply
24V DC
Standard industrial power
Operating Temp.
-20°C to 70°C (-4°F to 158°F)
Suitable for harsh environments
I/O Capacity
Up to 8 I/O modules
Scalable for various application sizes
Diagnostics
Network and module status indicators
Simplified troubleshooting
1794-IB16 Digital Input Module Capabilities

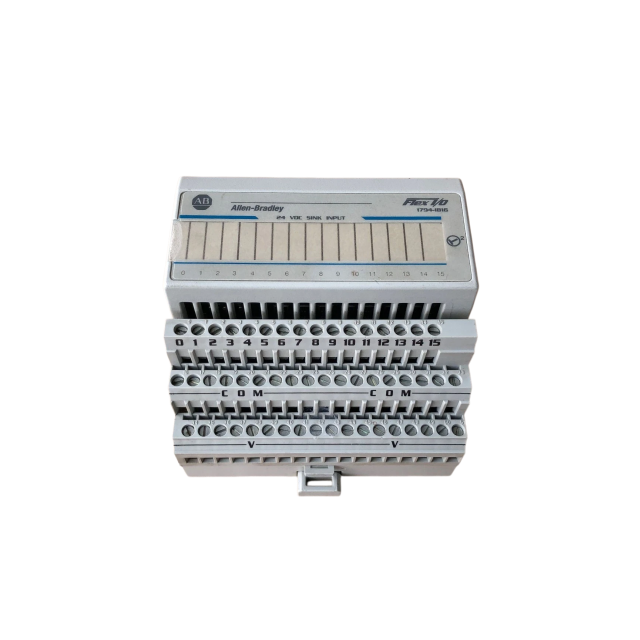

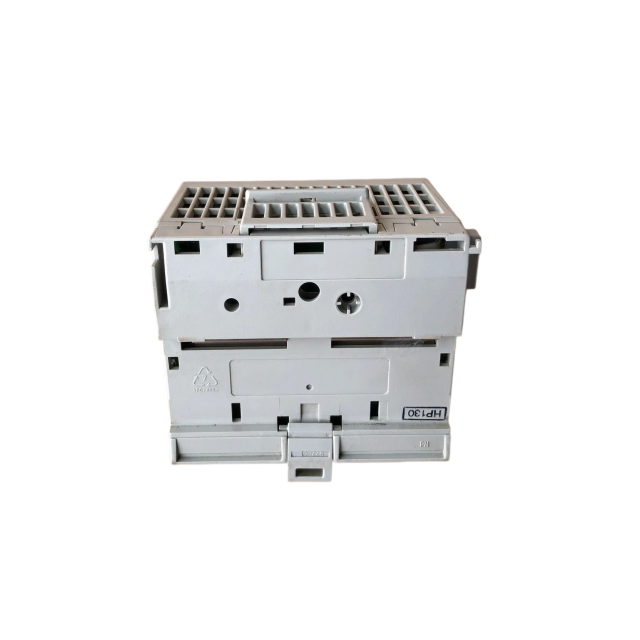

The 1794-IB16 provides sixteen discrete input channels for the Allen Bradley Flex I/O system. Each channel monitors a binary signal—on or off—from field devices like limit switches, pushbuttons, proximity sensors, and photoelectric eyes.
This digital input module handles the fundamental task of converting real-world switch states into data the PLC can process. When a conveyor reaches its end position and trips a limit switch, the 1794-IB16 captures that transition and reports it to the controller. The module’s input filtering helps reject electrical noise that might otherwise cause false readings.
Wiring is straightforward: common return connections and individual input terminals accommodate standard industrial sensors. The module’s LED indicators show channel status at a glance, making commissioning and troubleshooting faster.
Finding Allen Bradley Flex I/O Parts When You Need Them
Sourcing Allen Bradley spare parts for Flex I/O systems requires knowing where to look—especially when the component you need has been discontinued. The 1794-IB16 and similar modules may no longer appear in current catalogs, but they remain installed in thousands of active systems worldwide.
The challenge with obsolete automation parts is verification. Counterfeit industrial components exist, and installing one can cause anything from intermittent faults to complete system failure. Working with suppliers who understand this risk and take steps to authenticate parts protects your investment and your uptime.
Third-party vendors with established track records in industrial parts sourcing often maintain inventory that authorized distributors no longer stock. These specialists focus on legacy system maintenance, building relationships with sources that can locate hard-to-find components. Joyoung International Trading Co., Limited operates in this space, providing genuine components for systems that still have years of productive life ahead.
Verifying Authenticity for Discontinued 1794-IB16 Modules
When sourcing obsolete 1794-IB16 modules, supplier selection matters more than price. Request detailed product photos showing labels, serial numbers, and date codes. Reputable suppliers will provide this documentation without hesitation.
Ask about testing procedures. Does the supplier verify functionality before shipping, or are they simply passing along whatever they acquired? Joyoung International Trading Co., Limited tests components and confirms authenticity as part of standard practice. This verification step catches problems before they reach your facility.
Warranty terms reveal supplier confidence. A vendor offering meaningful warranty coverage on obsolete parts demonstrates faith in their sourcing and testing processes. Those offering none may be gambling with your production schedule.
Sourcing Channel
Pros
Cons
Authorized Distributor
New parts, warranty, technical support
Higher cost, limited stock for legacy parts
Third-Party Vendors
Access to obsolete/legacy parts, competitive pricing
Authenticity concerns, variable support
Online Marketplaces
Wide selection, quick search
High risk of counterfeits, no technical support
Direct from OEM
Guaranteed authenticity, full support
Long lead times for older parts, premium pricing
Specialty Suppliers
Focus on specific brands/models, expert knowledge
Potentially higher cost, limited general inventory
Keeping Your Flex I/O System Running Strong
A well-maintained Allen Bradley Flex I/O system delivers years of reliable service. The key is staying ahead of problems rather than reacting to failures.
Regular inspection catches issues early. Check terminal connections for looseness—vibration gradually works screws free over time. Examine LED indicators during normal operation; a module showing unusual status patterns may be developing problems. Power supply voltage should remain within specification under load.
Documentation matters more than most people realize. Keep records of installed modules, firmware revisions, and network addresses. When something fails at 2 AM, having this information readily available speeds diagnosis and replacement.
Module compatibility becomes relevant during upgrades. Newer firmware versions may offer improved features, but they can also introduce incompatibilities with older adapters. Before upgrading any component, verify that all connected modules will continue to function correctly together.
Partner with Joyoung International Trading Co., Limited
Ensure the seamless operation and longevity of your industrial automation systems. For expert sourcing of Allen Bradley 1794 FLEX I/O modules, including the 1794-ADN and 1794-IB16, and comprehensive support for your PLC and DCS needs, partner with Joyoung International Trading Co., Limited. Contact us today for reliable solutions and unparalleled service. Email us at chen@htechplc.com or call us at +86-181-5013-7565.
Frequently Asked Questions About Allen Bradley Flex I/O Modules
What industries rely most heavily on Allen Bradley Flex I/O systems?
Allen Bradley Flex I/O modules appear across manufacturing sectors where distributed control provides advantages. Automotive assembly plants use them extensively for conveyor control and robotic cell interfacing. Food and beverage facilities appreciate the modular design for packaging line flexibility. Water treatment plants deploy Flex I/O for remote pump stations where running cables back to a central location would be impractical. The 1794-ADN and 1794-IB16 specifically handle discrete monitoring tasks in these environments, from limit switch detection to operator interface signals.
How do I match a replacement 1794-IB16 to my existing system?
Start with the complete catalog number and series designation from your current module. The Digital Input Module must match the voltage rating and input type of your field devices. Verify compatibility with your installed Flex I/O adapter—older 1794-ADN modules may have firmware limitations affecting newer module revisions. Suppliers like Joyoung International Trading Co., Limited can cross-reference your existing configuration and confirm that a replacement will integrate without issues.
Can Flex I/O modules work with controllers from other manufacturers?
The Allen Bradley Flex I/O system communicates through standard industrial protocols, which creates integration possibilities beyond Rockwell platforms. A PLC Controller supporting DeviceNet can exchange data with a 1794-ADN adapter, provided the controller has appropriate driver support and configuration tools. EtherNet/IP adapters expand compatibility further. The practical reality is that integration complexity varies—some combinations work smoothly while others require significant configuration effort. Testing in a lab environment before production deployment reduces surprises.
