Industrial control systems form the backbone of modern manufacturing, and getting the right components matters more than most people realize. After years of working with Allen Bradley’s MicroLogix and CompactLogix platforms, I’ve developed a genuine appreciation for how these controllers handle the demands of real-world production environments. The 1762-IQ16 digital input module and 1768-L45 CompactLogix controller represent two distinct approaches to automation challenges—one compact and economical, the other powerful and expandable. What follows draws from hands-on deployment experience and the kind of practical knowledge that only comes from solving problems on the factory floor.
MicroLogix 1762 and 1764 Architecture Explained
The Allen Bradley MicroLogix series fills a specific niche in industrial automation. These controllers deliver solid performance without the complexity or cost of larger systems. The 1762 and 1764 series sit at the heart of this family, providing the processing muscle and I/O flexibility that small to medium applications demand.
MicroLogix controllers pack integrated power supplies and fixed I/O counts into compact packages. They communicate through EtherNet/IP, DH-485, and Modbus RTU protocols, which means they slot into most existing industrial networks without major headaches. RSLogix 500 handles the programming side, offering a ladder logic environment that most technicians already know. Memory and processing speed vary between models, and these differences directly affect what you can accomplish with each controller.
The 1762 series—commonly called MicroLogix 1200—steps up from earlier models with broader I/O module support and more communication options. The 1764 series, or MicroLogix 1500, pushes further with additional processing power and memory. These distinctions matter when you’re sizing a system. Complex control loops or heavy data logging will push you toward the 1764 series pretty quickly.
Both series show up regularly in the field, often running side by side in the same facility. Their reliability has been proven across countless installations. Knowing the architectural differences between them speeds up troubleshooting and makes upgrade planning much smoother.
Feature
MicroLogix 1762 Series
MicroLogix 1764 Series
Processor
MicroLogix 1200
MicroLogix 1500
Max I/O
Up to 136 I/O points
Up to 256 I/O points
Memory
6 KB to 10 KB
12 KB to 48 KB
Communication
RS-232, DH-485, EtherNet/IP
RS-232, DH-485, EtherNet/IP
Expansion
Up to 6 expansion I/O modules
Up to 8 expansion I/O modules
Configuring and Wiring the 1762-IQ16 Digital Input Module

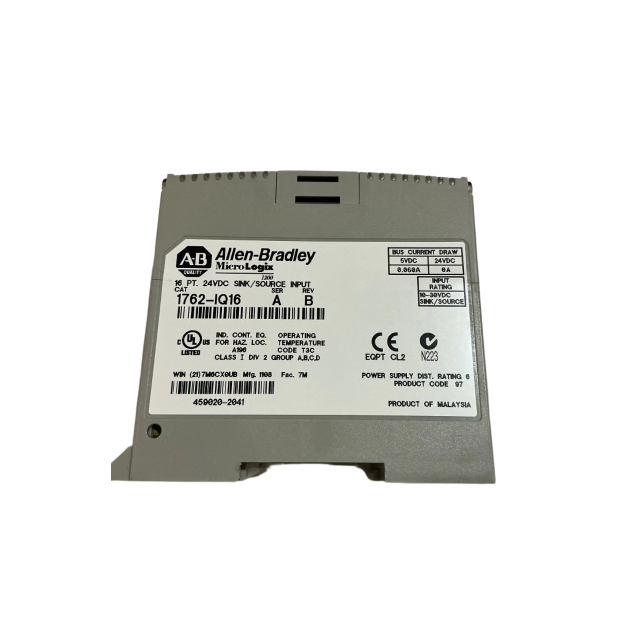

The 1762-IQ16 brings 16 points of 24V DC digital input capability to MicroLogix 1200 and 1500 systems. This module handles the critical job of capturing signals from sensors and field devices throughout your process.
Wiring the 1762-IQ16
Power Down: Disconnect power to the entire PLC system before touching any wiring.
Mount Module: Secure the 1762-IQ16 next to your MicroLogix controller on the DIN rail.
Connect Power: Run 24V DC to the module’s power terminals.
Wire Inputs: Connect your field devices—limit switches, proximity sensors, and similar equipment—to the input terminals.
Grounding: Proper grounding reduces noise and protects against electrical faults.
Verify Connections: Check every connection twice before powering up.
The 1762-IQ16 accepts both sinking and sourcing inputs, and getting this right matters. Sinking configurations need the sensor to provide a ground path. Sourcing setups require the sensor to supply positive voltage. Wire it wrong and you’ll either damage the module or get readings that make no sense.
Software setup happens in RSLogix 500, where you assign addresses to each physical input. Every terminal maps to a specific memory bit that your program can read. Test everything after configuration—this catches wiring mistakes and confirms that signals are reaching the PLC correctly. When troubleshooting the 1762-IQ16, start with wiring checks and input voltage measurements before diving into software issues.
What the 1768-L45 CompactLogix Controller Brings to Complex Applications
The 1768-L45 CompactLogix controller operates in a different league than the MicroLogix series. Its processing power and memory capacity make it the right choice when applications grow beyond what smaller controllers can handle. High-speed data processing, extensive I/O requirements, and integrated motion control all fall within its capabilities.
The processor inside the 1768-L45 executes complex control algorithms without breaking a sweat. Generous memory supports large programs and substantial data tables, enabling sophisticated control strategies and comprehensive data logging. Built-in EtherNet/IP provides fast communication with HMIs, SCADA systems, and other networked devices.
Motion control is where this CompactLogix controller really shines. Integrated motion on EtherNet/IP simplifies system architecture and tightens synchronization between axes. The 1768-L45 also scales well—adding I/O and communication modules expands capability as requirements evolve. In demanding applications, this controller consistently delivers improved efficiency and higher data throughput compared to smaller platforms.
Sourcing Genuine Parts and Managing Component Obsolescence
Operational continuity depends on access to authentic spare parts and smart planning for component end-of-life. Counterfeit or substandard parts cause failures that cost far more than the savings they promised. Genuine Allen Bradley components—including PLC Controller modules, DCS card pieces, ESD system card pieces, and Vibration Monitoring system card pieces—eliminate that risk.
Effective procurement starts with supplier verification. A global network of trusted sources provides access to both current production and legacy components. Many industrial systems run on older modules that manufacturers have discontinued. Identifying which parts face obsolescence allows time to plan migrations or stockpile spares.
Navigating these challenges requires expertise in both the technical and supply chain aspects of industrial automation. System upgrades and migrations need careful planning to minimize disruption. The goal is keeping operations robust and efficient through genuine parts and strategic support.
What is the difference between MicroLogix 1762 and 1764 series?
The MicroLogix 1762 (MicroLogix 1200) and 1764 (MicroLogix 1500) series differ primarily in processing power, memory capacity, and I/O expansion capabilities. The 1764 series offers a more powerful processor and significantly more memory, supporting larger programs and more complex applications. It also allows for greater I/O expansion, making it suitable for larger control systems compared to the more compact 1762 series.
Integration Practices That Extend System Life
Getting the most from Allen Bradley PLC systems requires attention to network design, power quality, and environmental conditions. These factors determine whether components like the 1762-IQ16 and 1768-L45 deliver years of reliable service or become maintenance headaches.
Network design deserves careful thought. EtherNet/IP offers speed and flexibility, but proper IP addressing and network segmentation protect both security and performance. Power supply stability directly affects PLC operation—adequate sizing and surge protection guard against electrical disturbances that can damage sensitive electronics.
Temperature, humidity, and vibration all take their toll on hardware over time. Controlled environments or appropriate enclosures protect components from harsh conditions. Proper grounding and shielding practices keep electromagnetic interference from corrupting signals. Following these practices reduces troubleshooting time and extends the useful life of your automation infrastructure.
How do I integrate a 1762-IQ16 digital input module into an existing PLC system?
To integrate a 1762-IQ16 digital input module: 1. Power down the existing PLC system. 2. Mount the 1762-IQ16 module onto the DIN rail next to the MicroLogix controller. 3. Wire the field devices to the module’s input terminals, ensuring correct sinking/sourcing configuration. 4. Connect the 24V DC power supply to the module. 5. Configure the input addresses in RSLogix 500 software. 6. Download the updated program to the PLC. 7. Test all inputs to confirm proper functionality before re-energizing the system.
Partner with Joyoung International: Your Trusted Source for Industrial Automation
Navigating the complexities of industrial automation requires reliable partners and genuine components. At Joyoung International Trading Co., Limited, we specialize in providing high-quality PLC System modules, DCS (Distributed Control System) card pieces, ESD system card pieces, and TSI System systems. With our extensive global network and expertise in Allen Bradley MicroLogix and CompactLogix components like the 1762-IQ16 and 1768-L45, we ensure your operations run smoothly and efficiently. Contact us today for expert consultation, competitive pricing, and unparalleled support for your critical industrial spare parts needs. Let us help you maintain peak performance and extend the life of your automation infrastructure. Email: chen@htechplc.com | Phone: +86-181-5013-7565
Frequently Asked Questions About Allen Bradley MicroLogix & CompactLogix
Where can I find reliable suppliers for Allen Bradley 1768-L45 spare parts?
Sourcing genuine 1768-L45 CompactLogix spare parts requires working with suppliers who can verify authenticity. Joyoung International Trading Co., Limited maintains a global network specifically for industrial automation components, including both current and hard-to-find Allen Bradley modules. Authenticity and compatibility verification are standard parts of the procurement process.
What are the common troubleshooting steps for a 1762-IQ16 digital input module?
Start with the basics when troubleshooting a 1762-IQ16 Digital Input Module. Check wiring integrity first, then verify power supply voltage and individual input signal levels. Review the software configuration in RSLogix to confirm address mapping. Module status indicators often point toward specific problems—the MicroLogix user manual explains what each indicator means. Grounding and shielding issues can cause intermittent faults that are harder to track down.
How does the 1768-L45 CompactLogix controller enhance system performance in industrial applications?
The 1768-L45 CompactLogix controller improves performance through its processing capacity, memory depth, and integrated EtherNet/IP Communication Module capability. Complex programs run smoothly, data logging scales to meet demanding requirements, and motion control integrates directly into the platform. The scalable architecture means the system can grow as application needs expand, making it a solid foundation for long-term automation investments in any Allen Bradley PLC system.
