Working with Allen Bradley SLC 500 systems means dealing with hardware that has proven itself over decades of industrial use. The 1746-IB16 input module and 1746-N2 output module remain workhorses in countless facilities, handling discrete I/O tasks with the kind of reliability that makes engineers reluctant to replace them. Getting these modules configured correctly and knowing how to diagnose problems when they arise can save significant downtime. This guide covers the practical details—specifications, wiring procedures, and troubleshooting approaches—that keep SLC 500 installations running smoothly.

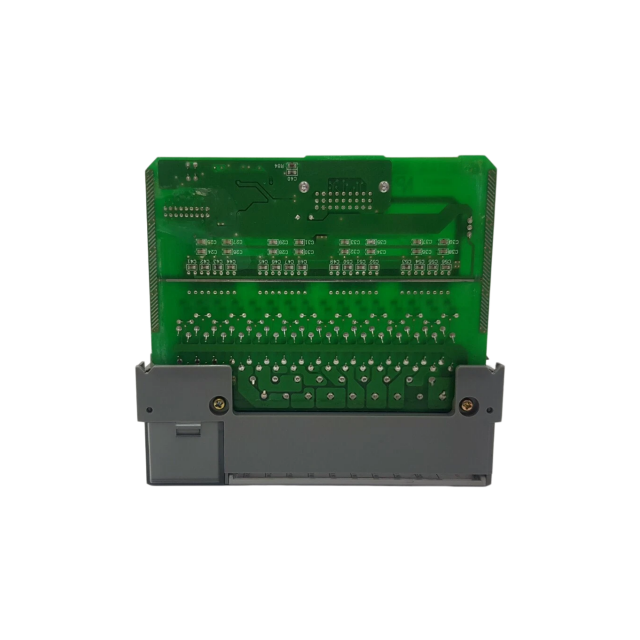

How the Allen Bradley 1746-IB16 Input Module Works
The 1746-IB16 functions as a 16-point, 24V DC sink/source digital input module designed for the SLC 500 platform. Field devices send discrete signals to this module, which converts them into digital data the PLC processor can interpret. Limit switches, proximity sensors, and pushbuttons all connect through modules like this one. The module bridges the gap between physical process conditions and the control logic that responds to them.
Technical Specifications That Matter for the 1746-IB16
Several electrical characteristics determine how the 1746-IB16 performs in real applications. The input voltage range spans 10-30V DC, accommodating standard 24V DC field devices with some tolerance for voltage fluctuations. Each input point draws approximately 5mA nominal current. Response time runs about 8ms for both ON-to-OFF and OFF-to-ON transitions—fast enough for most discrete sensing applications but worth considering when dealing with high-speed counting or rapid state changes.
LED indicators on the module face show the status of each input point. This simple feature proves invaluable during commissioning and troubleshooting, letting technicians verify signal presence without connecting test equipment. The module accepts connections from most industrial sensors that output 24V DC signals.
Wiring the 1746-IB16 Correctly
Proper installation prevents the majority of input module problems. Follow this sequence when installing and wiring the 1746-IB16:
Remove power from the SLC 500 chassis completely before starting.
Slide the 1746-IB16 module into an available slot until the locking tabs engage.
Connect the 24V DC common to the module’s common terminal block position.
Route each field device signal wire to its designated input terminal.
Maintain proper grounding throughout the installation to reduce electrical noise pickup.
Double-check all terminations before restoring power.
Verify input status LEDs respond correctly to field device activation.

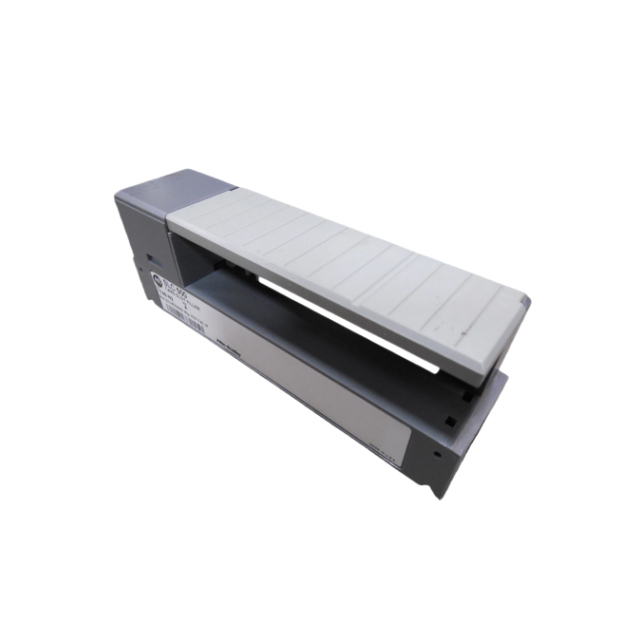

Understanding the Allen Bradley 1746-N2 DC Output Module
The 1746-N2 provides 16 points of 10-50V DC source output capability. Where the input module reads process conditions, this output module acts on them—energizing solenoids, pulling in contactors, and lighting indicator lamps based on PLC program commands. The wider voltage range compared to the input module reflects the variety of output devices found in industrial settings.
What the 1746-N2 Specifications Mean in Practice
The 1746-N2 operates across a 10-50V DC output voltage range. Each output point handles up to 0.5A continuous current, which covers most small solenoids and indicator loads but requires attention when driving larger contactors or multiple parallel loads. Individual output points include short-circuit protection, preventing a single faulted load from affecting other outputs on the module.
Both resistive and inductive loads work with this module, though inductive loads like solenoid coils benefit from external surge suppression. The protection built into the module helps, but adding suppression diodes or RC snubbers at the load extends module life and reduces electrical noise.
Getting 1746-N2 Wiring Right
Output module wiring carries more current than input wiring, making connection quality more critical. These steps help ensure reliable operation:
Isolate all power sources before beginning any wiring work.
Connect the DC power supply positive and negative to the module’s power terminals.
Wire each output device between its output terminal and the common return path.
Select wire gauge based on actual current draw—undersized wire creates voltage drop and heat.
Install surge suppression across inductive loads to protect output transistors.
Verify polarity on all connections before energizing.
Test each output individually through the PLC program after completing wiring.
Making SLC 500 I/O Modules Work Together
Getting input and output modules communicating properly with the processor requires attention to both hardware configuration and software setup. RSLogix 500 handles the programming side, but the physical installation must be correct first. For additional context on different I/O module types, 《Industrial I O Module Types Digital Analog Communication Explained》 covers the broader landscape.
Diagnosing 1746-IB16 Input Problems
When an input point stops responding correctly, systematic checking identifies the cause faster than random troubleshooting. Start by observing the module’s LED indicators—a lit LED with no program response points toward software or processor issues, while a dark LED despite field device activation suggests wiring or device problems.
Use a multimeter to verify voltage at the input terminals. Readings below 10V DC may not register as a valid ON state. Check the field device itself by measuring its output voltage directly. Wiring continuity testing catches broken conductors or loose terminations. If multiple inputs fail simultaneously, suspect the common connection or the module itself.
Diagnosing 1746-N2 Output Problems
Output module troubleshooting follows a similar logical progression:
Note which status indicators show faults or unexpected states.
Measure the DC supply voltage at the module terminals—low voltage affects all outputs.
Check voltage at individual output terminals while the program commands them ON.
Trace wiring from the module to the load, looking for opens or shorts.
Disconnect the load and test it separately to confirm it functions.
Review the RSLogix 500 program to verify output addresses and logic.
If all external factors check out, the module may need replacement.
The SLC 500 platform has been around long enough that finding replacement parts requires knowing where to look. Many facilities continue running these systems because they work well for their applications and replacement would mean significant engineering effort. Having spare modules on hand prevents extended downtime when failures occur.
Planning ahead helps too. Understanding which modules see the heaviest use or operate in the harshest conditions lets maintenance teams stock the right spares. Some operations eventually migrate to newer platforms, but that transition works best when planned rather than forced by hardware failure.
Current Module
Potential Upgrade
What Changes
SLC 500 (1746-IB16)
CompactLogix
Faster processing, Ethernet connectivity
SLC 500 (1746-N2)
CompactLogix
Better diagnostics, more programming flexibility
Legacy I/O
Distributed I/O
Less field wiring, easier expansion
Joyoung International: Industrial Automation Parts Supply
Joyoung International Trading Co., Limited focuses on industrial automation spare parts, maintaining inventory across PLC modules, DCS cards, and ESD system components. The product range supports vibration monitoring systems, steam turbine controls, and similar critical equipment. Relationships with maintenance service providers worldwide help ensure part authenticity and proper performance.
Keeping legacy control systems operational requires reliable parts sources and technical knowledge. Joyoung International Trading Co., Limited provides both for Allen Bradley SLC 500 modules and related industrial automation equipment. Contact chen@htechplc.com or +86-181-5013-7565 for spare parts and technical consultation on PLC, DCS, ESD, and specialized control systems.
Frequently Asked Questions About SLC 500 Modules
Where can I source replacement modules for Allen Bradley SLC 500 systems?
Finding replacement modules for SLC 500 systems requires suppliers who maintain inventory of legacy industrial automation parts. Joyoung International Trading Co., Limited stocks 1746-IB16, 1746-N2, and other SLC 500 modules, working with global maintenance networks to verify part authenticity. This matters because counterfeit or refurbished modules without proper testing can cause unexpected failures.
Does Rockwell Automation still support the 1746-IB16 and 1746-N2 modules?
The SLC 500 platform has moved into legacy status, which limits direct manufacturer support. Rockwell Automation maintains some documentation and may offer limited assistance, but active development and full technical support have shifted to newer platforms. Specialized suppliers fill this gap by providing parts and practical support for facilities that continue operating SLC 500 systems.
What applications typically use the 1746-IB16 and 1746-N2 modules?
The 1746-IB16 digital input module monitors discrete field devices—limit switches indicating machine positions, pushbuttons for operator input, proximity sensors detecting part presence. The 1746-N2 DC output module controls discrete loads like solenoid valves, motor starter contactors, and status indicator lights. Together these modules handle the basic discrete I/O needs found in CNC machinery, packaging equipment, material handling systems, and process control applications across manufacturing, oil and gas, and similar industries.
